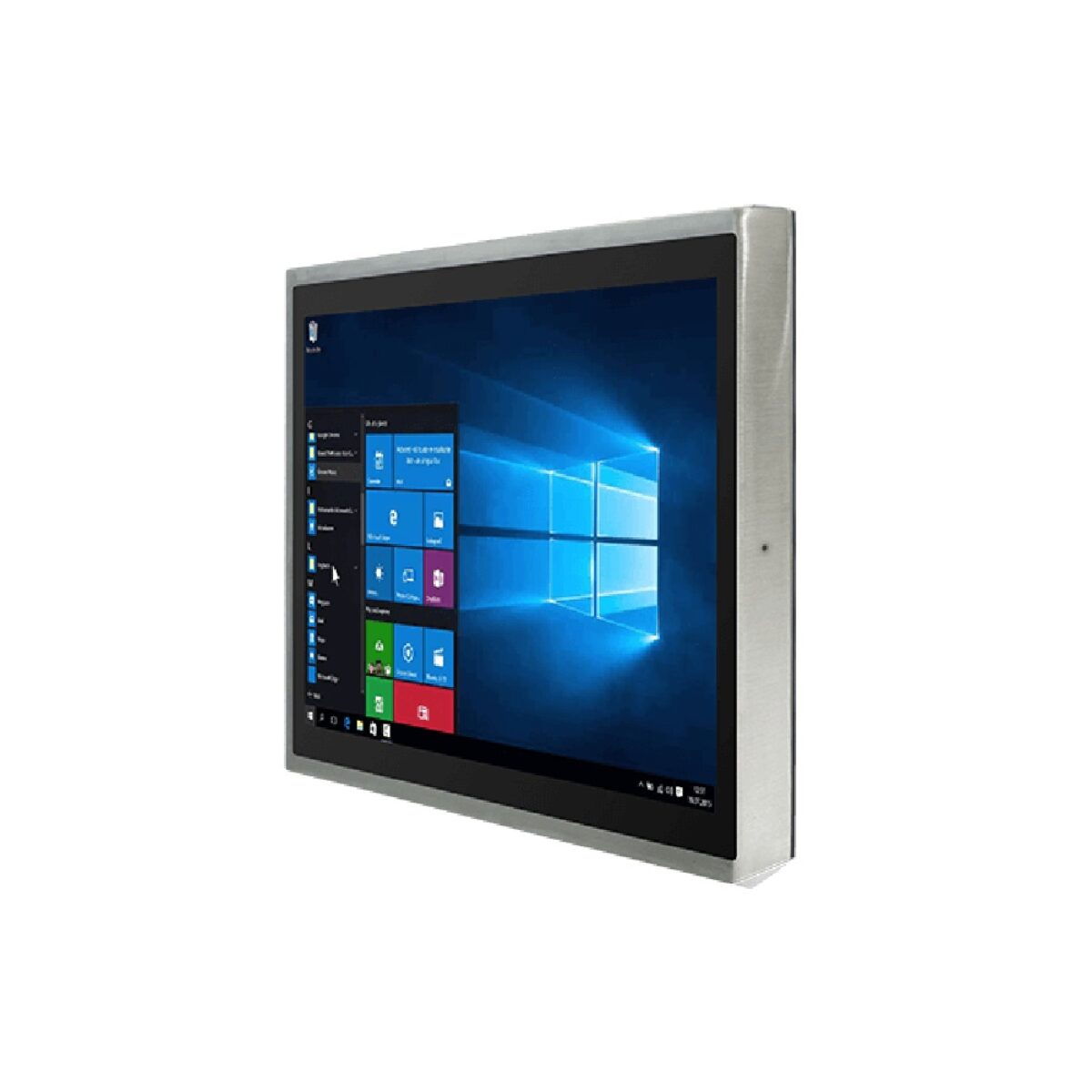

Winmate R17IT3S-SPM169 17″ IP69K Stainless Steel Panel PC with Intel Core i5-1135G7 and 1280 x 1024 PCAP

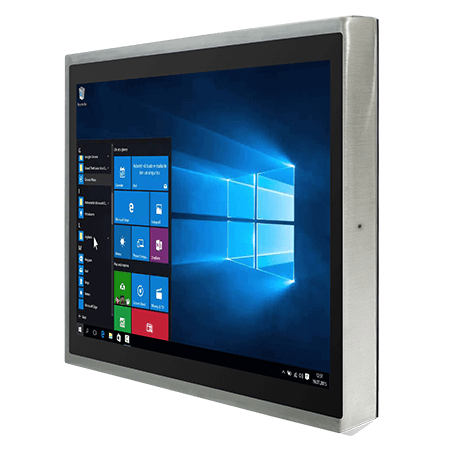

Larger process screens are common on food and chemical lines, where one HMI shows several stations at once, and every part of the unit still has to survive hot, high-pressure washdown. The R17IT3S-SPM169 is Winmate’s 17 inch stainless panel PC for that job, built in SUS 316 / AISI 316 stainless steel and sealed to IP69K, with waterproof ports and adapter cables for external connectivity.

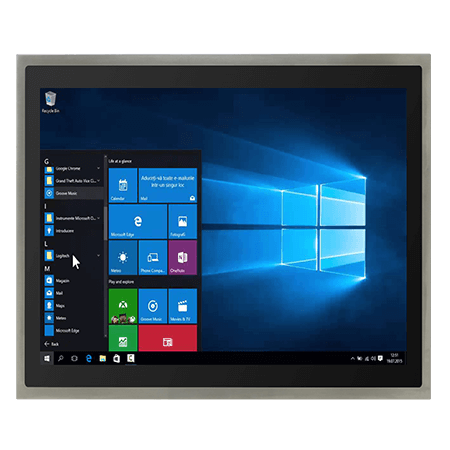

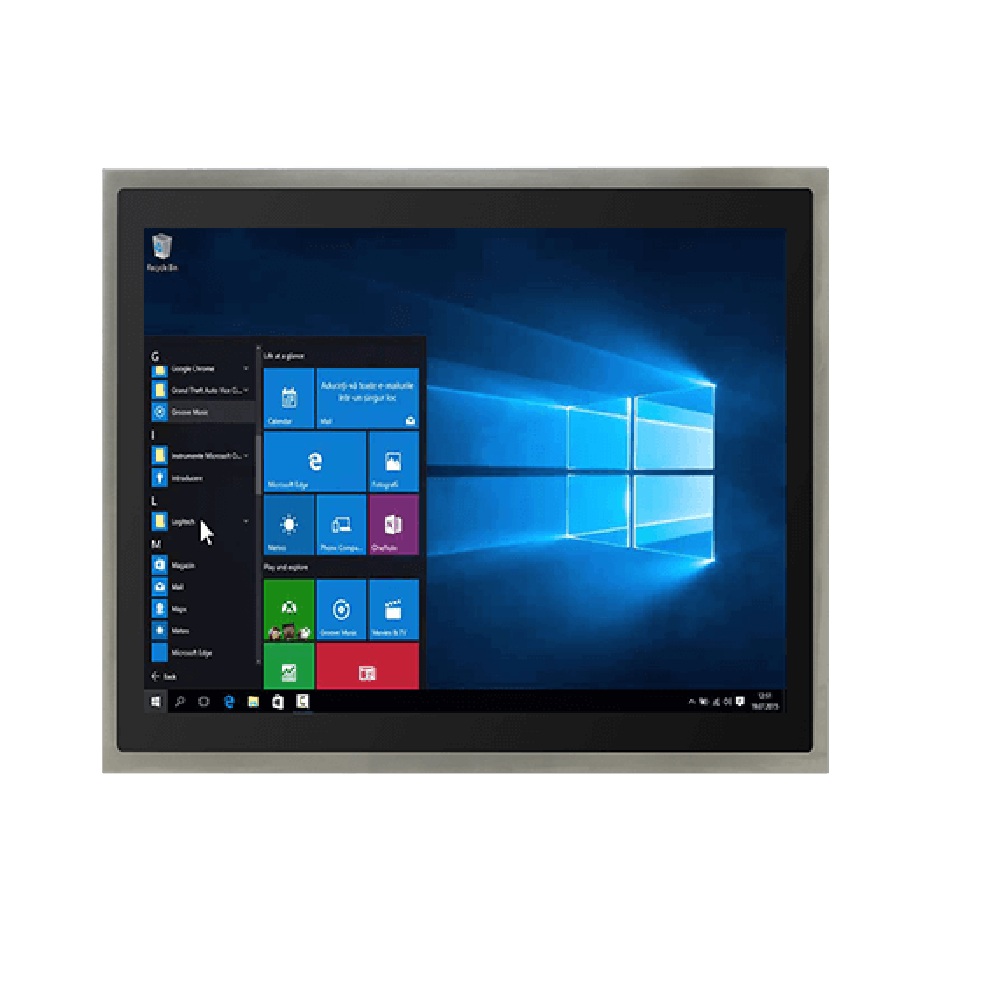

The display is a 350 nit 1280 x 1024 SXGA panel with 1000:1 contrast and 170 by 160 degree viewing angles, under projected capacitive multi-touch that supports glove and rain modes; optical bonding is an option. The Intel Core i5-1135G7 runs at up to 4.2 GHz with an i5-1145G7 as an option, one DDR4-3200 SO-DIMM with 4 GB as standard and options to 32 GB, and a 128 GB SSD on an M.2 2242 SATA or 2280 NVMe socket with options to 4 TB. TPM 2.0 is on board, with Windows 11 or 10 IoT Enterprise or Linux Ubuntu 22.04 available.

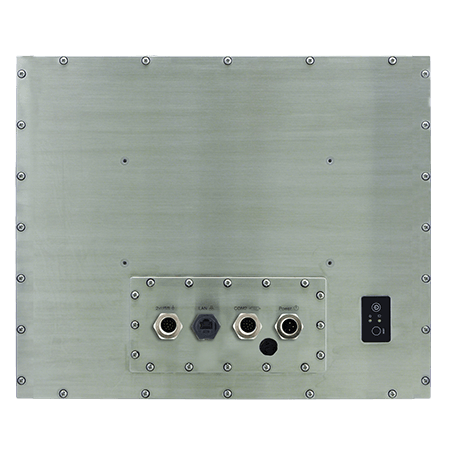

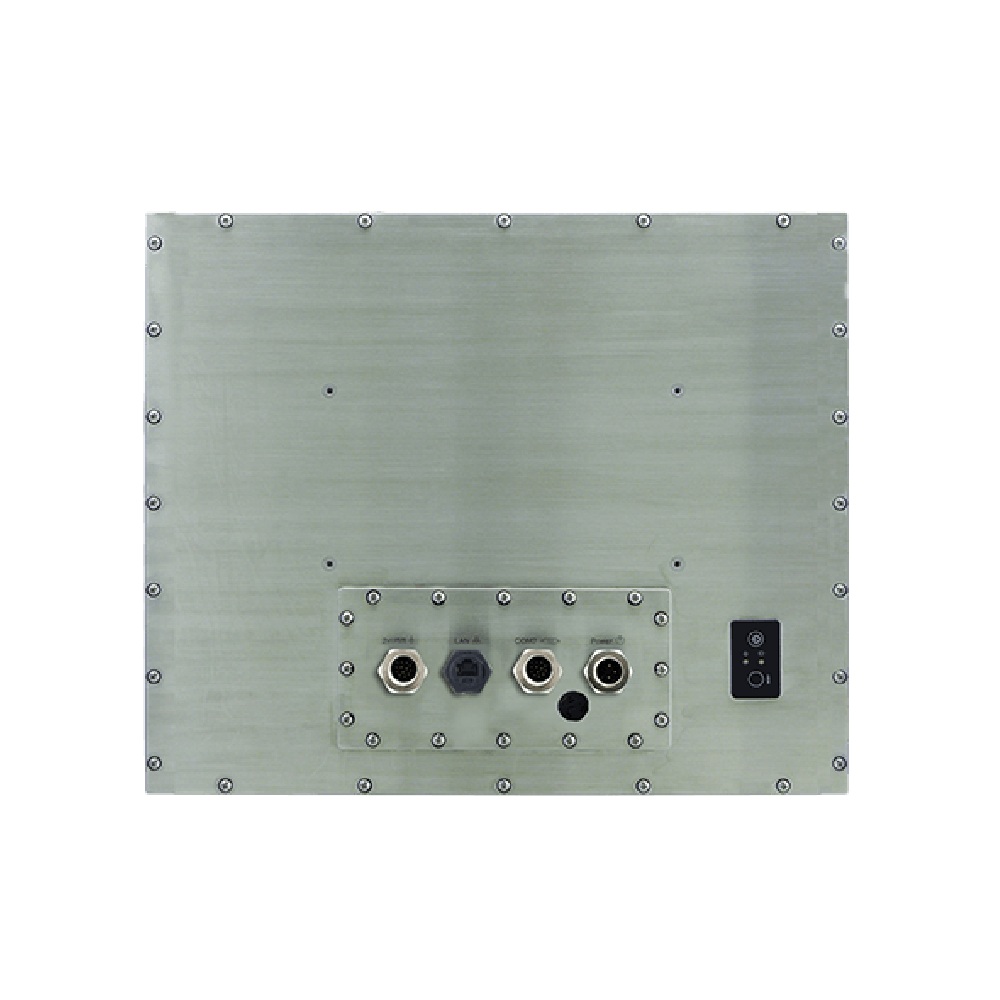

Connections are sealed: 12 V DC power, two USB 2.0 ports and one RS-232 port on M12 connectors, and one waterproof Gigabit LAN RJ45 connector, with external USB, COM and LAN cables, a waterproof power adapter and caps supplied. Wi-Fi and Bluetooth are optional. The R15IT3S-SPC369 is the 15 inch version of this design, and the R19IT3S-SPM169 is the 19 inch model in the same line.

The fanless design runs from 0 °C to 45 °C at 10 to 90% humidity, non-condensing, with an air vent valve on the rear. It measures 412 x 344 x 61.3 mm and mounts on 100 x 100 mm VESA or a yoke. It carries CE and FCC marks.
