Winmate R19IT3S-SPM169 19″ Stainless Steel IP69K Panel PC with Intel Core i5-1135G7 and PCAP Touch

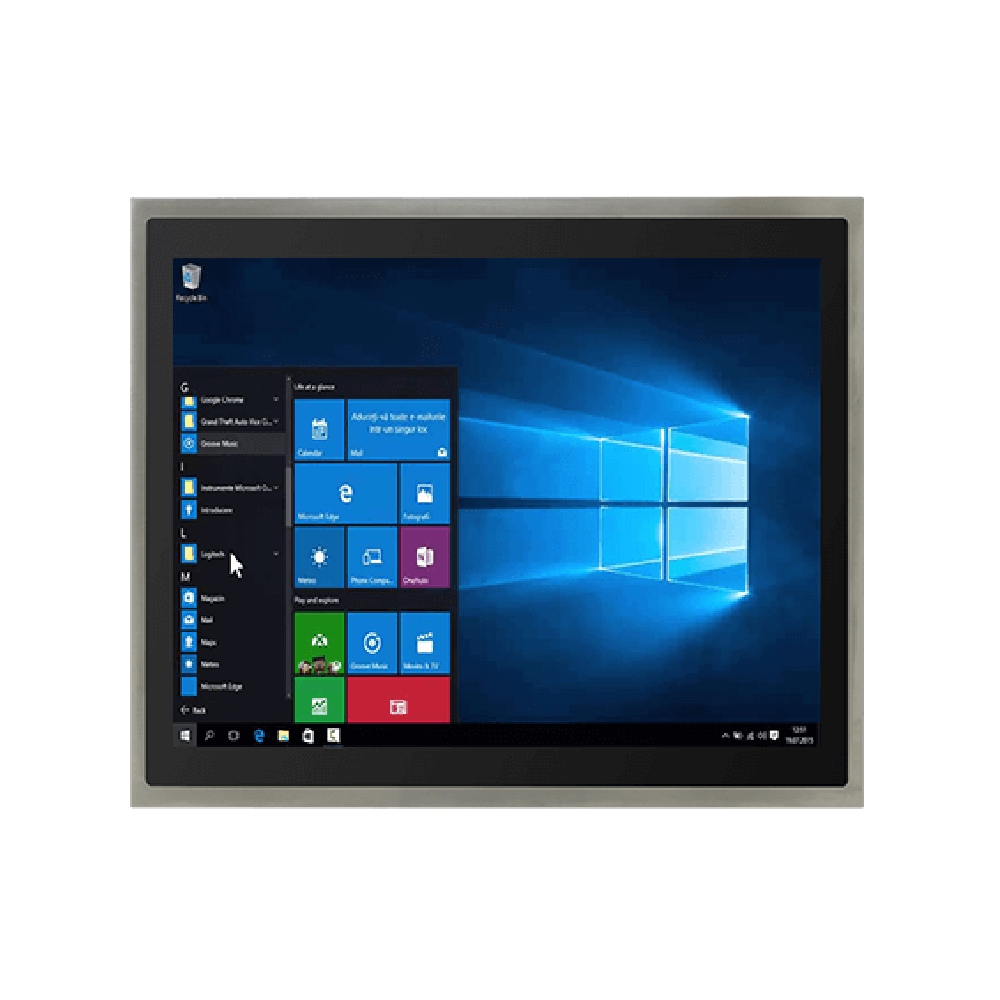

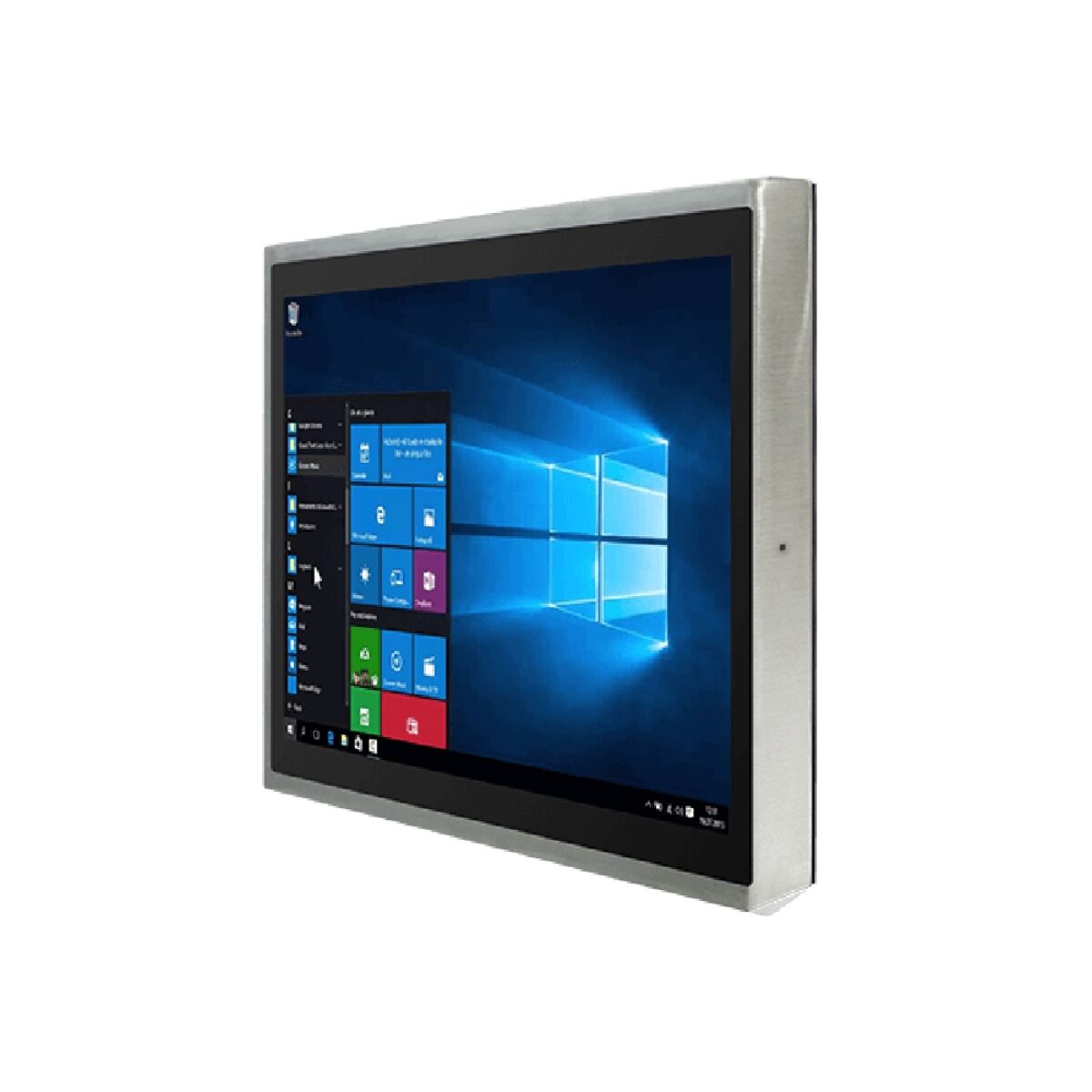

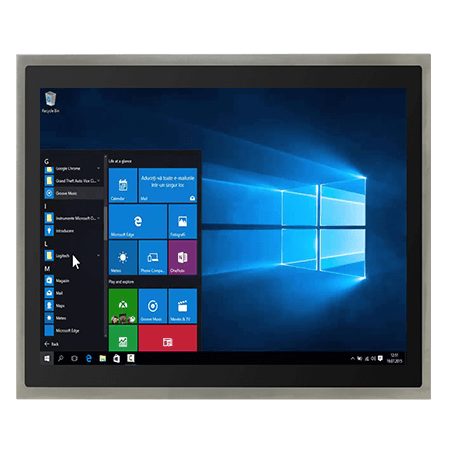

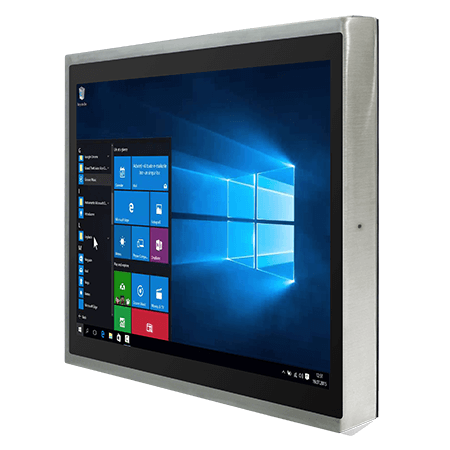

On a food, beverage or chemical line the HMI is hosed down with the machine, so the whole computer, not only the front, has to shed water and leave nothing for residue to collect on. The R19IT3S-SPM169 is Winmate’s 19 inch stainless steel panel PC: a fanless SUS 316 / AISI 316 enclosure sealed to IP69K, with a true flat, edge-to-edge front surface that is easy to clean.

It runs an Intel Core i5-1135G7 at 2.4 GHz up to 4.2 GHz, with the Intel Core i5-1145G7 as an option. One DDR4-3200 SO-DIMM holds 4 GB as standard with 8, 16 or 32 GB options, and storage is one M.2 slot for a 2242 SATA or 2280 NVMe SSD from 128 GB, with NVMe options to 4 TB and an optional SATA III drive up to 2 TB. The 1280 x 1024 screen is rated at 250 nits with a 1000:1 contrast ratio and 170° horizontal and 160° vertical viewing angles. Projected capacitive multi-touch has glove and rain modes so it keeps working with wet hands or through gloves, and optical bonding is an option. Windows 11 IoT Enterprise SAC, Windows 10 IoT Enterprise or Ubuntu 22.04 can be supplied.

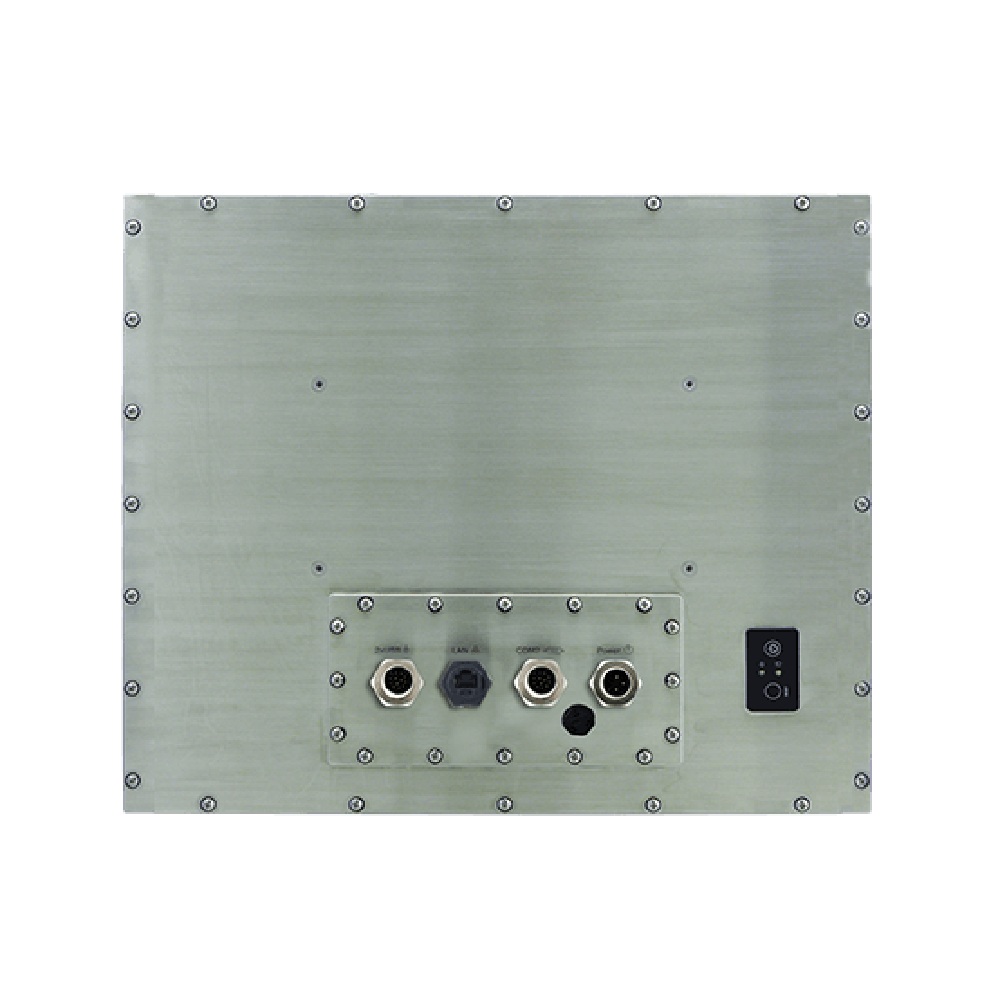

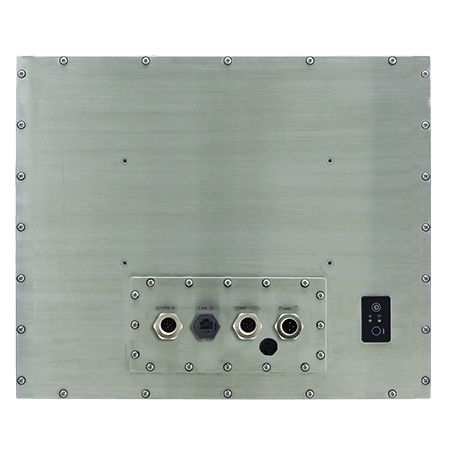

The sealed I/O is one waterproof Gigabit Ethernet RJ45 port, two USB 2.0 ports on one M12 connector and one RS-232 port on an M12 connector, with external USB, COM and LAN cables with waterproof connectors and waterproof caps supplied. Wi-Fi and Bluetooth are options, with antenna covers for the stainless housing, and TPM 2.0 is on board. The R19IT3S-SPM169-P1 is the P series version with a sealed conduit, two LAN ports and HDMI, and the W22IT3S-SPA369 is the 21.5 inch widescreen stainless model.

Power is 12 V DC on an M12 waterproof connector, with an AC adapter with waterproof connector supplied. The R19IT3S-SPM169 operates from 0 to 45 °C at 10 to 90% humidity non-condensing, stores from -20 to 60 °C and carries CE and FCC marks. It measures 468 x 395 x 57 mm and mounts on 100 x 100 mm VESA or a yoke.
