Yuan ARC6N0 AGX NVIDIA Jetson AGX Orin 64GB/32GB Carrier Board with 16 MIPI Lanes and IMU

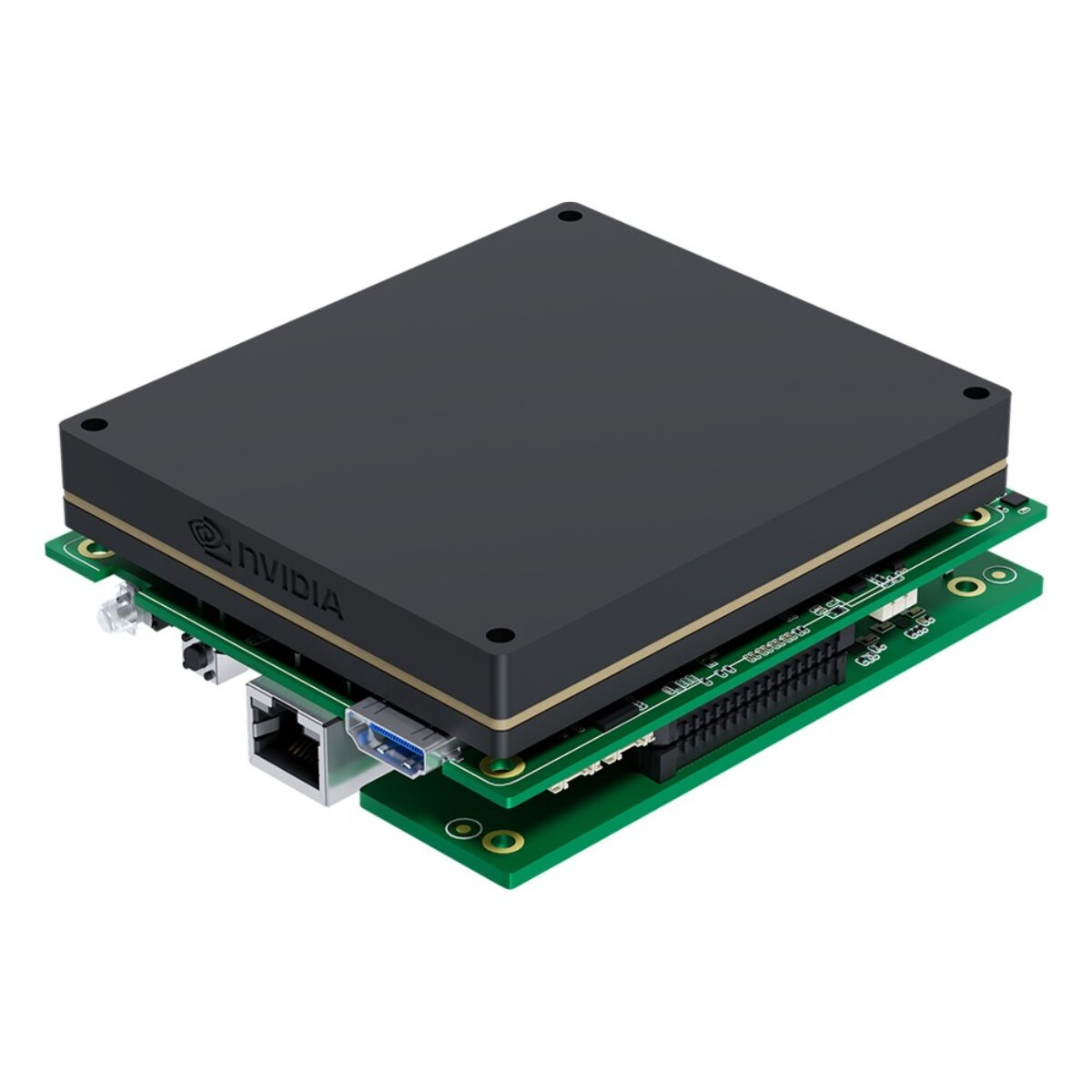

Projects that run several cameras into one AI model usually need both MIPI bandwidth and GPU headroom. The ARC6N0 AGX from Yuan is a Jetson carrier board stack for the NVIDIA Jetson AGX Orin 64GB or 32GB module, with a 6-axis IMU and magnetometer on board for equipment where motion and heading data are useful.

The AGX Orin 64GB gives up to 275 TOPS from a 12-core Cortex-A78AE CPU and a 2048-core Ampere GPU; the 32GB module gives 200 TOPS with eight cores and 1792 GPU cores. Sixteen MIPI CSI-2 lanes take MIPI cameras or capture cards in 4×4 and other layouts. The 64GB module can encode two 4K60 streams in AV1 or H.265. Display is one HDMI 2.0 output and networking is one GbE port, and the module adds 64GB eMMC.

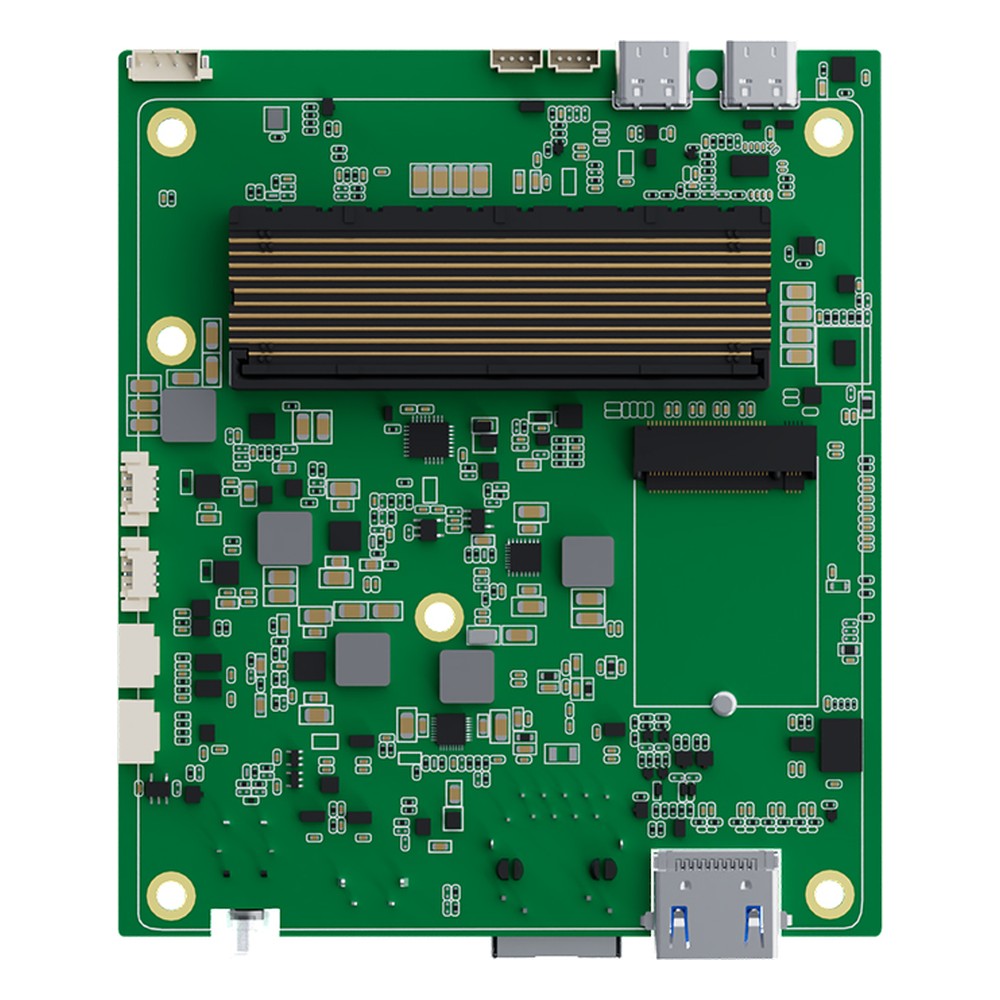

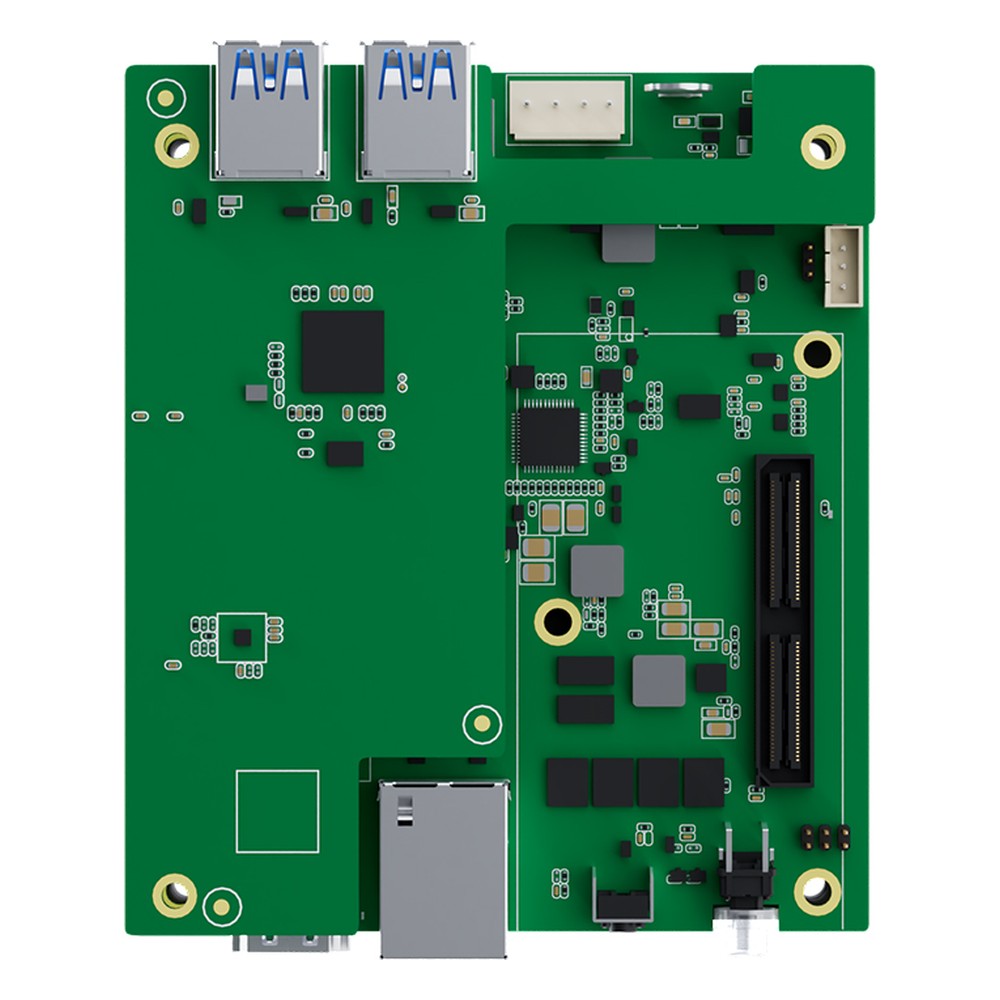

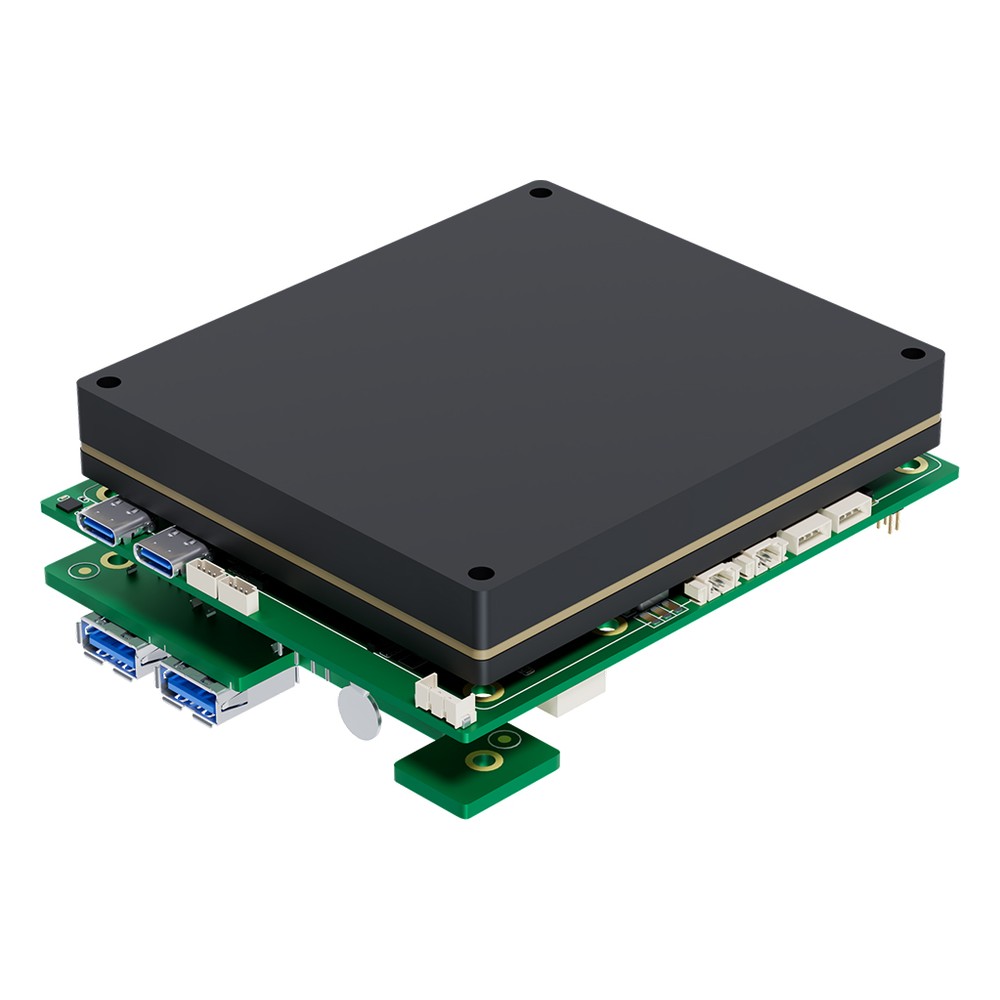

Two USB 3.2 Gen2 Type-C ports sit on the main board and two Type-A ports on the daughter board. M.2 E and M key slots, the latter at PCIe Gen4 x4, cover wireless and NVMe, while two UARTs, I2C, SPI, CAN and two PWM fan headers handle control. Power is 19 to 24V DC. If you need more USB, the ARC6N0 AGX-8USBC adds eight Type-C ports, a B key slot and audio; for Thor-class compute on a similar layout, see the ARC6N0 T5X.

The ARC6N0 AGX runs Ubuntu 20.04 with JetPack 5.1.1, operates from 0 to 60°C with airflow and can be stored from -20 to 80°C. We supply it as a complete tested system, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
