Yuan ARC6N0 AGX-8USBC NVIDIA Jetson AGX Orin Carrier Board with 8x USB-C, Dual CAN and RTK GNSS Option

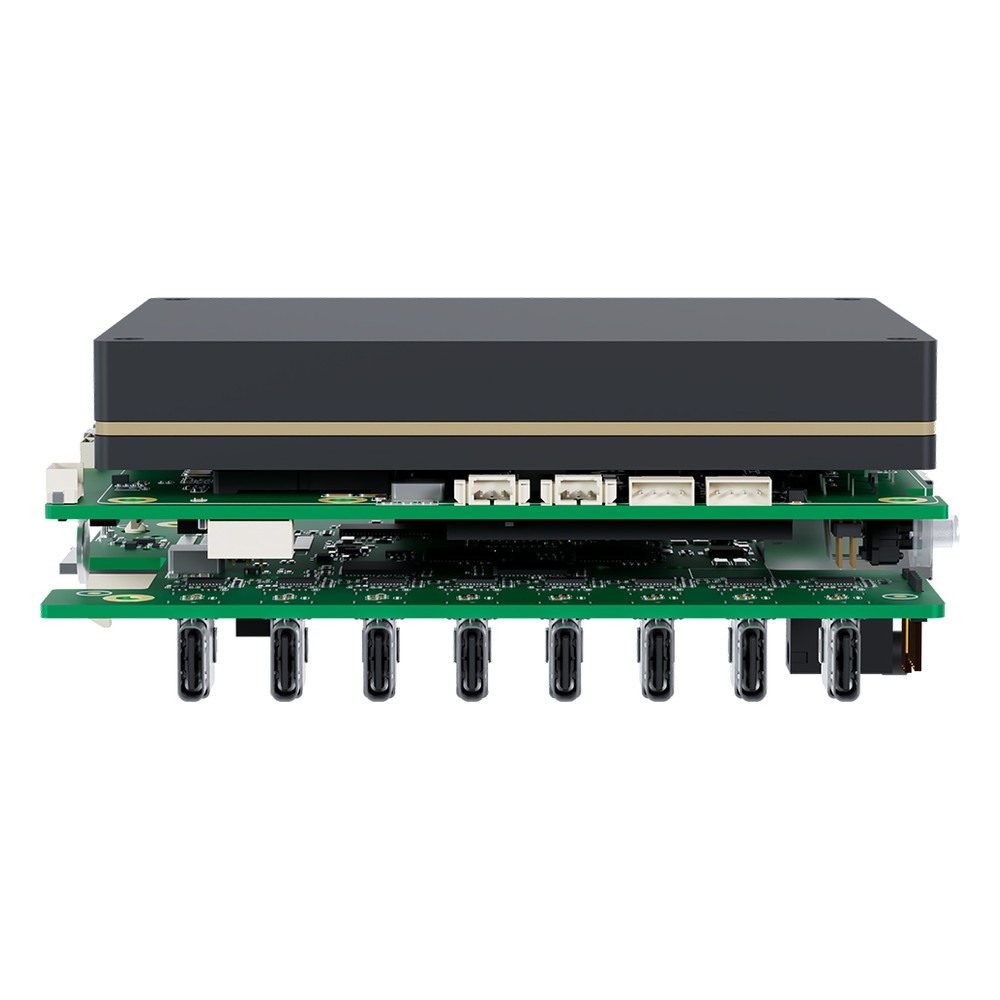

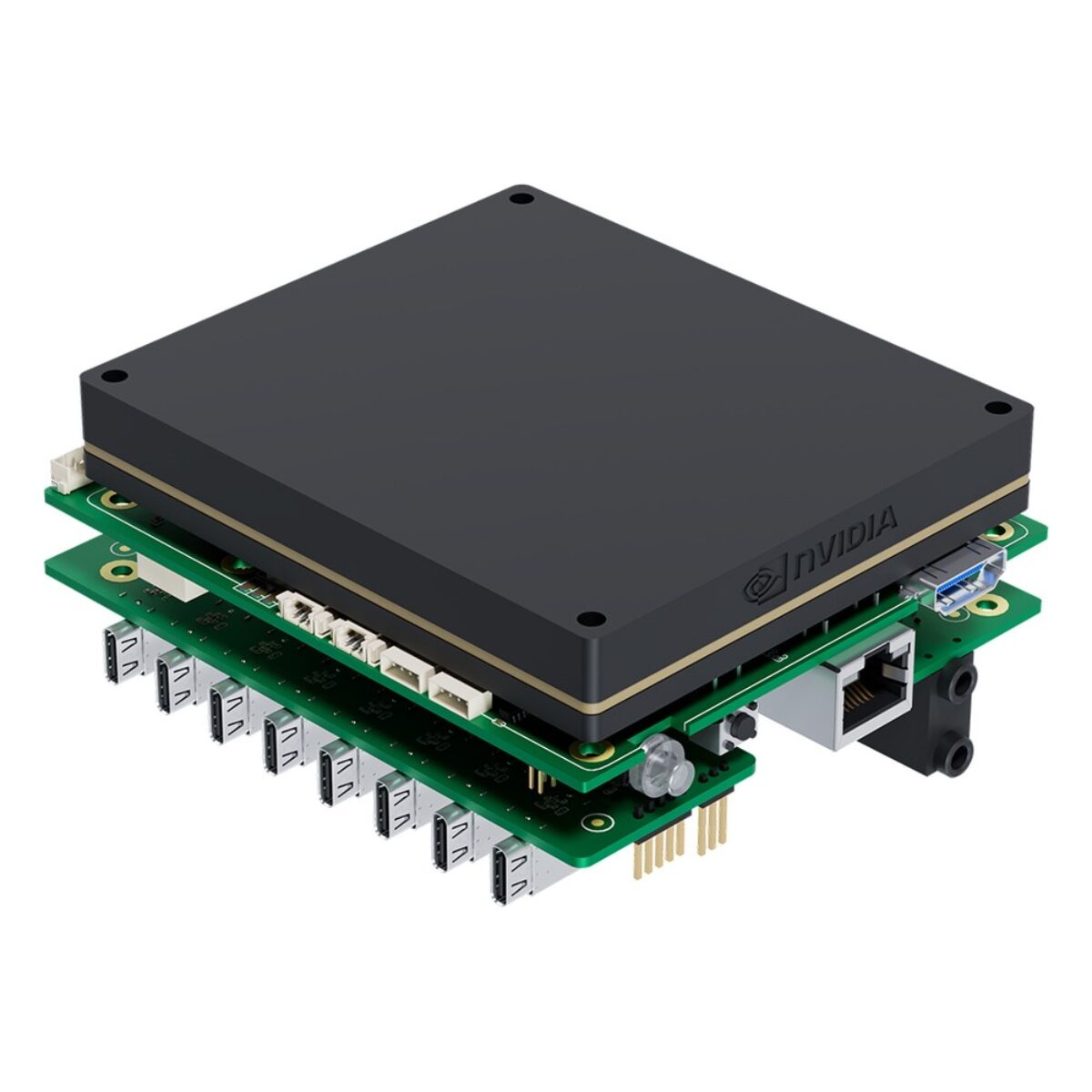

When an AGX Orin project connects a lot of USB hardware, such as cameras, depth sensors or radios, port count becomes the constraint. The ARC6N0 AGX-8USBC from Yuan is a Jetson carrier board for the NVIDIA Jetson AGX Orin 64GB or 32GB that answers it with a daughter board carrying eight USB 3.2 Gen2 Type-C ports, ten in total across the stack.

The AGX Orin 64GB gives up to 275 TOPS from a 12-core Cortex-A78AE CPU and a 2048-core Ampere GPU; the 32GB module gives 200 TOPS with eight cores. Sixteen MIPI CSI-2 lanes still take MIPI cameras or capture cards, display is one HDMI 2.0 output and networking is one GbE port. The 64GB module can encode two 4K60 streams in AV1 or H.265, and the daughter board adds line in and out.

Expansion covers M.2 E and M key slots on the main board plus a B key slot on the daughter board for cellular modules. The main board carries two CAN ports, four GPIO, two UARTs, I2C, SPI and two PWM fan headers, and a 6-axis IMU with magnetometer and an optional RTK GNSS connector cover motion and position. Power is 19 to 24V DC. The ARC6N0 AGX keeps the same main board with two Type-A ports instead, and the ARC6N0 T5X-8USBC offers the eight-port USB-C layout on Jetson Thor.

The ARC6N0 AGX-8USBC operates from 0 to 60°C with airflow and can be stored from -20 to 80°C. We supply it as a complete tested system, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
