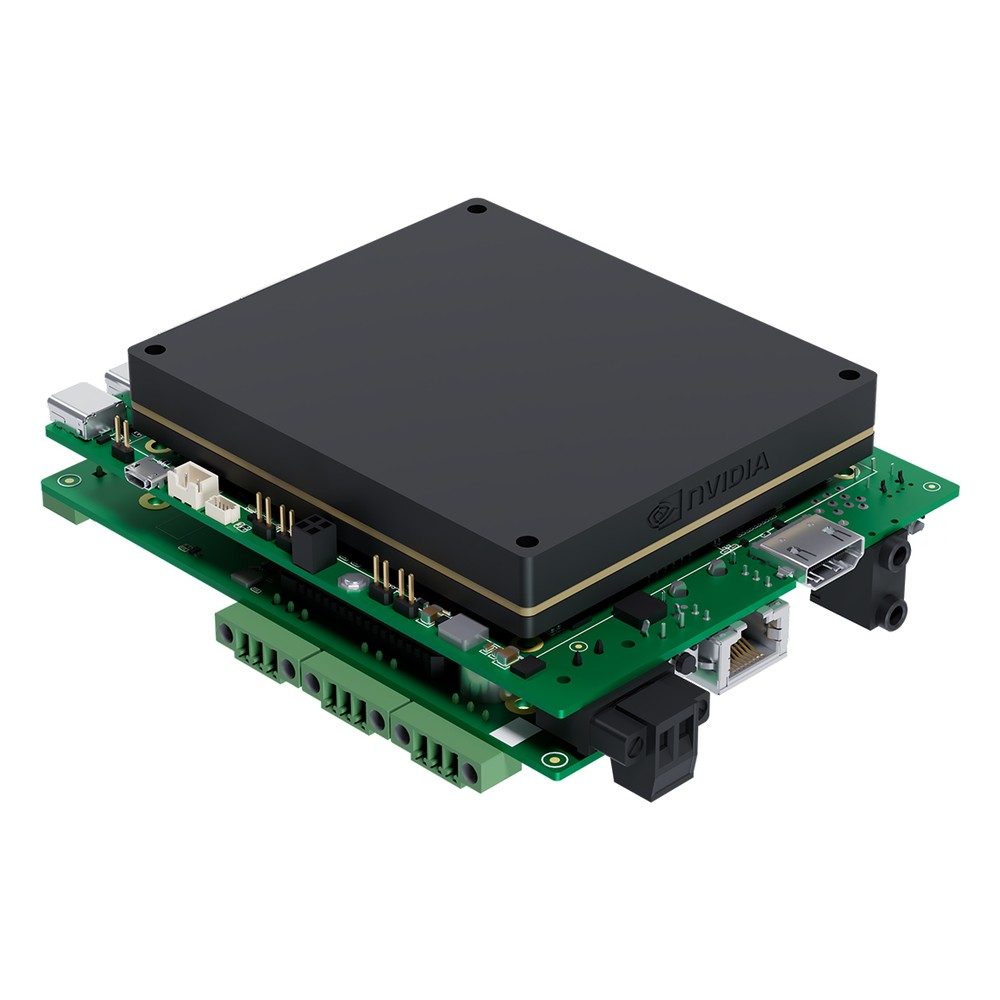

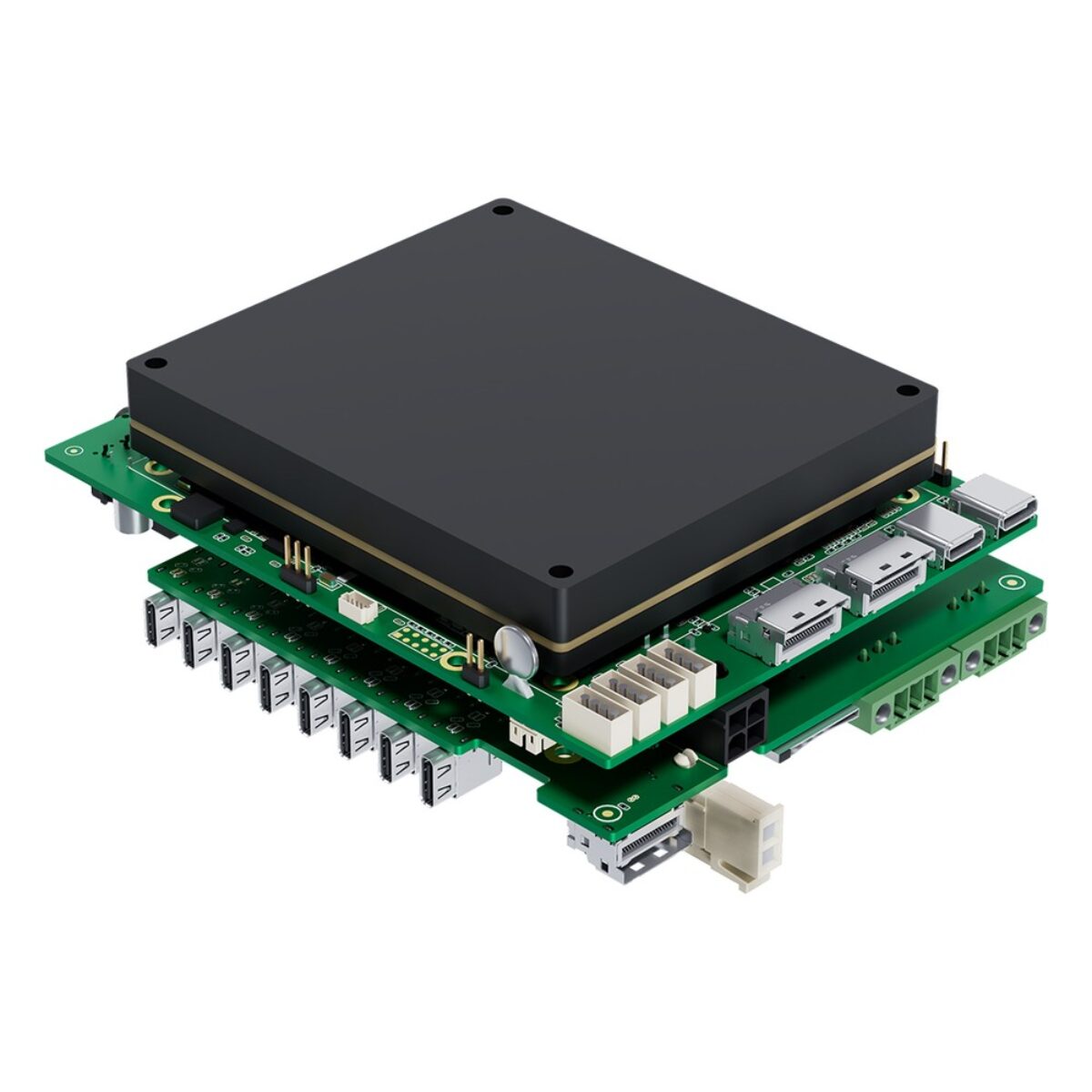

Yuan ARC6N0 T5X-8USBC NVIDIA Jetson Thor T5000/T4000 Carrier Board with 8x USB-C, 5GbE and IMU

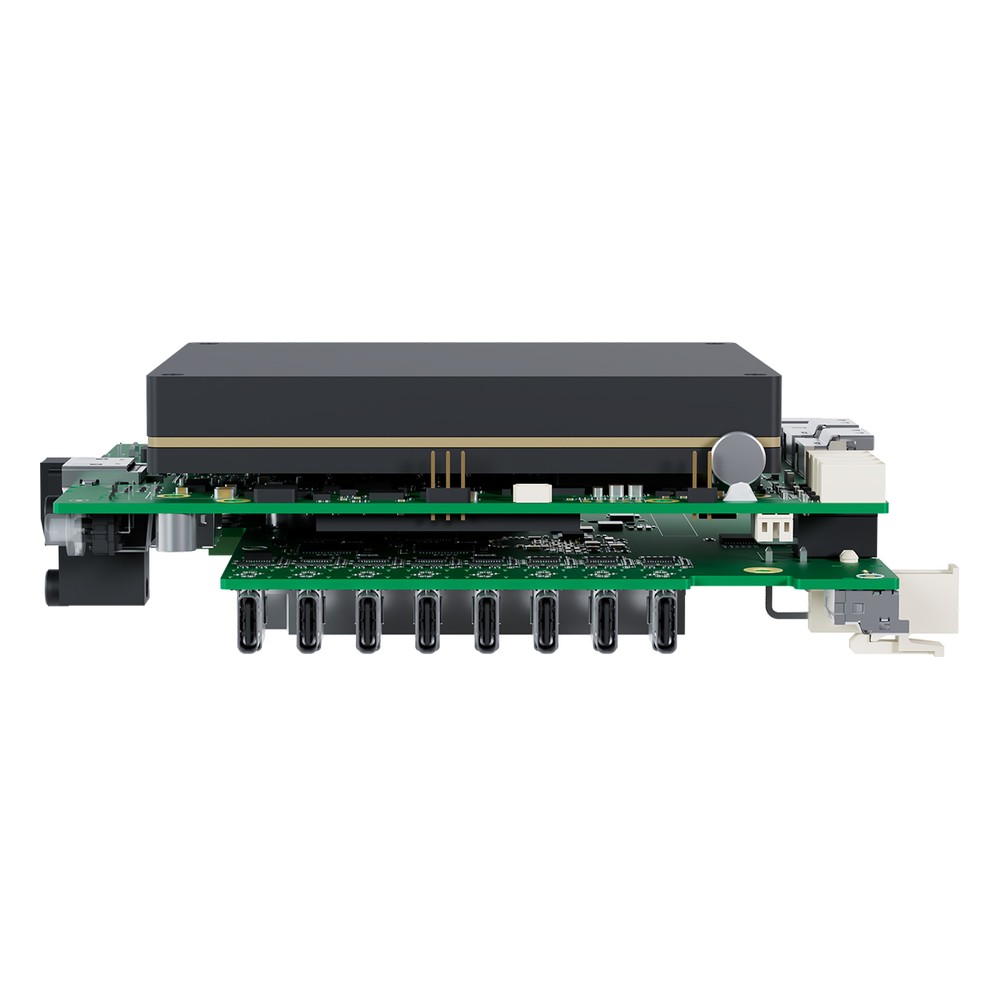

Some edge AI builds connect far more USB devices than MIPI cameras: USB cameras, depth sensors, radios and storage. The ARC6N0 T5X-8USBC from Yuan is a Jetson carrier board for that kind of project, built around the NVIDIA Jetson Thor T5000 or T4000 module with a daughter board that adds eight USB 3.2 Gen2 Type-C ports.

The T5000 gives up to 2070 FP4 TFLOPS from a 14-core Neoverse-V3AE CPU and a 2560-core Blackwell GPU with 128GB LPDDR5X; the T4000 gives 1200 FP4 TFLOPS with 64GB at the same 273 GB/s. Ten Type-C ports sit across the two boards, and 16 MIPI CSI-2 lanes still take MIPI cameras or capture cards. Display is one HDMI 2.0 port at 4K60, networking is one 5GbE port, and audio is line in and line out.

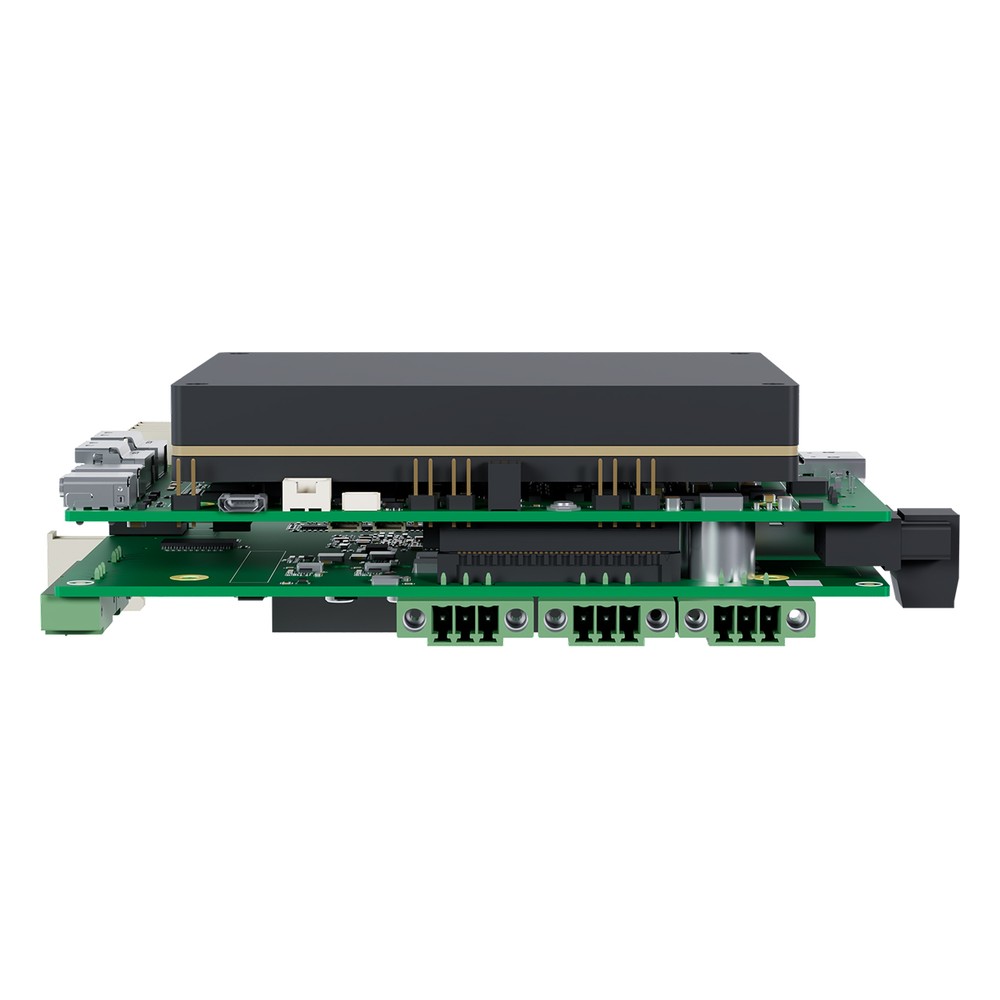

Expansion runs through M.2 E, M and B key slots, a nano SIM and one custom high-speed connector for up to four MGBE links on T5000 or three on T4000. T5000 builds add CAN bus, the daughter board carries two RS485 ports, and a 6-axis IMU with magnetometer and an optional RTK GNSS connector cover motion and position. If you need two custom expansion connectors instead, the ARC6N0 T5X keeps them with a five-port USB-C layout. For an enclosed Thor system with QSFP28, see the EDG6N0-S T5X.

The ARC6N0 T5X-8USBC runs Ubuntu 24.04 with L4T R38.4.0 and JetPack 7, takes 20 to 57V DC, operates from -20 to 45°C with airflow and carries CE and FCC marks. We supply it as a complete tested system, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
