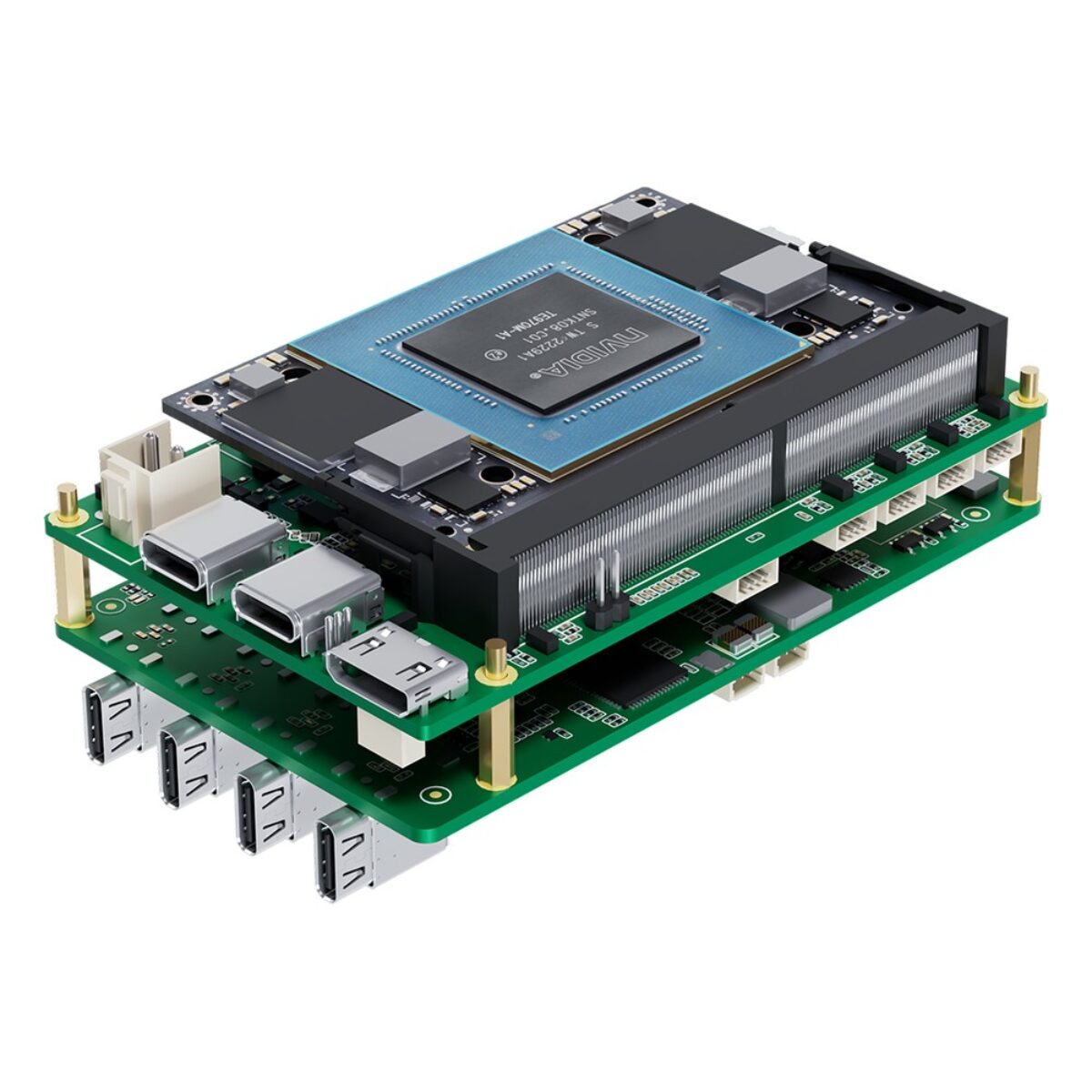

Yuan ARC6N0 NX-4USBC NVIDIA Jetson Orin NX Super Carrier Board with 4x USB-C, IMU and RTK GNSS Option

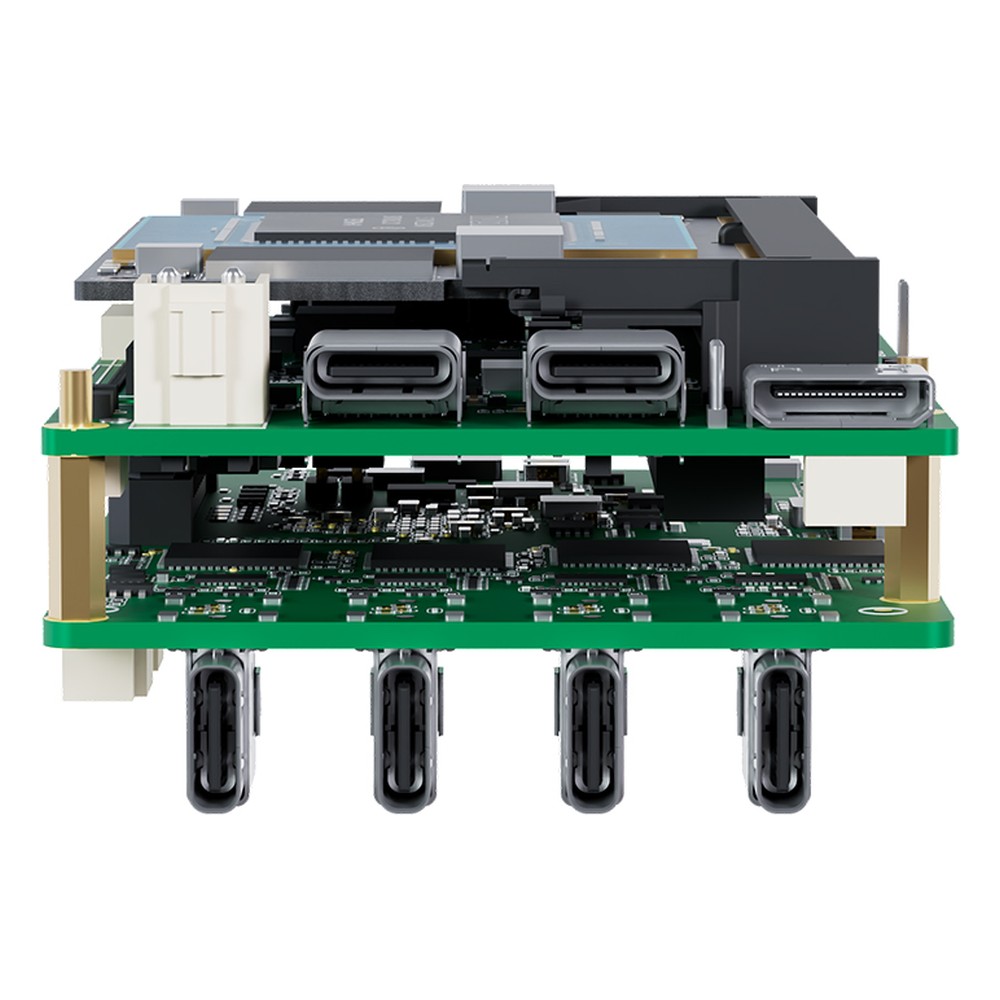

Some compact AI builds need more USB than MIPI, for example USB cameras, depth sensors or a GNSS receiver alongside the main camera. The ARC6N0 NX-4USBC from Yuan is a Jetson carrier board stack for the NVIDIA Jetson Orin NX 16GB or 8GB Super module, with a daughter board that adds four USB 3.2 Gen2 Type-C ports, six in total.

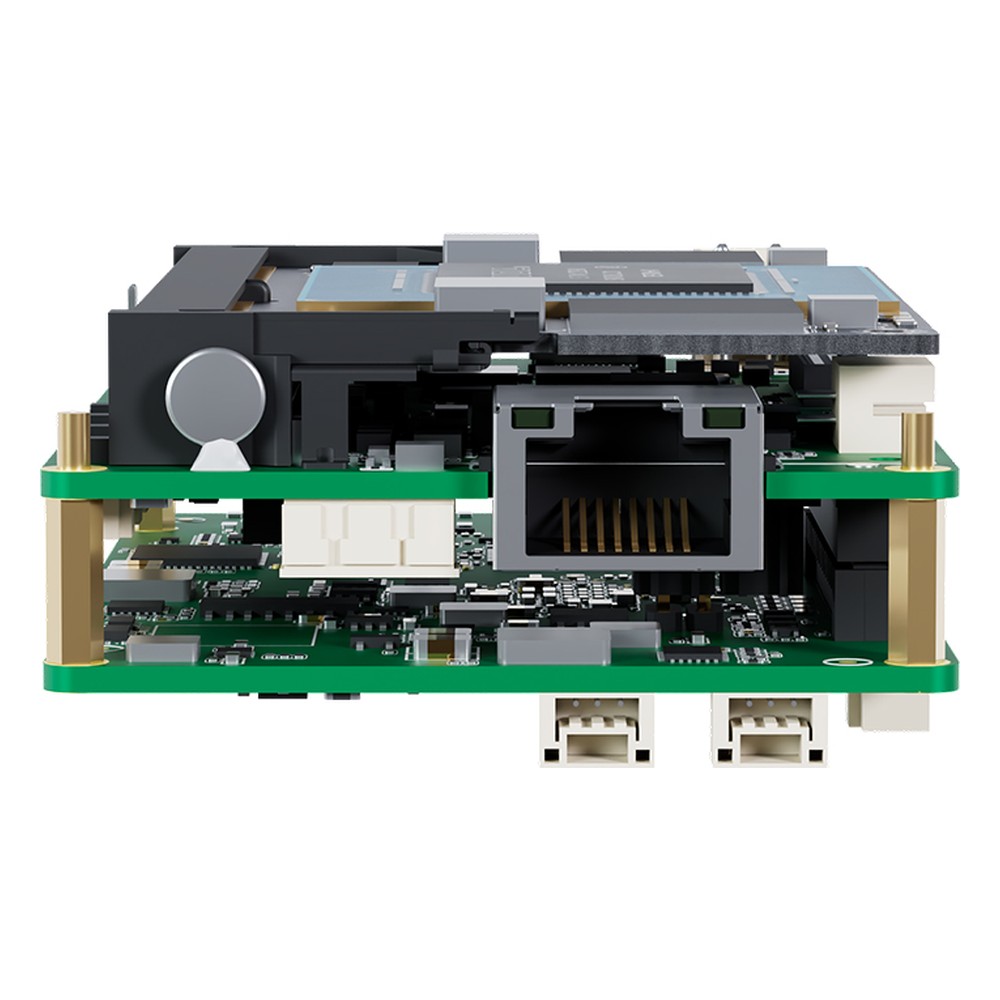

The Orin NX 16GB Super gives up to 157 TOPS from an eight-core Cortex-A78AE CPU and a 1024-core Ampere GPU; the 8GB Super gives 117 TOPS with six cores. Eight MIPI CSI-2 lanes take MIPI cameras or capture cards, and the module can encode one 4K60 stream in AV1 or H.265. Display is one Mini HDMI 2.0 output and networking is one GbE port. The daughter board adds line in or microphone and line out.

Expansion is one M.2 E key slot and one M key slot at PCIe Gen4 x2 for NVMe. The main board carries a CAN port, a PWM fan header and a 6-axis IMU, and UART, I2C and four GPIO are shared with the daughter board, which adds SPI, a magnetometer and an optional RTK GNSS connector. Power is 12 to 36V DC. If you need three CAN ports and four M.2 slots, the ARC6N0 NX uses a different daughter board, and the ARC6N0 AGX-8USBC takes the same USB-C idea to AGX Orin.

The ARC6N0 NX-4USBC operates from 0 to 60°C with airflow. We supply it as a complete tested system, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
