Yuan ARC6N0 NX NVIDIA Jetson Orin NX Super Carrier Board with Triple CAN, IMU and Heater Connector

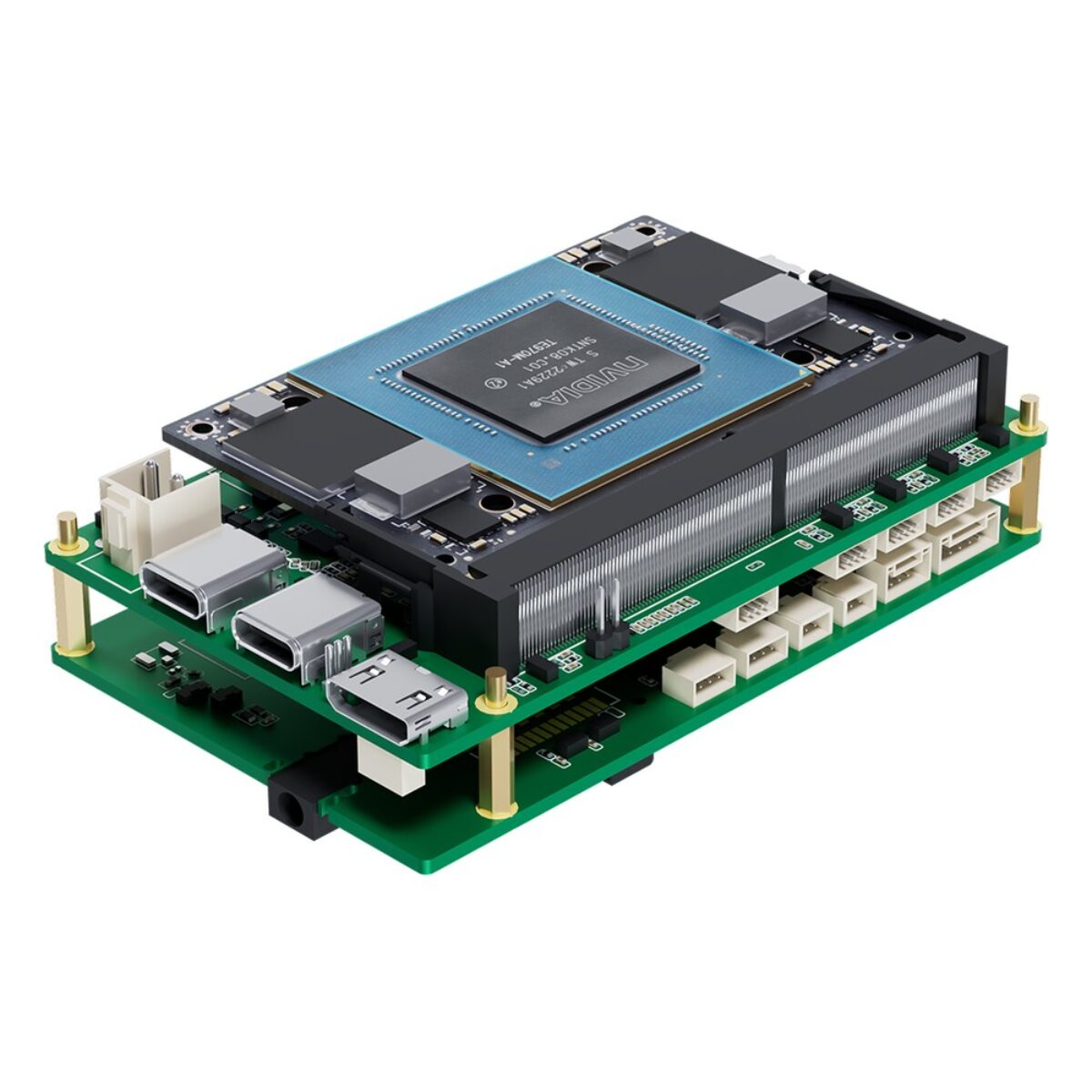

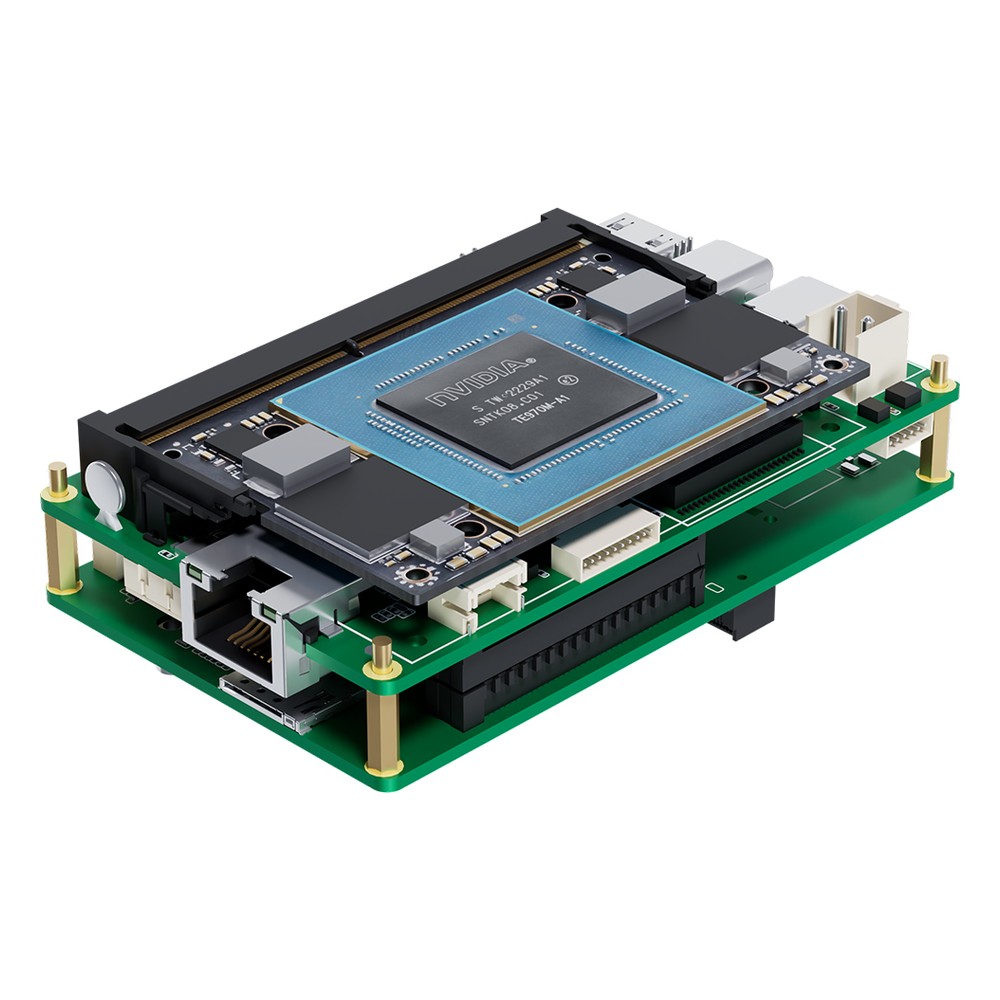

Small machines and vehicles often need an AI computer that speaks CAN, knows its orientation and fits where a box will not. The ARC6N0 NX from Yuan is a Jetson carrier board stack for the NVIDIA Jetson Orin NX 16GB or 8GB Super module, with a main board and daughter board sharing the I/O between them.

The Orin NX 16GB Super gives up to 157 TOPS from an eight-core Cortex-A78AE CPU and a 1024-core Ampere GPU; the 8GB Super gives 117 TOPS with six cores. Eight MIPI CSI-2 lanes take MIPI cameras or capture cards, and the module can encode one 4K60 stream in AV1 or H.265. Display is one Mini HDMI 2.0 output and networking is one GbE port. Audio is line in plus left and right speaker outputs.

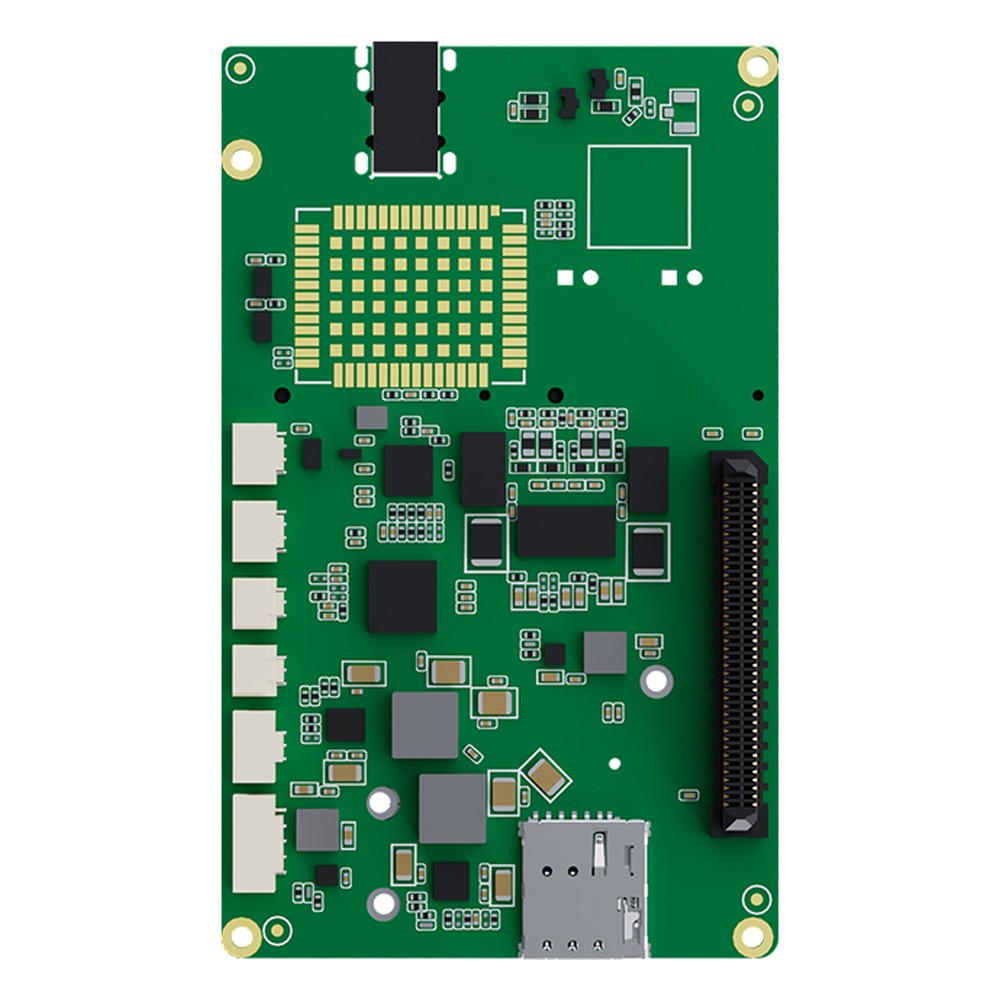

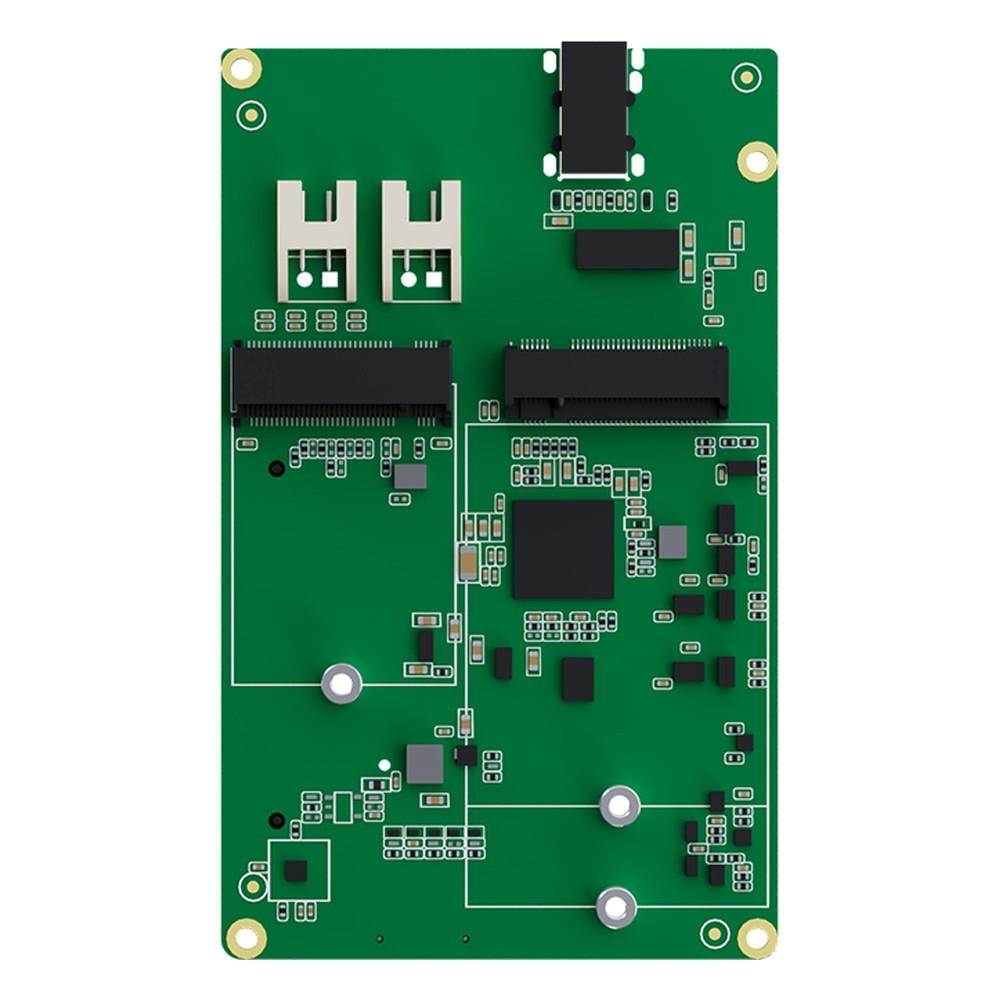

There are three CAN ports, one on the main board and two on the daughter board, plus four GPIO, SPI, UART and I2C. Storage and wireless use M.2 E and M key slots on the main board, a PCIe Gen4 x4 M key slot and a B key slot with nano SIM on the daughter board. USB is two USB 3.2 Gen2 Type-C ports and four USB 2.0 wafers. Power is 12 to 36V DC. The ARC6N0 NX-4USBC trades the extra slots for four more USB-C ports, and the ARC6N0 AGX steps up to AGX Orin with 16 MIPI lanes.

The ARC6N0 NX supports JetPack 6.2 and operates from 0 to 60°C with airflow. We supply it as a complete tested system, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
