Yuan EDG6N0-C-W ONX 4TVI DIO NVIDIA Jetson Orin NX/Nano Super Edge AI Computer with 4x TVI Camera Inputs and DIO

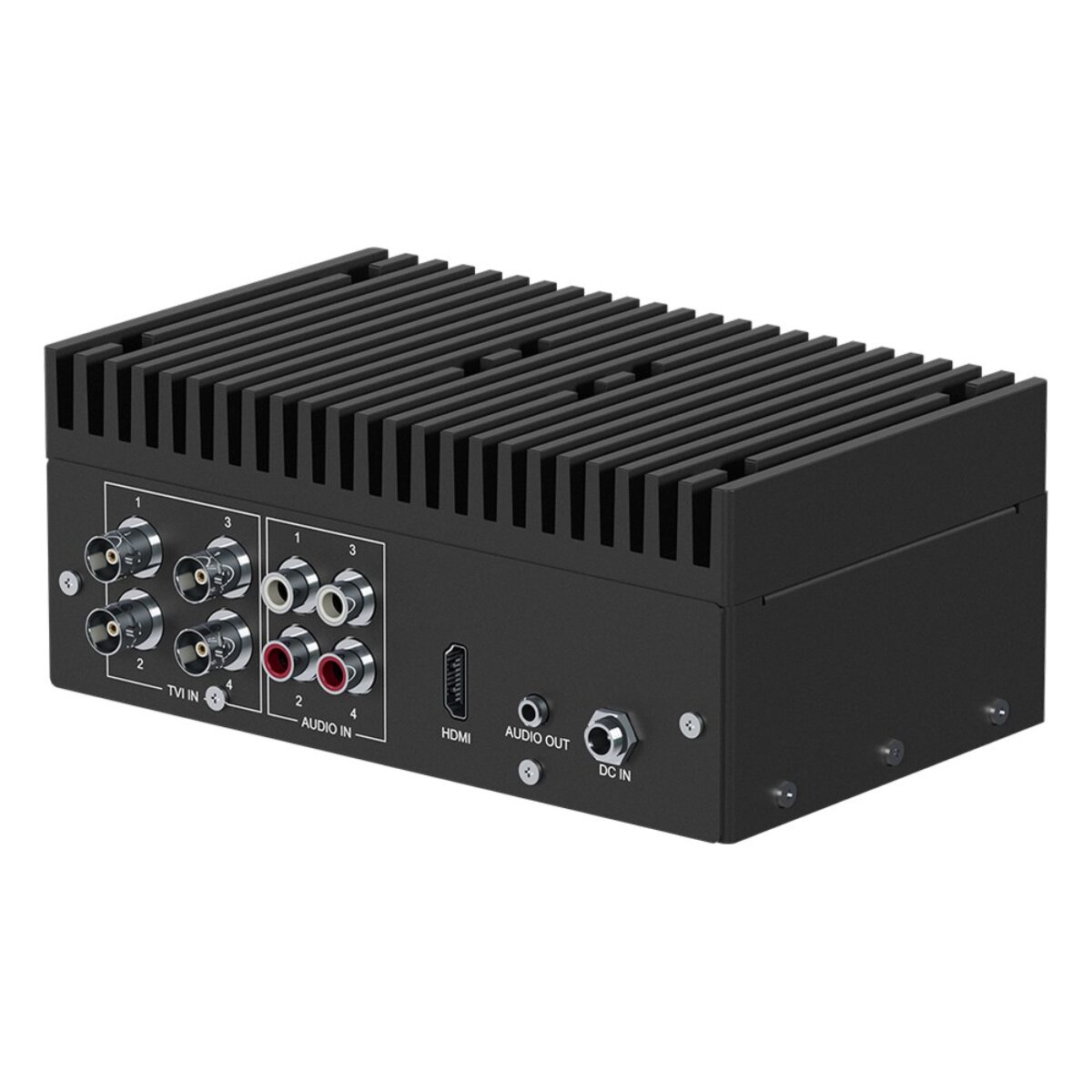

Many sites already run analog HD cameras, and replacing every one to add AI is rarely the first choice. The EDG6N0-C-W ONX 4TVI DIO from Yuan is a Jetson edge AI computer that takes four TVI camera inputs directly, so AI analysis can sit on existing camera runs in surveillance or monitoring work. It supports the NVIDIA Jetson Orin NX 16GB or 8GB Super and the Orin Nano 8GB or 4GB Super.

Performance ranges from up to 157 TOPS on Orin NX 16GB Super to 34 TOPS on Orin Nano 4GB Super, so the module can be matched to the number of streams and models. Orin NX builds can encode one 4K60 stream in AV1 or H.265. Display is one HDMI 2.0 output at up to 4K60, networking is two GbE ports, and USB is two USB 3.2 Gen2 Type-A ports.

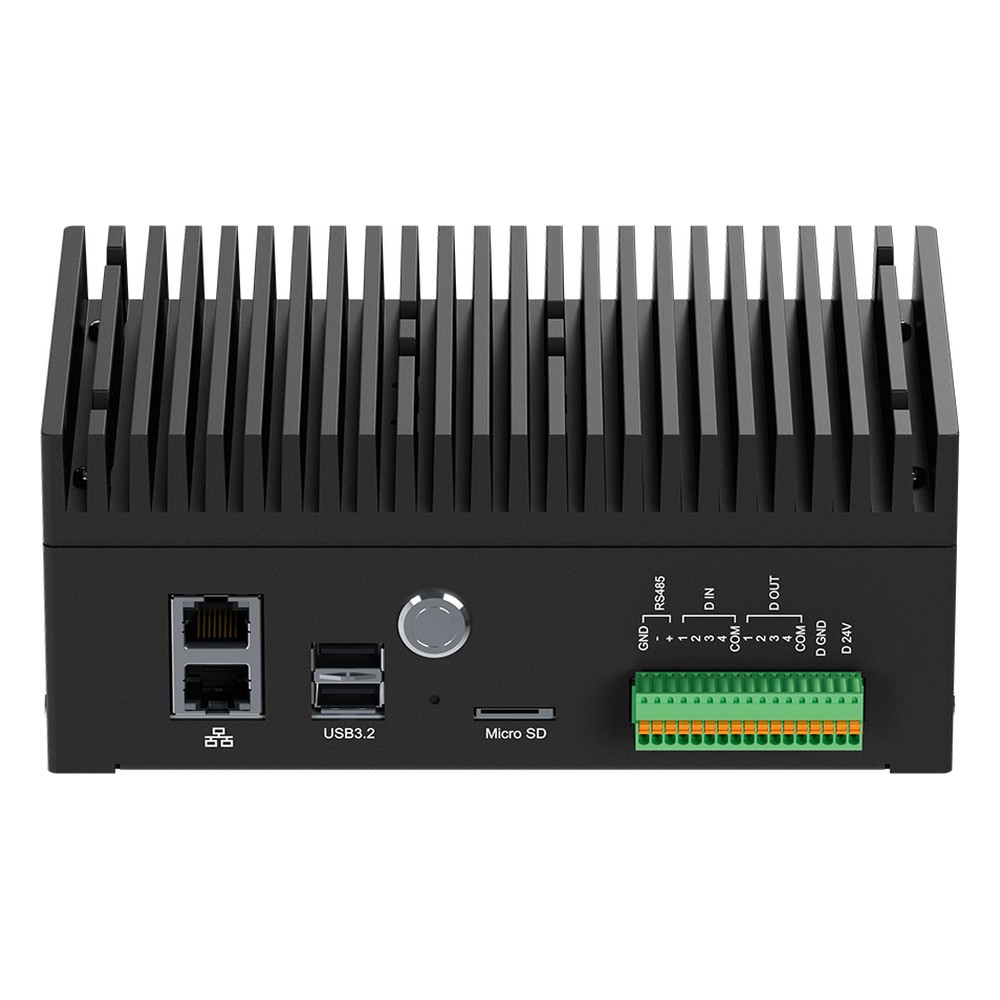

A 17-pin Phoenix DIO connector carries one RS485 port, four digital inputs, four digital outputs, two ground and two 24V pins for alarms, door contacts or indicator outputs. Storage is one M.2 M key slot at PCIe Gen4 x2, or Gen3 x2 on Nano, plus a micro SD slot. Power is 12 to 28V DC. Yuan’s QCAP SDK and optional Xtreamer software cover RTSP, RTMP, HLS, SRT, TS and WebRTC streaming, with NDI-HX and Full NDI needing a separate license. For MIPI cameras and CAN instead, the ARC6N0 NX is the Orin NX Super stack, and the EDG6N0-S T5X NVR handles eight PoE IP cameras on Jetson Thor.

The EDG6N0-C-W ONX 4TVI DIO supports JetPack 6.2, operates from 0 to 60°C with airflow and carries CE and FCC marks. We supply it as a complete tested system, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
