Forecr DSBOARD-ORNXS NVIDIA Jetson Orin NX and Orin Nano Compact Carrier Boards

The Forecr DSBOARD-ORNXS series is a family of compact carrier boards for the NVIDIA Jetson Orin NX and Orin Nano modules, on a 60.5 x 91 mm board. It has two 4-lane MIPI CSI-2 camera connectors, dual GbE and two USB 2.0 on board connectors, Mini DisplayPort, CAN, an NVMe slot and a 9-28 V DC input. The DSBOARD-ORNXS series suits drones, compact robots and smart cameras.

  • 60.5 x 91 mm, 43 g: A compact carrier for the Orin NX and Orin Nano that suits drones, small robots and smart cameras.
  • Two 4-Lane MIPI CSI-2 Cameras: Two 22-pin 0.5 mm FPC camera connectors; GMSL2 comes through Forecr’s GMSL-NX add-on board, not the carrier.
  • I/O on Board Connectors: Two GbE and two USB 2.0 on board connectors, plus Mini DisplayPort, CAN and a USB-C recovery port.
  • NVMe and Wi-Fi Sockets: An M.2 Key-M 2230 slot for NVMe storage and an M.2 Key-E 2230 socket for Wi-Fi and Bluetooth.
  • 9-28 V DC, -25 to +85 °C: Wide DC input on a 2-pin Molex Micro-Fit header and a -25 to +85 °C rating, with an on-board RTC.
USA Support Team: +1 407 214 9446 Call
Select section
  • Description
  • Compare Variants
  • Downloads
  • Media
USA Support Team: +1 407 214 9446

DSBOARD-ORNXS Description

In drones, compact robots and smart cameras, the carrier board often sets the size of the whole product, and every connector that sticks out adds to the enclosure. The Forecr DSBOARD-ORNXS series is a 60.5 x 91 mm compact carrier board for the NVIDIA Jetson Orin NX and Orin Nano, weighing 43 g, with its I/O on board connectors rather than bulky ports so cables can be routed inside the enclosure.

Cameras connect to two 22-pin 0.5 mm FPC connectors, each a 4-lane MIPI CSI-2 input. GMSL2 is not on the carrier; Forecr’s Rev 2.0 manual for this board lists its GMSL-NX add-on board for up to eight GMSL2 cameras. Two Gigabit Ethernet ports and two USB 2.0 ports sit on board connectors, with a Mini DisplayPort at up to 3840 x 2160 and a USB 3.0 Type-C recovery port. Storage is an M.2 Key-M 2230 NVMe slot, and an M.2 Key-E 2230 socket takes Wi-Fi and Bluetooth for links to a ground station or operator tablet. Forecr quotes up to 157 TOPS with Orin NX Super Mode.

The range has five variants. The DSBOARD-ORNXS-AA is the board without a module. The DSBOARD-ORNXS-AB16 and DSBOARD-ORNXS-AB8 ship with the Orin NX 16GB and 8GB, and the DSBOARD-ORNXS-AC8 and DSBOARD-ORNXS-AC4 with the Orin Nano 8GB and 4GB. The carrier is the same across the range, so the module choice comes down to model size, camera count and power budget.

The CAN bus has its own board connector, and serial and expansion signals (SPI, I2S, two I2C and two UART) come out on headers rather than an RS232 port, so a system that needs RS232 or RS422 is better served by the DSBOARD-ORNX. A 3.3 V debug UART, an on-board RTC and a 5 V fan header complete the board, and the small footprint leaves room for the module heatsink inside tight enclosures. The DSBOARD-ORNXS boards take 9-28 V DC on a 2-pin Molex Micro-Fit header, are rated from -25 to +85 °C, and run Ubuntu 20.04 or 22.04 with JetPack 5.x and 6.x. Typical uses include drones, small mobile robots, smart cameras and portable inspection tools.

DSBOARD-ORNXS Specifications

Overview
Brand & ModelForecr DSBOARD-ORNXS
FeaturesCompact
Embedded
GPU
Industrial
Performance
AI PerformanceSee Variant Specifications
System-on-ModuleSee Variant Specifications
Operating SystemLinux
Graphics
Display Outputs1x Mini Display Port
I/O
Ethernet2x Ethernet Ports
2x GbE LAN [Board]
USB2x USB Ports
2x USB 2.0 [Board]
CANbus1x CANbus Ports
1x CANbus [Board]
MIPI Interface2x 4 Lane MIPI CSI-2
Expansion
M.22x M.2 Expansion Slots
1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
1x M.2 M-Key [PCIe] [2230]
Wireless ConnectivityOptional WiFi/Bluetooth
Storage
Storage1x M.2 SSD
NVMeNVMe SSD Support
Power
Power Input9-28V DC [2-Pin]
Power Support ModesAT: PWR on Input
ATX: Press Button to Power
Environmental Conditions
Thermal DissipationOptional Heat Spreader
Optional Heatsink
Operating Temperature-25°C to 85°C [-13°F to 185°F]
CertificationCE
FCC
Mechanical Properties
Dimensions61mm x 91mm (2.4" x 3.58")

DSBOARD-ORNXS Variants

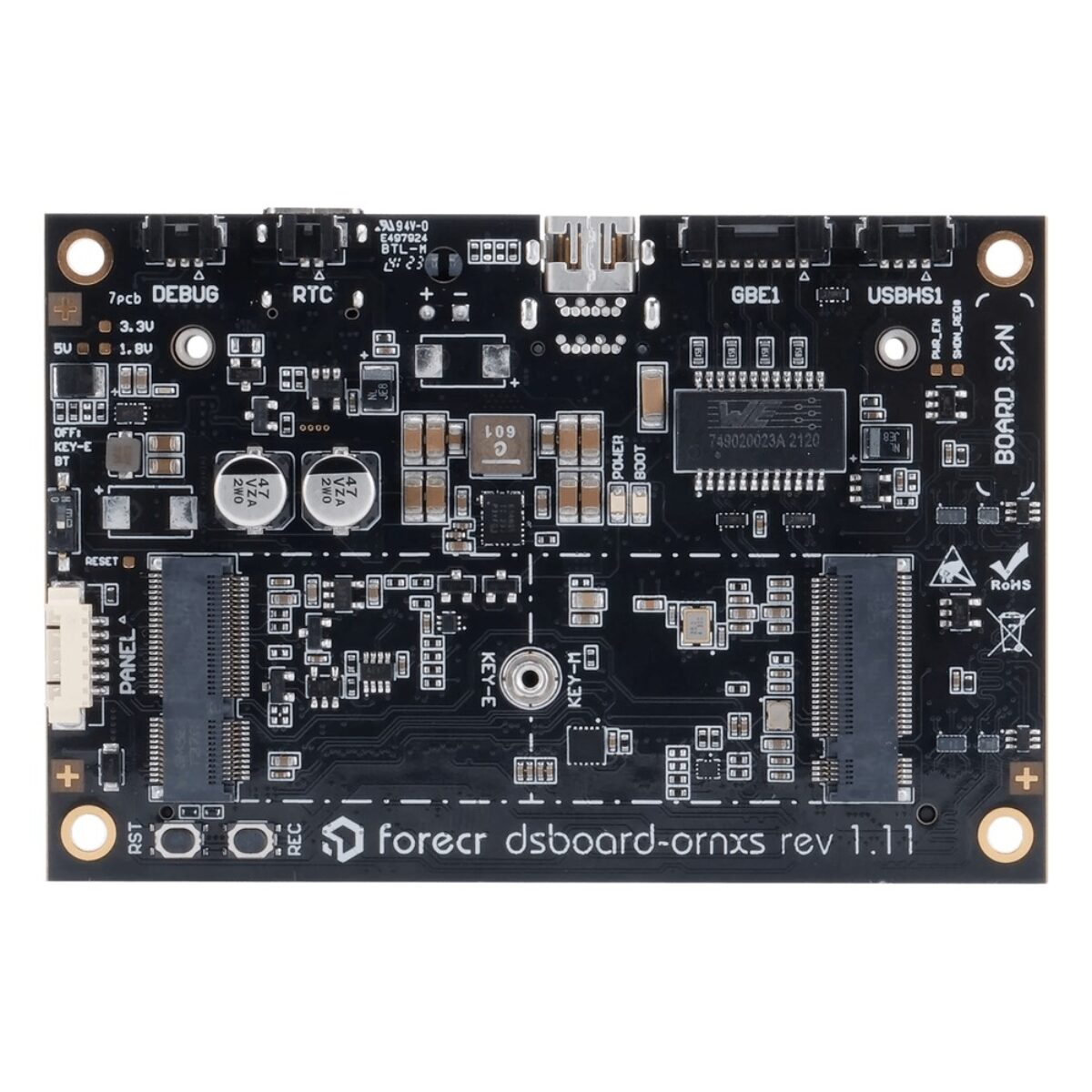

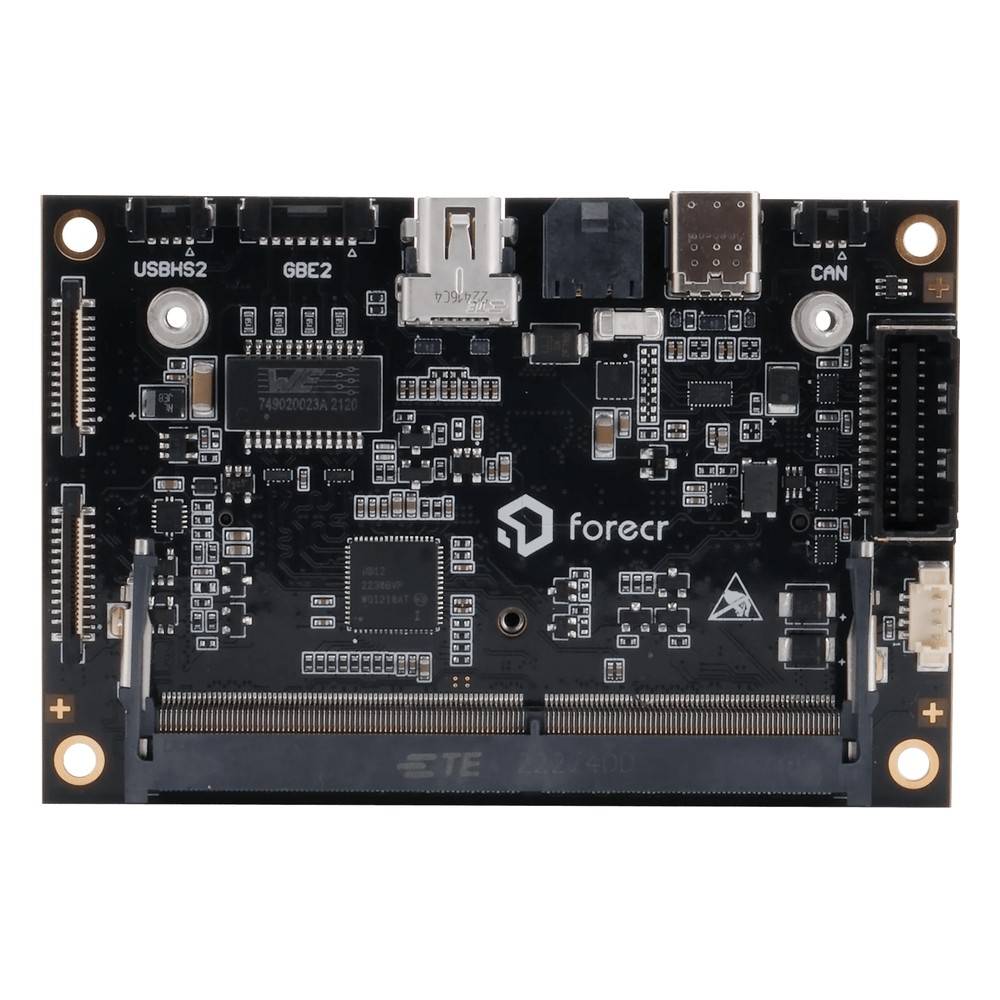

Forecr DSBOARD-ORNXS compact carrier board, top view of the bare board, rev 1.11

Forecr DSBOARD-ORNXS-AC8 NVIDIA Jetson Orin Nano 8GB Compact Carrier Board with Two CSI Cameras and CAN Bus

DSBOARD-ORNXS with Jetson Orin Nano 8GB module, 40 TOPS

View
Overview
Brand & ModelForecr DSBOARD-ORNXS-AC8
Performance
AI Performance40
System-on-ModuleOrin Nano (8GB)
Forecr DSBOARD-ORNXS compact carrier board, top view of the bare board, rev 1.11

Forecr DSBOARD-ORNXS-AC4 NVIDIA Jetson Orin Nano 4GB Compact Carrier Board with Dual GbE and 9-28 V DC Input

DSBOARD-ORNXS with Jetson Orin Nano 4GB module, 20 TOPS

View
Overview
Brand & ModelForecr DSBOARD-ORNXS-AC4
Performance
AI Performance20
System-on-ModuleOrin Nano (4GB)
Forecr DSBOARD-ORNXS compact carrier board, top view of the bare board, rev 1.11

Forecr DSBOARD-ORNXS-AB16 NVIDIA Jetson Orin NX 16GB Compact Carrier Board with Two 4-Lane MIPI CSI-2 Cameras

DSBOARD-ORNXS with Jetson Orin NX 16GB module, 100 TOPS

View
Overview
Brand & ModelForecr DSBOARD-ORNXS-AB16
Performance
AI Performance100
System-on-ModuleOrin NX (16GB)
Forecr DSBOARD-ORNXS compact carrier board, top view of the bare board, rev 1.11

Forecr DSBOARD-ORNXS-AB8 NVIDIA Jetson Orin NX 8GB Compact Carrier Board with Dual GbE and Mini DisplayPort

DSBOARD-ORNXS with Jetson Orin NX 8GB module, 70 TOPS

View
Overview
Brand & ModelForecr DSBOARD-ORNXS-AB8
Performance
AI Performance70
System-on-ModuleOrin NX (8GB)
Forecr DSBOARD-ORNXS compact carrier board, top view of the bare board, rev 1.11

Forecr DSBOARD-ORNXS-AA NVIDIA Jetson Orin NX and Orin Nano Compact Carrier Board, Supplied Without Module

DSBOARD-ORNXS with no module fitted, for Orin NX or Orin Nano

View
Overview
Brand & ModelForecr DSBOARD-ORNXS-AA
Performance
AI Performance20, 40, 70, 100
System-on-ModuleOrin Nano (4GB), Orin Nano (8GB), Orin NX (16GB), Orin NX (8GB)
