Diamond Systems Geode-OSB NVIDIA Jetson AGX Orin 32GB/64GB Rugged Edge AI Computer with 10GbE, IP67 and MIL-STD I/O

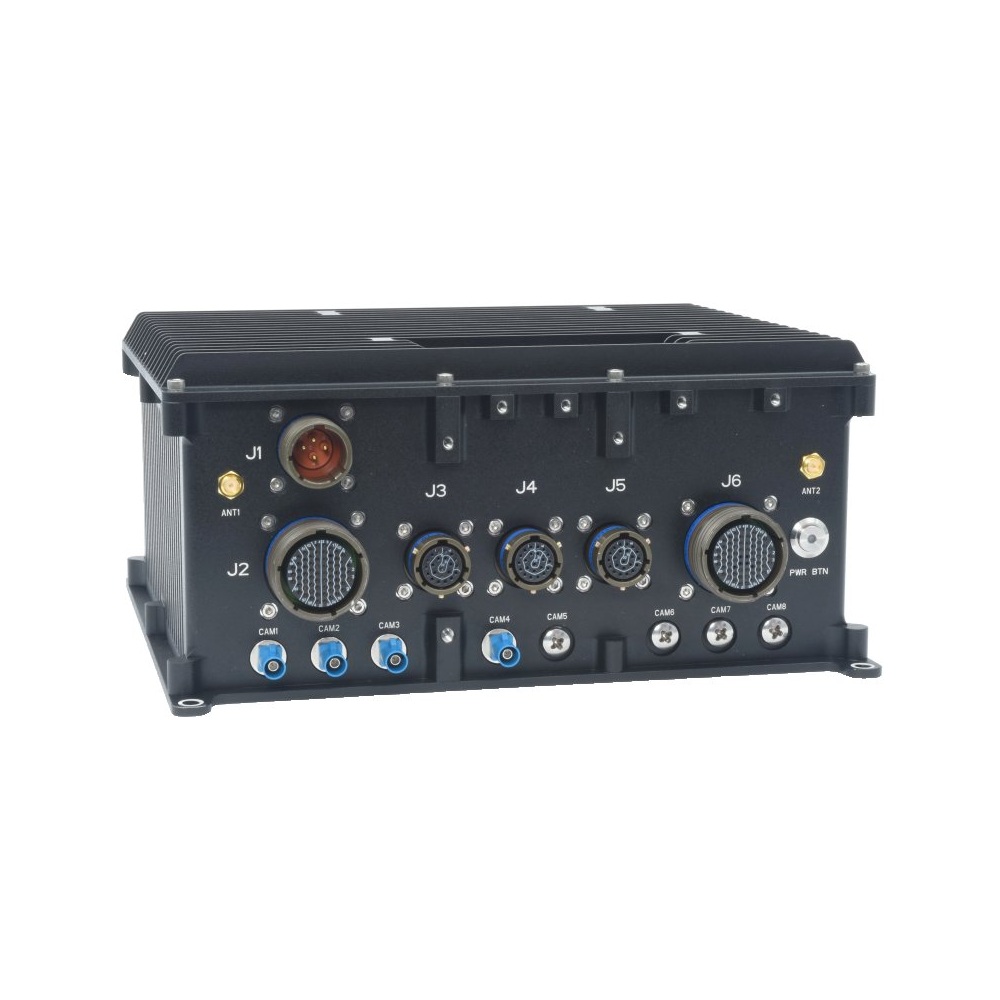

The GEODE-OSB is a rugged edge AI computer from Diamond Systems that seals an NVIDIA Jetson AGX Orin 32GB, 64GB or 64GB Industrial module into an IP67 enclosure with 10GbE, D38999 I/O and support for up to eight GMSL cameras. It is designed to meet MIL-STD-810H shock and vibration for vehicle and defense AI.

  • NVIDIA Jetson AGX Orin Module Choice: Choose the AGX Orin 32GB, 64GB or 64GB Industrial module, with NVIDIA rating the 64GB module at up to 275 TOPS.
  • Up to Eight GMSL Cameras: An optional GMSL camera adapter board brings up to eight GMSL cameras in through sealed Fakra connectors on the front panel.
  • 10GbE Plus GbE Networking: One 10Gb copper Ethernet port on a rugged SJT connector and one GbE port on D38999 carry sensor data and network traffic.
  • Sealed IP67, MIL-STD-810H Design: A three-part CNC aluminum enclosure with no T joints and gaskets at every cutout is designed to IP67 and MIL-STD-810H.
  • 9-36 V DC Isolated, -40 to +80 °C: Input is 9-36 V DC isolated or 7-20 V DC non-isolated, with an optional MIL-STD-461/704/1275 supply and -40 to +80 °C operation.
Operating Software: LinuxLinux
Ethernet Speed: 10GbE10GbE
USB Generation: USB3USB3
M.2: 22x M.2
mPCIe: 22x mPCIe
Connectivity: 4G4G
Connectivity: 5G5G
Connectivity: WirelessWi-Fi
NVMe: NVMe SSD SupportNVMe SSD
Thermal Dissipation: FanlessFanless
Operating Temperature: Extended TemperatureExtended Temp
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads
  • Media

Geode-OSB Overview

Running vision AI on a vehicle or a remote mast means sealing a high-power GPU module against water and dust while still getting heat, camera feeds and network traffic in and out. The Diamond Systems GEODE-OSB is a rugged edge AI computer built for that job. It takes the NVIDIA Jetson AGX Orin module, mounts it on Diamond’s Osbourne carrier board and closes it in a three-part CNC aluminum enclosure with no T joints, sealing gaskets at every joint and connector cutout, and an IP67 rating.

The GEODE-OSB supports all three AGX Orin modules: AGX Orin 32GB, AGX Orin 64GB and AGX Orin Industrial 64GB. NVIDIA rates the AGX Orin 64GB at up to 275 TOPS, which gives room to run detection, tracking and segmentation models side by side on several streams. The Jetson module is mounted to the top lid and the optional power supply to the bottom lid, which spreads heat into the enclosure and keeps the interior cooler for long-term operation.

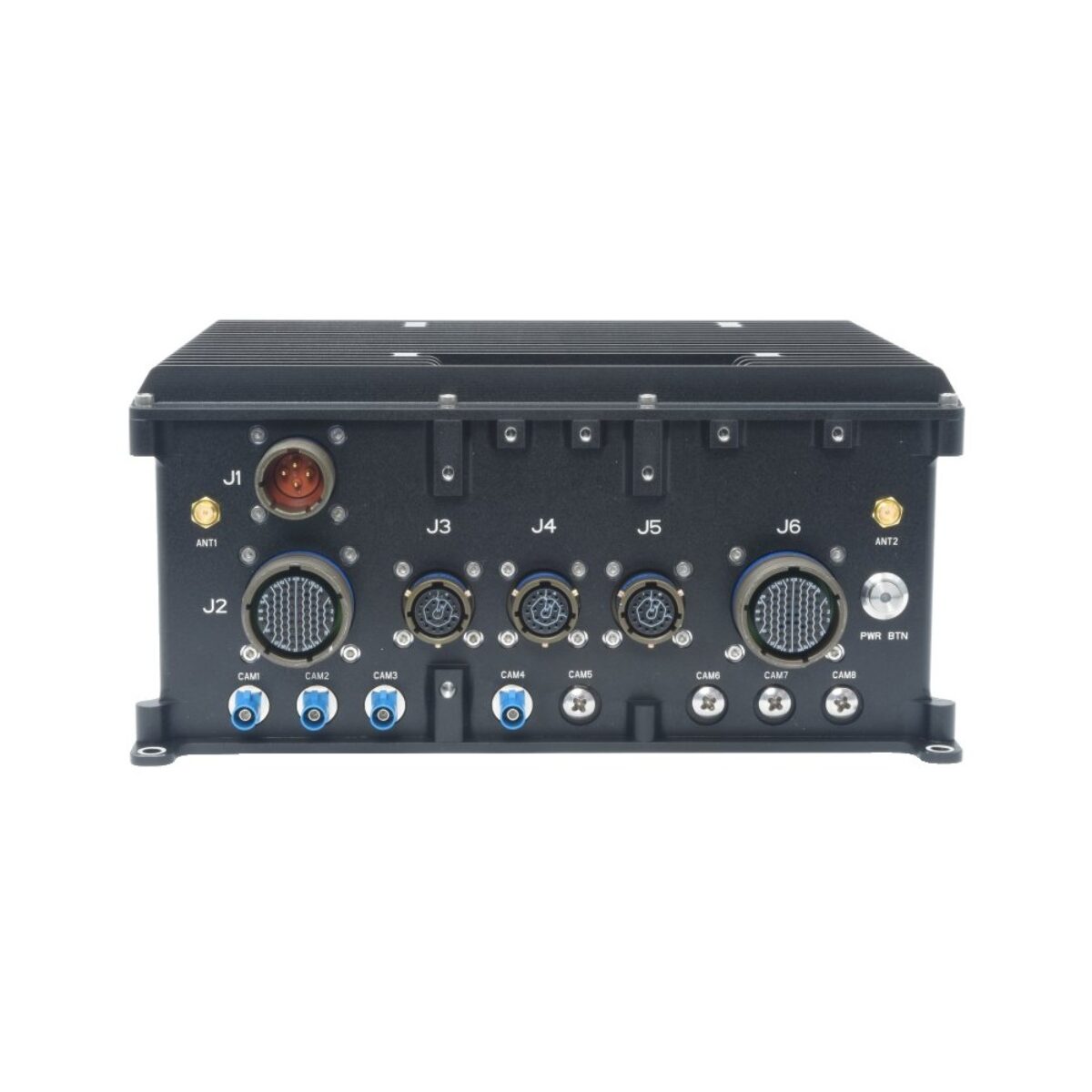

High-speed signals use dedicated rugged SJT connectors: one 10Gb copper Ethernet port, two USB 3.2 ports with USB 2.0 fallback, and HDMI. A 66-pin D38999 connector carries one GbE port, two USB 2.0 ports, two RS-232 and two RS-232/422/485 ports, two CAN ports, eight 3.3 V GPIO and audio. A second D38999 connector offers 60 pins for user I/O from installed Mini PCIe or M.2 modules, two SMA connectors serve a modem or other communications module, and a GMSL adapter board can add up to eight GMSL cameras on sealed Fakra connectors.

Power arrives on a D38999 connector at 9-36 V DC isolated or 7-20 V DC non-isolated. A MIL-STD-461 filter is built into the panel I/O board, and an optional 80 W MIL-grade supply adds MIL-STD-461, MIL-STD-704 and MIL-STD-1275 compliance. The GEODE-OSB operates from -40 to +80 °C and is designed to meet MIL-STD-810H shock and vibration. For an x86 alternative in the same family, see the GEODE, or the JETBOX-OSBOURNE for a Jetson AGX Orin system outside sealed environments.

Geode-OSB Specifications

Overview
Brand & ModelDiamond Systems Geode-OSB
FeaturesExpandable
Fanless
GPU
Rugged
Waterproof
Performance
AI Performance200–275 TOPS
System-on-ModuleNVIDIA Jetson AGX Orin 32GB: 200 TOPS, 1792-core Ampere GPU with 56 Tensor Cores, 8-core Arm Cortex-A78AE 2.2GHz, 32GB 256-bit LPDDR5, 64GB eMMC, 15-40W
NVIDIA Jetson AGX Orin 64GB: 275 TOPS, 2048-core Ampere GPU with 64 Tensor Cores, 12-core Arm Cortex-A78AE 2.2GHz, 64GB 256-bit LPDDR5, 64GB eMMC, 15-60W
NVIDIA Jetson AGX Orin Industrial 64GB: 248 TOPS, 2048-core Ampere GPU with 64 Tensor Cores, 12-core Arm Cortex-A78AE 2.0GHz, 64GB 256-bit LPDDR5 (ECC), 64GB eMMC, 15-75W
PCIe Gen SupportPCIe 4.0
Operating SystemLinux
Graphics
Multi Display SupportSingle Display Support
Display Outputs1x HDMI
Audio
InterfaceLine-Out
Mic-In
I/O
Ethernet2x Ethernet Ports
1x 10 GbE LAN [MIL-STD]
1x GbE LAN [MIL-STD]
USB4x USB Ports
2x USB 3.2 Gen 2 [MIL-STD]
2x USB 2.0 [MIL-STD]
Serial4x Serial Ports
2x RS232 [MIL-STD]
2x RS232/422/485 [MIL-STD]
CANbus2x CANbus Ports
2x CANbus [MIL-STD]
Digital I/ODIO [8-lines]
MIPI Interface8x GMSL Automotive Camera Inputs [FAKRA-Z]
Expansion
M.22x M.2 Expansion Slots
1x M.2 E-Key [PCIe] [2230]
1x M.2 M-Key [PCIe x4] [2242/2280]
mPCIe2x mPCIe Slots
2x mPCIe [PCIe/USB]
Wireless ConnectivityOptional 4G/5G
Optional WiFi/Bluetooth
Storage
Storage1x M.2 SSD
NVMeNVMe SSD Support
Power
Power Input9-36V DC Input [MIL-STD]
Power Support ModesAT: PWR on Input
ATX: Press Button to Power
Environmental Conditions
Thermal DissipationFanless Passively Cooled Chassis
Operating Temperature-40°C to 80°C [-40°F to 176°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
Ingress ProtectionIP67
IP67 [Dustproof, Protection against immersion in water up to 1 meter for 30 minutes]
ShockMIL-STD-810H
VibrationMIL-STD-810H
EMCMIL-STD-461G
CertificationMIL-STD-1275
MIL-STD-704
MIL-STD-461
Mechanical Properties
Weight2.5 Kg (5.5 Lbs)
Chassis MaterialAluminum
Dimensions241mm x 215mm x 98mm (9.49″ x 8.46″ x 3.86″)
JETBOX-OSBOURNE News Card
News Diamond Systems Osbourne: a configurable Jetson AGX Orin carrier board The Diamond Systems Osbourne is a Jetson AGX Orin carrier board with swappable I/O panels, from commercial connectors to latching and MIL-STD builds.

Official Diamond Systems USA Distributor

Things Embedded is an official Diamond Systems USA distributor, supplying the GEODE-OSB with the AGX Orin module, storage and camera options specified for each program. The GEODE shares the Geode enclosure and connector board approach with a COM Express Intel Core i7 processor, and the JETBOX-OSBOURNE puts the same AGX Orin module in a fanless DIN rail unit for cabinet installs. Both share Diamond's approach of pre-integrated expansion connectors, so extra I/O can be added through installed modules without a new enclosure or cable set, which helps keep lead times short for pilot and small-run programs.

Across our range, the GEODE-OSB sits with our rugged Jetson computers and our edge AI computers, and its MIL-STD design and sealed connectors also place it among our rugged mission computers and our IP67 computers for defense and vehicle vision programs. For multi-camera programs, the optional GMSL adapter and up to eight Fakra connectors keep camera cabling sealed at the enclosure wall instead of passing through cable glands. Its MIL-STD-810H design and optional MIL-STD-461/704/1275 supply give defense programs a clear basis for their own qualification.
