Diamond Systems JETBOX-OSBOURNE NVIDIA Jetson AGX Orin Compact Fanless Edge AI Computers with 10GbE

Moving a Jetson AGX Orin design from the bench into a control cabinet usually means finding a carrier board, an enclosure, industrial ports and storage that all work together. Diamond Systems built the JETBOX-OSBOURNE series of edge AI computers to remove that step. Each JETBOX-OSBOURNE installs the NVIDIA Jetson AGX Orin module on Diamond’s Osbourne carrier board with a commercial I/O breakout board, in a fanless enclosure that mounts on a DIN rail or a shelf.

Every standard model ships with a 1 TB M.2 2280 NVMe SSD carrying Linux, with capacity options up to 2 TB, and without the GMSL adapter fitted. Diamond has tested the system with the Industrial module at 100% CPU and GPU load and confirmed full performance up to 65 °C without throttling, and operation up to 75 °C with throttling. Removing the bottom cover gives direct access to the expansion sockets: a PCIe/USB minicard socket, an M.2 E-Key 2230 socket with two SMA cutouts, a nano SIM socket and Diamond’s GMSL camera adapter socket for up to eight cameras.

The three JETBOX-OSBOURNE models differ only by module. The JB-OSB-32G-1T-G0-01 uses the AGX Orin 32GB, which NVIDIA rates at up to 200 TOPS, for inference workloads that fit within 32 GB of memory. The JB-OSB-64G-1T-G0-01 moves to the AGX Orin 64GB at up to 275 TOPS for larger models and more concurrent streams. The JB-OSB-64GIT-1T-G0-01 fits the AGX Orin Industrial 64GB at up to 248 TOPS and extends the low end of the operating range from -25 °C to -40 °C.

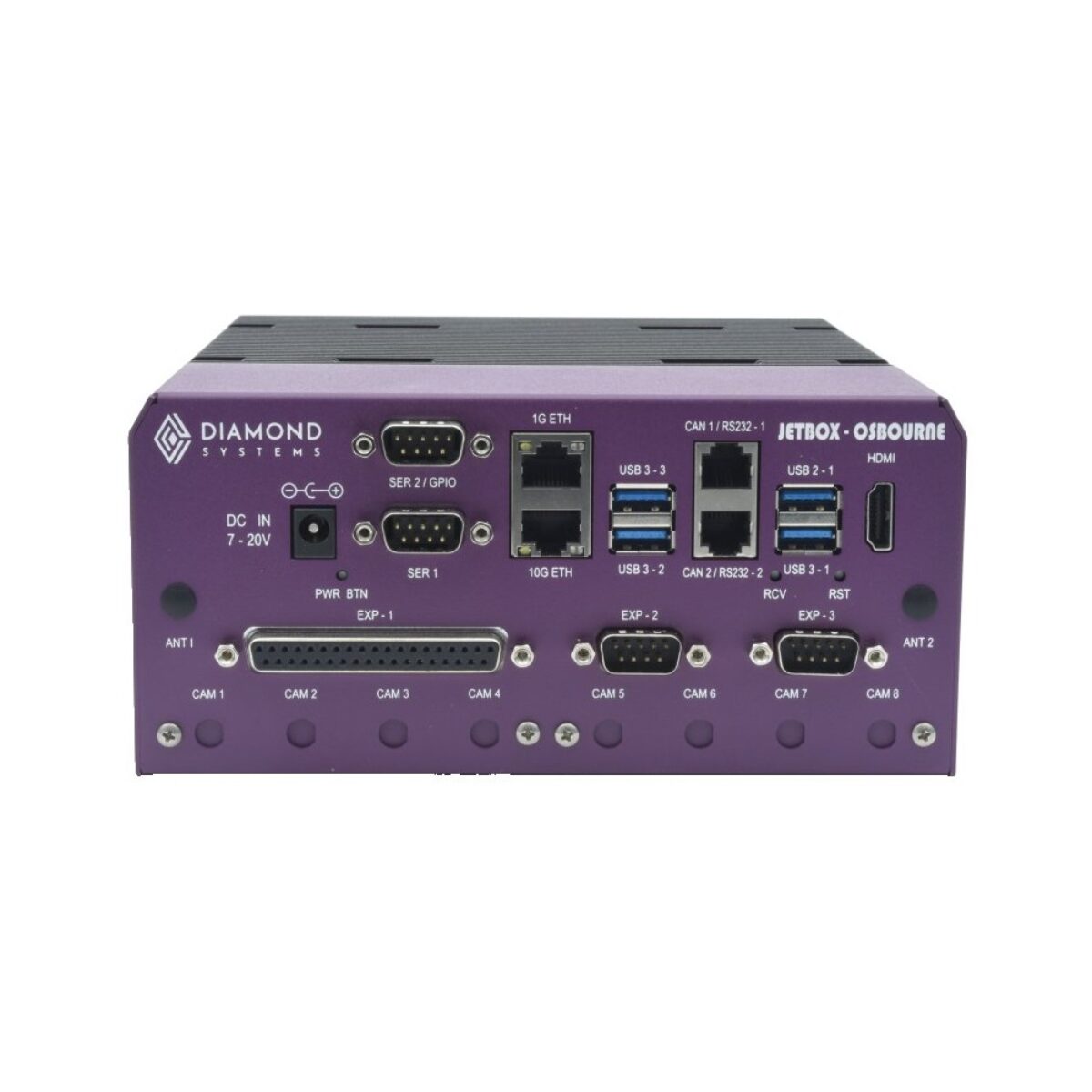

All three share the same I/O: one 10GbE and one GbE port on RJ-45, three USB 3.2 ports and one USB 2.0 port, two RS-232/422/485 ports on DB9, two CAN ports muxed with two RS-232 ports on RJ-12, eight 3.3 V GPIO and HDMI. Typical JETBOX-OSBOURNE installations include machine vision cells, autonomous mobile robots, traffic and smart city cabinets and multi-camera inspection lines, all fed from a 7-20 V DC supply. Diamond Systems builds each unit as a complete edge AI computer with the module and operating system installed. The three part numbers are standard configurations, and Diamond’s configuration spreadsheet covers other combinations of module, storage, GMSL cameras and minicard I/O.
