Diamond Systems JETBOX OSBOURNE : JB-OSB-64GIT-1T-G0-01 NVIDIA Jetson AGX Orin Industrial 64GB Extended Temperature Edge AI Computer with 10GbE

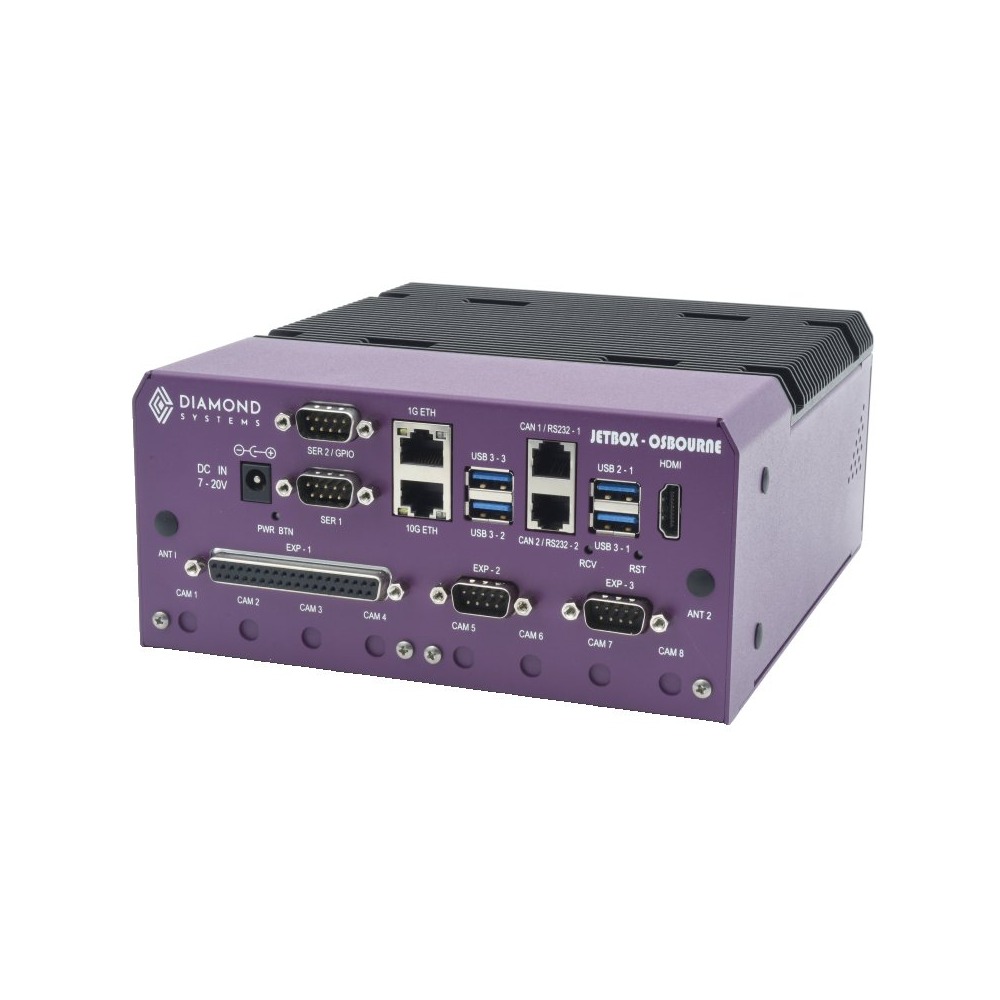

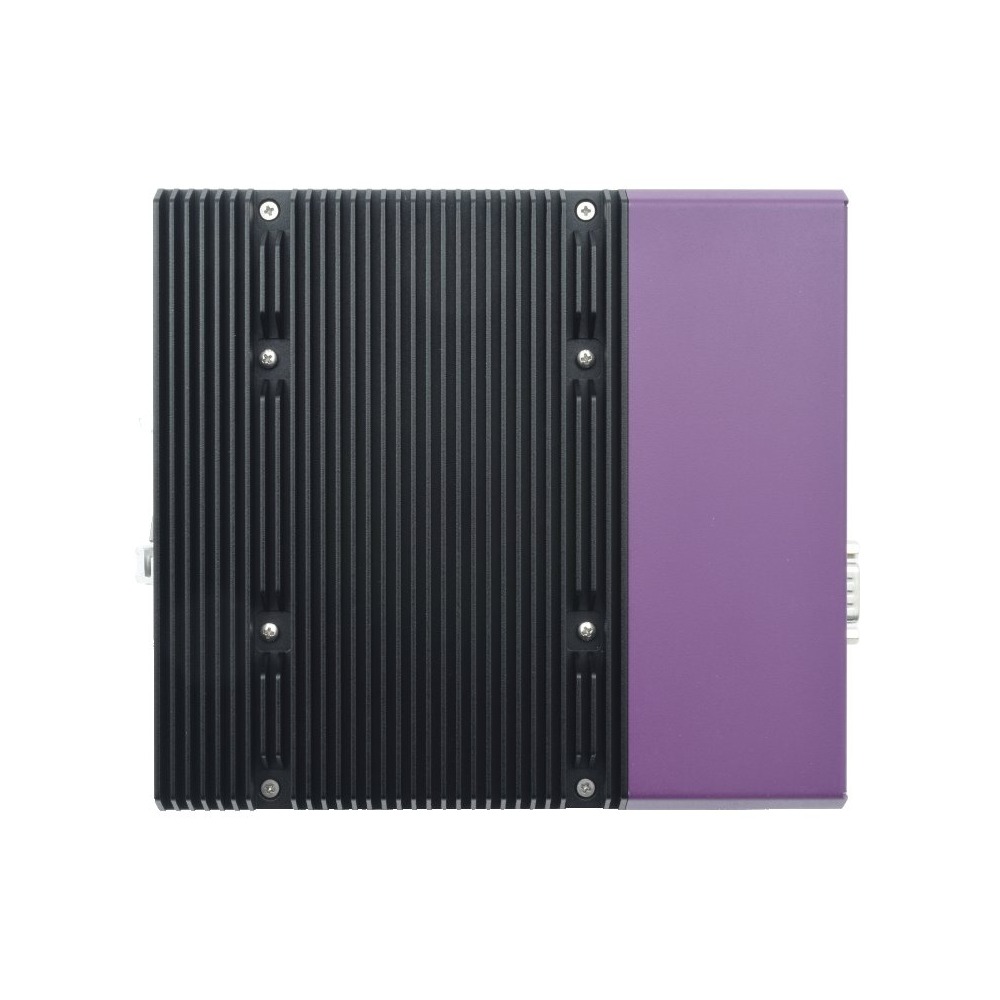

Outdoor cabinets, rail-side equipment and unheated buildings can drop well below freezing, which rules out the standard AGX Orin modules at the cold end. The Diamond Systems JB-OSB-64GIT-1T-G0-01 is the AGX Orin Industrial 64GB model of the JETBOX-OSBOURNE series, an edge AI computer that pairs the module with Diamond’s Osbourne carrier board in a fanless enclosure with DIN rail and shelf mounting.

NVIDIA rates the AGX Orin Industrial 64GB at up to 248 TOPS with 64 GB of memory, enough to run detection, classification and tracking models side by side on several camera streams. The Industrial module is the one Diamond used for its thermal testing, where it held full CPU and GPU performance at 100% load up to 65 °C. The JB-OSB-64GIT-1T-G0-01 ships with a 1 TB M.2 2280 NVMe SSD with Linux installed, with capacity options up to 2 TB, and without the GMSL adapter fitted.

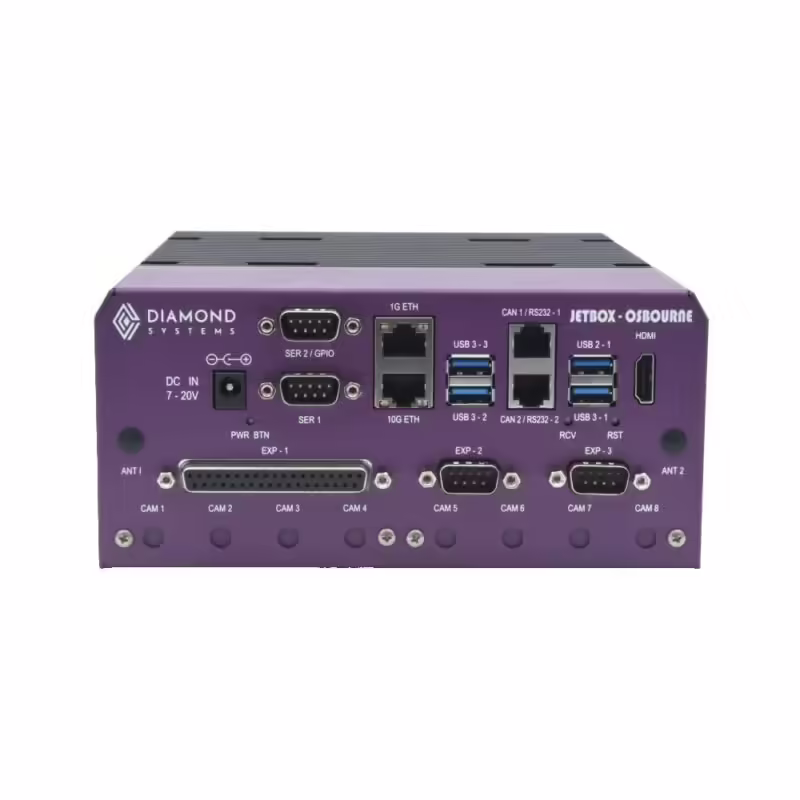

Networking on the JB-OSB-64GIT-1T-G0-01 is one 10GbE and one GbE port on RJ-45, so a camera or storage link can run on the faster port while the control network stays separate. The front panel adds three USB 3.2 ports and one USB 2.0 port, two RS-232/422/485 ports on DB9, two CAN ports muxed with two RS-232 ports on RJ-12, eight 3.3 V GPIO and HDMI. Inside, a PCIe/USB minicard socket, an M.2 E-Key 2230 socket with two SMA cutouts and Diamond’s GMSL adapter socket for up to eight cameras leave room to grow.

The JB-OSB-64GIT-1T-G0-01 runs from a 7-20 V DC input and is rated from -40 to +70 °C, fanless. Diamond has tested the series with the Industrial module at full CPU and GPU load and confirmed full performance up to 65 °C without throttling. For the standard modules, see the JB-OSB-32G-1T-G0-01 and the JB-OSB-64G-1T-G0-01.
