DFI PR611-C621DR 1st and 2nd Gen Intel Xeon Scalable ATX Server Board with C621 Chipset, Dual LAN and Six Expansion Slots
Intel
Linux
USB3
2x M.2
Wi-Fi
NVMe SSDPR611-C621DR Overview

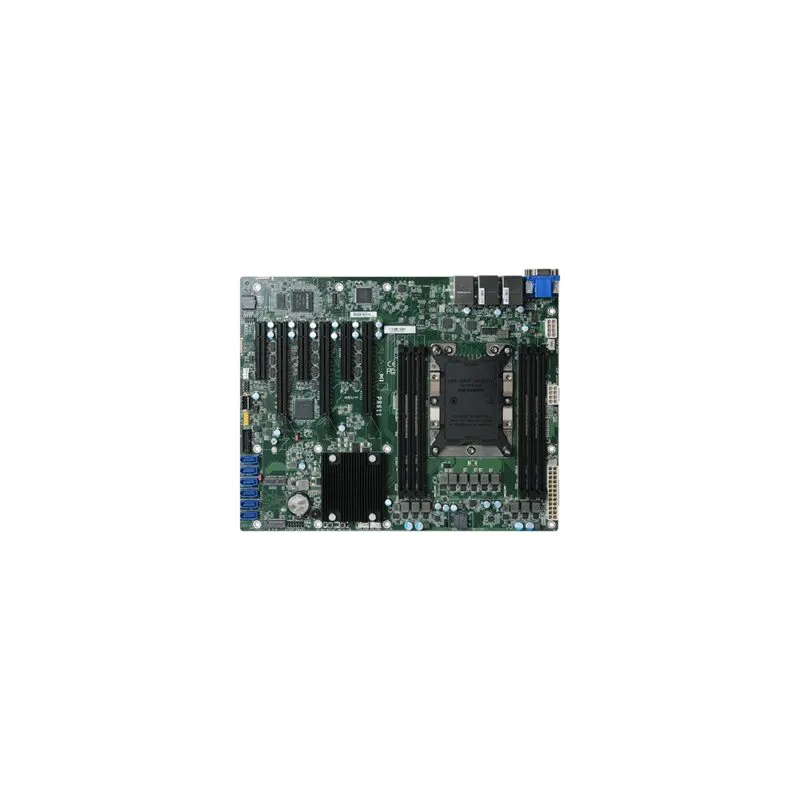

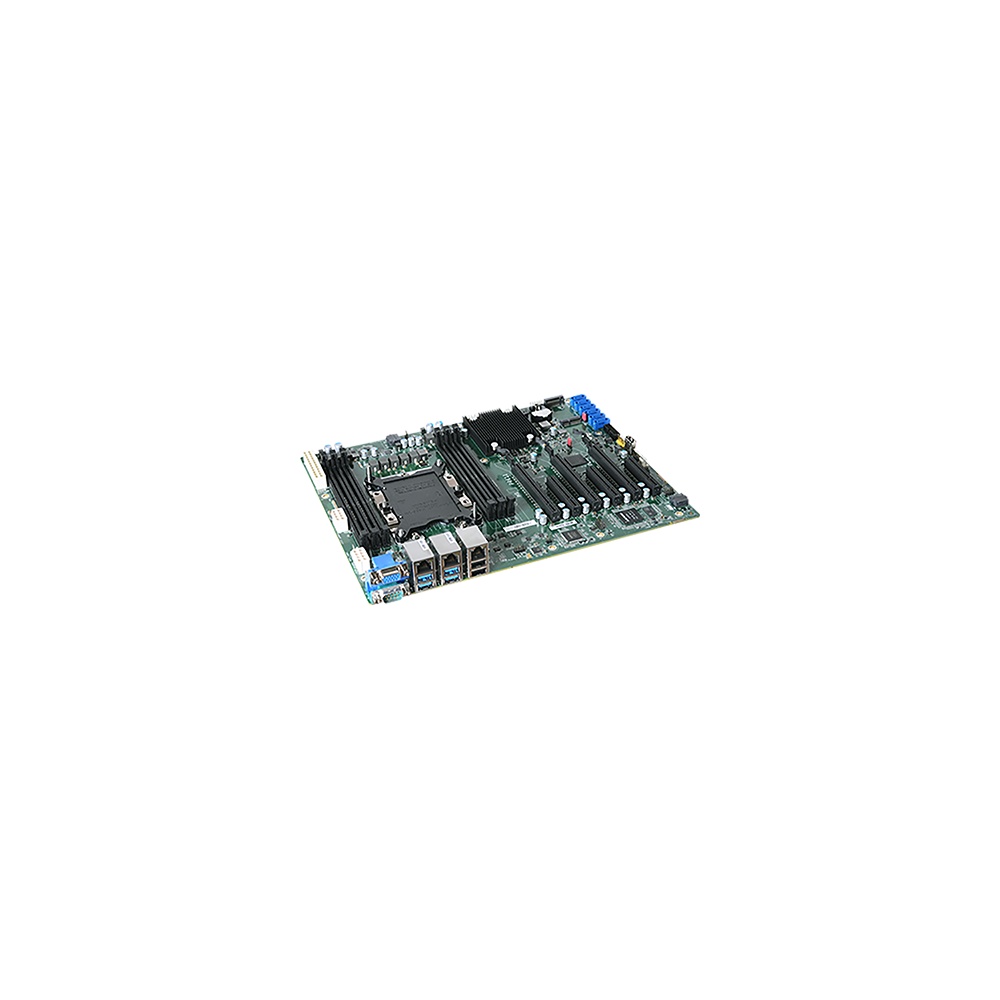

A multi-camera inspection server usually lives in a rack beside the line, reached over the network by the engineers who look after it. The PR611-C621DR is the headless build in the DFI PR611 series of ATX server motherboards, with six PCIe Gen3 slots for GPUs and frame grabbers and no BMC or display output.
The LGA 3647 socket takes one 1st or 2nd Gen Intel Xeon Scalable processor on the Intel C621 chipset. DFI lists 31 models, from the eight-core Bronze 3106 and Silver 4209 to the 22-core Gold 6238T and 24-core Gold 6252N, at up to 150 W TDP, so the core count can follow the number of camera streams. Six DDR4 RDIMM slots take up to 384 GB of registered ECC memory at up to 2933 MHz.

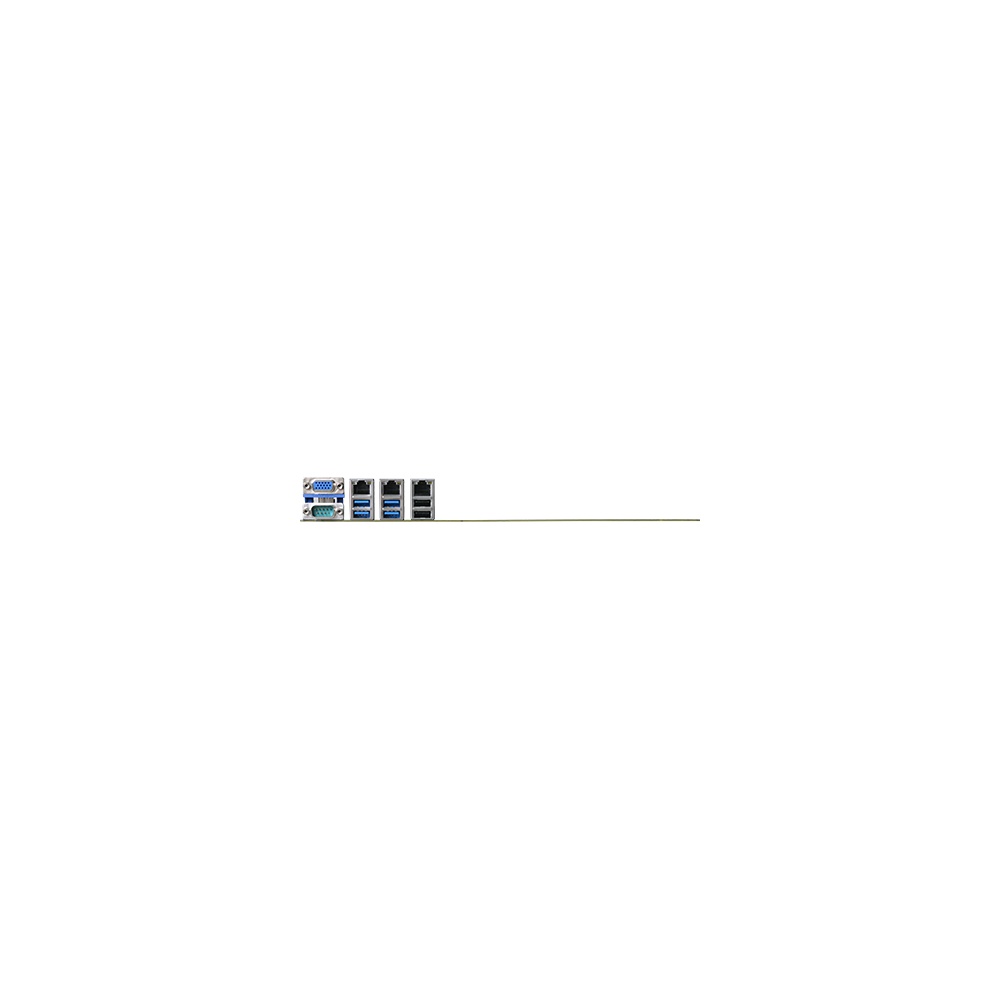

Two GbE ports on Intel I210AT controllers carry the data and management networks. The rear panel has four USB 3.1 Gen 1 and two USB 2.0 Type-A ports and an RS-232 port on a DB9 with ±15 kV air-gap ESD protection, with two USB 3.1 Gen 1 and three USB 2.0 more on headers. Three PCIe x16 and three open-ended PCIe x8 slots, all Gen3, take the card set, with the x8 slots sharing lanes with the x16 slots. Storage is an M.2 2280 NVMe or SATA slot and six SATA 3.0 ports with RAID 0, 1, 5 and 10, and an M.2 2230 E-key takes a wireless module.
The PR611-C621DR runs from an ATX supply on 24-pin and 8-pin connectors and operates from -5 to 65 °C. DFI lists Windows 10 IoT Enterprise LTSB, Windows Server 2019 and 2016, and Linux. For remote power control and a local VGA output, PR611-C621DRI adds IPMI through the AST2500 BMC.
PR611-C621DR Specifications
| Overview | |
|---|---|
| Brand & Model | DFI PR611-C621DR |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | Intel 2nd Gen Xeon Scalable Cascade Lake Intel Xeon Scalable Skylake-SP |
| Processor Models | Intel Xeon Silver 4116: 2.1~3.0GHz, 12 Cores, 24 Threads, 16.5MB Cache, 85W Intel Xeon Bronze 3106: 1.7GHz, 8 Cores, 8 Threads, 11MB Cache, 85W Intel Xeon Gold 5118: 2.3~3.2GHz, 12 Cores, 24 Threads, 16.5MB Cache, 105W Intel Xeon Gold 5119T: 1.9~3.2GHz, 14 Cores, 28 Threads, 19.25MB Cache, 85W Intel Xeon Gold 6138T: 2.0~3.7GHz, 20 Cores, 40 Threads, 27.5MB Cache, 125W Intel Xeon Gold 5218N: 2.3~3.7GHz, 16 Cores, 32 Threads, 22MB Cache, 110W Intel Xeon Gold 5218T: 2.1~3.8GHz, 16 Cores, 32 Threads, 22MB Cache, 105W Intel Xeon Silver 4210: 2.2~3.2GHz, 10 Cores, 20 Threads, 13.75MB Cache, 85W Intel Xeon Silver 4109T: 2.0~3.0GHz, 8 Cores, 16 Threads, 11MB Cache, 70W Intel Xeon Gold 5215: 2.5~3.4GHz, 10 Cores, 20 Threads, 13.75MB Cache, 85W Intel Xeon Silver 4214: 2.2~3.2GHz, 12 Cores, 24 Threads, 16.5MB Cache, 85W Intel Xeon Silver 4114T: 2.2~3.0GHz, 10 Cores, 20 Threads, 13.75MB Cache, 85W Intel Xeon Silver 4216: 2.1~3.2GHz, 16 Cores, 32 Threads, 22MB Cache, 100W Intel Xeon Gold 6126T: 2.6~3.7GHz, 12 Cores, 24 Threads, 19.25MB Cache, 125W Intel Xeon Gold 6252N: 2.3~3.6GHz, 24 Cores, 48 Threads, 35.75MB Cache, 150W Intel Xeon Silver 4215: 2.5~3.5GHz, 8 Cores, 16 Threads, 11MB Cache, 85W Intel Xeon Gold 6238T: 1.9~3.7GHz, 22 Cores, 44 Threads, 30.25MB Cache, 125W Intel Xeon Gold 5120T: 2.2~3.2GHz, 14 Cores, 28 Threads, 19.25MB Cache, 105W Intel Xeon Gold 5220T: 1.9~3.9GHz, 18 Cores, 36 Threads, 24.75MB Cache, 105W Intel Xeon Gold 6130T: 2.1~3.7GHz, 16 Cores, 32 Threads, 22MB Cache, 125W Intel Xeon Gold 6230T: 2.1~3.9GHz, 20 Cores, 40 Threads, 27.5MB Cache, 125W Intel Xeon Platinum 8160T: 2.1~3.7GHz, 24 Cores, 48 Threads, 33MB Cache, 150W Intel Xeon Silver 4116T: 2.1~3.0GHz, 12 Cores, 24 Threads, 16.5MB Cache, 85W Intel Xeon Silver 4110: 2.1~3.0GHz, 8 Cores, 16 Threads, 11MB Cache, 85W Intel Xeon Gold 6138: 2.0~3.7GHz, 20 Cores, 40 Threads, 27.5MB Cache, 125W Intel Xeon Gold 6126: 2.6~3.7GHz, 12 Cores, 24 Threads, 19.25MB Cache, 125W Intel Xeon Gold 6226: 2.7~3.7GHz, 12 Cores, 24 Threads, 19.25MB Cache, 125W Intel Xeon Silver 4209: 2.2~3.2GHz, 8 Cores, 16 Threads, 11MB Cache, 70W Intel Xeon Gold 6130: 2.1~3.7GHz, 16 Cores, 32 Threads, 22MB Cache, 125W Intel Xeon Gold 6230: 2.1~3.9GHz, 20 Cores, 40 Threads, 27.5MB Cache, 125W Intel Xeon Gold 6230N: 2.3~3.5GHz, 20 Cores, 40 Threads, 27.5MB Cache, 125W |
| Performance Cores | 22 18 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 6x DDR4 2933MHz LONG-DIMM Slots, 384GB |
| Chipset | Intel C621 |
| Operating System | Linux |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x GbE LAN [RJ45] | |
| LAN Controllers | Intel i210AT |
| USB | 11x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.1 Gen 1 [Board] 3x USB 2.0 [Board] 4x USB 3.1 Gen 1 [Type A] | |
| Serial | 1x Serial Ports |
| 1x RS232 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [PCIe x2/USB] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] | |
| PCIe | 6x PCIe Slots |
| 3x PCIe [x16 Slot] [Gen3] 3x PCIe [x8 Slot] [Gen3] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 6x SATA Ports |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | ATX Power Supply [8+24 Pin] |
| Environmental Conditions | |
| Operating Temperature | -5°C to 65°C [23°F to 149°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Mechanical Properties | |
| Dimensions | 305mm x 244mm (12.01" x 9.61") |
- PR611-C621DR Datasheet Download
Official DFI USA Distributor
Things Embedded is an official DFI USA distributor, supplying the PR611-C621DR configured with the processor, registered ECC memory, storage, add-in cards, cooling and an OS image, then tested before it ships. For 3rd Gen Xeon Scalable with PCIe Gen4 slots, compare ICX610. We can help plan the slot layout for GPUs and capture cards.
