FCCPR811-C622IRV Overview

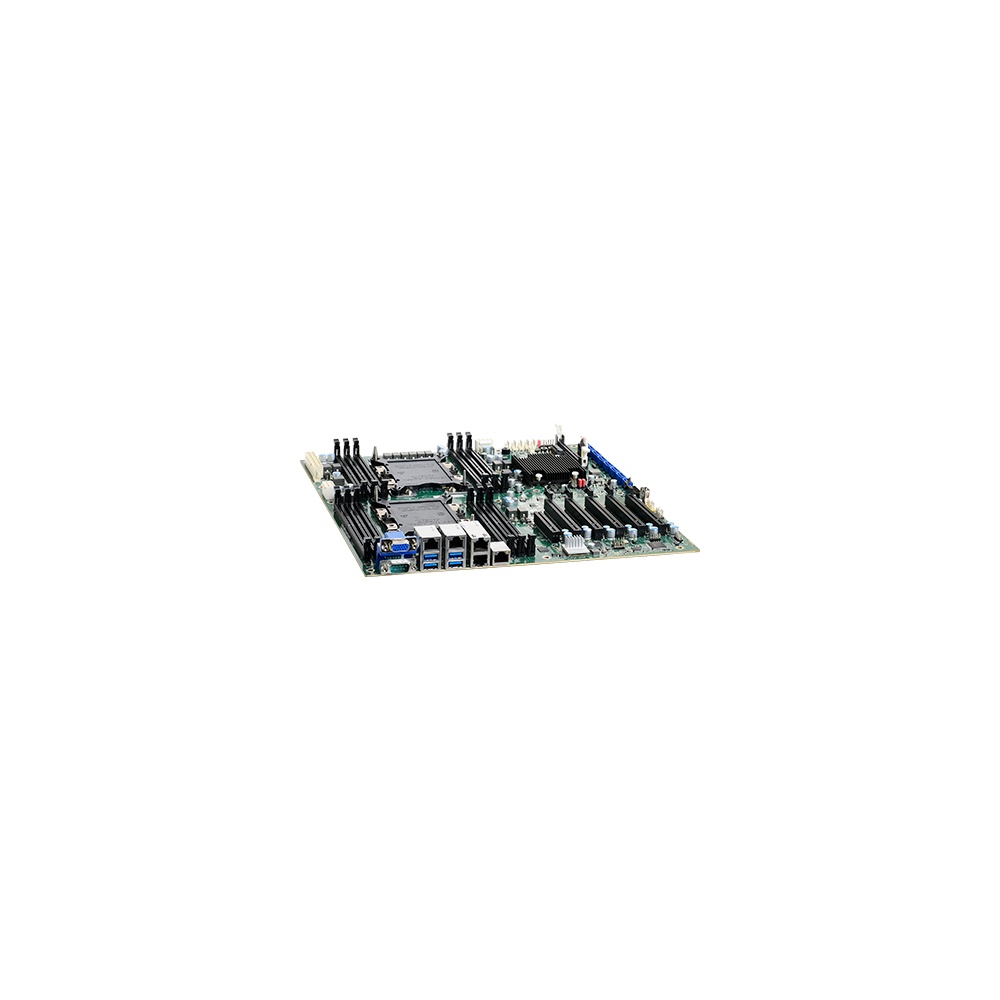

A vision system for a production line is often commissioned and tuned at the machine, with an engineer at a local screen, before it runs unattended. The PR811-C622IRV is the VGA build in the DFI PR811 series of dual-socket EATX server motherboards, with DFI’s SEM2510-VGA module fitted for a rear VGA output at up to 1920 x 1200.

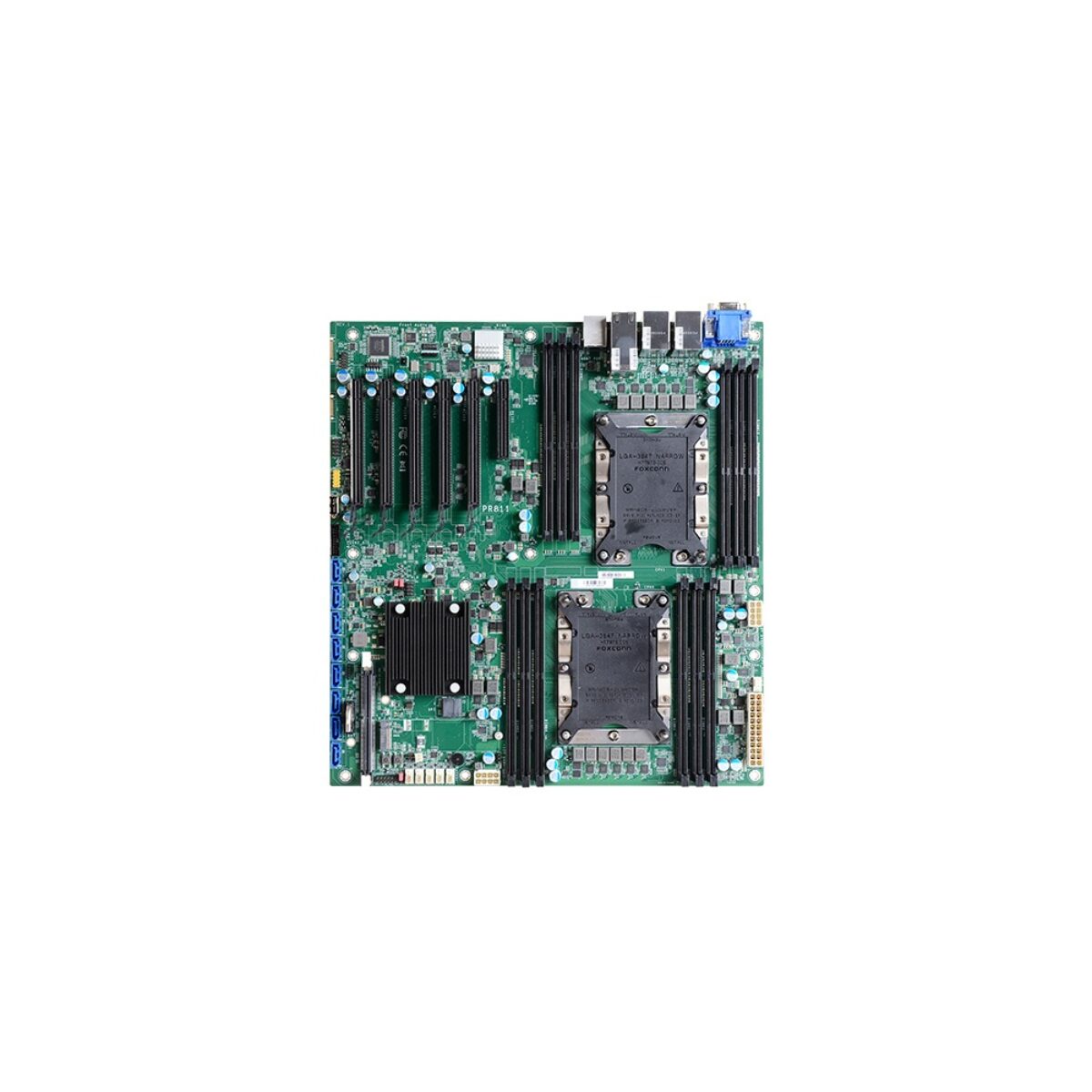

Two LGA 3647 sockets take 1st and 2nd Gen Intel Xeon Scalable processors on the Intel C622 chipset, each from eight to 24 cores at up to 150 W TDP. A pair of 16-core Gold 6130 processors can suit a mid-sized camera set, with 24-core parts for heavier loads. Twelve DDR4 RDIMM slots hold up to 768 GB of registered ECC memory at up to 2933 MHz.

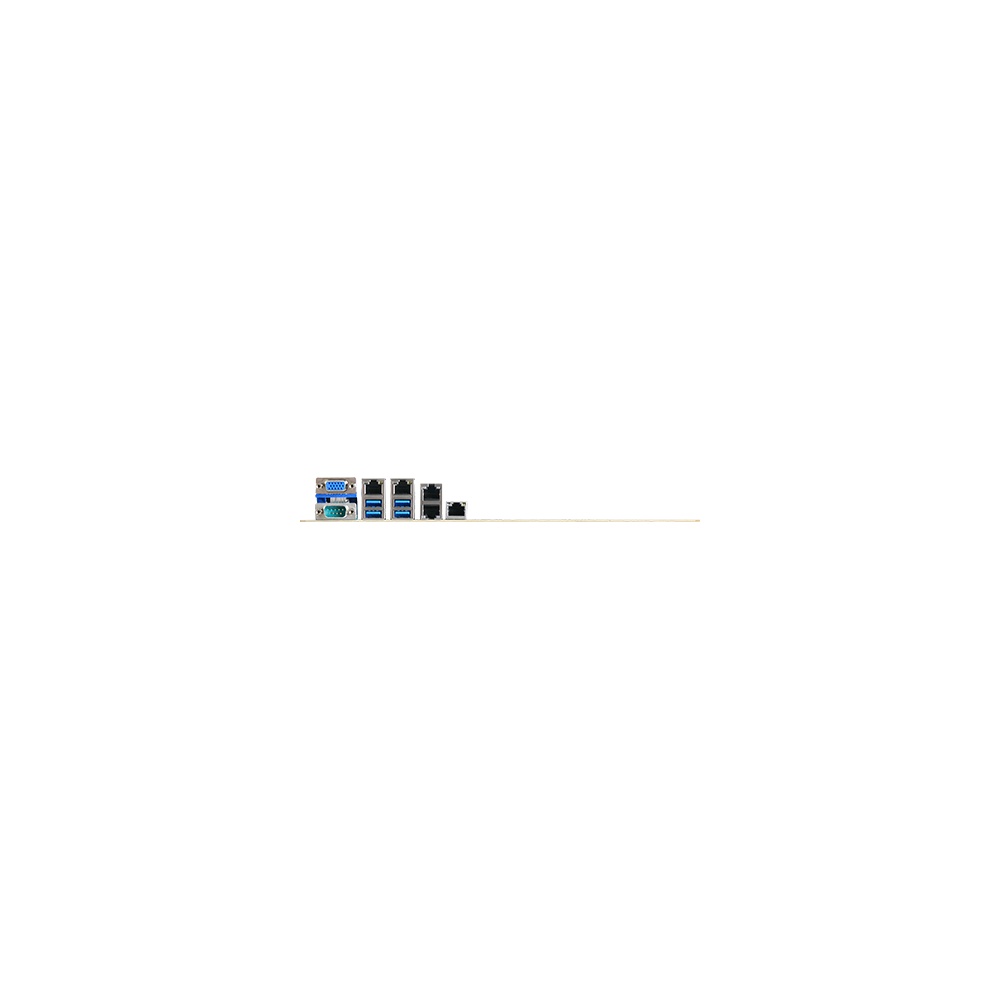

Five PCIe x16 slots and one open-ended PCIe x8 slot, all Gen3, take GPUs and frame grabbers. Networking is two 10GbE ports on an Intel X557-AT2 and two GbE ports on Intel I210AT controllers. The rear panel has four USB 3.2 Gen 1 and two USB 2.0 Type-A ports for a keyboard, mouse and service tools, plus an RS-232 DB9, with two USB 3.2 Gen 1, three USB 2.0 and a second RS-232 on the board. Storage is an M.2 2280 NVMe or SATA slot and eight SATA 3.0 ports with RAID 0, 1, 5 and 10.
Power comes from an ATX supply on 24-pin and 8-pin connectors, with an operating range of 0 to 40 °C, TPM 2.0 and CE, FCC, UKCA and RoHS compliance. PR811-C622IR is the headless build without a module, and PR811-C622IRI adds IPMI remote management to the PR811-C622IRV’s VGA output.
PR811-C622IRV Specifications
| Overview | |
|---|---|
| Brand & Model | DFI PR811-C622IRV |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | Intel 2nd Gen Xeon Scalable Cascade Lake Intel Xeon Scalable Skylake-SP |
| Processor Models | Intel Xeon Silver 4116: 2.1~3.0GHz, 12 Cores, 24 Threads, 16.5MB Cache, 85W Intel Xeon Bronze 3106: 1.7GHz, 8 Cores, 8 Threads, 11MB Cache, 85W Intel Xeon Gold 5118: 2.3~3.2GHz, 12 Cores, 24 Threads, 16.5MB Cache, 105W Intel Xeon Gold 5119T: 1.9~3.2GHz, 14 Cores, 28 Threads, 19.25MB Cache, 85W Intel Xeon Gold 6138T: 2.0~3.7GHz, 20 Cores, 40 Threads, 27.5MB Cache, 125W Intel Xeon Gold 5218N: 2.3~3.7GHz, 16 Cores, 32 Threads, 22MB Cache, 110W Intel Xeon Gold 5218T: 2.1~3.8GHz, 16 Cores, 32 Threads, 22MB Cache, 105W Intel Xeon Silver 4210: 2.2~3.2GHz, 10 Cores, 20 Threads, 13.75MB Cache, 85W Intel Xeon Silver 4109T: 2.0~3.0GHz, 8 Cores, 16 Threads, 11MB Cache, 70W Intel Xeon Gold 5215: 2.5~3.4GHz, 10 Cores, 20 Threads, 13.75MB Cache, 85W Intel Xeon Silver 4214: 2.2~3.2GHz, 12 Cores, 24 Threads, 16.5MB Cache, 85W Intel Xeon Silver 4114T: 2.2~3.0GHz, 10 Cores, 20 Threads, 13.75MB Cache, 85W Intel Xeon Silver 4216: 2.1~3.2GHz, 16 Cores, 32 Threads, 22MB Cache, 100W Intel Xeon Gold 6126T: 2.6~3.7GHz, 12 Cores, 24 Threads, 19.25MB Cache, 125W Intel Xeon Gold 6252N: 2.3~3.6GHz, 24 Cores, 48 Threads, 35.75MB Cache, 150W Intel Xeon Silver 4215: 2.5~3.5GHz, 8 Cores, 16 Threads, 11MB Cache, 85W Intel Xeon Gold 6238T: 1.9~3.7GHz, 22 Cores, 44 Threads, 30.25MB Cache, 125W Intel Xeon Gold 5120T: 2.2~3.2GHz, 14 Cores, 28 Threads, 19.25MB Cache, 105W Intel Xeon Gold 5220T: 1.9~3.9GHz, 18 Cores, 36 Threads, 24.75MB Cache, 105W Intel Xeon Gold 6130T: 2.1~3.7GHz, 16 Cores, 32 Threads, 22MB Cache, 125W Intel Xeon Gold 6230T: 2.1~3.9GHz, 20 Cores, 40 Threads, 27.5MB Cache, 125W Intel Xeon Platinum 8160T: 2.1~3.7GHz, 24 Cores, 48 Threads, 33MB Cache, 150W Intel Xeon Silver 4116T: 2.1~3.0GHz, 12 Cores, 24 Threads, 16.5MB Cache, 85W Intel Xeon Silver 4110: 2.1~3.0GHz, 8 Cores, 16 Threads, 11MB Cache, 85W Intel Xeon Gold 6138: 2.0~3.7GHz, 20 Cores, 40 Threads, 27.5MB Cache, 125W Intel Xeon Gold 6126: 2.6~3.7GHz, 12 Cores, 24 Threads, 19.25MB Cache, 125W Intel Xeon Gold 6226: 2.7~3.7GHz, 12 Cores, 24 Threads, 19.25MB Cache, 125W Intel Xeon Silver 4209: 2.2~3.2GHz, 8 Cores, 16 Threads, 11MB Cache, 70W Intel Xeon Gold 6130: 2.1~3.7GHz, 16 Cores, 32 Threads, 22MB Cache, 125W Intel Xeon Gold 6230: 2.1~3.9GHz, 20 Cores, 40 Threads, 27.5MB Cache, 125W Intel Xeon Gold 6230N: 2.3~3.5GHz, 20 Cores, 40 Threads, 27.5MB Cache, 125W |
| Performance Cores | 22 18 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 12x DDR4 2933MHz LONG-DIMM Slots, 768GB |
| Chipset | Intel C622 |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux |
| Graphics | |
| Display Outputs | 1x VGA |
| I/O | |
| Ethernet | 4x Ethernet Ports |
| 2x 10 GbE LAN [RJ45] 2x GbE LAN [RJ45] | |
| LAN Controllers | Intel i210AT |
| USB | 11x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.2 Gen 1 [Board] 3x USB 2.0 [Board] 4x USB 3.2 Gen 1 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [Board] 1x RS232 [DB9] | |
| Expansion | |
| M.2 | 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4/SATA] [2280] | |
| PCIe | 6x PCIe Slots |
| 1x PCIe [x8 Slot][Gen3] 5x PCIe [x16 Slot] [Gen3] | |
| Storage | |
| Storage | 1x M.2 SSD 8x SATA Ports |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | ATX Power Supply [8+24 Pin] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C [32°F to 104°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC RoHS UKCA |
| Mechanical Properties | |
| Dimensions | 305mm x 330mm (12.01" x 12.99") |
- PR811-C622IRV Datasheet Download
Official DFI USA Distributor
Things Embedded is an official DFI USA distributor, supplying the PR811-C622IRV configured with both processors, registered ECC memory, storage, GPUs and add-in cards, cooling and an OS image, then tested before it ships. For a single-socket C621 ATX board with six PCIe slots, compare PR611.
