Sunlight Readable Panel PCs

// LOADING...

Browse Our Outdoor High-Brightness Panel PCs

Display

Performance

Graphics

I/O

Expansion

Storage

Power

Environmental Conditions

Mechanical Properties

Displaying of 56 items

View All

NRU-170-PPC 10.1″ IP66 Edge AI Panel PC with NVIDIA Jetson Orin NX 8GB and 4x PoE+

NRU-172S-PPC-JONX-8GB10.1″ IP66 Edge AI Panel PC with NVIDIA Jetson Orin NX 8GB and 4x PoE+

Display: 10.1"[8:5, 1920 x 1200, WUXGA]
Brightness: 1000
Format: Standard
OS: Linux
USB: 2x USB 2.0 [M12]
Serial: 1x RS232 [M12]
CANbus: 1x CAN FD [M12]
M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 M-Key [PCIe x1 Gen3] [2242]
mPCIe: 1x mPCIe [PCIe/USB]
Storage: 1x M.2 SSD
Power: 8-35V DC [M12]
Ignition Sensing: Supports Ignition Control
Temp: -25°C to 60°C [-13°F to 140°F]
IP Rating: IP66
Certification: CE, FCC
Mounting Options: VESA Mount

AI Performance: 70 TOPS
SOM: NVIDIA Jetson Orin NX 8GB
Ethernet: 1x GbE LAN [M12], 4x GbE LAN [M12] [PoE]

AI Performance: 100 TOPS
SOM: NVIDIA Jetson Orin NX 16GB
Ethernet: 1x GbE LAN [M12], 4x GbE LAN [M12] [PoE]

AI Performance: 40 TOPS
SOM: NVIDIA Jetson Orin Nano 8GB
Ethernet: 1x GbE LAN [M12], 4x GbE LAN [M12] [PoE]

AI Performance: 20 TOPS
SOM: NVIDIA Jetson Orin Nano 4GB
Ethernet: 1x GbE LAN [M12], 4x GbE LAN [M12] [PoE]

AI Performance: 20 TOPS
SOM: NVIDIA Jetson Orin Nano 4GB
Ethernet: 1x GbE LAN [M12]

AI Performance: 40 TOPS
SOM: NVIDIA Jetson Orin Nano 8GB
Ethernet: 1x GbE LAN [M12]

AI Performance: 100 TOPS
SOM: NVIDIA Jetson Orin NX 16GB
Ethernet: 1x GbE LAN [M12]

AI Performance: 70 TOPS
SOM: NVIDIA Jetson Orin NX 8GB
Ethernet: 1x GbE LAN [M12]

Neousys

NRU-170-PPC10.1" IP66 Edge AI Panel PCs with NVIDIA Jetson Orin NX or Orin Nano

Available in 8 variations

Datasheet

Select NRU-170-PPC Variant

R10IE3S-GST2 10.4″ Full IP65 Rugged Panel PC with Intel Elkhart Lake Celeron N6211 and MIL-STD-810G

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Celeron N Series Elkhart Lake
OS: Linux Ubuntu 24.04, Windows 11
Ethernet: 1x GbE LAN [M12]
USB: 1x USB 2.0 [M12]
Serial: 1x RS232/422/485 [M12]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC, MIL-STD-810
Mounting Options: VESA Mount

Winmate

R10IE3S-GST210.4″ Full IP65 Rugged Panel PC with Intel Elkhart Lake Celeron N6211 and MIL-STD-810G

Datasheet

R10MG3S-GCT2 10.4″ G-WIN Front IP65 Panel PC with MediaTek Genio 510 and MIL-STD-810H

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Display Outputs: 1x Optional Micro HDMI
Ethernet: 1x GbE LAN [RJ45]
USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x Micro SD
Power: 12V DC [Terminal Block]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R10MG3S-GCT210.4″ G-WIN Front IP65 Panel PC with MediaTek Genio 510 and MIL-STD-810H

Datasheet

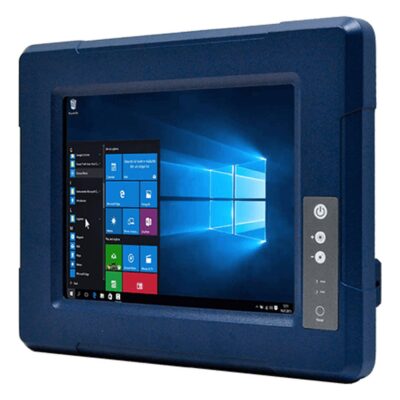

R10IT3S-VMT2(HB) 10.4″ Vehicle Mount Panel PC with Intel Core i5-1135G7 and MIL-STD-810G

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Resistive Touch
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Core 11th Gen Tiger Lake
Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Optional HDMI
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD
Power: 9-36V DC Input [Terminal Block]
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R10IT3S-VMT2(HB)10.4″ Vehicle Mount Panel PC with Intel Core i5-1135G7 and MIL-STD-810G

Datasheet

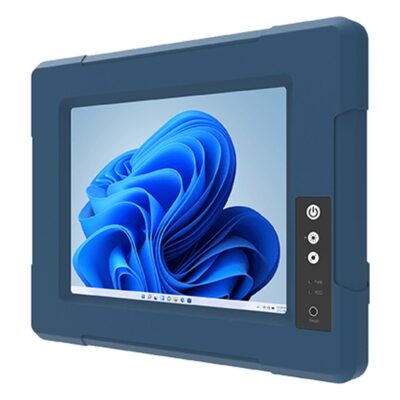

R10IAN3S-VMT2(HB) 10.4″ Vehicle Mount Panel PC with Intel Twin Lake N150 and MIL-STD-810G

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Resistive Touch
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Processor N Series Twin Lake
OS: Linux Ubuntu 24.04, Windows 11
Display Outputs: 1x Optional HDMI, 1x USB Type C
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 1 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 10-60V DC Input [Terminal Block]
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R10IAN3S-VMT2(HB)10.4″ Vehicle Mount Panel PC with Intel Twin Lake N150 and MIL-STD-810G

Datasheet

R10IAN3S-GST2 10.4″ Full IP65 Rugged Panel PC with Quad-Core Intel N150 and MIL-STD-810G

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Processor N Series Twin Lake
OS: Linux Ubuntu 24.04, Windows 11
Ethernet: 1x GbE LAN [M12]
USB: 1x USB 2.0 [M12]
Serial: 1x RS232/422/485 [M12]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC, MIL-STD-810

Winmate

R10IAN3S-GST210.4″ Full IP65 Rugged Panel PC with Quad-Core Intel N150 and MIL-STD-810G

Datasheet

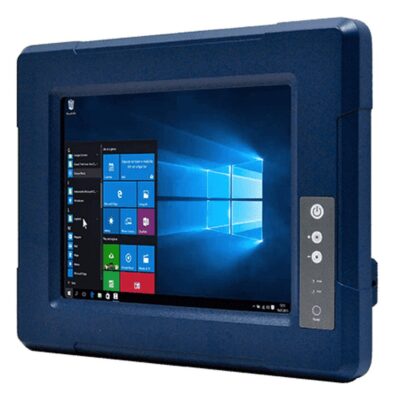

R10IAD3S-VMT2(HB) 10.4″ Vehicle Mount Panel PC with Intel Alder Lake Core i5-1235U and MIL-STD-810G

Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Optional Resistive Touch
Brightness: 1000, 350
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Core 12th Gen Alder Lake
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Optional HDMI
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD
Power: 9-36V DC Input [Terminal Block]
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R10IAD3S-VMT2(HB)10.4″ Vehicle Mount Panel PC with Intel Alder Lake Core i5-1235U and MIL-STD-810G

Datasheet

GOT710S-837 10.4″ EN 50155 S3 Railway Panel PC with Intel Atom E3845 and 1000 Nit LCD

Touch: 5-Wire Resistive Touch
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Atom E Series Bay Trail
Memory: 4GB Soldered On-board
OS: Windows 10
Ethernet: 2x GbE LAN [M12]
USB: 2x USB 2.0 [M12]
Serial: 2x RS232/422/485 [M12]
CANbus: 1x Isolated CANbus, DB9
mPCIe: 2x mPCIe [SATA/USB/PCIe]
Storage: 16GB eMMC, 1x mSATA
Power: 24V-110V DC [M12]
Ignition Sensing: Supports Ignition Control
Temp: -40°C to 70°C [-40°F to 158°F]
IP Rating: Front IP65
Certification: CE, EN50121-3-2, EN50155, FCC

Axiomtek

GOT710S-83710.4″ EN 50155 S3 Railway Panel PC with Intel Atom E3845 and 1000 Nit LCD

Datasheet

R12IT3S-GCM2(HB) 12.1″ G-WIN Front IP65 Panel PC with 11th Gen Intel Core i5 and MIL-STD-810G

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Core 11th Gen Tiger Lake
OS: Linux Ubuntu 22.04, Windows 10, Windows 11
Serial: 1x RS232/422/485 [DB9]
M.2: 1x M.2 M-Key [PCIe/SATA] [2242/2280]
Storage: 1x M.2 SSD, 1x SATA Port
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R12IT3S-GCM2(HB)12.1″ G-WIN Front IP65 Panel PC with 11th Gen Intel Core i5 and MIL-STD-810G

Datasheet

R12IE3S-GCM2(HB) 12.1″ G-WIN Front IP65 Panel PC with Intel Elkhart Lake Celeron N6211 and MIL-STD-810G

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Celeron N Series Elkhart Lake
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Optional HDMI
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R12IE3S-GCM2(HB)12.1″ G-WIN Front IP65 Panel PC with Intel Elkhart Lake Celeron N6211 and MIL-STD-810G

Datasheet

R12IE3S-GSM2(HB) 12.1″ Full IP65 Rugged Panel PC with Intel Celeron N6211 and MIL-STD-810G

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Celeron N Series Elkhart Lake
OS: Linux Ubuntu 24.04, Windows 11
Ethernet: 1x GbE LAN [M12]
USB: 1x USB 2.0 [M12]
Serial: 1x RS232/422/485 [M12]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC, MIL-STD-810
Mounting Options: VESA Mount

Winmate

R12IE3S-GSM2(HB)12.1″ Full IP65 Rugged Panel PC with Intel Celeron N6211 and MIL-STD-810G

Datasheet

R12IAN3S-GCM2(HB) 12.1″ G-WIN Front IP65 Panel PC with Intel Twin Lake N150 and MIL-STD-810G

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Processor N Series Twin Lake
OS: Linux Ubuntu 24.04, Windows 11
Display Outputs: 1x Optional HDMI, 1x USB Type C
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R12IAN3S-GCM2(HB)12.1″ G-WIN Front IP65 Panel PC with Intel Twin Lake N150 and MIL-STD-810G

Datasheet

R12IAN3S-GSM2(HB) 12.1″ Full IP65 Rugged Panel PC with Intel N150 and MIL-STD-810G

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Intel Processor N Series Twin Lake
OS: Linux Ubuntu 24.04, Windows 11
Ethernet: 1x GbE LAN [M12]
USB: 1x USB 2.0 [M12]
Serial: 1x RS232/422/485 [M12]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC, MIL-STD-810
Mounting Options: VESA Mount

Winmate

R12IAN3S-GSM2(HB)12.1″ Full IP65 Rugged Panel PC with Intel N150 and MIL-STD-810G

Datasheet

R12MG3S-GSM2(HB) 12.1″ Full IP65 Rugged Panel PC with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000, 500
Viewing Angle: Wide Viewing Angle
Format: Standard
CPU: Genio 510
Memory: 4GB Soldered On-board
OS: Android 13.0, Linux Ubuntu 22.04
Ethernet: 1x GbE LAN [M12]
USB: 1x USB 2.0 [M12]
Serial: 1x RS232 [M12]
Storage: 1x Micro SD, 32GB eMMC
Power: 12V DC [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R12MG3S-GSM2(HB)12.1″ Full IP65 Rugged Panel PC with Arm-Based MediaTek Genio 510 and MIL-STD-810H

Datasheet

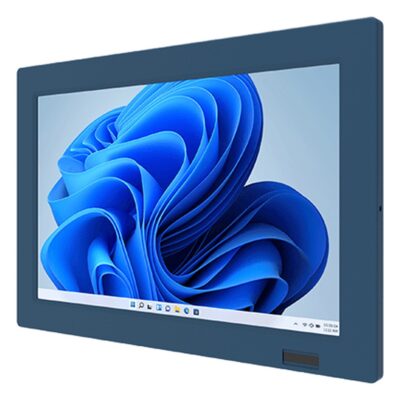

W12IAN3S-VMM9(HB) 12.1″ Vehicle Mount Panel PC with Intel N150 and MIL-STD-810G

Display: 12.1"[5:3, 1280 x 800, WXGA]
Touch: Resistive Touch
Brightness: 400
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Intel Processor N Series Twin Lake
OS: Linux Ubuntu 24.04, Windows 11
Display Outputs: 1x Optional HDMI, 1x USB Type C
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 1 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 10-60V DC Input [Terminal Block]
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

W12IAN3S-VMM9(HB)12.1″ Vehicle Mount Panel PC with Intel N150 and MIL-STD-810G

Datasheet

Displaying of 56 items

View All

Beyond Sunlight Readable: Panel PCs

All Panel PCsEvery panel PC we supply, from open frame HMIs to fully sealed IP69K stainless steel builds.

// Panel PC Specialists

Speak to a Panel PC Specialist.

Tell us where the panel PC will be mounted, what it needs to run and connect to and the sealing the area needs, and we will recommend the right size and touch technology, then configure, image and test it before it ships.

Phone · USA +1 407 214 9446

Email sales@things-embedded.com
