Winmate R12IE3S-GCM2(HB) 12.1″ G-WIN Front IP65 Panel PC with Intel Elkhart Lake Celeron N6211 and MIL-STD-810G

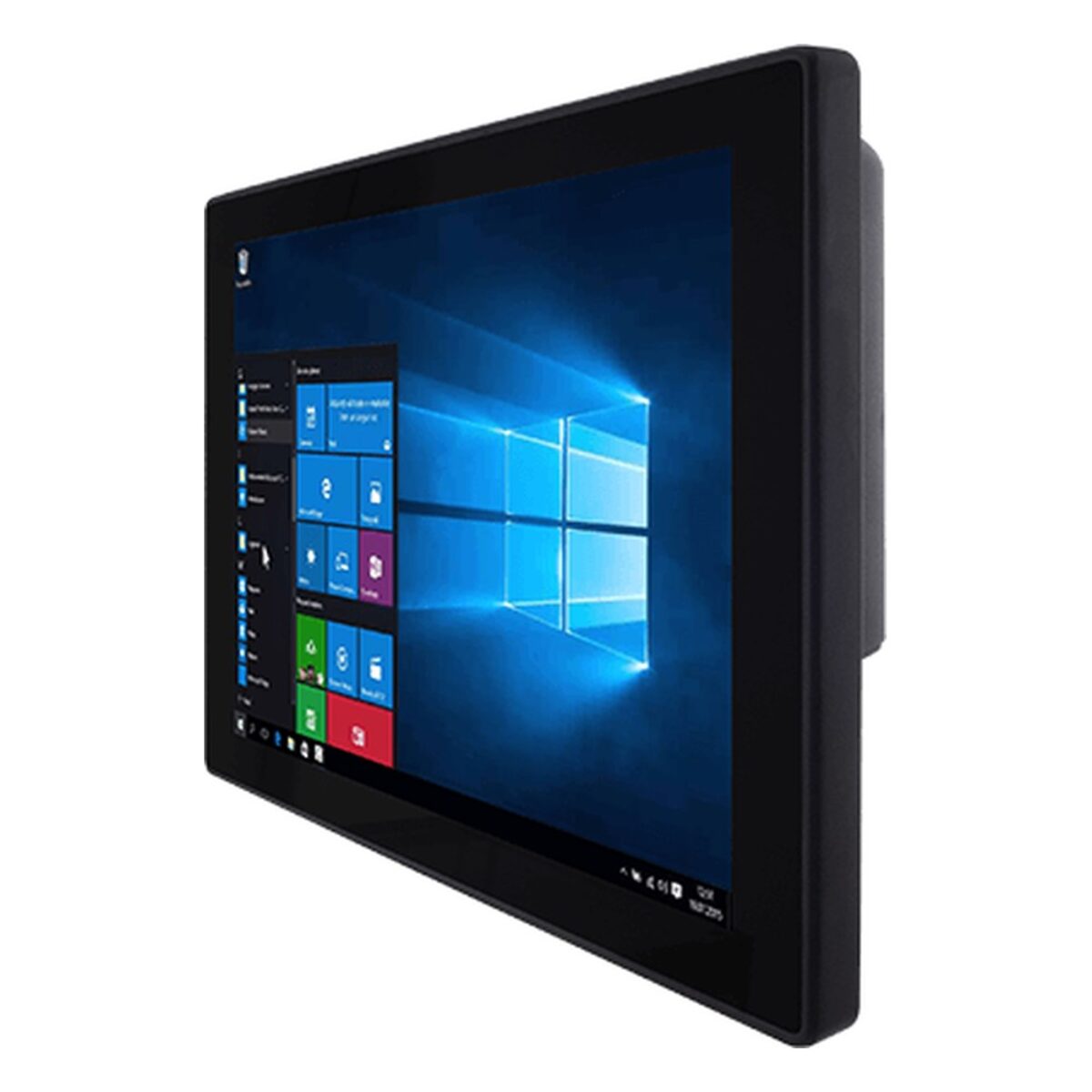

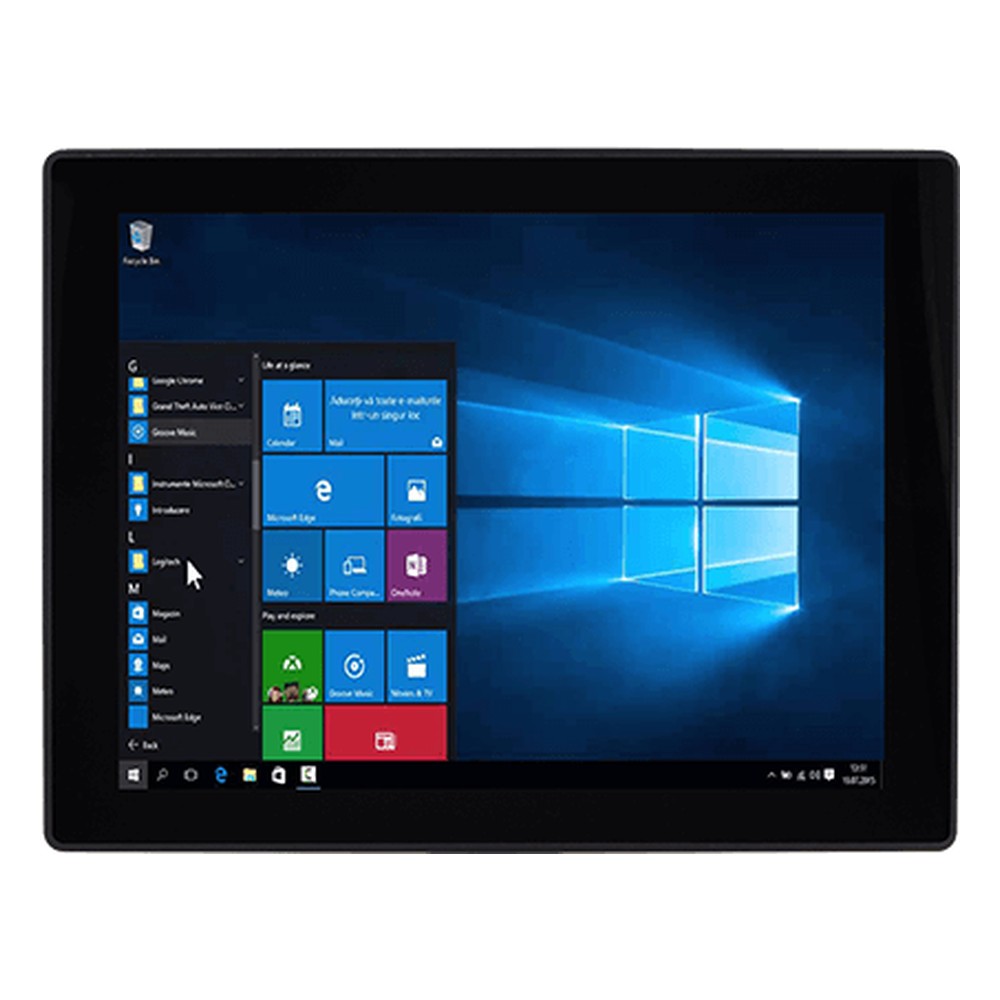

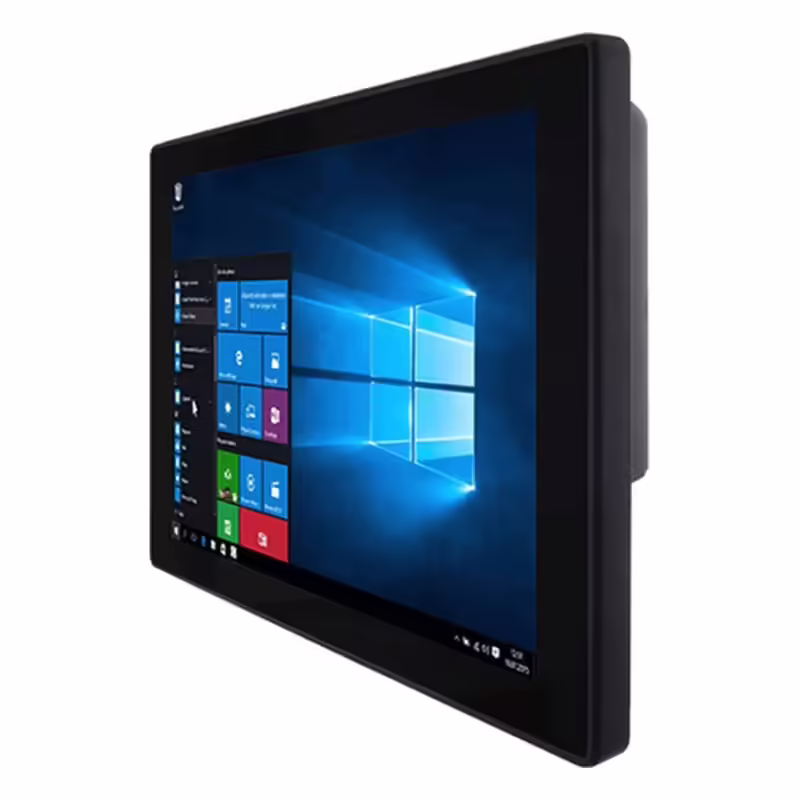

A 12.1 inch screen is a common size for machine fronts and control cabinet doors, where operators need touch control and cleaners need a flat face to wipe. The R12IE3S-GCM2(HB) is Winmate’s 12.1″ G-WIN GC panel PC with an Intel Celeron N6211 behind an edge-to-edge PCAP touchscreen, a true-flat front sealed to IP65 for easy cleaning and a fanless aluminum housing.

The Celeron N6211 is a dual-core Elkhart Lake processor running at up to 3.0 GHz with a 6.5 W TDP, typically enough for HMI runtimes, web dashboards and operator forms without a fan. Memory is 4 GB of DDR4 as standard with 8 GB or 16 GB options, storage is a 128 GB SSD with options up to 2 TB, and TPM 2.0 is on board. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed. The 12.1 inch display is 1024 x 768 at 500 nits as standard, with a 1000 nit panel as an option, 1000:1 contrast and 178 degree viewing angles.

I/O includes two 2.5GbE ports on Intel controllers, two USB 3.2 Gen 2 Type-A ports, one RS-232/422/485 port, two speakers and an optional HDMI 2.0 output. The R12IAN3S-GCM2(HB) is the same 12.1 inch GC design with a newer quad-core Intel N150, and the R12IE3S-GSM2(HB) is the fully sealed IP65 GS model with M12 connectors and the same Celeron N6211.

Power is 12 V DC as standard, with a 9 to 36 V DC input as an option, and an AC adapter comes in the box. The R12IE3S-GCM2(HB) operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -30 °C to 70 °C, and is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration. It mounts on VESA, or in a panel with the optional front IP65 panel mount, and carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch.
