Winmate R12IAN3S-GCM2(HB) 12.1″ G-WIN Front IP65 Panel PC with Intel Twin Lake N150 and MIL-STD-810G

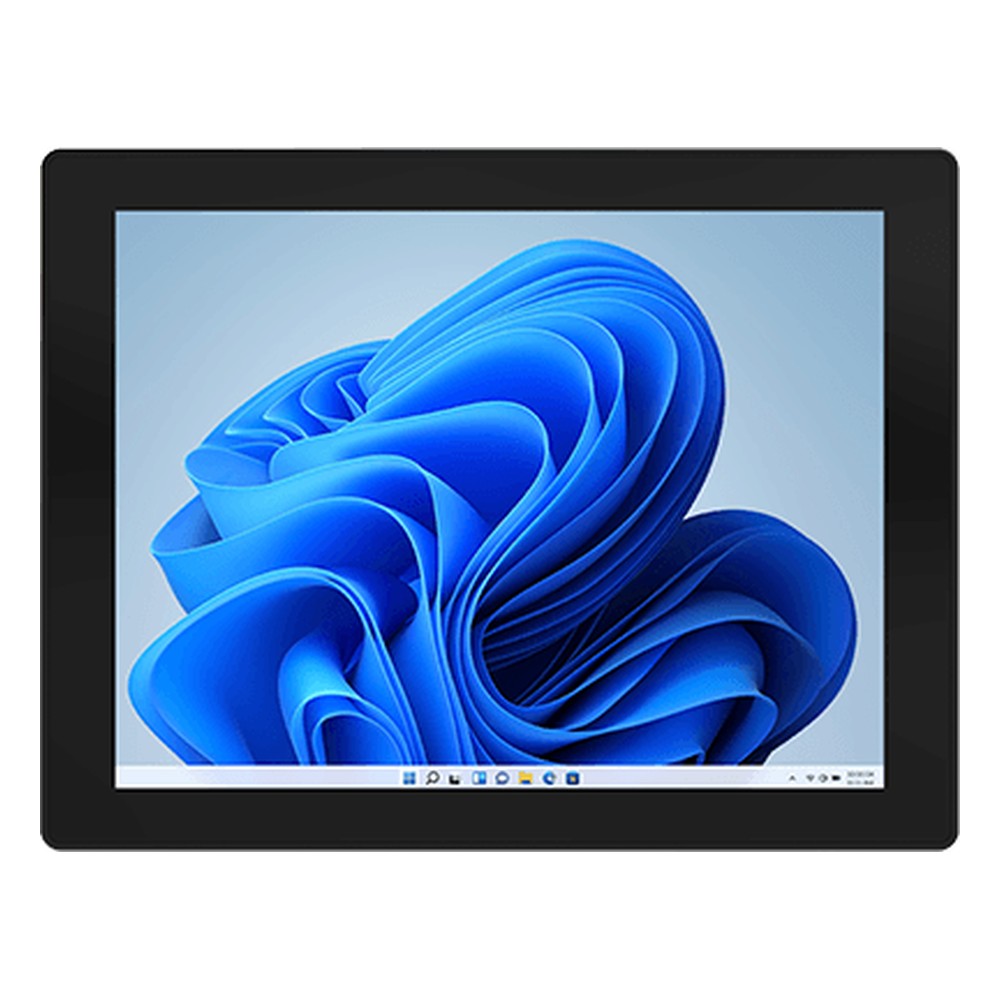

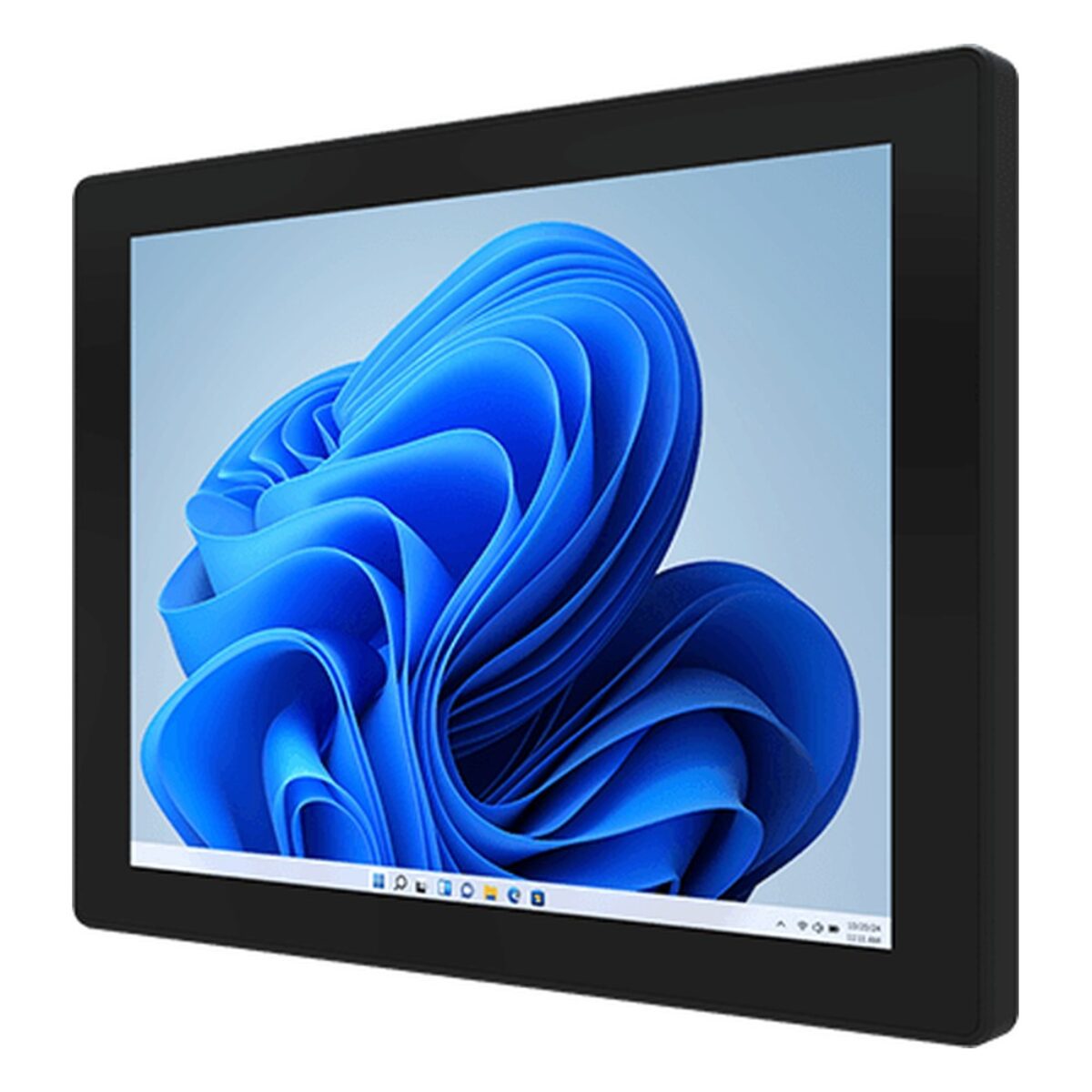

A 12.1 inch screen is a common size for machine fronts and control cabinet doors, where the operator needs touch control and the cleaner needs a flat face to wipe. The R12IAN3S-GCM2(HB) is Winmate’s 12.1″ G-WIN GC panel PC for machine control, factory automation and operator HMI, with an Intel Processor N150 behind an edge-to-edge PCAP display with a front IP65 rating, in a fanless aluminum housing.

The N150 is a low-power quad-core processor running at up to 3.6 GHz, which suits HMI runtimes, web-based dashboards and light data collection. Memory is 8 GB as standard with a 16 GB option, and storage is a 128 GB SSD with options up to 2 TB. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 can be installed. The display is 1024 x 768 at 500 nits as standard, with a 1,000 nit panel as an option for brighter sites.

I/O includes two 2.5GbE ports on Intel controllers, two USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port with DP Alt mode up to 4096 x 2160 at 60 Hz, an optional HDMI 2.0b output, one RS-232/422/485 port and two speakers. Wi-Fi and Bluetooth are optional. The R12IAD3S-GCM2(HB) is the same 12.1 inch GC design with a 12th Gen Core i5-1235U, and the R12IAN3S-GSM2(HB) is the fully sealed IP65 GS model with M12 connectors.

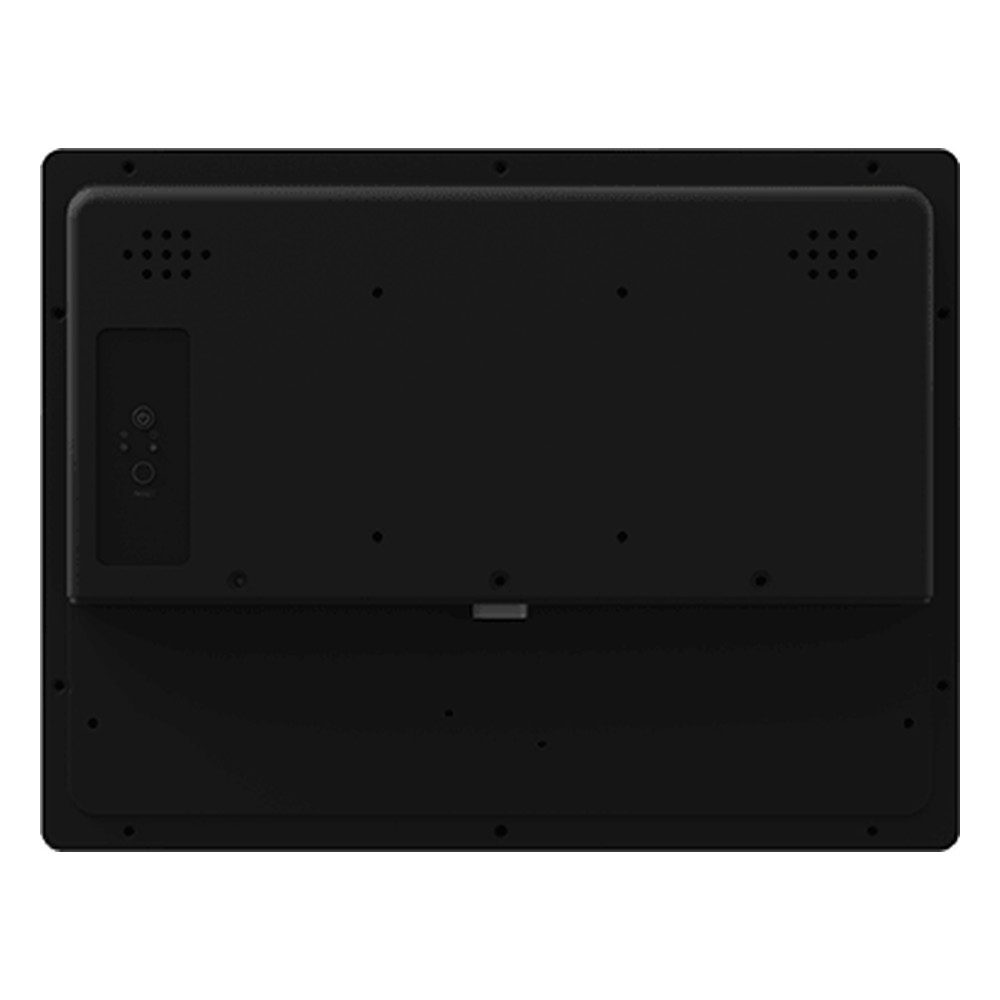

Power is 12 V DC as standard, with a 9 to 36 V DC input as an option, and an AC adapter comes in the box. The R12IAN3S-GCM2(HB) operates from 0 °C to 50 °C, is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration, and mounts on VESA or in a panel with the optional front IP65 panel mount. It carries CE and FCC marks. We supply it configured, with the operating system installed, and tested before dispatch.
