Winmate R10L100-POT2-C 10.4″ USB-C Open Frame PCAP Touch Monitor with XGA Display
PCAP
CE
FCCR10L100-POT2-C Overview

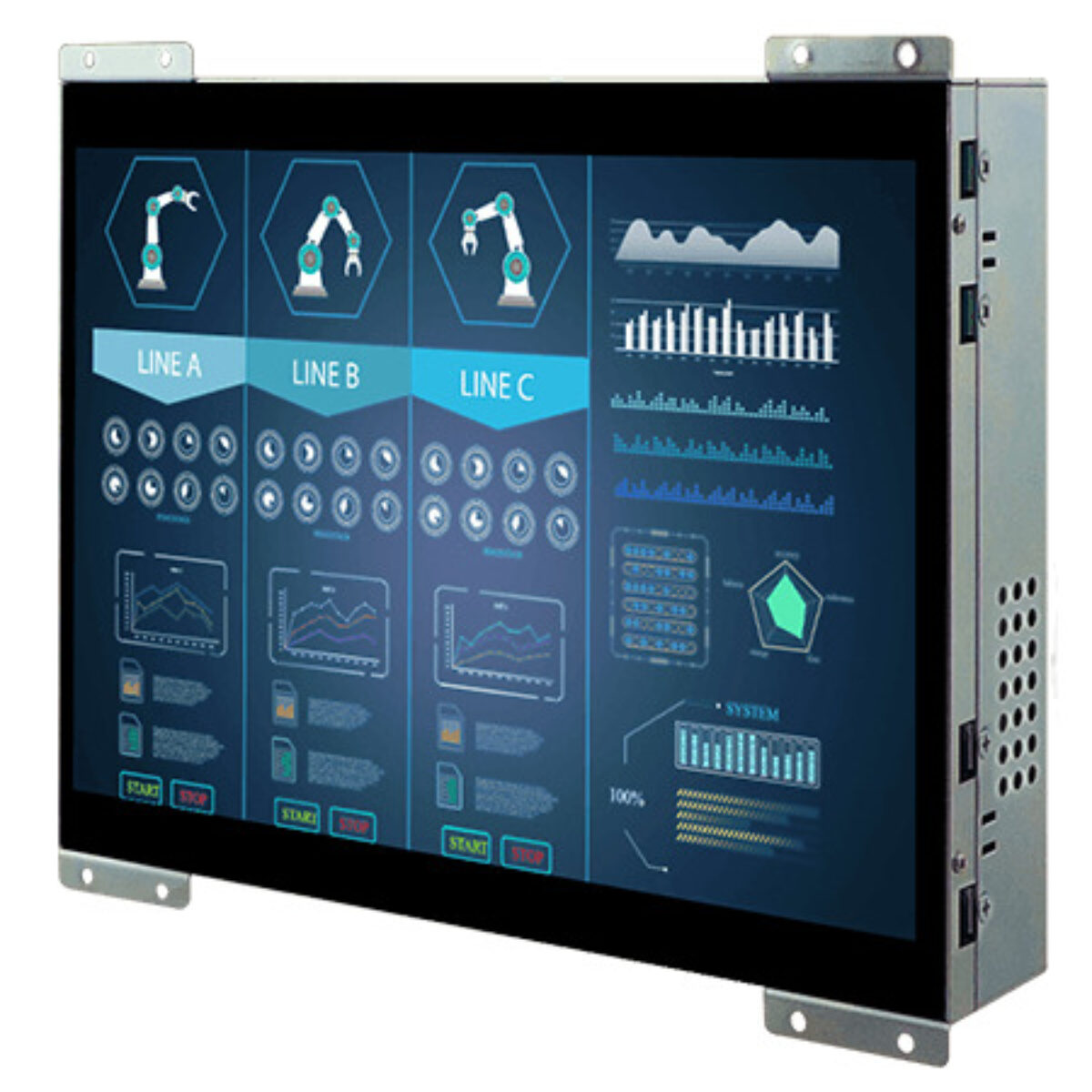

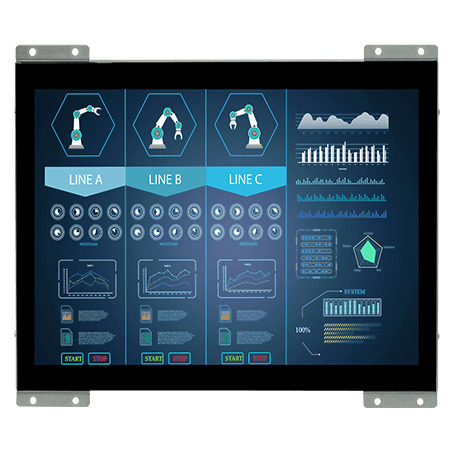

Every extra cable in a kiosk or machine is another part to route, secure and fail. The R10L100-POT2-C is Winmate’s 10.4 inch open frame display that needs just one: a USB Type-C connector carrying video, touch and power, driving a 1024 x 768 panel with projected capacitive touch.
The 10.4 inch LCD runs at 1024 x 768 with 350 nits, a 1000:1 contrast ratio, 16.2M colors and 176° viewing angles. The PCAP multi-touch screen gives the light tap and swipe users expect from phones, and protection glass is available as an option. Five keys on the rear control the on-screen display, so brightness and settings can be changed without software on the host.
Power comes from USB Type-C Alt mode at 5 V / 3 A, so a host with a suitable USB-C port drives the monitor without a separate supply. Two speakers can be added as an option. Winmate offers standard, lockable and waterproof USB-C cables, so the single connection can be secured where the kiosk is knocked or cleaned. The R15L100-POC3-C offers the same single-cable PCAP approach at 15 inches, and the R10L100-OFT2 keeps a VGA input with optional resistive or SAW touch.
The frame measures 260 x 215.1 x 50 mm, mounts on 75 x 75 mm VESA holes or in a panel using its eight mounting tabs, and cools without a fan. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. It carries CE and FCC marks, and Winmate names industrial visualization, control rooms and equipment monitoring as applications.
R10L100-POT2-C Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L100-POT2-C |
| Features | Fanless Industrial USB C |
| Display | |
| Display | 10.4"[4:3, 1024 x 768, XGA] |
| Touch Interface | USB C |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x USB Type C |
| Power | |
| Power Input | 5V [USB-C] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 260mm x 216mm x 50mm (10.24" x 8.5" x 1.97") |
- R10L100-POT2-C Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R10L100-POT2-C configured for USA kiosk and machine builders. Within the Winmate range the R15L100-POC3-C is the 15 inch USB-C PCAP model, and the R10L100-OFT2 suits hosts that output VGA.
With PCAP touch over USB-C the R10L100-POT2-C sits among our open frame displays, our PCAP touch monitors and our 10 inch industrial screens. Where a compact host drives one cable to the display, this is the model to specify.
