Winmate R10L100-OFT2 10.4″ Open Frame Monitor with XGA Display and Optional Resistive or SAW Touch
Resistive
Fanless
CE
FCCR10L100-OFT2 Overview

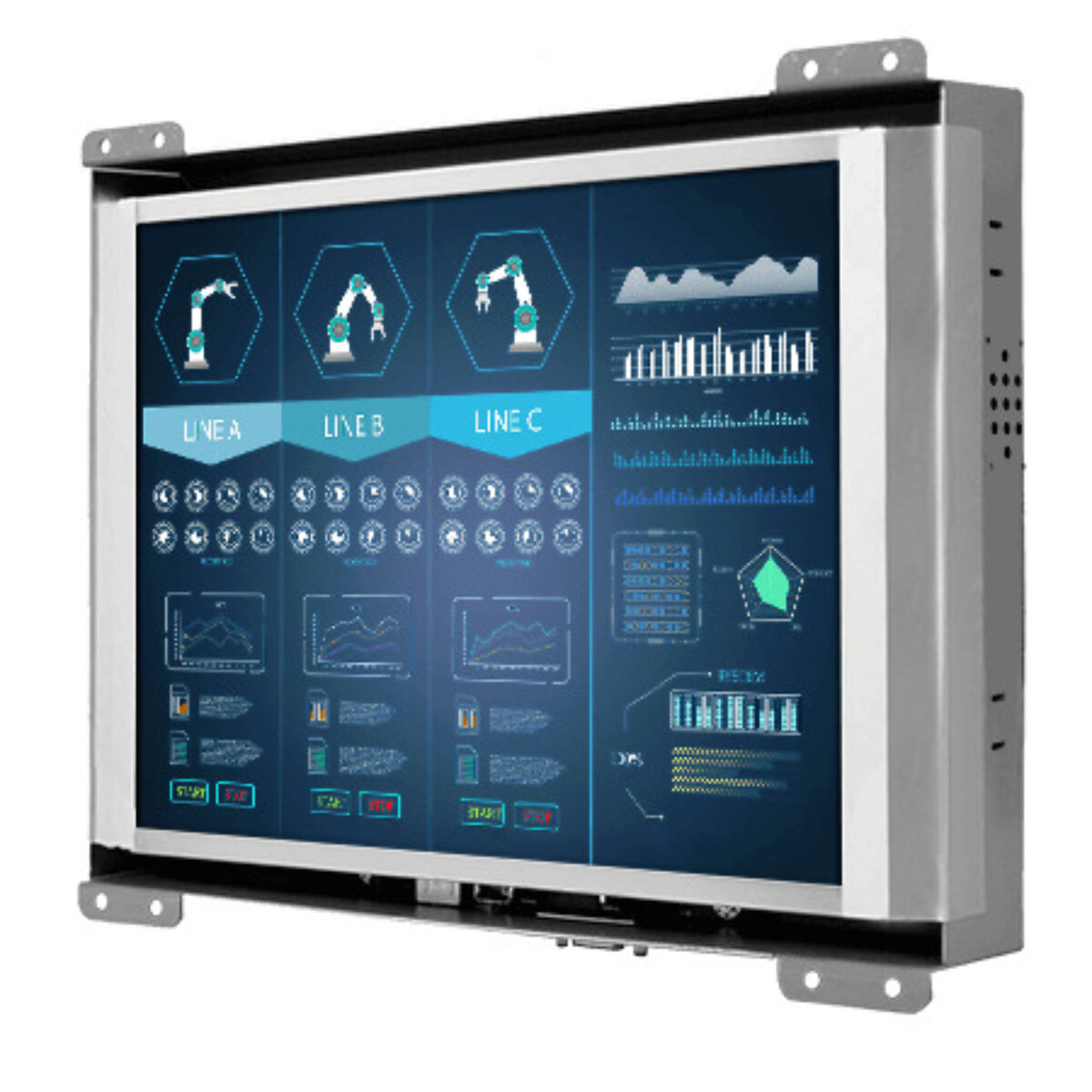

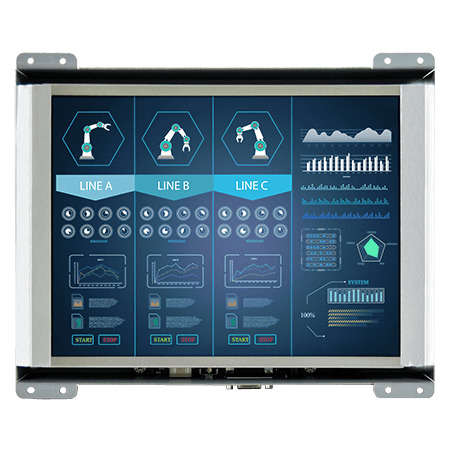

OEM enclosures, kiosks and control cabinets need a display that fits behind the builder’s own bezel rather than a finished monitor. The R10L100-OFT2 is Winmate’s 10.4 inch open frame display, with a 1024 x 768 panel in a fanless 1.3 kg metal frame that mounts from the rear or on VESA holes.
The 10.4 inch LCD runs at 1024 x 768 with 350 nits, a 1000:1 contrast ratio, 16.2M colors and 176° viewing angles, which suits indoor kiosks and HMI screens viewed from either side. Touch is optional: Winmate offers resistive or SAW touch, or plain protection glass where the screen is display-only. Five keys on the rear control the on-screen display.
Video comes in over VGA as standard, with HDMI and DVI available as options, and a USB port carries touch data. A 3.5 mm audio line-in and two speakers can be added where the kiosk needs sound. The R10L100-OFT2HB uses the same frame with a 1000 nit panel for bright sites, and the R10L100-OFP3 keeps legacy software at 640 x 480.
Power is 12 V DC, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The monitor operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and cools without a fan. It measures 260 x 215 x 38 mm, weighs 1.3 kg, mounts on 75 x 75 mm VESA holes or from the rear, and carries CE and FCC marks. Winmate names ATMs, vending machines, casino monitors, airport information displays and mall kiosks as applications.
R10L100-OFT2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L100-OFT2 |
| Features | Fanless Industrial |
| Display | |
| Display | 10.4"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 260mm x 215mm x 38mm (10.24" x 8.46" x 1.5") |
- R10L100-OFT2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R10L100-OFT2 configured for USA kiosk and machine builders. Within the Winmate range the R10L100-OFT2HB is the 1000 nit version of this frame, and the R10L100-POT2-C brings PCAP touch over a single USB-C cable.
As an XGA open frame the R10L100-OFT2 sits among our open frame displays, our 10 inch industrial monitors and our resistive touch monitors. Where a kiosk builder needs XGA behind their own bezel, this is the model to specify.
