Winmate R10L100-OFT2HB 10.4″ High Brightness Open Frame Monitor with 1000 Nit XGA Display
Resistive
High Bright
CE
FCCR10L100-OFT2HB Overview

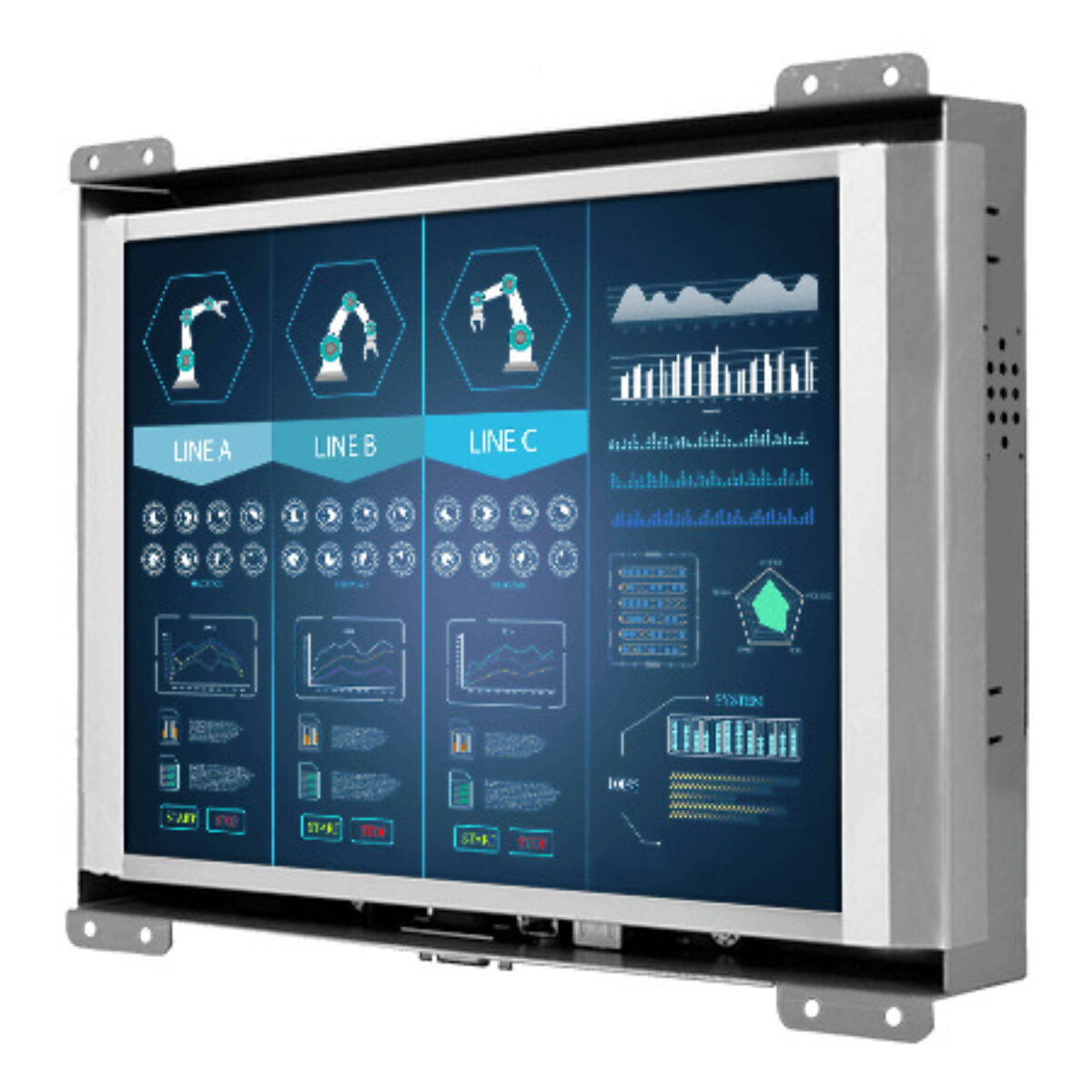

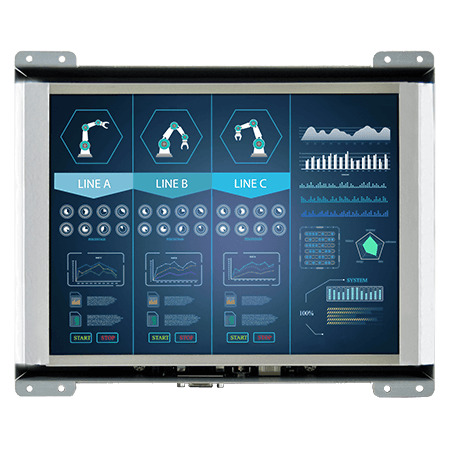

A standard 350 nit panel washes out when a kiosk stands near a window or a machine sits under bright lighting. The R10L100-OFT2HB is Winmate’s 10.4 inch open frame display with a 1000 nit 1024 x 768 panel, in a fanless metal frame that mounts from the rear or on VESA holes.
The 10.4 inch LCD runs at 1024 x 768 with 1000 nits, a 1000:1 contrast ratio, 16.2M colors and 176° viewing angles. That brightness keeps menus and signage readable where ambient light is high, without moving to a larger screen. Touch is optional, as resistive or SAW touch, or as plain protection glass, and five keys on the rear control the on-screen display.
Video comes in over VGA as standard, with HDMI and DVI available as options, and a USB port carries touch data. A 3.5 mm audio line-in with two speakers can be added. The R10L100-OFT2 is the 350 nit version of this frame for indoor sites, and the R15L100-OFC3HB offers a 1000 nit open frame at 15 inches.
Power is 12 V DC, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The monitor operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and cools without a fan. The frame measures 260 x 215 x 38 mm, mounts on 75 x 75 mm VESA holes or from the rear, and carries CE and FCC marks. Winmate names ATMs, vending machines, casino monitors, airport information displays and mall kiosks as applications.
R10L100-OFT2HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L100-OFT2HB |
| Features | Fanless Industrial |
| Display | |
| Display | 10.4"[4:3, 1024 x 768, XGA] |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 260mm x 215mm x 38mm (10.24" x 8.46" x 1.5") |
- R10L100-OFT2HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R10L100-OFT2HB configured for USA kiosk and machine builders. Within the Winmate range the R10L100-OFT2 is the 350 nit version for indoor sites, and the R15L100-OFC3HB brings 1000 nits to a 15 inch frame.
With 1000 nits the R10L100-OFT2HB sits among our high brightness monitors, our open frame screens and our 10 inch displays. Where a kiosk faces a window or bright hall lighting, this is the model to specify.
