Winmate R10L100-OFP3 10.4″ Open Frame Monitor with 450 Nit VGA Display and Optional Resistive or SAW Touch
Resistive
Fanless
CE
FCCR10L100-OFP3 Overview

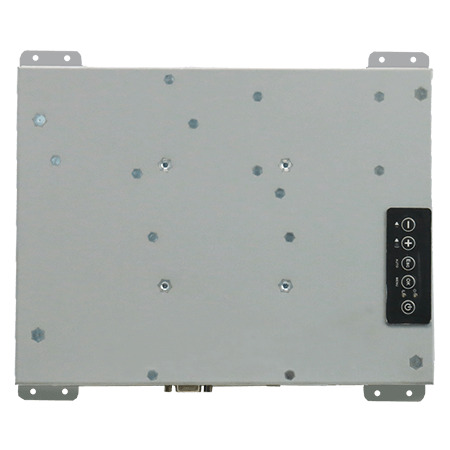

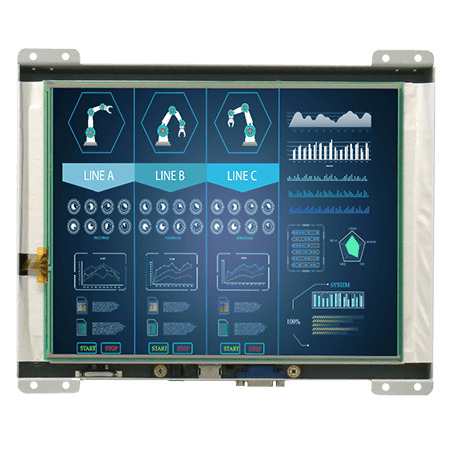

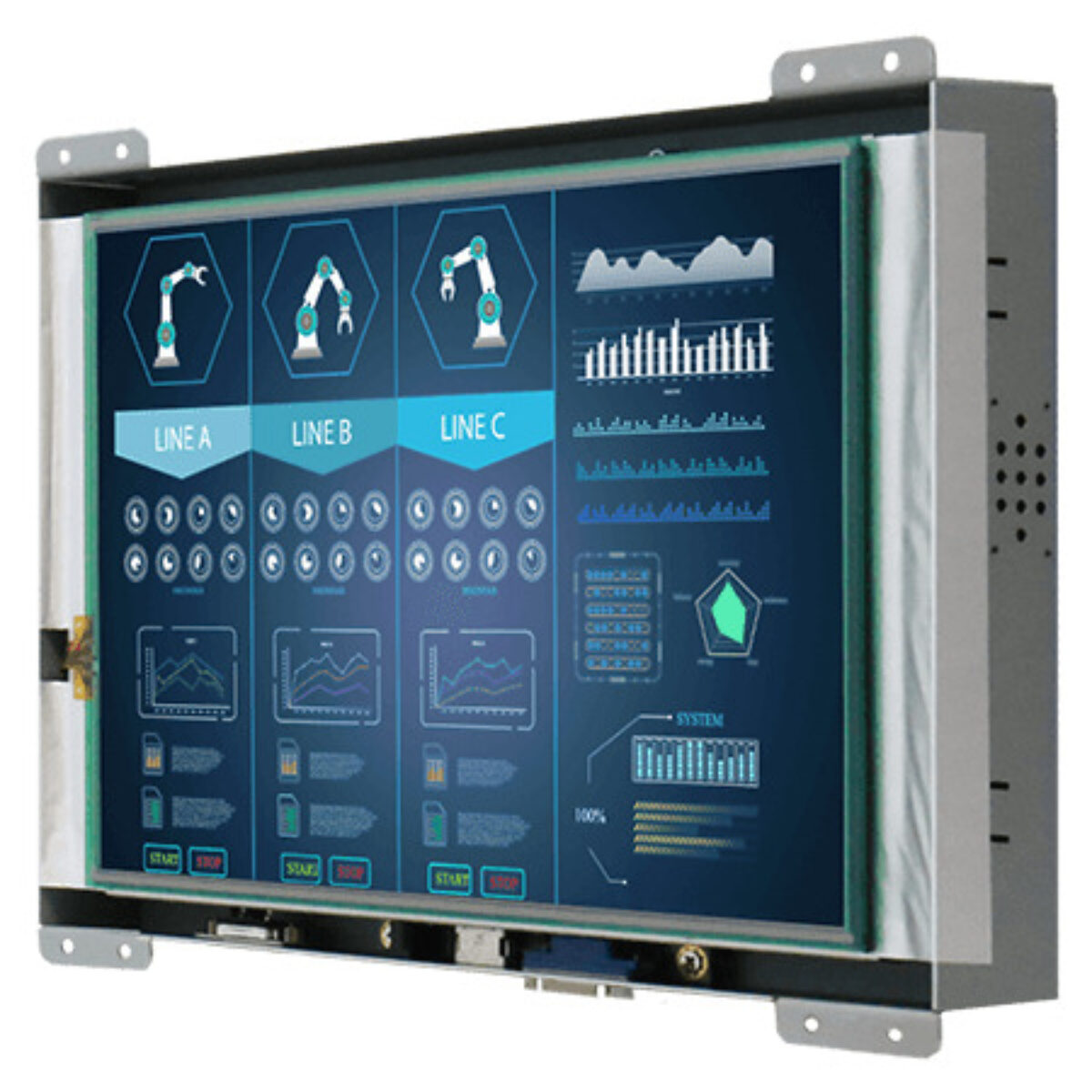

Kiosk and machine builders want a display they can hide behind their own bezel, not a finished monitor with a housing of its own. The R10L100-OFP3 is Winmate’s 10.4 inch open frame display, with a 640 x 480 panel in a fanless metal frame that mounts from the rear or on VESA holes.
The 10.4 inch LCD runs at 640 x 480 with 450 nits, a 700:1 contrast ratio and 16.2M colors, and viewing angles of 160° horizontally and 140° vertically. That native resolution suits older kiosk, ticketing and machine software written for VGA, which would otherwise be scaled. Touch is optional, as resistive or SAW touch, or as plain protection glass, and five keys control the on-screen display.
Video comes in over VGA as standard, with HDMI and DVI inputs available as options, and a USB port carries touch data. A 3.5 mm audio line-in and two speakers can be added for kiosks that need sound. For a sharper picture in the same frame, the R10L100-OFT2 moves to 1024 x 768, and the R10L100-OFT2HB adds a 1000 nit panel.
Power is 12 V DC, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The monitor operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and cools without a fan. It measures 260 x 215 x 40 mm, mounts on 75 x 75 mm VESA holes or from the rear, and carries CE and FCC marks. Winmate names ATMs, vending machines, casino monitors, airport information displays and mall kiosks as applications.
R10L100-OFP3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L100-OFP3 |
| Features | Fanless Industrial |
| Display | |
| Display | 10.4"[4:3, 640 x 480, VGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 450 Nits |
| Viewing Angle | Wide Viewing Angle |
| 160° Horizontal, 140° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 700:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 260mm x 215mm x 40mm (10.24" x 8.46" x 1.57") |
- R10L100-OFP3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R10L100-OFP3 configured for USA kiosk and machine builders. Within the Winmate range the R10L100-OFT2 uses the same frame with a 1024 x 768 panel, and the R10L100-OFT2HB raises brightness to 1000 nits.
As a 640 x 480 open frame the R10L100-OFP3 sits among our open frame monitors, our SAW touch monitors and our 4:3 monitors. Where kiosk software is fixed at VGA resolution, this is the model to specify.
