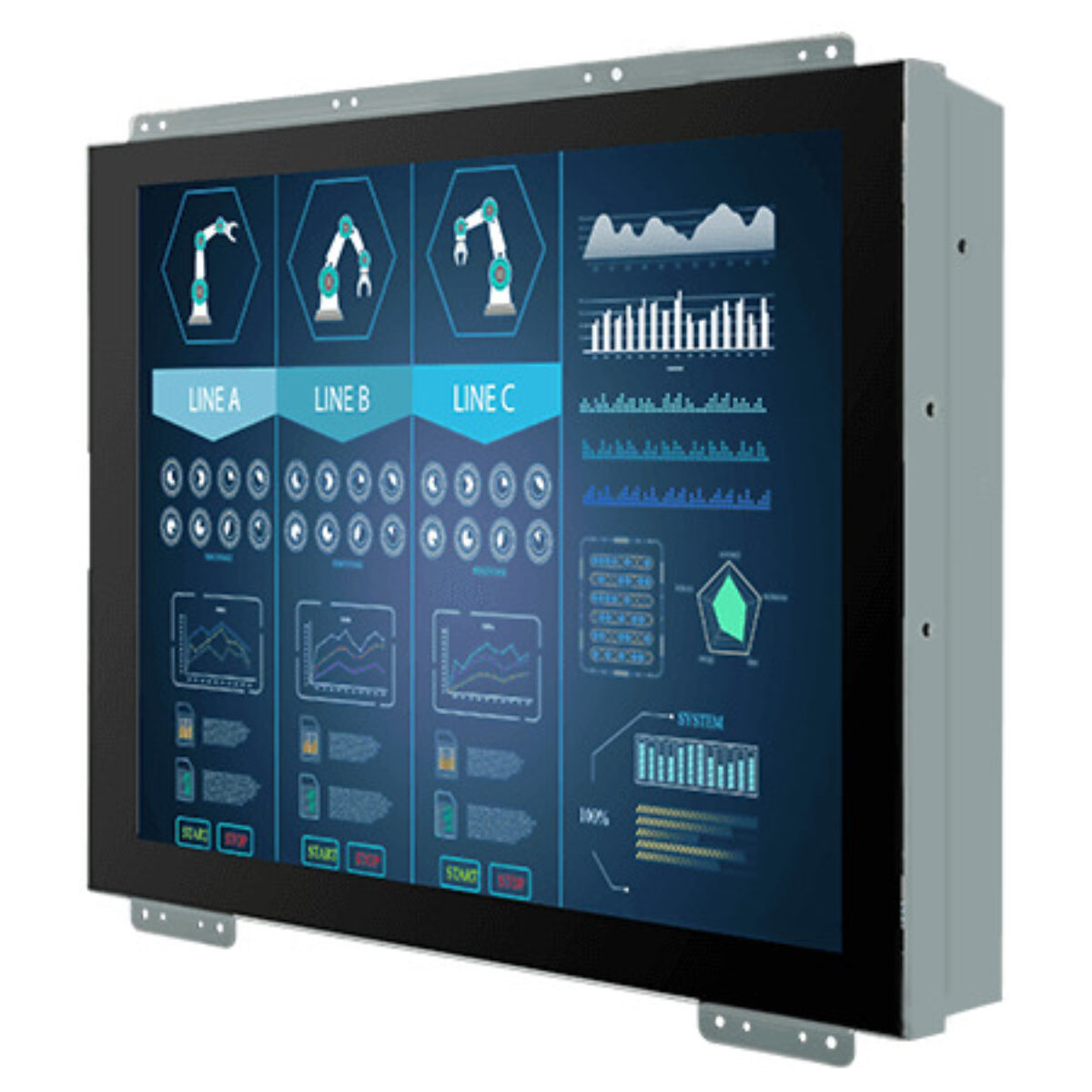

Winmate R15L100-POC3-C 15″ Open Frame PCAP Touch Monitor with 1024 x 768 and Single-Cable USB-C
PCAP
CE
FCCR15L100-POC3-C Overview
Every extra cable run inside a kiosk or machine cabinet is another connector to route, strain-relieve and fail. The R15L100-POC3-C is Winmate’s 15 inch open frame touch monitor built around a single USB Type-C connector, with projected capacitive multi-touch and a 1024 x 768 panel.
The 4:3 XGA panel delivers 300 nits and a 2000:1 contrast ratio with 16.2 million colors and 88 degree viewing angles in each direction, which keeps HMI screens readable to an operator standing slightly off-axis. PCAP multi-touch takes light finger input, and Winmate lists protection glass and an anti-glare coating as options where glare or impact is a concern. The 16.2 million color panel keeps trend graphs and alarm colors distinct.
Power comes over the same USB Type-C connector in Alt mode at 5 V / 3 A, so a host with a suitable USB-C port drives the monitor without a separate adapter. Two speakers are optional, and Winmate offers standard, lockable and waterproof USB-C cables as accessories. Where the host has VGA or HDMI instead of USB-C, the R15L100-POC3 is the conventional twin, and the R17L100-POM1 moves to a 17 inch 5:4 panel.
The metal open frame measures 351.6 x 274.1 x 47 mm, is fanless and takes 75 x 75 mm VESA or panel mounting, with a five-key OSD on the rear. It operates from 0 to 50 °C at 10 to 90% non-condensing humidity and stores from -10 to 60 °C, and carries CE and FCC marks. Winmate names industrial visualization, control rooms and equipment monitoring as typical uses, and the open frame suits builders who fit the display behind their own bezel.
R15L100-POC3-C Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-POC3-C |
| Features | Fanless Industrial USB C |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Touch Interface | USB C |
| Touch Controller | Multi Touch PCAP |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2000:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x USB Type C |
| Power | |
| Power Input | 5V [USB-C] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 358mm x 276mm x 42mm (14.09" x 10.87" x 1.65") |
- R15L100-POC3-C Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L100-POC3-C configured for USA kiosk and machine builder projects. Within the Winmate range the R15L100-POC3 is the same 15 inch open frame without the USB-C connection, and the R17L100-POM1 offers a 17 inch 5:4 open frame with VGA and optional HDMI.
As a single-cable build the R15L100-POC3-C sits among our open frame touch monitors, our capacitive touch monitors and our 15 inch industrial monitors. Where the host has a USB-C port and cabling inside the enclosure is tight, this is the model to specify.
