Winmate R17L100-POM1 17″ Open Frame PCAP Touch Monitor with SXGA Panel and VGA Input
PCAP
CE
FCCR17L100-POM1 Overview

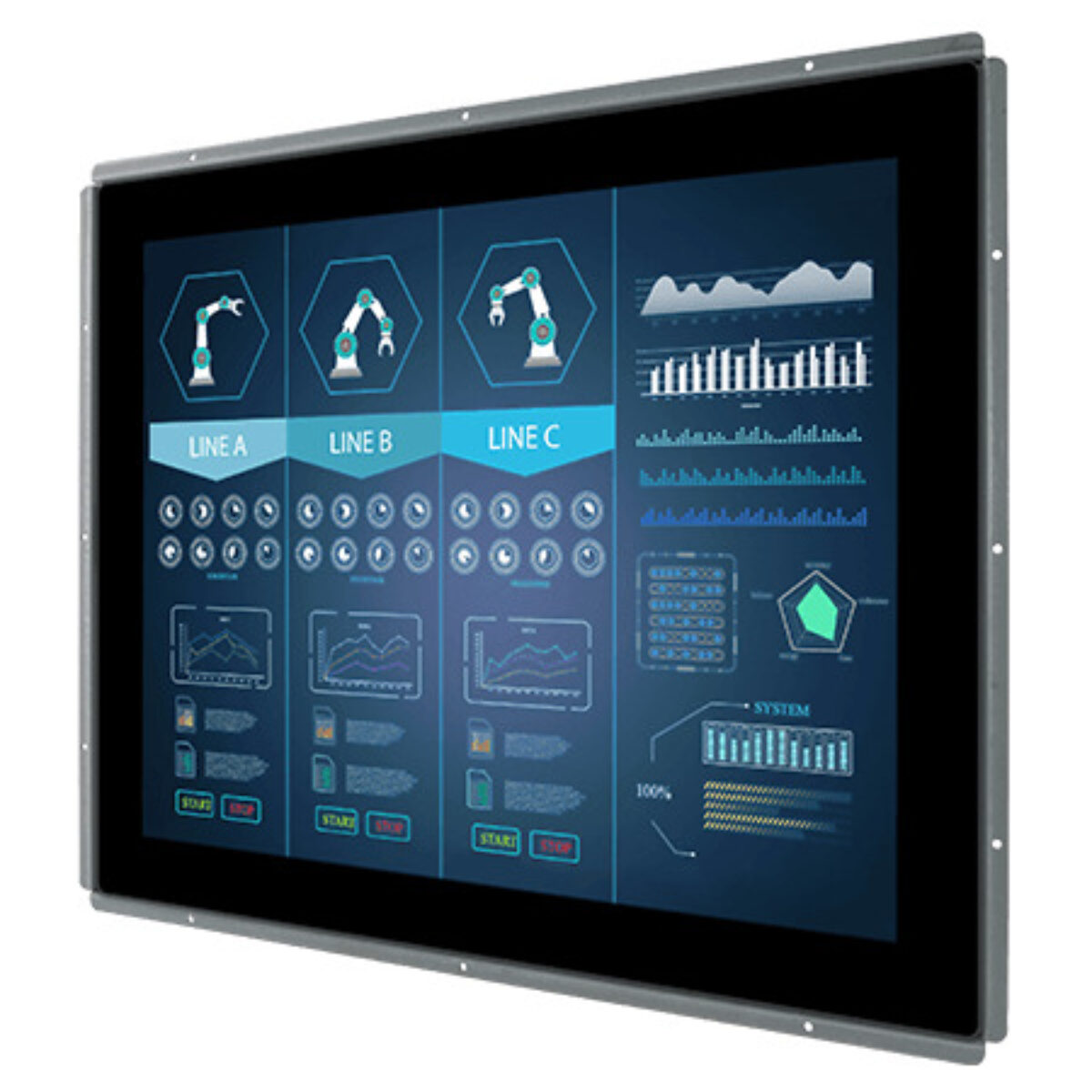

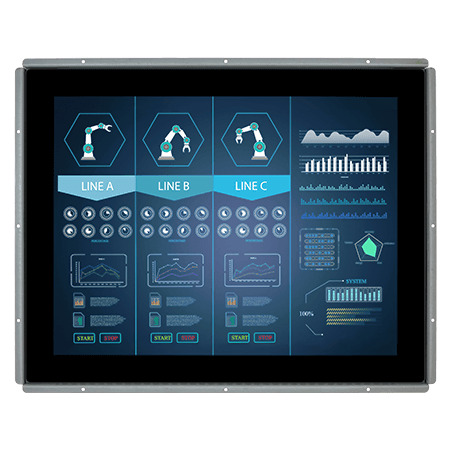

Kiosk and machine builders usually want the screen to disappear into their own enclosure rather than bring its own housing. The R17L100-POM1 is Winmate’s 17 inch open frame touch monitor, with projected capacitive multi-touch on a 1280 x 1024 panel in a fanless metal frame.
The 5:4 SXGA panel delivers 350 nits with a 1000:1 contrast ratio, 16.2 million colors and 170 degree horizontal and 160 degree vertical viewing angles. PCAP multi-touch connects over USB and responds to light finger input, which suits kiosk menus and HMI screens designed for tap and swipe gestures. The active area measures 337.9 x 270.3 mm, which gives HMI layouts more height than a 4:3 panel of the same width.
VGA is the standard video input, with HDMI or DVI as options, and a 3.5 mm audio line-in and two speakers can be added. A five-key OSD sits on the rear frame. For a larger picture the R19L100-POM1 is the 19 inch open frame, and the R15L100-POC3-C moves to 15 inches with a single USB Type-C connection for video, touch and power.
The metal open frame measures 407 x 338 x 50 mm, weighs about 4.4 kg and mounts on 75 x 75 or 100 x 100 mm VESA or through panel mounting. It runs from 12 V DC with a 100 to 240 V AC adapter, VGA cable and HDMI cable supplied. It is fanless, operates from 0 to 50 °C at 10 to 90% non-condensing humidity, stores from -10 to 60 °C and carries CE and FCC marks. Winmate names industrial visualization, control rooms and equipment monitoring as typical uses.
R17L100-POM1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R17L100-POM1 |
| Features | Fanless Industrial |
| Display | |
| Display | 17"[5:4, 1280 x 1024, SXGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 407mm x 338mm x 50mm (16.02" x 13.31" x 1.97") |
- R17L100-POM1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R17L100-POM1 configured for USA kiosk and machine builder projects. Within the Winmate range the R19L100-POM1 is the same open frame design at 19 inches, and the R15L100-POC3-C is a 15 inch open frame driven over one USB Type-C cable.
As an open frame build the R17L100-POM1 sits among our open frame monitors, our 5:4 monitors and our 17 inch touch screen monitors. Where a kiosk or machine front needs bare-finger touch on a 17 inch screen, this is the model to specify.
