Winmate R19L100-POM1 19″ Open Frame PCAP Touch Monitor with SXGA Panel and VGA Input
PCAP
CE
FCCR19L100-POM1 Overview

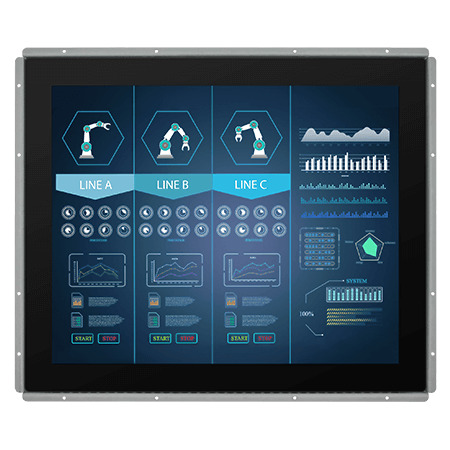

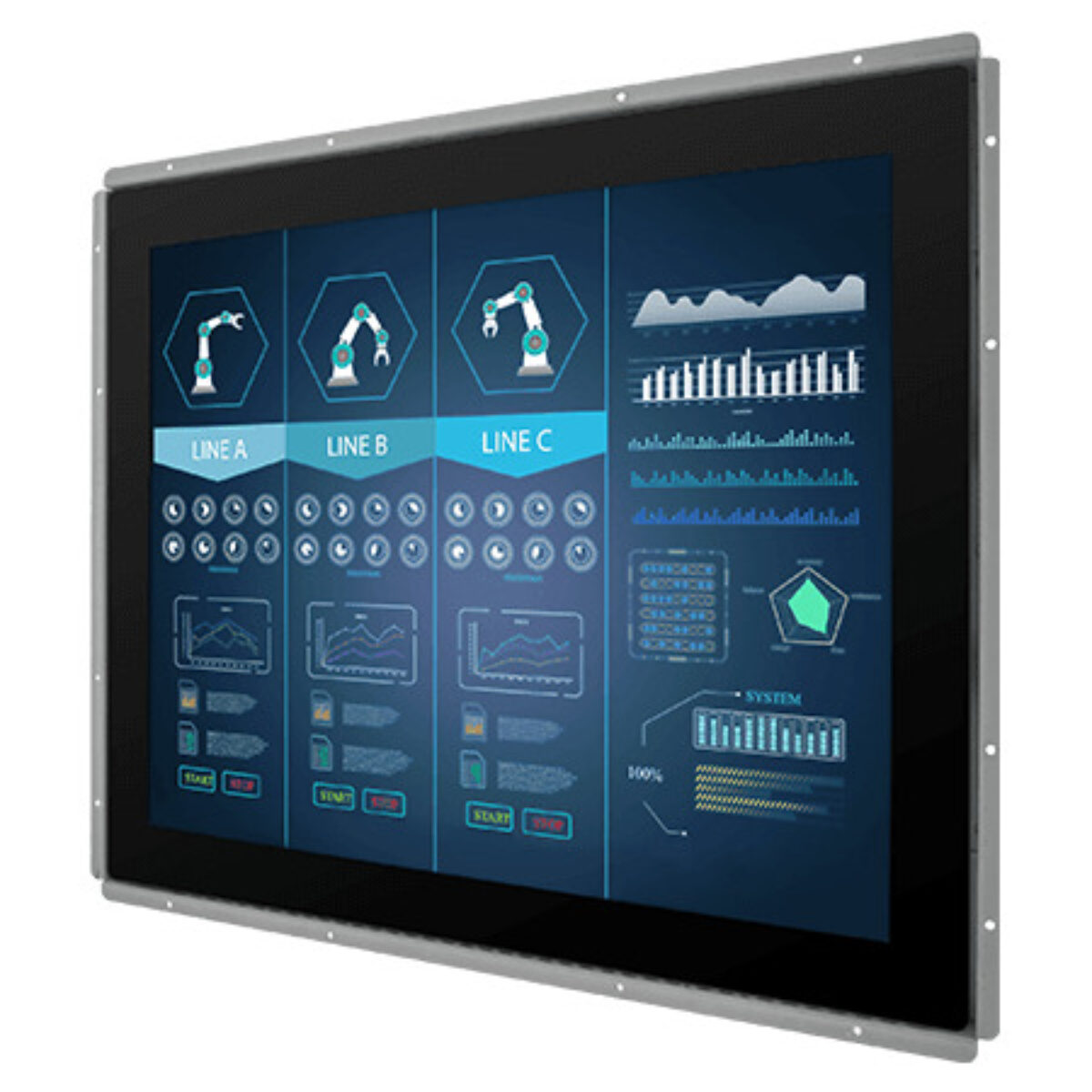

Production dashboards and kiosks need a larger screen than a typical HMI, fitted neatly into an enclosure the builder already has. The R19L100-POM1 is Winmate’s 19 inch open frame touch monitor, with projected capacitive multi-touch on a 1280 x 1024 panel in a fanless metal frame.
The 5:4 SXGA panel runs at 250 nits with a 1000:1 contrast ratio, 16.7 million colors and 170 degree horizontal and 160 degree vertical viewing angles. PCAP multi-touch connects over USB for light finger input, and an anti-glare coating is optional where overhead lighting reflects off the glass. The active area measures 376.3 x 301.1 mm.
VGA is the standard input, with HDMI or DVI as options, and a 3.5 mm audio line-in and two speakers can be added for kiosk prompts. A five-key OSD sits on the rear frame. For a smaller space the R17L100-POM1 is the 17 inch open frame, and the R19L100-GCM1 offers a 19 inch PCAP monitor with its own front IP65 bezel.
The metal open frame measures 456 x 382 x 53 mm, weighs about 5.6 kg and mounts on 75 x 75 mm VESA or through panel mounting. It runs from 12 V DC with a 100 to 240 V AC adapter, VGA cable and HDMI cable supplied. It is fanless, operates from 0 to 50 °C at 10 to 90% non-condensing humidity, stores from -10 to 60 °C and carries CE and FCC marks. Winmate names machine dashboards, production line monitoring, logistics information boards and interactive kiosks as typical uses. Winmate also lists a remote controller as an option.
R19L100-POM1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19L100-POM1 |
| Features | Fanless Industrial |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 456mm x 382mm x 53mm (17.95" x 15.04" x 2.09") |
- R19L100-POM1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19L100-POM1 configured for USA kiosk and production projects. Within the Winmate range the R17L100-POM1 is the 17 inch open frame, and the R19L100-GCM1 adds its own front IP65 bezel to a 19 inch PCAP panel.
As an open frame build the R19L100-POM1 sits among our open frame touch monitors, our 5:4 industrial monitors and our 19 inch touch screen monitors. Where a kiosk or dashboard needs a larger touch panel, this is the model to specify.
