Winmate W10L100-POH2-C 10.1″ Open Frame PCAP Touch Monitor with WXGA LCD and USB Type-C
PCAP
CE
FCCW10L100-POH2-C Overview

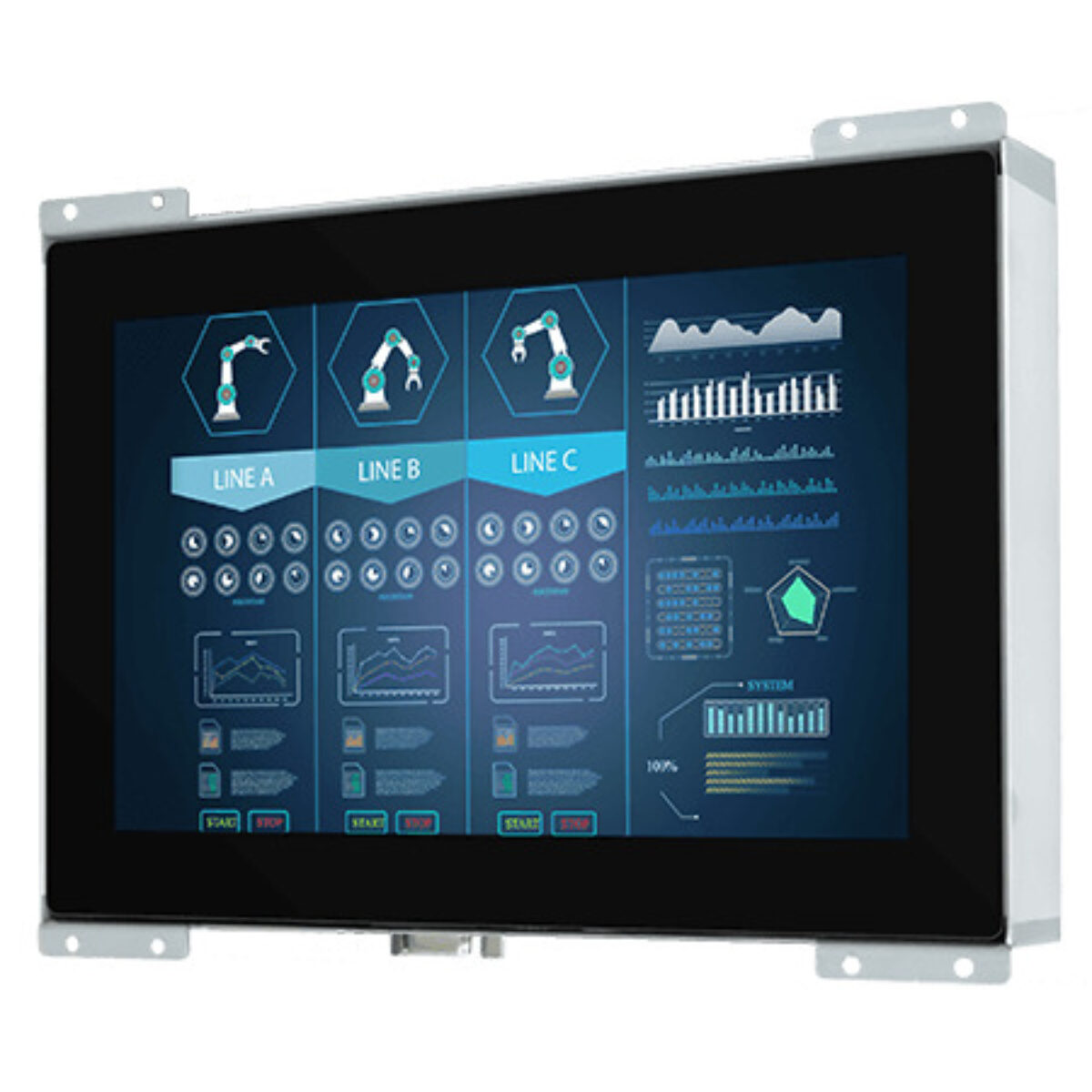

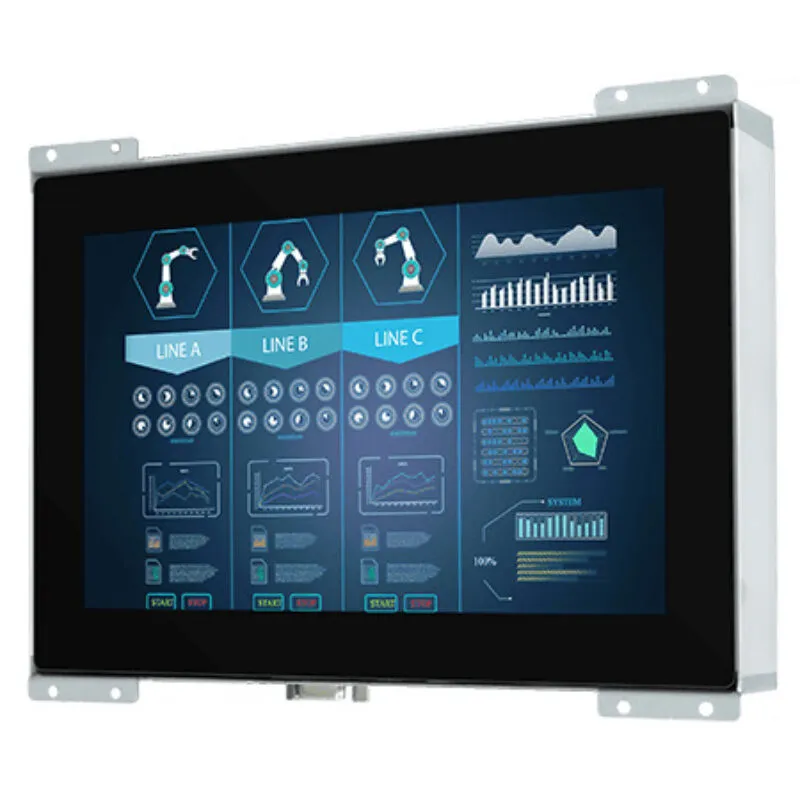

Routing separate video, touch and power leads to a built-in screen adds connectors, space and failure points. The W10L100-POH2-C is Winmate’s 10.1 inch open frame touch monitor built around one USB Type-C connection: a 1280 x 800 LCD with projected capacitive multi-touch in a fanless open metal frame, with no separate video input or DC supply.
The WXGA panel runs at 350 nits with an 800:1 contrast ratio, 16.7 million colors and viewing angles of 170° horizontally and vertically. The PCAP touch screen supports multi-touch gestures, and an anti-glare coating is available as an option, which suits kiosk and control software designed for tap and swipe.
The only connector is a USB Type-C port working in Alt mode, and the monitor draws its power from the same port at 5 V and 3 A. Winmate offers standard, lockable and waterproof USB-C cables as options, plus two speakers. Where the host has VGA rather than USB Type-C, the W10L100-POH2 is the equivalent frame, and the W07L100-POT1-C brings the same single-cable design to 7 inches.
The W10L100-POH2-C operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The frame measures 262.3 x 188 x 37 mm and fixes by 75 x 75 mm VESA holes or panel mounting brackets, with a five-key on-screen display menu on the rear. The monitor carries CE and FCC marks. Because the monitor takes its power from the host, the host port must supply 5 V at 3 A, and no separate adapter is needed at the screen.
W10L100-POH2-C Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10L100-POH2-C |
| Features | Fanless Industrial USB C |
| Display | |
| Display | 10.1"[5:3, 1280 x 800, WXGA] |
| Display Treatment | Anti-Glare Treatment |
| Touch Interface | USB C |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x USB Type C |
| Power | |
| Power Input | 5V [USB-C] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 267mm x 182mm x 55mm (10.51" x 7.17" x 2.17") |
- W10L100-POH2-C Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10L100-POH2-C configured for USA kiosk and equipment projects. Within the Winmate range the W07L100-POT1-C is the 7 inch USB Type-C model, and the W10L100-POH2 suits hosts with VGA and adds a 1000 nit option.
With one-cable integration the W10L100-POH2-C sits among our open frame displays, our capacitive touch monitors and our 10.1 inch touch monitors. Where the host has a USB Type-C port with display output, this is the model to specify.
