Winmate W07L100-POT1-C 7″ Open Frame PCAP Touch Monitor with WSVGA LCD and USB Type-C
PCAP
CE
FCCW07L100-POT1-C Overview

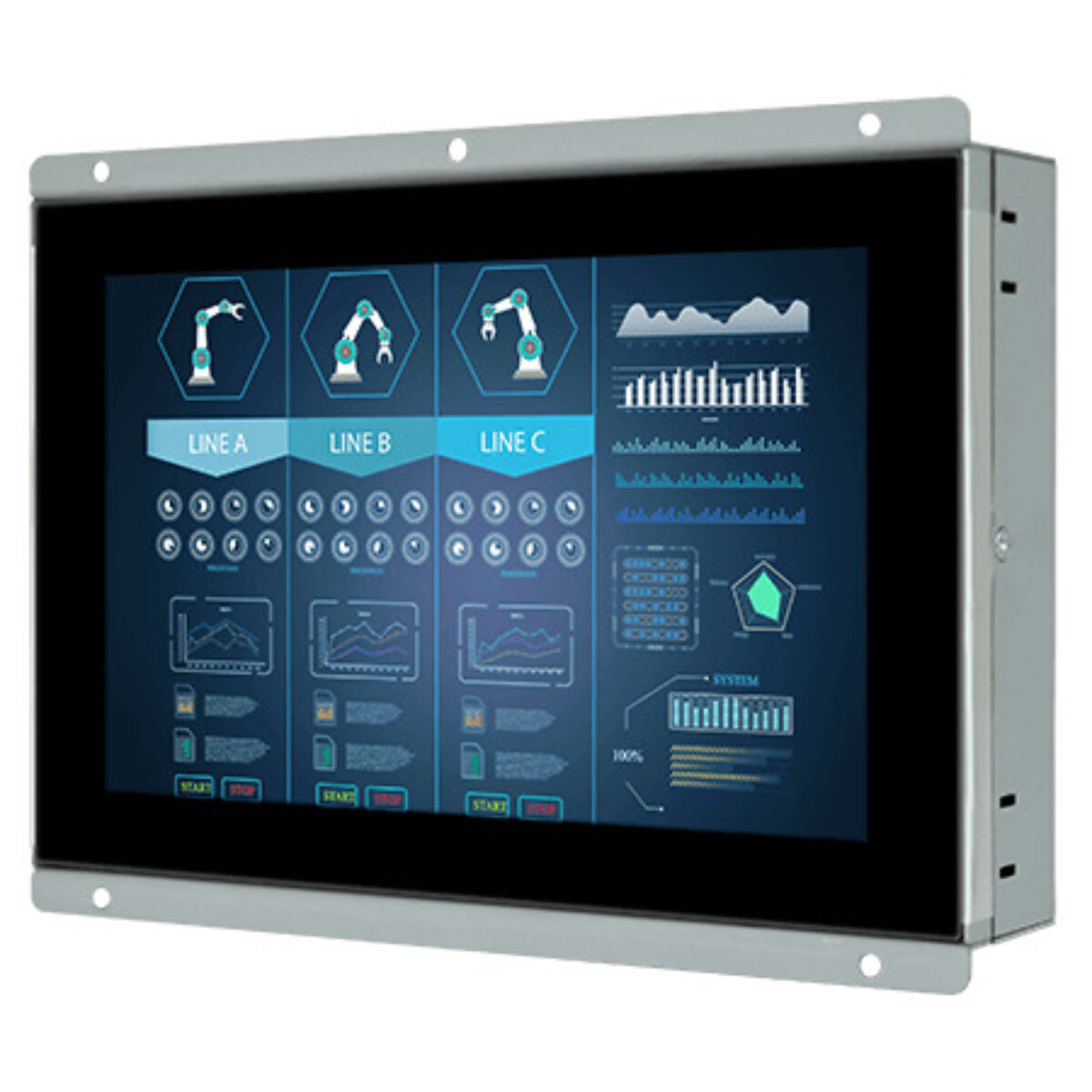

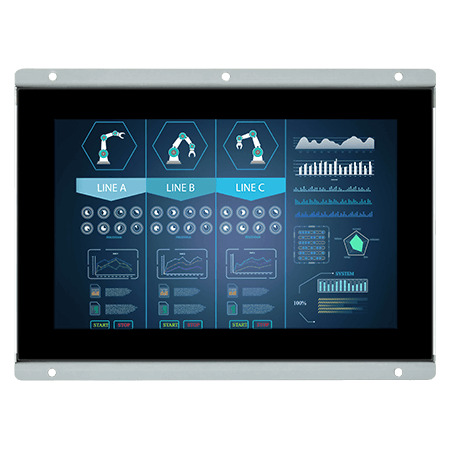

Every extra cable in a kiosk or machine is another connector to route, secure and check. The W07L100-POT1-C is Winmate’s 7 inch open frame touch monitor built around a single USB Type-C connection: a 1024 x 600 LCD with projected capacitive multi-touch in a fanless open metal frame, with no separate video input or DC supply to wire.
The WSVGA panel runs at 320 nits with a 500:1 contrast ratio, 16.7 million colors and viewing angles of 150° horizontally and 145° vertically. The PCAP touch screen supports multi-touch gestures, and a protection glass is available as an option, which suits compact menus and control screens designed for tap and swipe.
The only connector is a USB Type-C port working in Alt mode, and the monitor draws its power from the same port at 5 V and 3 A. Winmate offers standard, lockable and waterproof USB-C cables as options, plus two speakers. Where the host only has VGA, the W07L100-POT1 is the same frame with a VGA input and 12 V DC, and the W10L100-POH2-C brings USB Type-C to 10.1 inches.
The W07L100-POT1-C operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The frame measures 190 x 139.6 x 34 mm and fixes by 75 x 75 mm VESA holes or panel mounting brackets, with a five-key on-screen display menu on the rear. The monitor carries CE and FCC marks. Because the monitor takes its power from the host, the host port must supply 5 V at 3 A, and no separate adapter is needed at the screen.
W07L100-POT1-C Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W07L100-POT1-C |
| Features | Fanless Industrial USB C |
| Display | |
| Display | 7"[17:10, 1024 x 600, WSVGA] |
| Touch Interface | USB C |
| Touch Controller | Multi Touch PCAP |
| Brightness | 320 Nits |
| Viewing Angle | Wide Viewing Angle |
| 150° Horizontal, 145° Vertical | |
| Aspect Ratio | 17:10 |
| Format | Widescreen |
| Contrast | 500:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x USB Type C |
| Power | |
| Power Input | 5V [USB-C] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 190mm x 140mm x 34mm (7.48" x 5.51" x 1.34") |
- W07L100-POT1-C Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W07L100-POT1-C configured for USA kiosk and equipment projects. Within the Winmate range the W10L100-POH2-C offers the same single-cable design at 10.1 inches, and the W07L100-POT1 suits hosts that have a VGA output.
With one-cable integration the W07L100-POT1-C sits among our open frame displays, our industrial touch screen monitors and our 7 inch touch screen monitors. Where the host has a USB Type-C port with display output, this is the model to specify.
