Winmate W07L100-POT1 7″ Open Frame PCAP Touch Monitor with WSVGA LCD and VGA Input
PCAP
CE
FCCW07L100-POT1 Overview

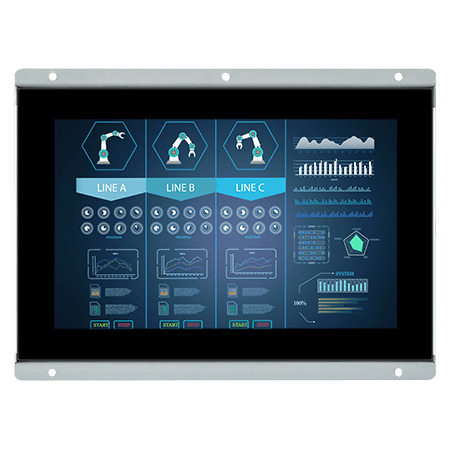

When a display goes inside someone else’s enclosure, the builder wants a bare frame with the touch screen already fitted and nothing that gets in the way of the design. The W07L100-POT1 is Winmate’s 7 inch open frame touch monitor for that job: a 1024 x 600 LCD with projected capacitive multi-touch in a fanless open metal frame, with a VGA input and room for factory options.
The WSVGA panel runs at 320 nits with a 500:1 contrast ratio, 16.7 million colors and viewing angles of 150° horizontally and 145° vertically. The PCAP touch screen connects over USB and supports multi-touch gestures, which suits compact menus, machine controls and self-service screens built for tap and swipe.
Video comes in on a VGA input, and HDMI or DVI can be specified as options, along with a 3.5 mm audio line-in and two speakers. A five-key on-screen display menu sits on the rear of the frame. Where a single cable is preferred, the W07L100-POT1-C takes video, touch and power over USB Type-C, and the W10L100-POH2 offers the same open frame approach at 10.1 inches.

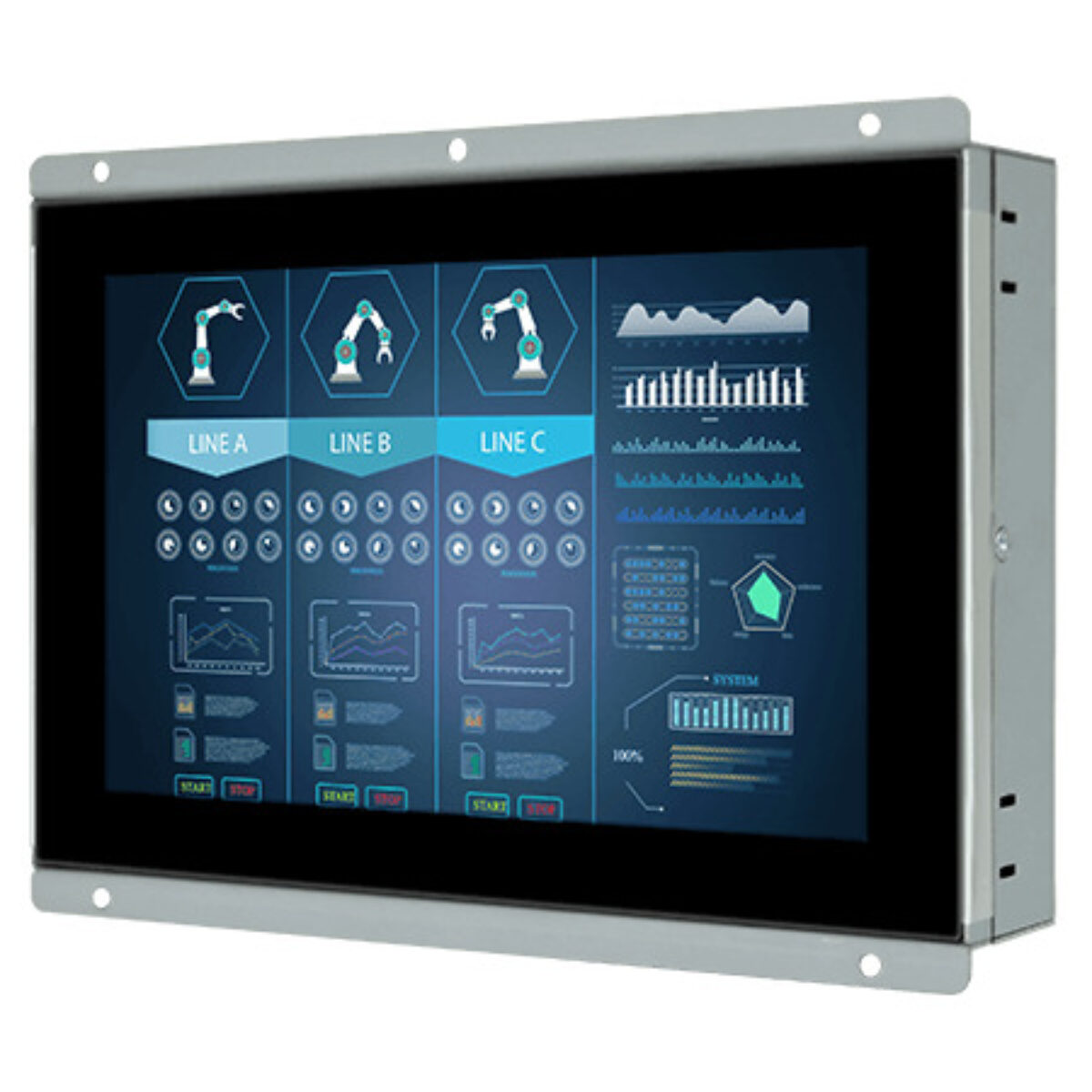

The W07L100-POT1 runs on 12 V DC, with a 100 to 240 V AC adapter supplied, and operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with storage from -10 °C to 60 °C. The frame measures 190 x 139.6 x 34 mm and fixes by 75 x 75 mm VESA holes or panel mounting brackets, and the monitor carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W07L100-POT1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W07L100-POT1 |
| Features | Fanless Industrial |
| Display | |
| Display | 7"[17:10, 1024 x 600, WSVGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 320 Nits |
| Viewing Angle | Wide Viewing Angle |
| 150° Horizontal, 145° Vertical | |
| Aspect Ratio | 17:10 |
| Format | Widescreen |
| Contrast | 500:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 190mm x 140mm x 34mm (7.48" x 5.51" x 1.34") |
- W07L100-POT1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W07L100-POT1 configured for USA kiosk and machine building projects. Within the Winmate range the W07L100-POT1-C swaps VGA and DC power for a single USB Type-C cable, and the W10L100-POA1 offers a 1920 x 1200 open frame at 10.1 inches.
As a bare frame for integration the W07L100-POT1 sits among our open frame monitors, our PCAP touch monitors and our 7 inch industrial monitors. Where a small touch screen is built into your own housing, this is the model to specify.
