Winmate W10L100-POA1 10.1″ Open Frame PCAP Touch Monitor with 1920 x 1200 WUXGA LCD
PCAP
CE
FCCW10L100-POA1 Overview

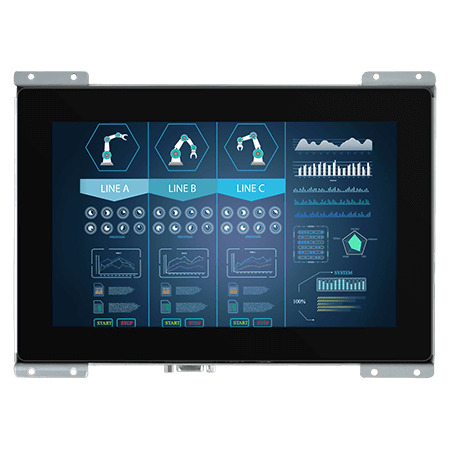

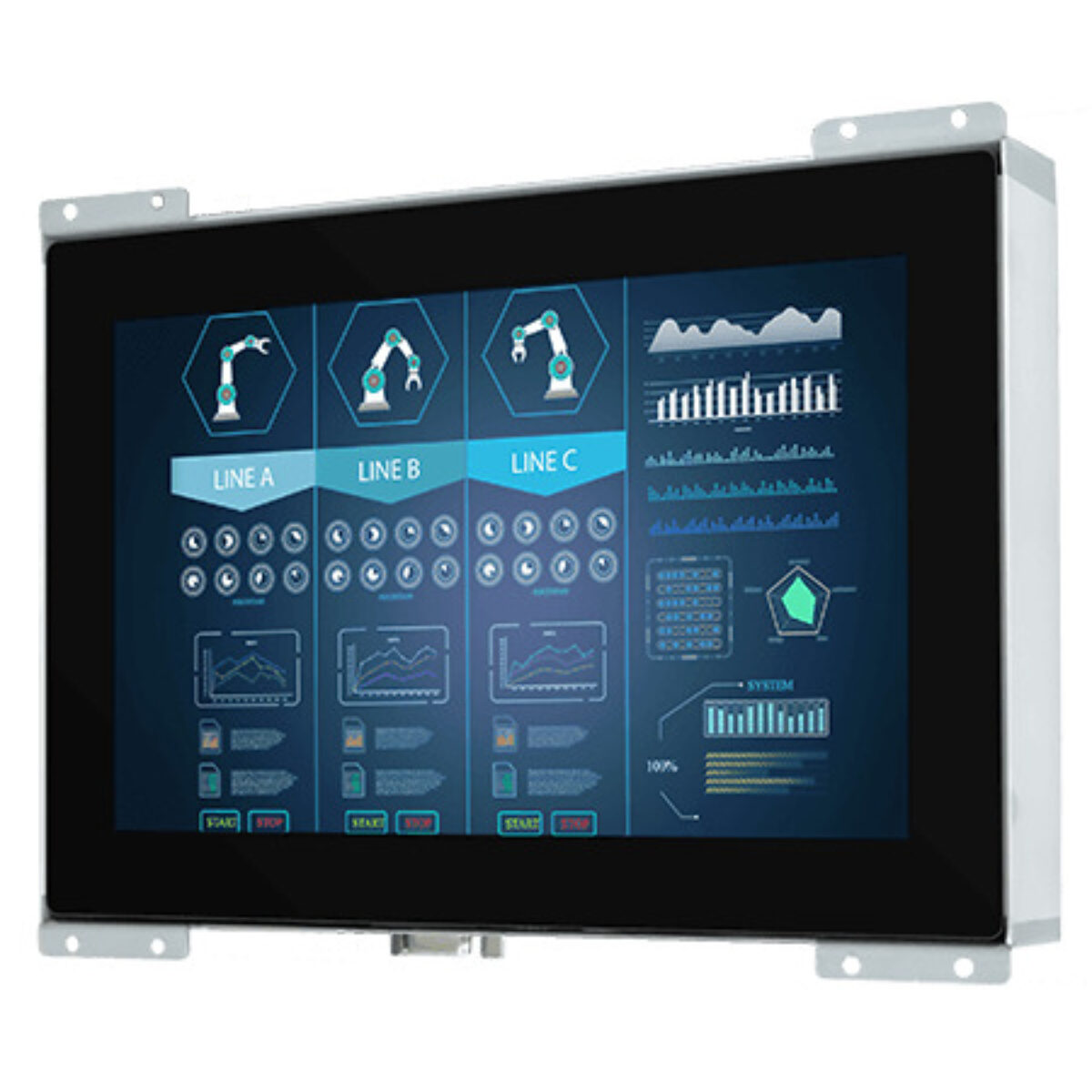

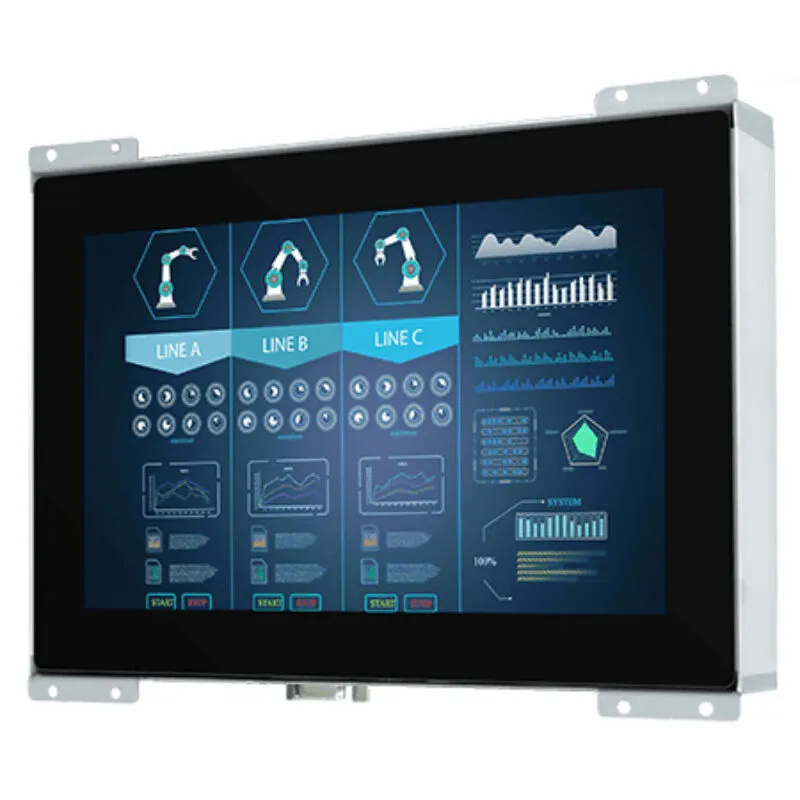

A 10.1 inch screen can feel cramped when the interface carries trend charts, small text or detailed schematics. The W10L100-POA1 is Winmate’s 10.1 inch open frame touch monitor with a 1920 x 1200 WUXGA LCD, giving more than twice the pixels of a 1280 x 800 panel, with projected capacitive multi-touch in a fanless open metal frame.
The panel runs at 700 nits with an 800:1 contrast ratio, 16.7 million colors and viewing angles of 178° horizontally and vertically, so detail holds up when viewed from the side. The PCAP touch screen connects over USB and supports multi-touch gestures, which suits HMI and self-service software designed for tap and swipe. The active area measures 216.576 x 135.36 mm.
Video comes in on a VGA input, and HDMI or DVI can be specified as options, along with a 3.5 mm audio line-in and two speakers. A five-key on-screen display menu sits on the rear. Where 1280 x 800 is enough, the W10L100-POH2 is the same size of open frame with a 1000 nit option, and the W10L100-POH2-C runs over a single USB Type-C cable.
The W10L100-POA1 runs on 12 V DC, with a 100 to 240 V AC adapter supplied, and operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with storage from -10 °C to 60 °C. The frame measures 262.3 x 172 x 37 mm and fixes by 75 x 75 mm VESA holes or panel mounting brackets, and the monitor carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W10L100-POA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10L100-POA1 |
| Features | Fanless Industrial |
| Display | |
| Display | 10.1"[8:5, 1920 x 1200, WUXGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 700 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 8:5 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 263mm x 172mm x 37mm (10.35" x 6.77" x 1.46") |
- W10L100-POA1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10L100-POA1 configured for USA kiosk and machine building projects. Within the Winmate range the W10L100-POH2 offers a 1280 x 800 open frame with a 1000 nit option, and the W07L100-POT1 is the compact 7 inch model.
With a high-resolution panel the W10L100-POA1 sits among our open frame displays, our PCAP touch monitors and our 10.1 inch industrial monitors. Where a small built-in screen must show fine detail, this is the model to specify.
