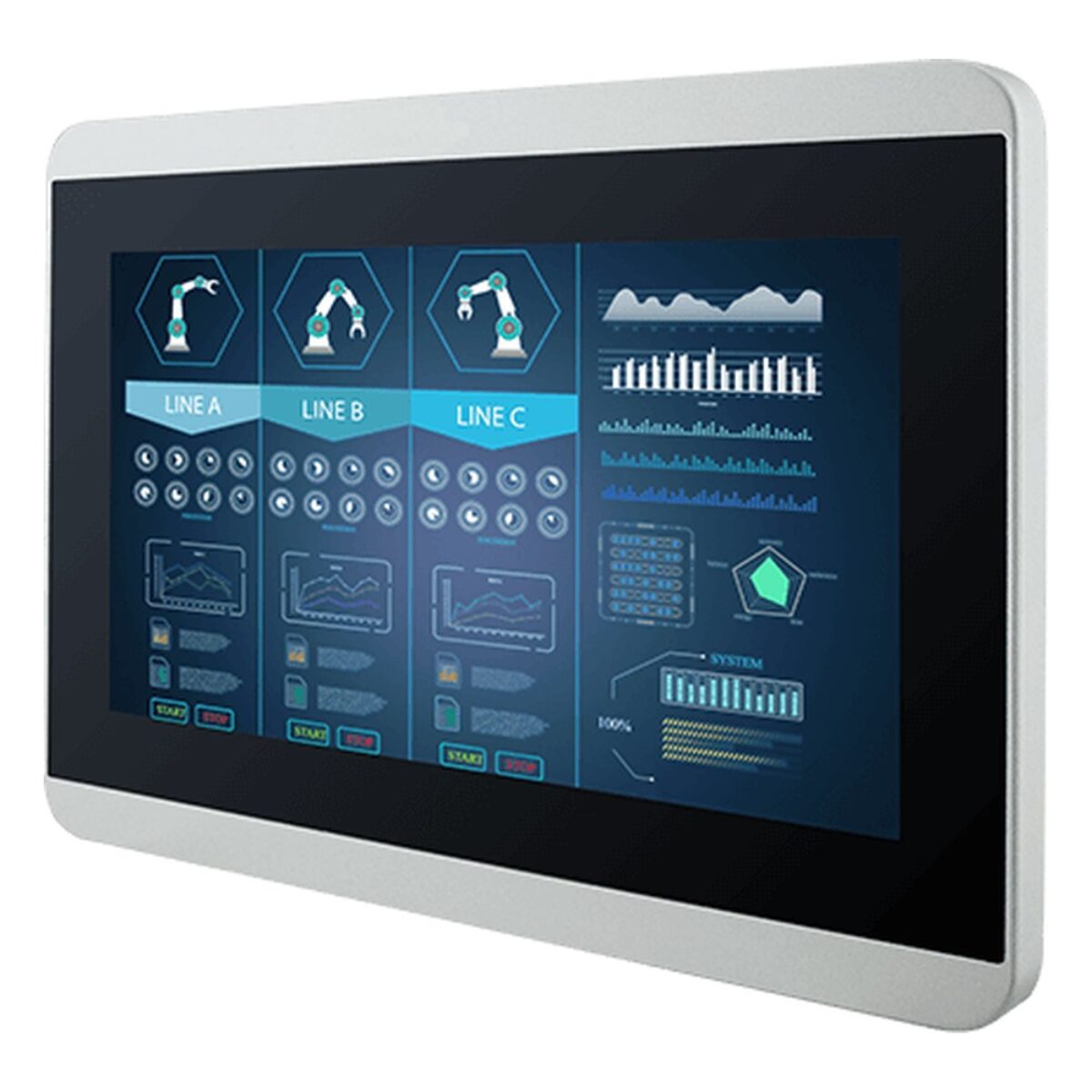

Winmate W07L100-GCO1HB-C 7″ USB-C PCAP Touch Monitor with 1000 Nit WSVGA Display and 800:1 Contrast

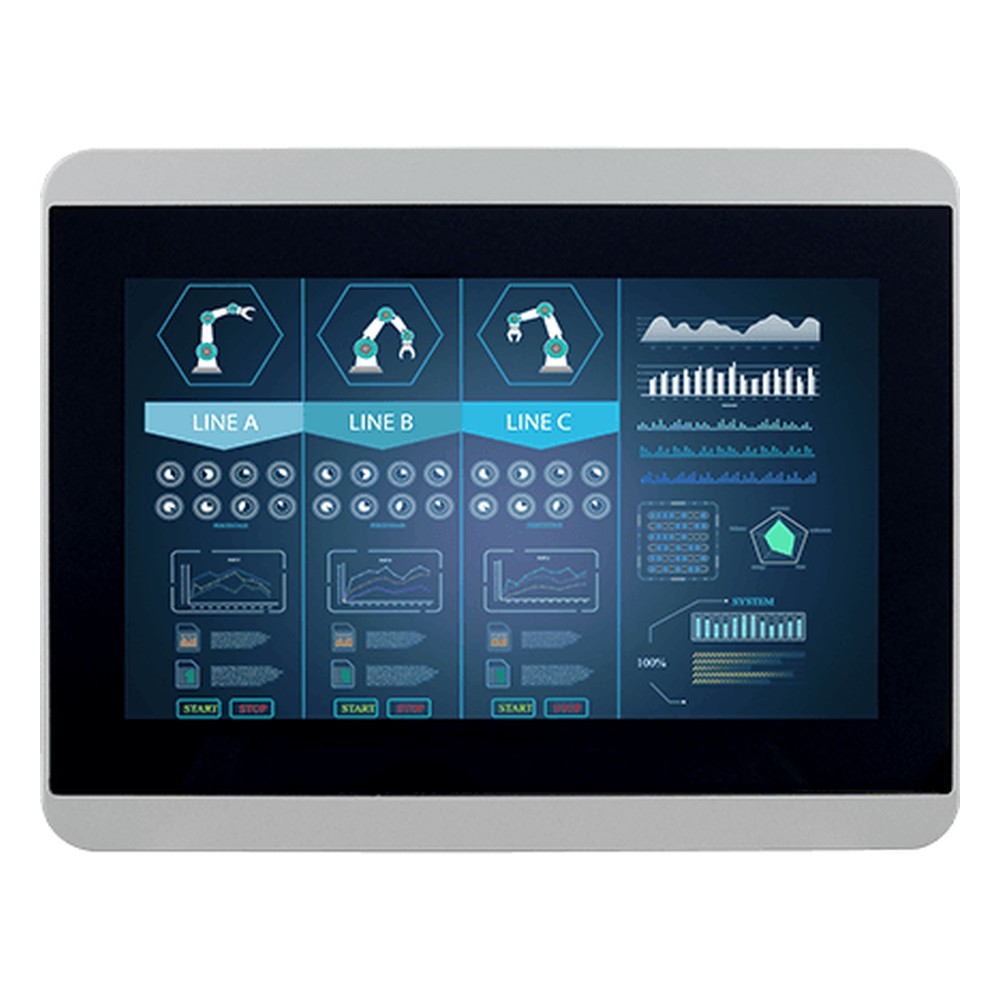

A small touchscreen near a window, a loading door or under strong overhead lighting can wash out at ordinary brightness. The W07L100-GCO1HB-C is Winmate’s 7″ USB-C chassis display with a high-brightness panel for those positions: a 7 inch PCAP touch monitor at 1000 nits in an aluminum housing with a front IP65 face, suited to automation, control systems and retail.

The panel is 1024 x 600 at 1000 nits, with 800:1 contrast, 16.7 million colors and 170 degree viewing angles, so it stays readable in daylight. Projected capacitive multi-touch is standard, and protection glass is an option. Five keys cover power, menu, enter and brightness up and down, and an optional speaker can carry alerts.

On the W07L100-GCO1HB-C, power, video and touch all travel over one USB-C connection in Alt mode at 5 V, 3 A. That keeps cabling to one run, and the host simply needs a USB-C port with Alt mode output and the power to drive the monitor. A lockable USB-C cable is an optional accessory. The W07L100-GCT1-C is the same 7 inch USB-C design with a 320 nit panel for indoor use, and the W07L100-EHT1 is a 7 inch PCAP panel mount monitor.

The monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It mounts on VESA as standard, with panel mounting as an option. Because the 7 inch screen takes its power from the host, there is no separate supply to fit. We supply it configured and tested before dispatch, and can confirm the host’s USB-C port will drive it.
