Winmate W07L100-GCT1-C 7″ USB-C PCAP Touch Monitor with WSVGA LCD and 320 Nits
PCAP
Fanless
Front IP65
CE
FCCW07L100-GCT1-C Overview

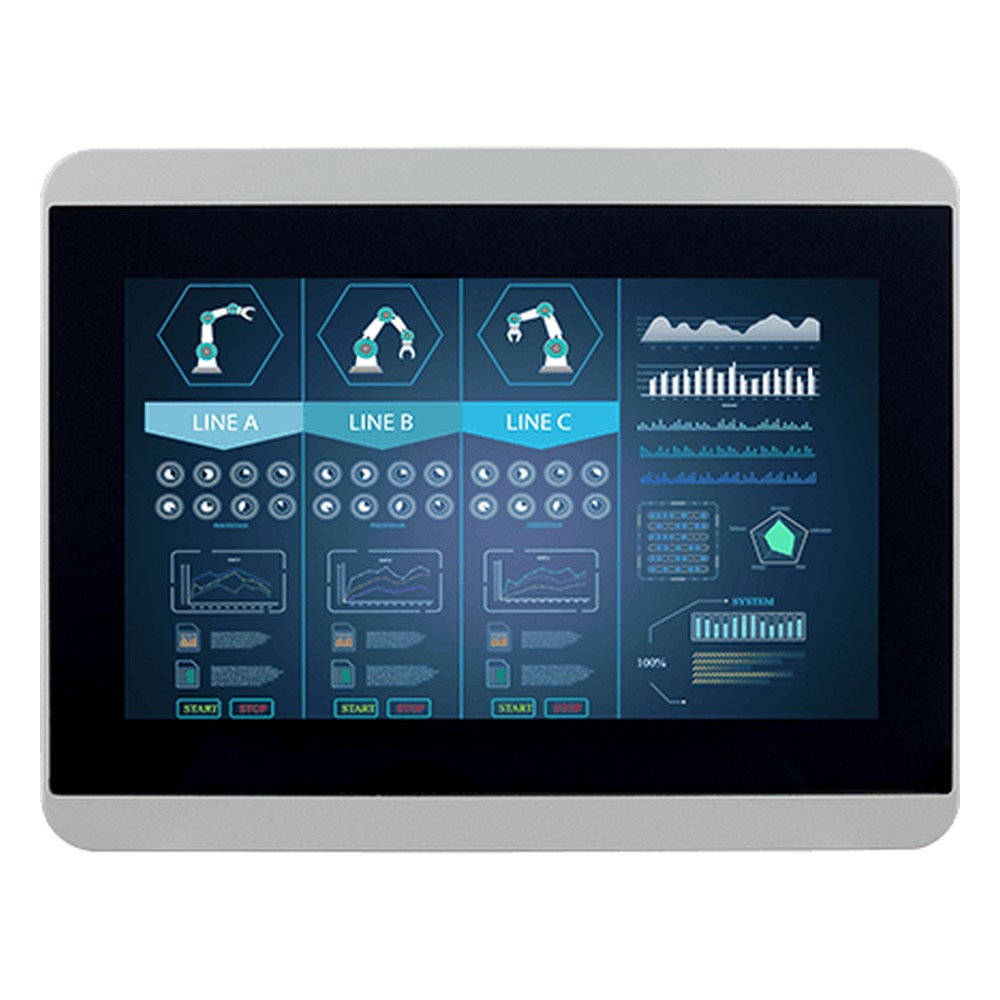

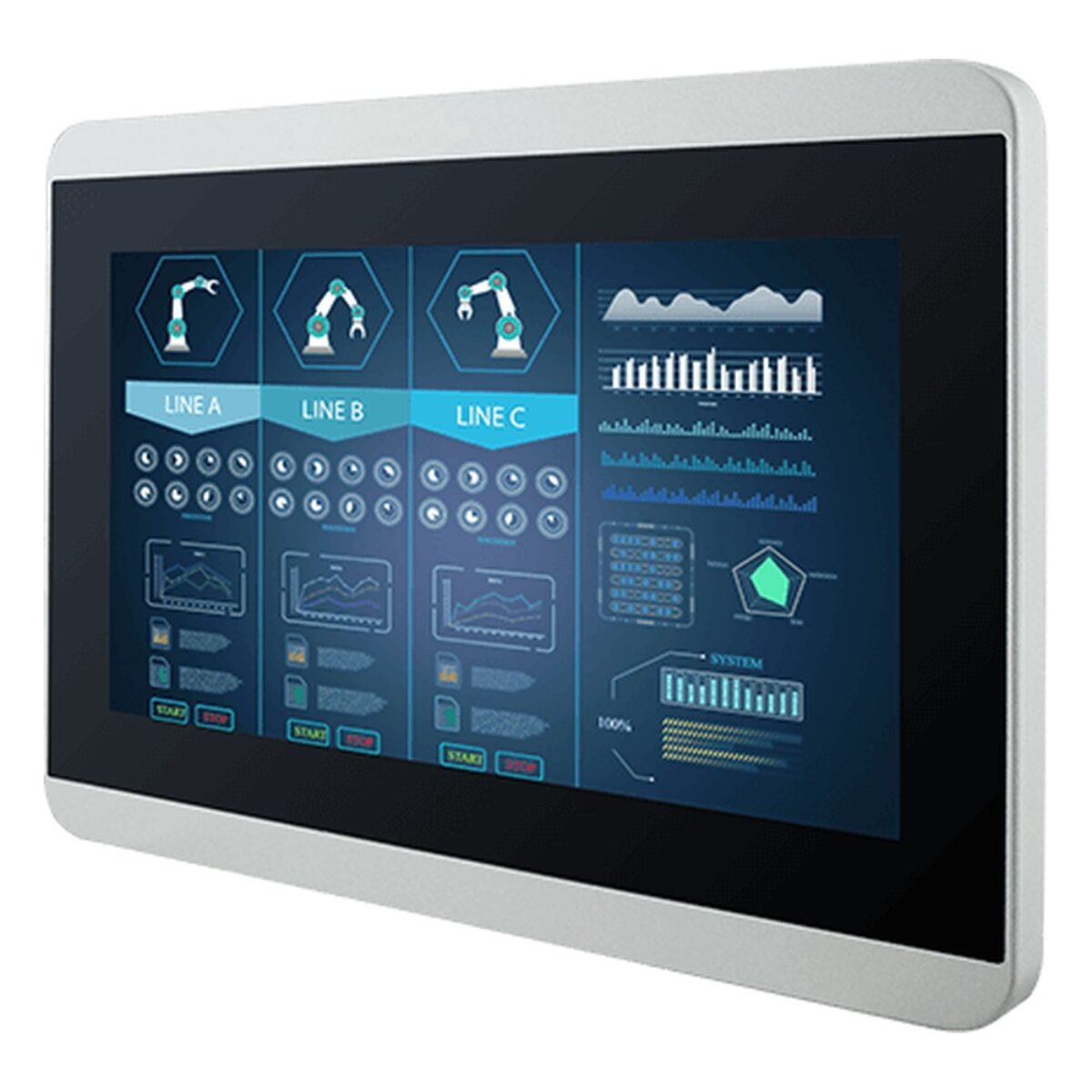

A small touch display beside a machine, on a counter or on a test bench is often wired to a small PC that already has a USB-C port. The W07L100-GCT1-C is Winmate’s 7″ USB-C chassis display for that set-up: a 7 inch projected capacitive touch monitor in an aluminum housing with a front IP65 face, aimed at automation, control systems and retail use indoors.
Its panel is 1024 x 600 at 320 nits, with 500:1 contrast, 16.7 million colors and viewing angles of 150 degrees horizontally and 145 degrees vertically. PCAP multi-touch is standard, and protection glass is an option. Five keys on the unit handle power, menu, enter and brightness, and a speaker can be added as an option.
With the W07L100-GCT1-C, power, video and touch all travel over one USB-C connection in Alt mode at 5 V, 3 A. The host therefore needs a USB-C port with Alt mode video and enough power for the monitor. A lockable USB-C cable is an optional accessory. The W07L100-GCO1HB-C is the same design with a 1000 nit panel for bright positions, and the W07L100-EHT1 is a 7 inch PCAP panel mount monitor.
The monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. It mounts on VESA or into a panel and carries CE and FCC marks. Because the 7 inch screen draws its power from the host, the install needs no extra adapter. We supply it configured and tested before dispatch, and can check the USB-C port on your host computer.
W07L100-GCT1-C Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W07L100-GCT1-C |
| Features | Fanless Industrial USB C Waterproof |
| Display | |
| Display | 7"[17:10, 1024 x 600, WSVGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB C |
| Touch Controller | Multi Touch PCAP |
| Brightness | 320 Nits |
| Viewing Angle | Wide Viewing Angle |
| 150° Horizontal, 145° Vertical | |
| Aspect Ratio | 17:10 |
| Format | Widescreen |
| Contrast | 500:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x USB Type C |
| Power | |
| Power Input | 5V [USB-C] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Chassis Material | Aluminum |
| Dimensions | 189mm x 145mm x 40mm (7.46" x 5.72" x 1.57") |
| Mounting Options | VESA Mount |
- W07L100-GCT1-C Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W07L100-GCT1-C configured and tested for USA automation, control and retail projects. Within the Winmate range the W07L100-GCO1HB-C is the same USB-C design with a 1000 nit panel, and the W07L100-EHT1 is a 7 inch PCAP panel mount monitor.
The W07L100-GCT1-C sits among our PCAP touch monitors, our front IP65 monitors and our 7 inch industrial monitors. Where a small indoor touchscreen should run from one cable, this is a sensible model to shortlist.
