Winmate W07L100-EHT1 7″ PCAP Panel Mount Monitor with WSVGA LCD and 320 Nits
PCAP
Fanless
Front IP65
CE
FCCW07L100-EHT1 Overview

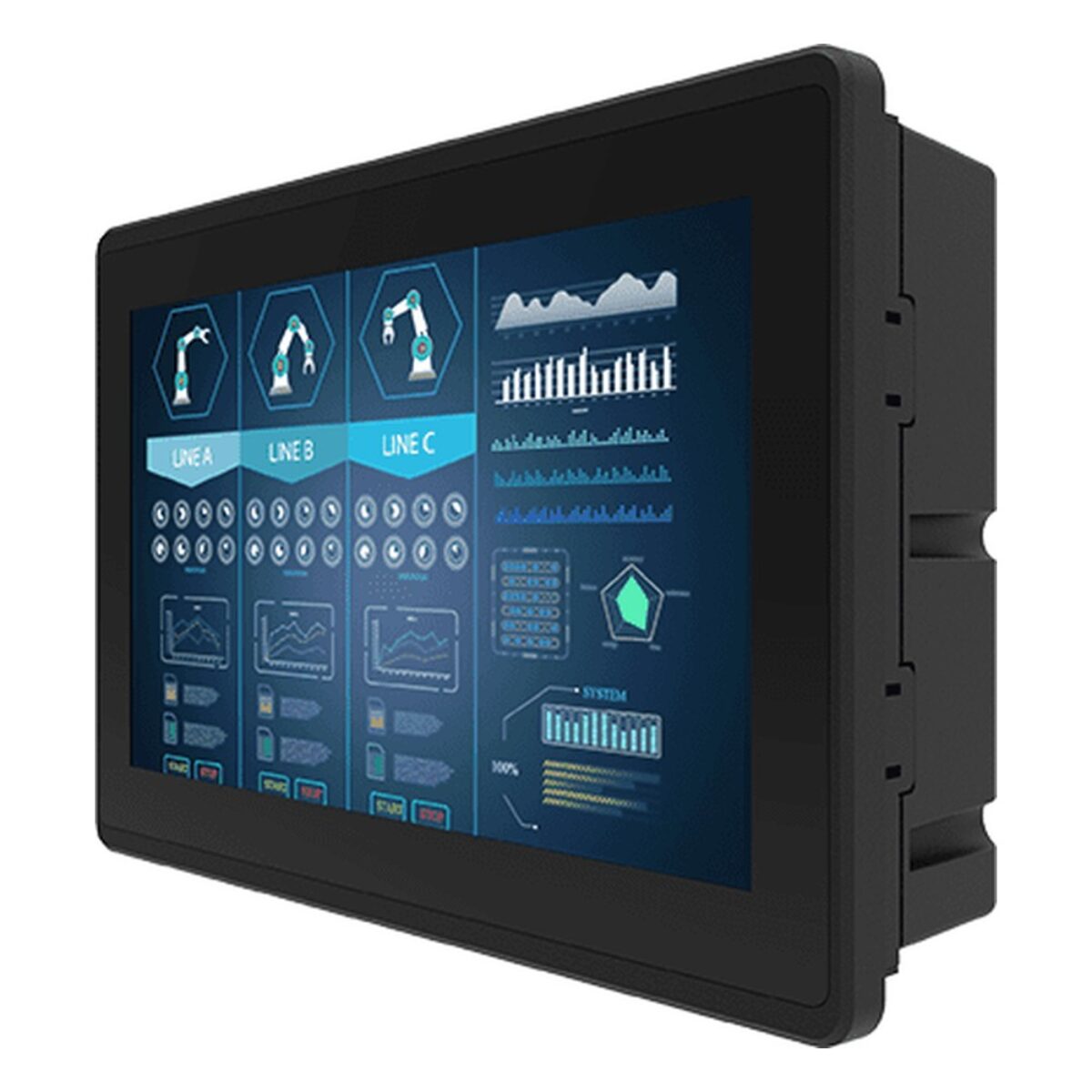

Control desks, kiosks and machine-side workstations often need a touchscreen that fits a panel and connects to a computer already in the cabinet. The W07L100-EHT1 is Winmate’s 7 inch slim panel mount monitor for that kind of job: a 7″ 1024 x 600 WSVGA display with projected capacitive multi-touch in a plastic bezel and metal back cover, sealed to IP65 at the front.

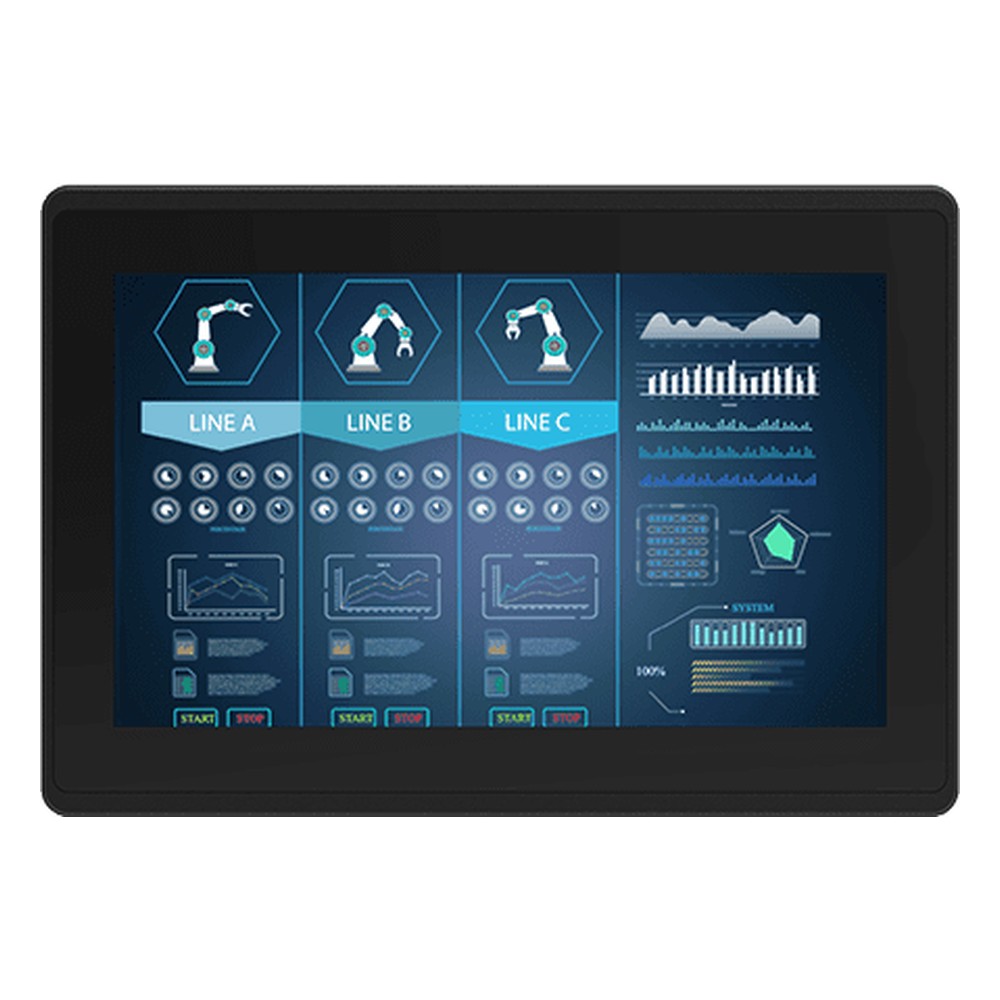

The 1024 x 600 panel runs at 320 nits with 1000:1 contrast and 150 degree horizontal and 145 degree vertical viewing angles. The small widescreen format suits button-led operator screens on tight panels. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.

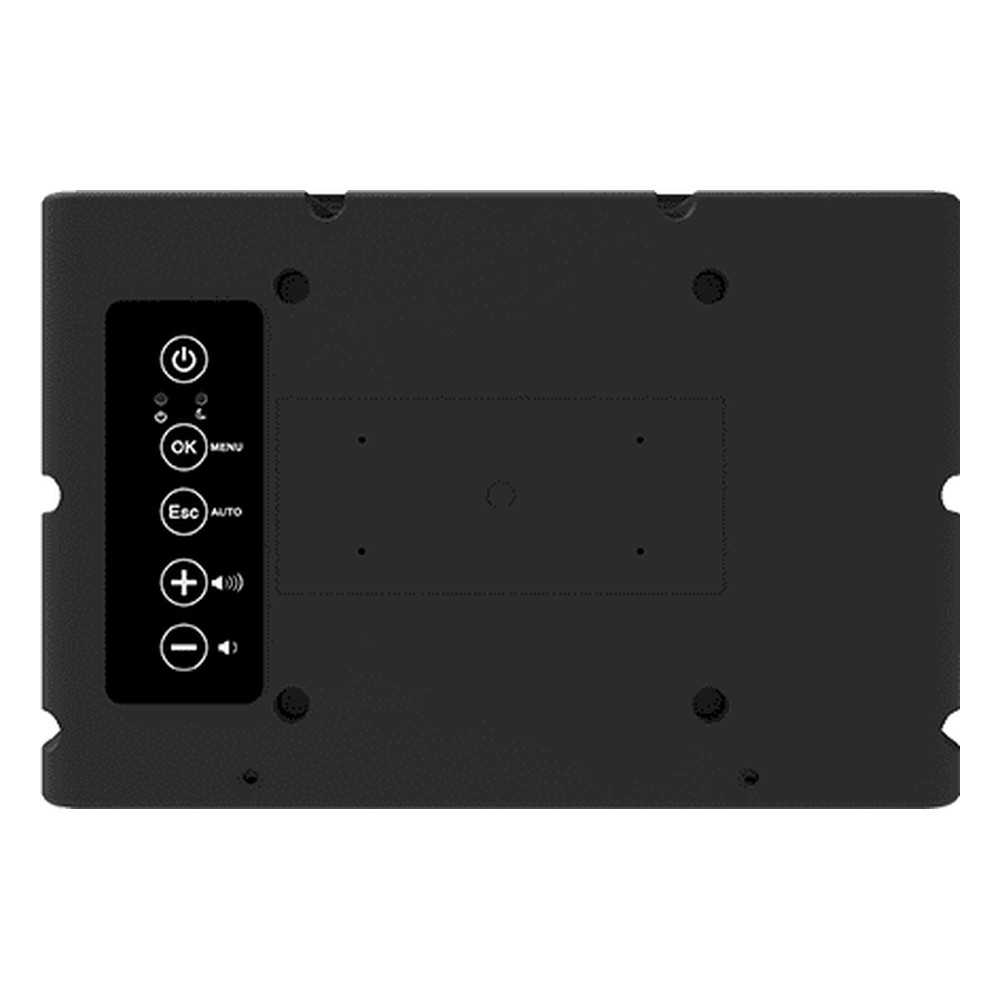

Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. An audio line-in and two speakers are optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W07IAN3S-EHT1 is the panel PC version of this housing with an Intel N150, and the W07MG3S-EHT1 is the Arm version with a MediaTek Genio 510.
Power is 12 V DC, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 7 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a panel cut-out or a VESA mount. We supply the W07L100-EHT1 configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
W07L100-EHT1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W07L100-EHT1 |
| Features | Fanless Industrial |
| Display | |
| Display | 7"[17:10, 1024 x 600, WSVGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 320 Nits |
| Viewing Angle | Wide Viewing Angle |
| 150° Horizontal, 145° Vertical | |
| Aspect Ratio | 17:10 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 185mm x 128mm x 56mm (7.28" x 5.04" x 2.20") |
- W07L100-EHT1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W07L100-EHT1 configured and tested for USA industrial and commercial display projects. Within the Winmate range the W07IAN3S-EHT1 is the panel PC version of this housing with an Intel N150, and the W07MG3S-EHT1 is the Arm version with a MediaTek Genio 510.
The W07L100-EHT1 sits among our 7 inch industrial monitors, our panel mount monitors and our front IP65 monitors. Where a control desk or kiosk needs a 7 inch touchscreen in a slim panel mount housing, it is a sensible model to shortlist.
