Winmate W15L100-PTA3-C 15.6″ USB-C PCAP Touch Monitor with FHD LCD and 400 Nits
PCAP
Fanless
Front IP65
CE
FCCW15L100-PTA3-C Overview

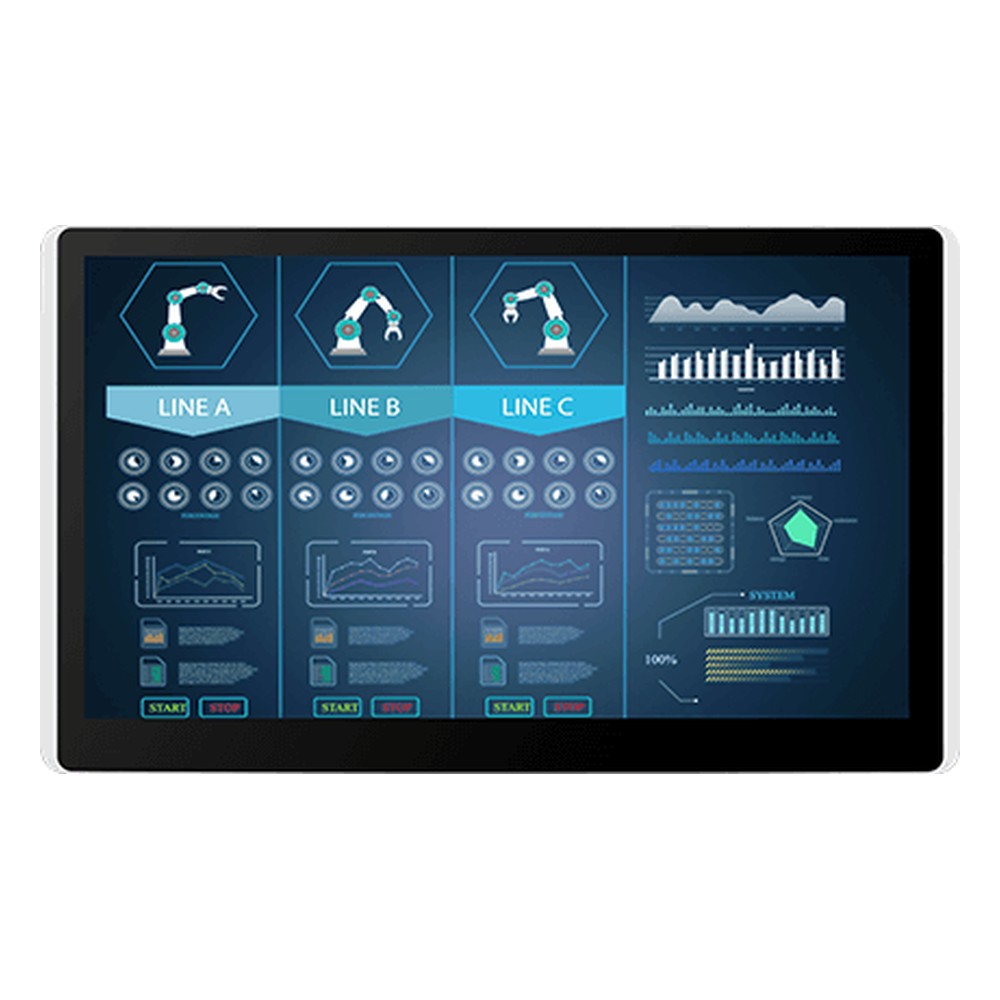

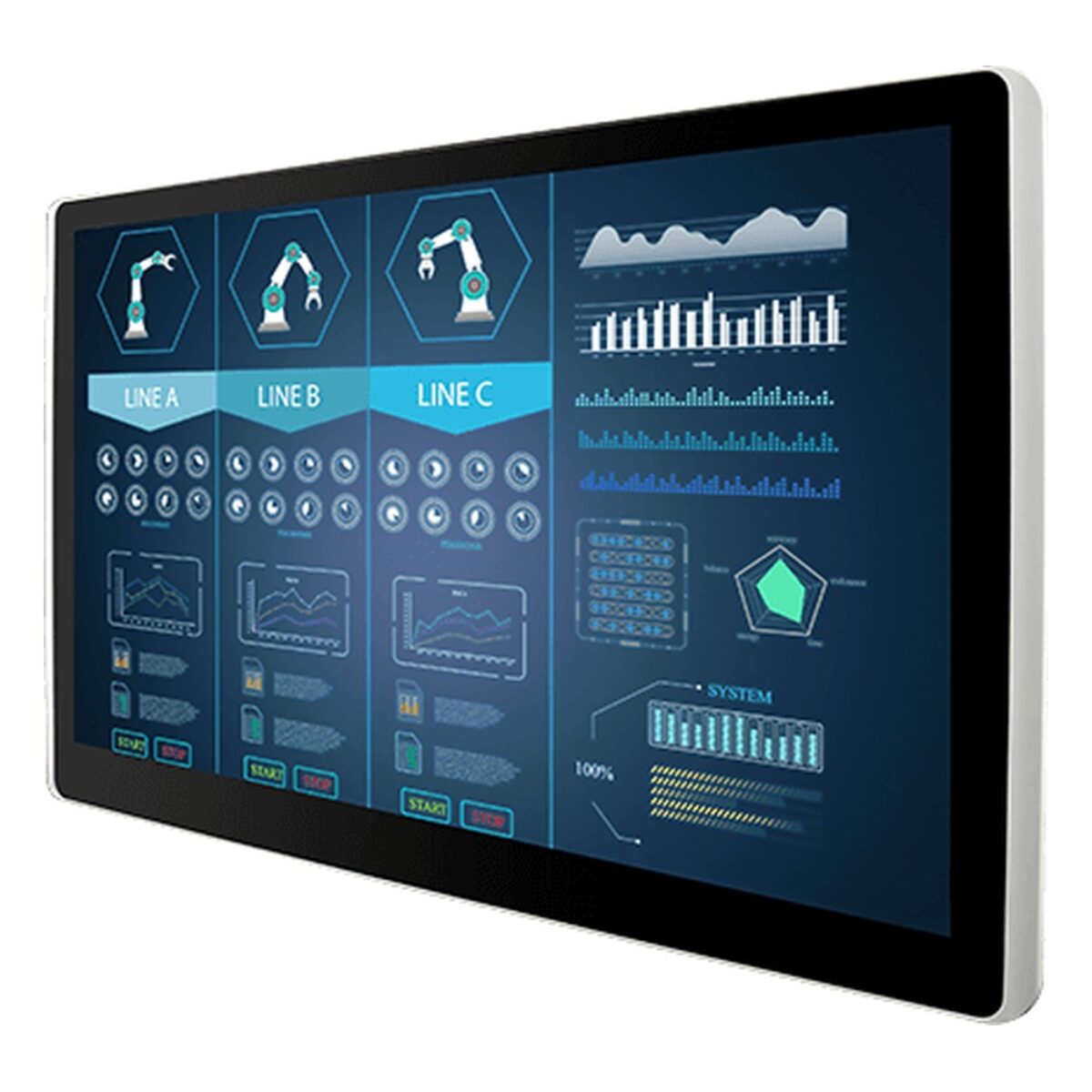

Control rooms and equipment monitoring stations increasingly use small PCs with USB-C, and a Full HD touchscreen that runs from that one port keeps desks and consoles tidy. The W15L100-PTA3-C is Winmate’s 15.6″ USB-C chassis display for industrial visualization, control rooms and equipment monitoring: a 15.6 inch PCAP touch monitor with a front IP65 face in a slim, fanless plastic housing.
The panel is 1920 x 1080 at 400 nits, with 800:1 contrast, 262,000 colors and 170 degree viewing angles. The Full HD resolution gives room for trend charts, camera tiles or several HMI panels side by side. Projected capacitive multi-touch is standard, so operators can pinch, swipe and tap as they would on a tablet. Two speakers are available as an option.
With the W15L100-PTA3-C, power, video and touch all travel over one USB-C connection in Alt mode at 5 V, 3 A. The host computer needs a USB-C port with Alt mode video output and sufficient power, and a lockable USB-C cable is an optional accessory. The W15L100-EHA4 is a 15.6 inch Full HD PCAP panel mount monitor, and the W15L100-CHL1OD is a 15.6 inch sunlight readable chassis monitor with a 1000 nit panel and a wide temperature range.
The 15.6 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C, mounts on VESA and carries CE and FCC marks. Because it takes power from the host, there is no separate supply to find space for. We supply it configured and tested before dispatch, and can check that your chosen computer’s USB-C port will drive it.
W15L100-PTA3-C Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W15L100-PTA3-C |
| Features | Fanless Industrial USB C |
| Display | |
| Display | 15.6"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB C |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x USB Type C |
| Power | |
| Power Input | 5V [USB-C] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 388mm x 233mm x 40mm (15.27" x 9.17" x 1.57") |
| Mounting Options | VESA Mount |
- W15L100-PTA3-C Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W15L100-PTA3-C configured and tested for USA control room and equipment monitoring projects. Within the Winmate range the W15L100-EHA4 is a 15.6 inch Full HD PCAP panel mount monitor, and the W15L100-CHL1OD is a 1000 nit sunlight readable chassis model.
The W15L100-PTA3-C sits among our PCAP touch monitors, our front IP65 monitors and our 15 inch industrial monitors. Where a Full HD touchscreen should run from a single cable, this is a sensible model to shortlist.
