Winmate W10L100-GCH2-C 10.1″ USB-C PCAP Touch Monitor with Optional 1000 Nit Panel and WXGA LCD
PCAP
High Bright
Fanless
Front IP65
CE
FCCW10L100-GCH2-C Overview

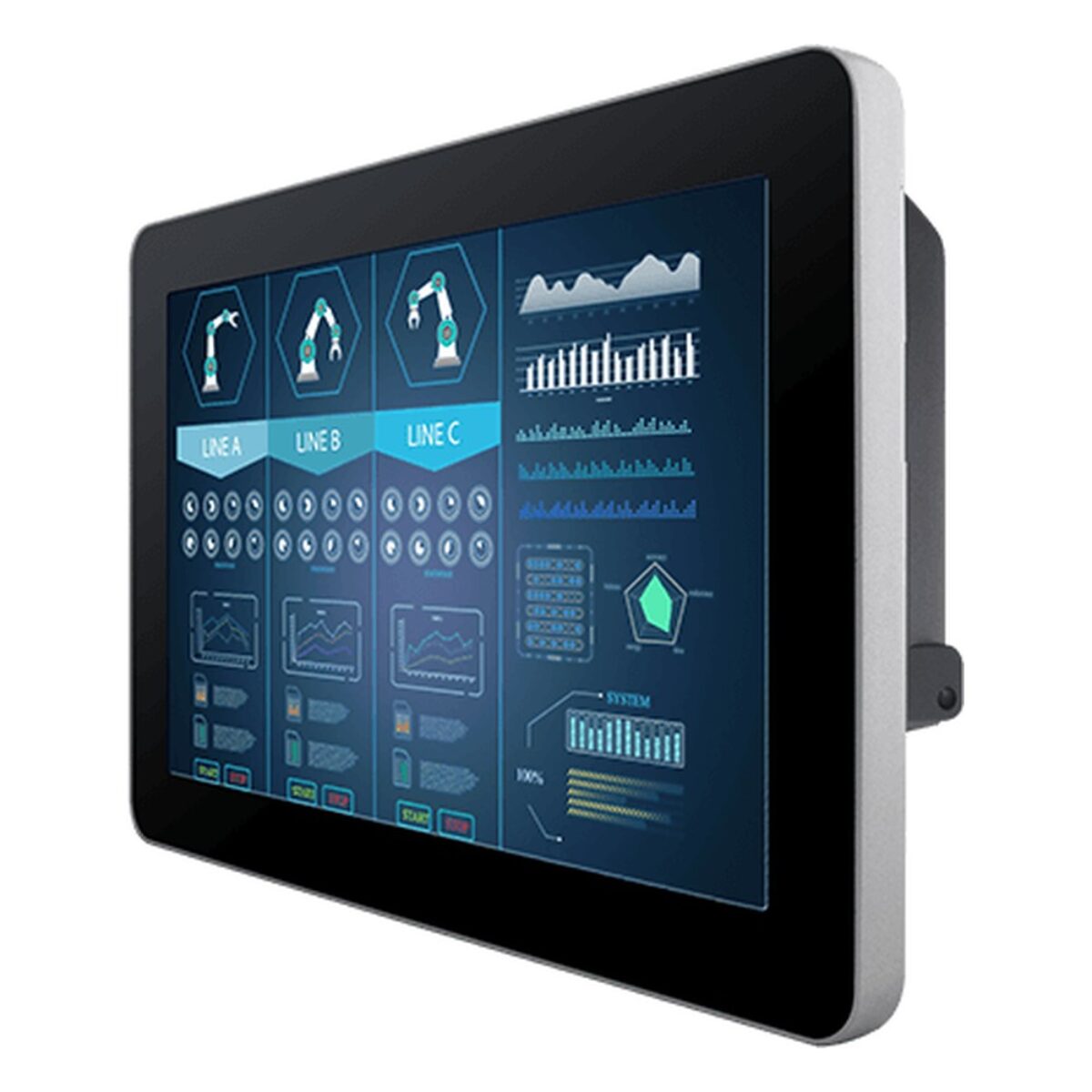

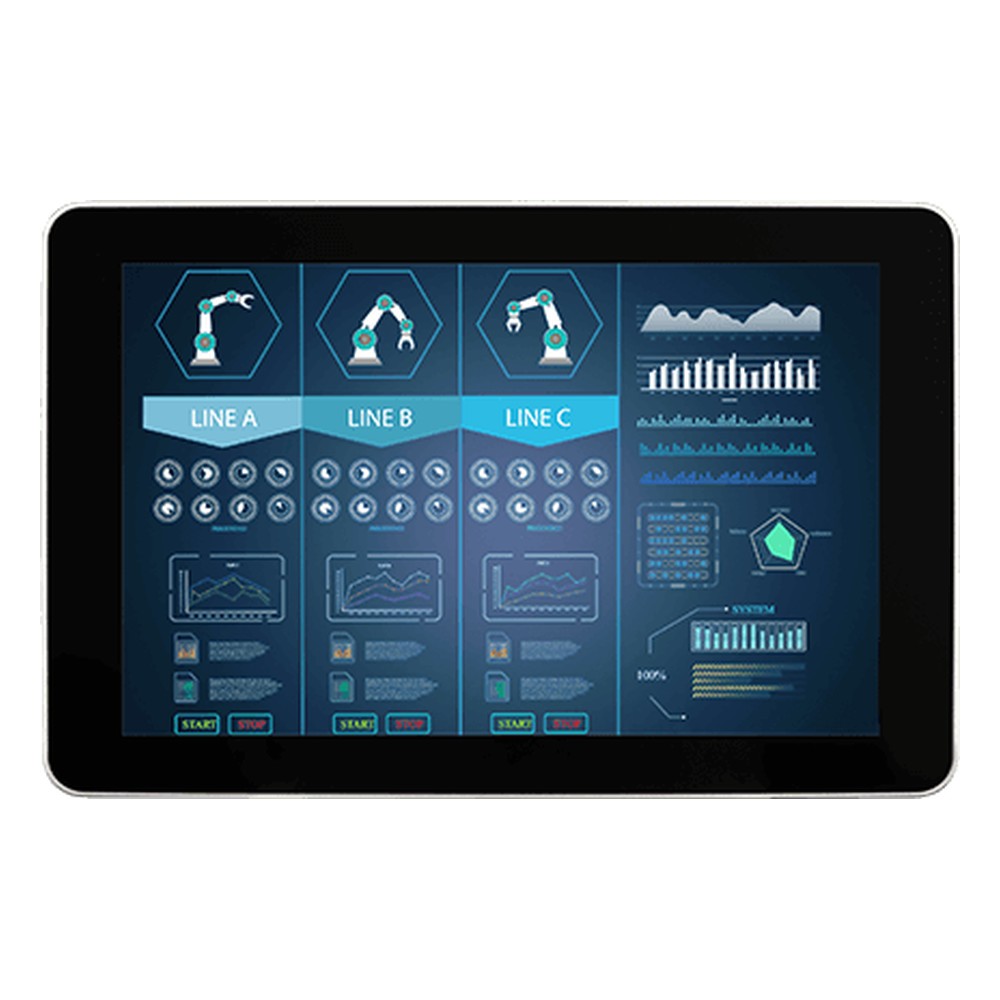

A widescreen 10.1 inch touchscreen is a common choice for small control stations, kiosks and machine fronts, and wiring it from one cable keeps the install clean. The W10L100-GCH2-C is Winmate’s 10.1″ USB-C chassis display: a WXGA PCAP touch monitor with a front IP65 face, a plastic bezel and an aluminum back cover, for automation, control systems and retail.
The panel is 1280 x 800 at 350 nits as standard, and a 1000 nit panel is listed as an option for brighter positions. Contrast is 800:1 with 16.7 million colors and 170 degree viewing angles. PCAP multi-touch is standard, and protection glass and an anti-glare coating are each available as options. Five keys cover power, menu, enter and brightness, and a speaker is optional.
For the W10L100-GCH2-C, power, video and touch all travel over one USB-C connection in Alt mode at 5 V, 3 A. The host needs a USB-C port with Alt mode output and enough power to drive the monitor, and a lockable USB-C cable is listed as an optional accessory. The W10L100-EHH2 is a 10.1 inch PCAP panel mount monitor at 350 nits, and the W10L100-CHH2OD is a 10.1 inch sunlight readable chassis monitor with a 1000 nit panel and a wide temperature range.
The monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C, mounts on VESA or in a panel and carries CE and FCC marks. With the 10.1 inch screen powered from the host, there is no adapter to mount. We supply it configured and tested before dispatch, and can advise whether the standard or the 1000 nit panel suits your lighting.
W10L100-GCH2-C Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10L100-GCH2-C |
| Features | Fanless Industrial USB C Waterproof |
| Display | |
| Display | 10.1"[5:3, 1280 x 800, WXGA] |
| Display Treatment | Anti-Glare Treatment Protective Glass |
| Touch Interface | USB C |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits Optional 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x USB Type C |
| Power | |
| Power Input | 5V [USB-C] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 263mm x 172mm x 40mm (10.37" x 6.77" x 1.58") |
| Mounting Options | VESA Mount |
- W10L100-GCH2-C Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10L100-GCH2-C configured and tested for USA automation, control and retail projects. Within the Winmate range the W10L100-EHH2 is a 10.1 inch PCAP panel mount monitor, and the W10L100-CHH2OD is a 1000 nit sunlight readable chassis model with a wide temperature range.
The W10L100-GCH2-C sits among our PCAP touch monitors, our panel mount monitors and our 10 inch industrial monitors. Where a widescreen touch display should run from a single cable, this is a sensible model to shortlist.
