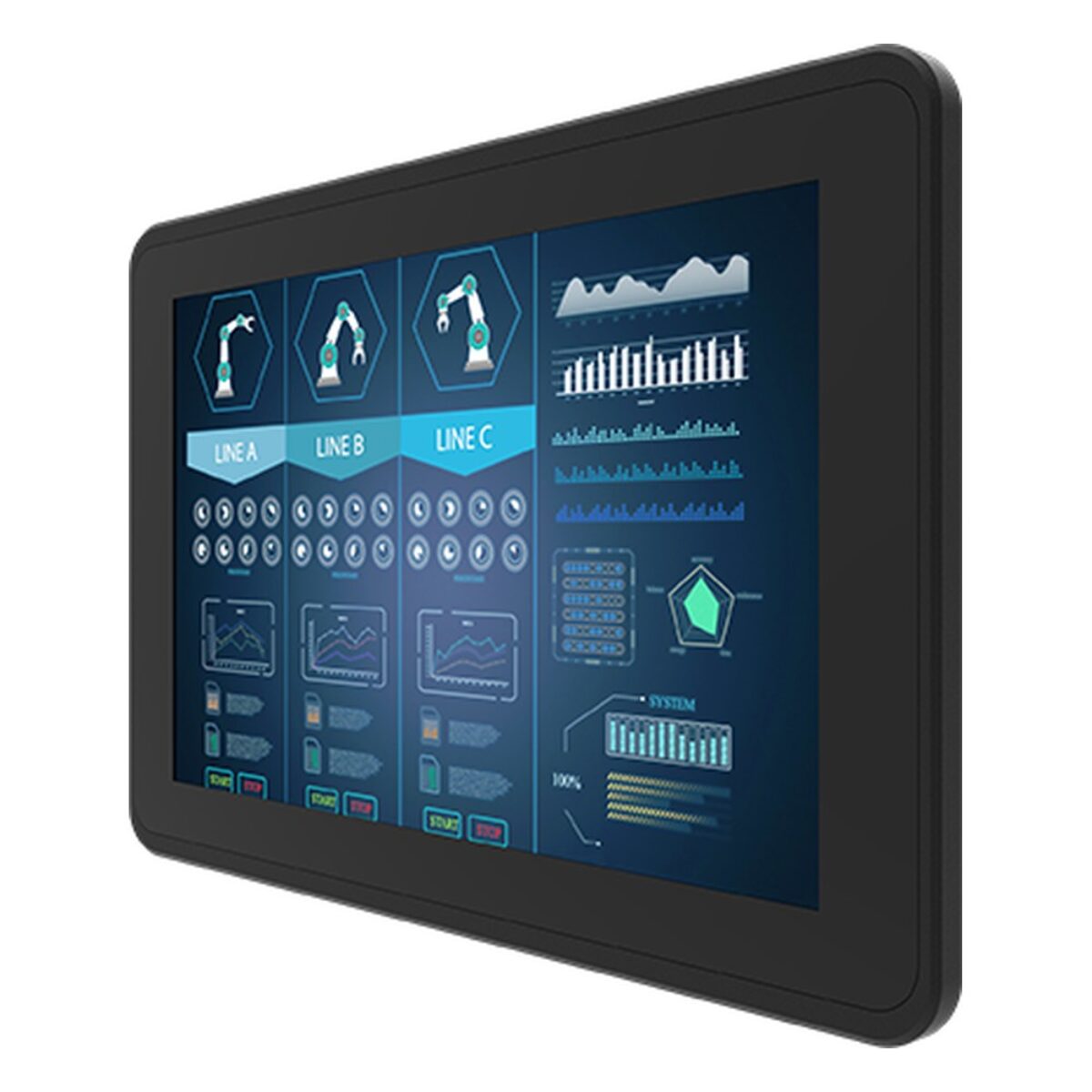

Winmate W10L100-EHH2 10.1″ PCAP Panel Mount Monitor with WXGA LCD and 350 Nits

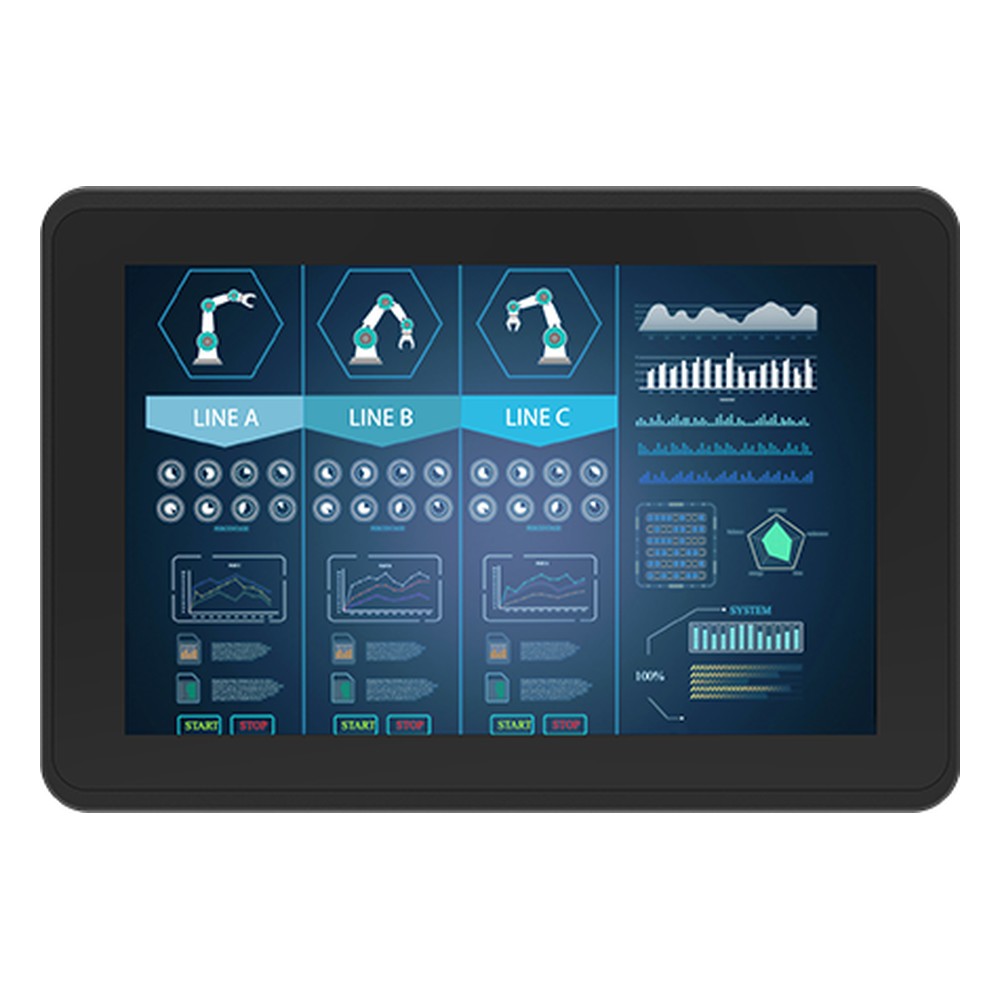

Control desks, kiosks and machine-side workstations often need a touchscreen that fits a panel and connects to a computer already in the cabinet. The W10L100-EHH2 is Winmate’s 10.1 inch slim panel mount monitor for that kind of job: a 10.1″ 1280 x 800 WXGA display with projected capacitive multi-touch in a metal housing with an aluminum bezel, sealed to IP65 at the front.

The 1280 x 800 panel runs at 350 nits with 800:1 contrast and 170 degree viewing angles. The widescreen 1280 x 800 format suits operator screens and booking or information panels. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.

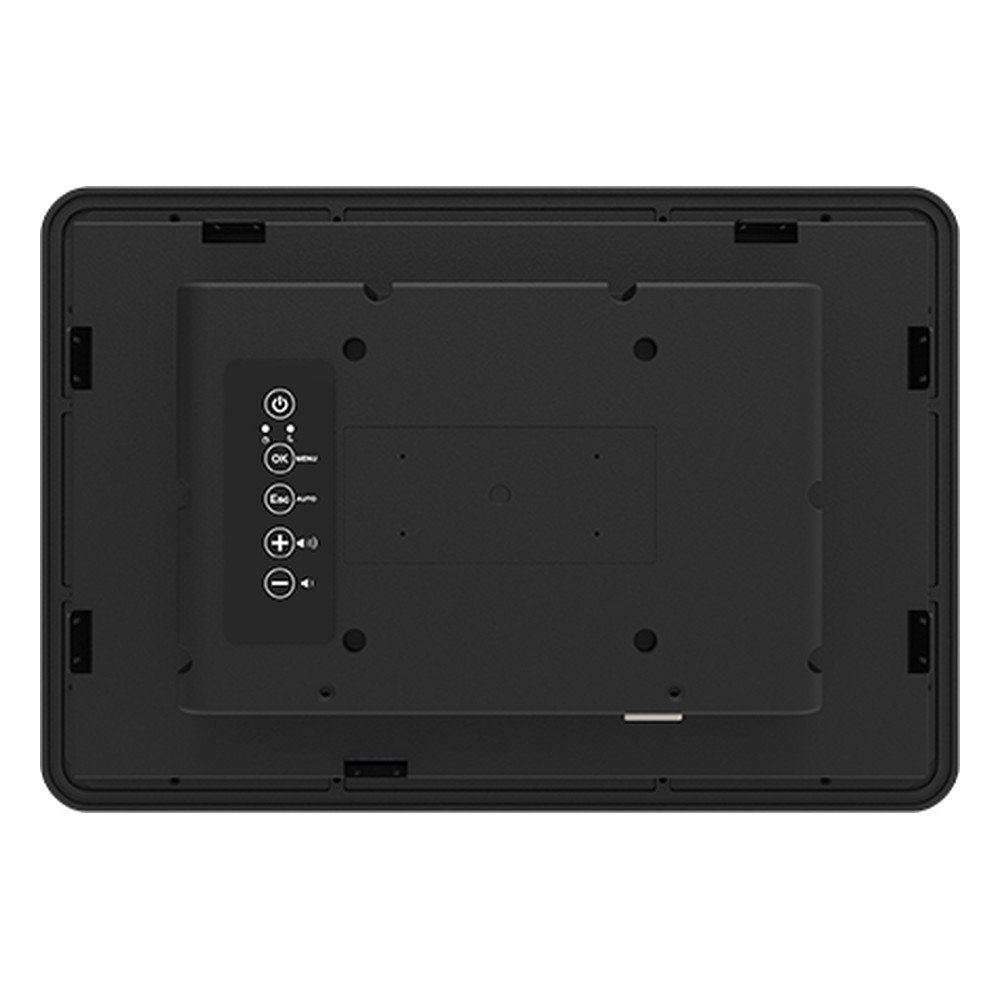

Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. An audio line-in and two speakers are optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W10IAN3S-EHH2 is the panel PC version of this housing with an Intel N150, and the W10MG3S-EHH2 is the Arm version with a MediaTek Genio 510.

Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 10.1 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a panel cut-out or a VESA mount. We supply the W10L100-EHH2 configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
