Winmate W10MG3S-EHH2 10.1″ PCAP Touch HMI with MediaTek Genio 510 and MIL-STD-810H

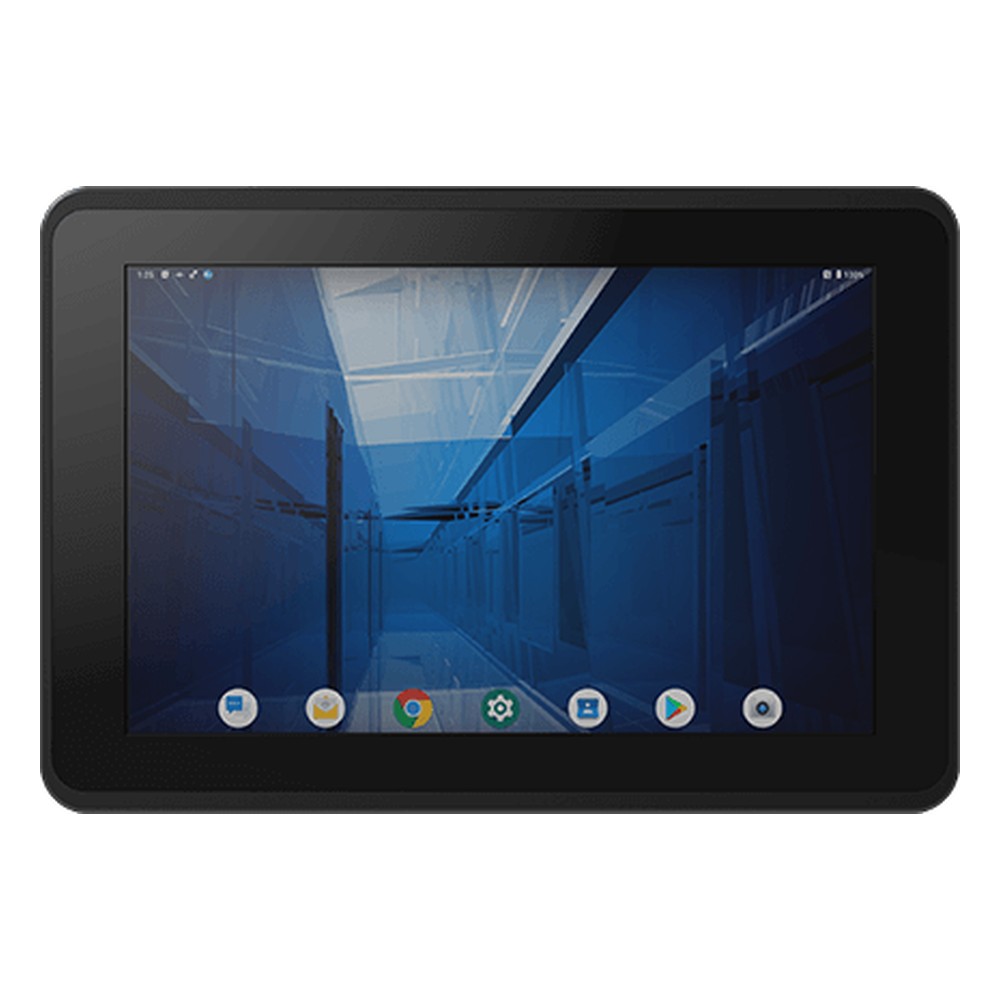

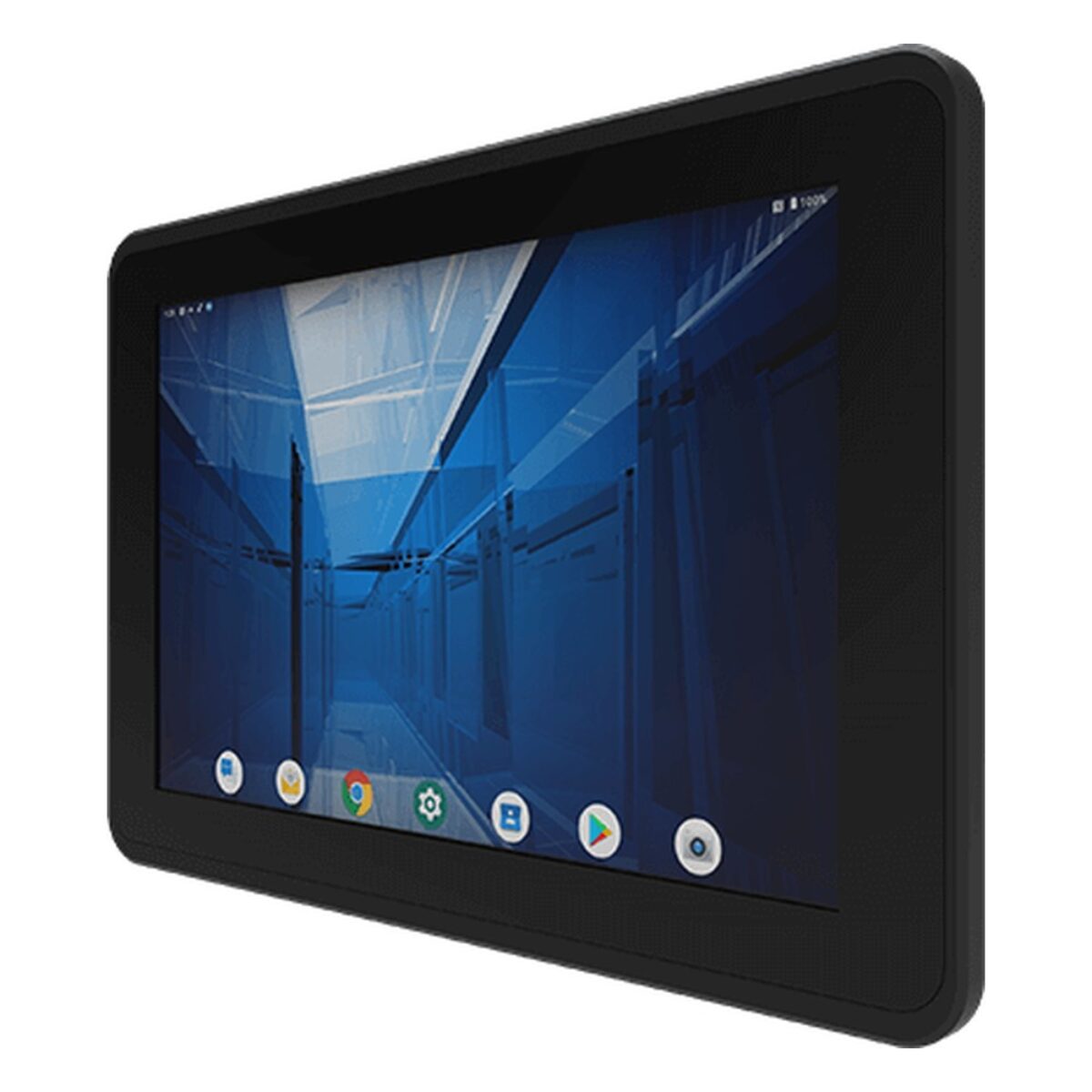

A 10.1 inch widescreen HMI running one Android or Linux application can be simpler to deploy and maintain than a full Windows PC. The W10MG3S-EHH2 is Winmate’s 10.1 inch E Series HMI panel PC built on the Arm-based MediaTek Genio 510: a 10.1″ 1280 x 800 projected capacitive multi-touch screen with a front IP65 rating, Android 13 as standard and shock and vibration tested to MIL-STD-810H. Winmate names manufacturing, logistics and smart factory applications for the E Series.

The MediaTek Genio 510 has six cores, two Arm Cortex-A78 and four Cortex-A55, each running at up to 2.0 GHz. That suits a dedicated HMI or Android app running all day on little power, without a fan. Memory is 4 GB of LPDDR4 and storage is 32 GB on board, with a Micro SD card slot for logs, recipes or media. Android 13 is the default OS, and Yocto Linux with Qt 5.15 or Linux Ubuntu 22.04 can be supplied instead.

One Gigabit LAN port connects the panel to a PLC or the plant network, and PoE powered-device input to IEEE 802.3at is available as an option. USB covers two USB 2.0 Type-A ports and one USB 2.0 Type-C port with OTG for setup and service, one RS-232/422/485 port, set to RS-232 by default, handles serial devices, and a Micro HDMI output is optional. Within the Winmate range, the W10IAN3S-EHH2 is the same 10.1 inch E Series design with a quad-core Intel Processor N150 for Windows 11, and the W10MG3S-PCH2-POE is the S Series model powered over Ethernet.

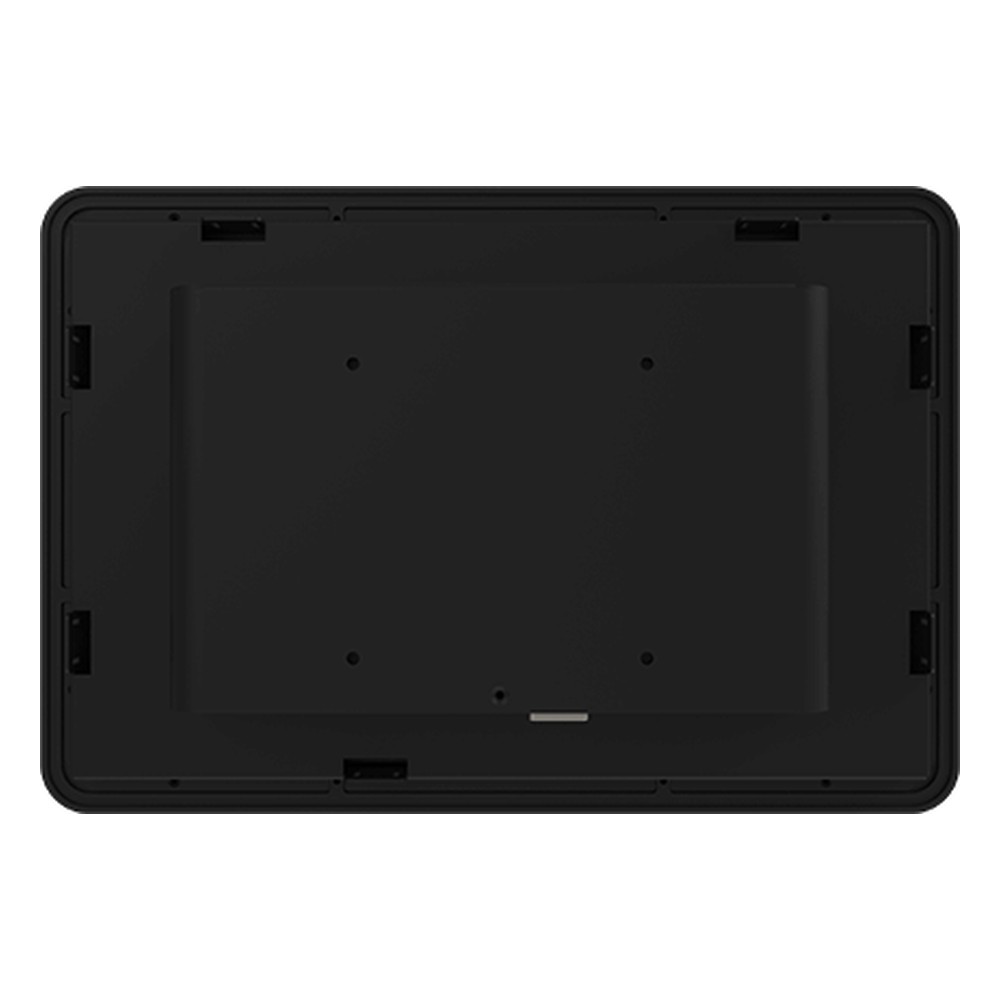

Power is 12 V DC on a terminal block, and a 12 V 50 W AC adapter is supplied. It panel mounts with the clips supplied, or takes a VESA mount, has a metal front bezel with a plastic back cover, and runs from 0 °C to 50 °C. It is shock and vibration tested to MIL-STD-810H Methods 516.8 and 514.8, Procedure I, and carries CE and FCC marks. We supply the W10MG3S-EHH2 configured, with the OS installed, and tested before dispatch.
