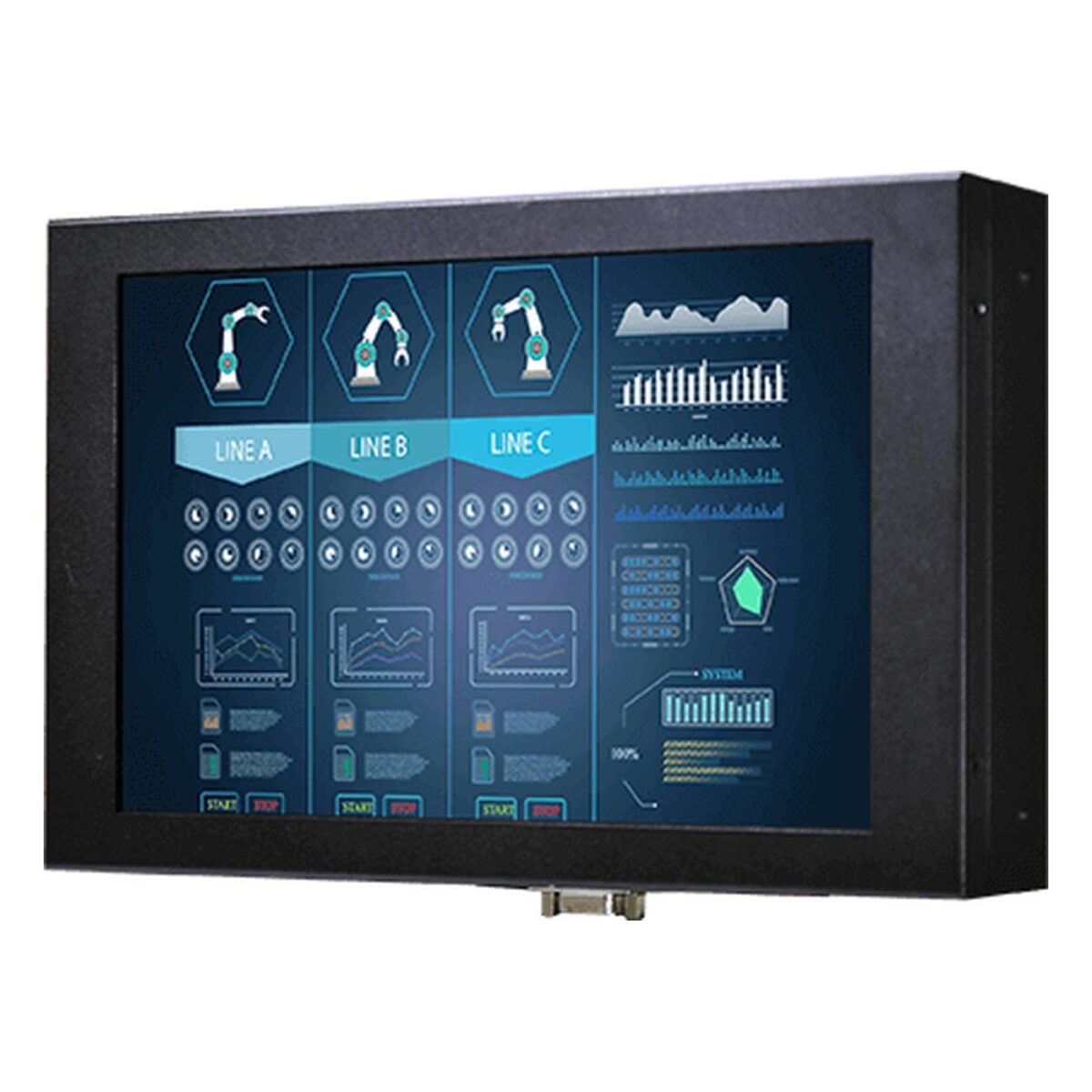

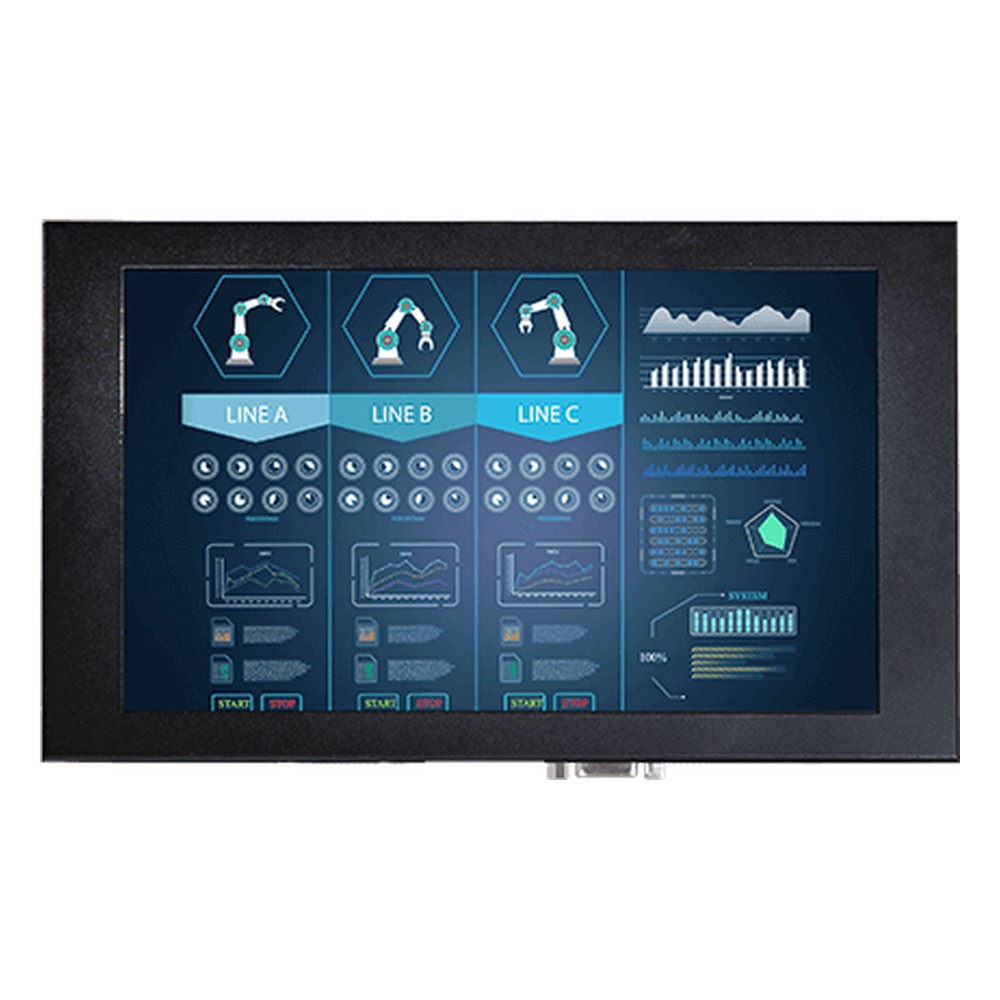

Winmate W10L100-CHH2OD 10.1″ Sunlight Readable Chassis Monitor with 1000 Nit WXGA Display and Wide Temperature

Control systems, kiosks and equipment screens in bright or exposed places need a display that stays readable and keeps working as the temperature swings. The W10L100-CHH2OD is Winmate’s 10.1 inch sunlight readable chassis monitor for that job, with a 10.1″ WXGA panel at 1000 nits, resistive touch as standard and a -10 °C to 60 °C operating range. It connects to a separate computer over VGA, with HDMI or DVI as options.

The 10.1″ WXGA panel runs at 1000 nits with 800:1 contrast, 16.7 million colors and 170 degree viewing angles in both directions, so the picture typically stays readable in direct light. Resistive touch is standard, connected over one USB port, and protection glass without touch is available as an option.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the W10L100-CHH2OD pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the W10L100-PMH2OD is the panel mount version of this sunlight readable display, and the W10L100-EHH2OD is the 1000 nit panel mount model with PCAP touch instead of resistive.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from -10 °C to 60 °C and stores from -20 °C to 70 °C, at 10 to 90% humidity, non-condensing. It mounts on VESA arms, brackets or stands, and it carries CE and FCC marks. We supply the W10L100-CHH2OD configured and tested before dispatch.
