Winmate W10L100-EHH2OD 10.1″ Sunlight Readable Panel Mount PCAP Touch Monitor with 1000 Nit WXGA LCD
PCAP
High Bright
Extended Temp
Front IP65
CE
FCCW10L100-EHH2OD Overview

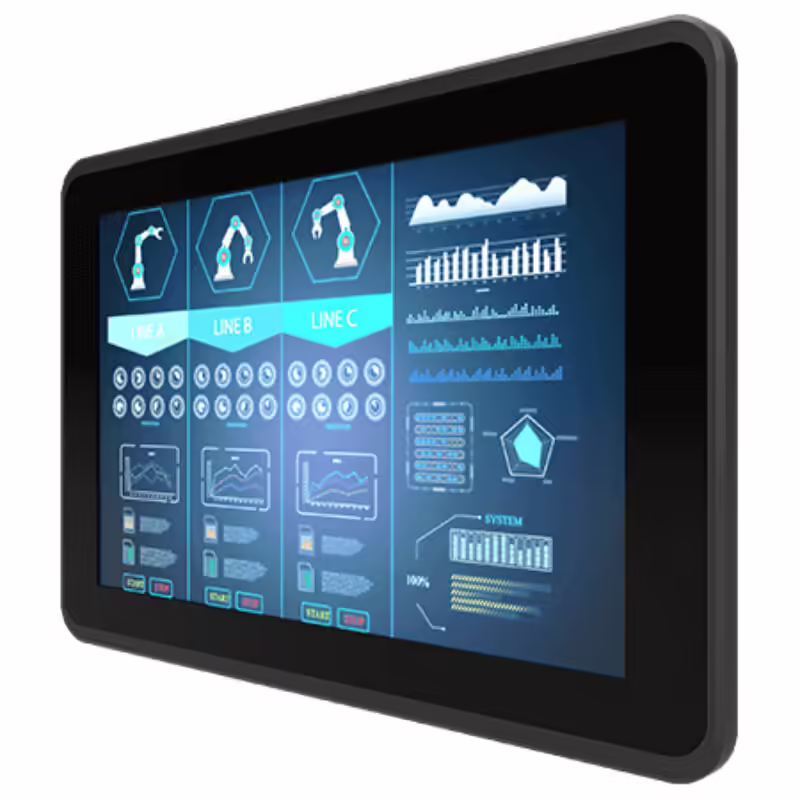

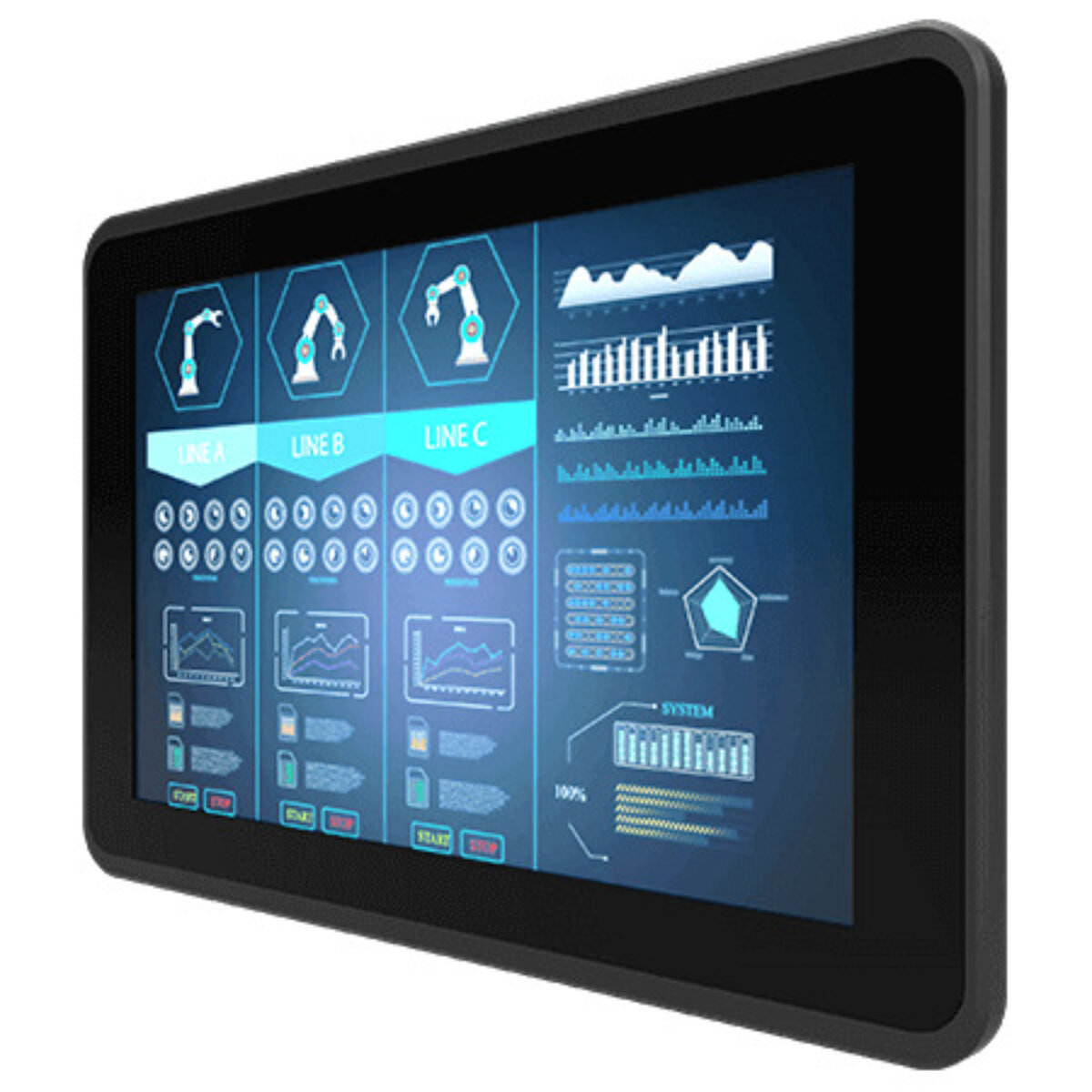

An outdoor equipment cabinet or machine front often needs a screen set flush into a cut-out that stays readable in direct daylight. The W10L100-EHH2OD is Winmate’s 10.1 inch sunlight readable panel mount monitor for that install, combining a 1000 nit LCD, projected capacitive multi-touch and an operating range of -10 °C to 60 °C in a fanless metal housing with an aluminum bezel.
The 1280 x 800 WXGA panel has an 800:1 contrast ratio, 16.7 million colors and viewing angles of 170° horizontally and vertically. At 1000 nits it keeps maps, status pages and controls legible outdoors, and Winmate offers an optional UV film for solar radiation protection. The PCAP touch screen connects over USB and supports multi-touch.
Video comes in on a VGA input, with HDMI or DVI as factory options, and a 3.5 mm line-in and two speakers can be added. A five-key on-screen display menu handles set-up. For a VESA-mounted chassis instead of a cut-out, the W10L100-GCH2OD offers the same 1000 nit panel, and the W15L100-PPL1OD moves to a 15.6 inch FHD panel.
The W10L100-EHH2OD runs on 12 V DC, with a 100 to 240 V AC adapter supplied, and operates from -10 °C to 60 °C at 10 to 90% humidity, non-condensing. An optional heater extends the lower limit to -25 °C, and storage is rated from -20 °C to 70 °C. The monitor measures 267 x 182 x 56.5 mm, fits a panel cut-out or a 75 x 75 mm VESA mount, and carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W10L100-EHH2OD Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10L100-EHH2OD |
| Features | Fanless Industrial |
| Display | |
| Display | 10.1"[5:3, 1280 x 800, WXGA] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 267mm x 182mm x 57mm (10.51" x 7.17" x 2.24") |
- W10L100-EHH2OD Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10L100-EHH2OD configured for USA outdoor equipment projects. Within the Winmate range the W10L100-GCH2OD is the VESA chassis version of this outdoor panel, and the W15L100-PPL1OD offers a 15.6 inch FHD panel mount build.
For daylight panel installs the W10L100-EHH2OD sits among our sunlight readable displays, our panel mount monitors and our 10 inch industrial monitors. Where a touch screen sits in an outdoor cut-out, this is the model to specify.
