Winmate W10L100-GCH2OD 10.1″ Sunlight Readable PCAP Touch Monitor with 1000 Nit WXGA LCD
PCAP
High Bright
Extended Temp
Front IP65
CE
FCCW10L100-GCH2OD Overview

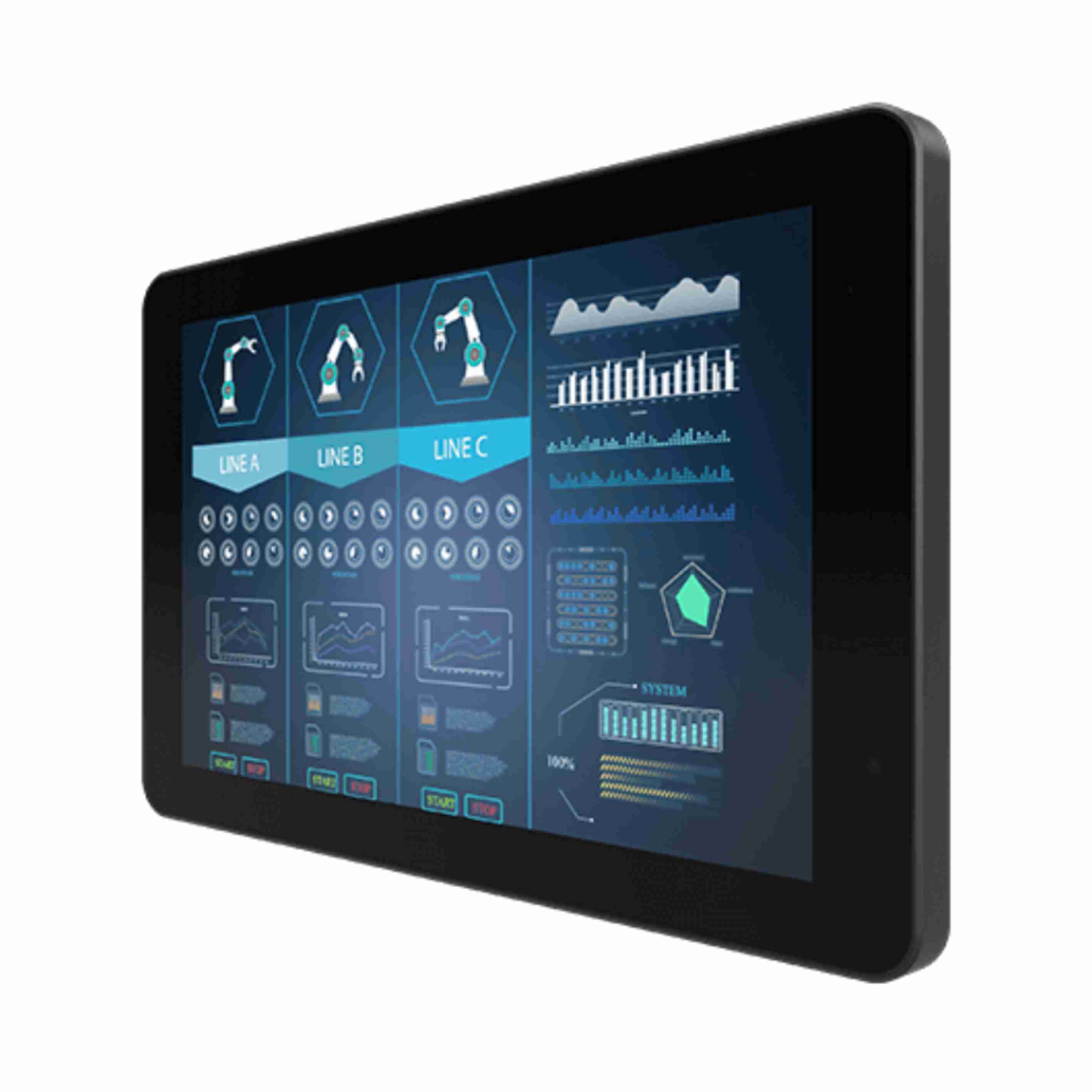

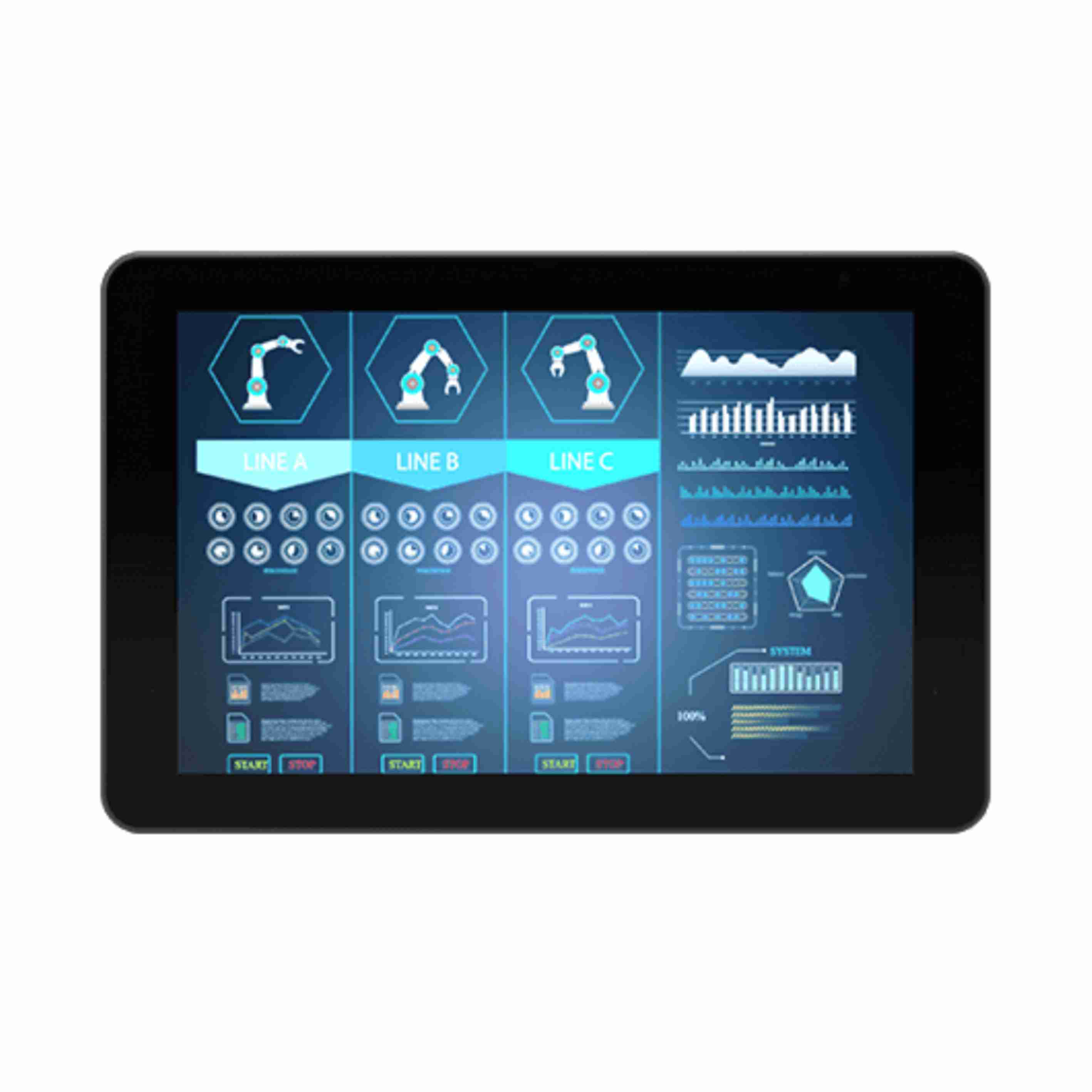

A screen mounted outdoors has to be readable at midday and keep working through a cold start or a hot afternoon. The W10L100-GCH2OD is Winmate’s 10.1 inch sunlight readable chassis monitor for those sites: a 1000 nit LCD with projected capacitive multi-touch, operating from -10 °C to 60 °C in a plastic bezel with an aluminum back cover.
The 1280 x 800 WXGA panel has an 800:1 contrast ratio, 16.7 million colors and viewing angles of 170° horizontally and vertically. At 1000 nits it keeps status pages and controls legible in daylight, and Winmate offers an optional UV film for solar radiation protection where the screen faces direct sun. The PCAP touch screen connects over USB.
Video comes in on a VGA input, with HDMI or DVI as factory options, and an optional speaker is available. A five-key on-screen display menu handles set-up. For indoor use the W10L100-GCH2 is the 350 nit version of this housing with a front IP65 rating, and the W10L100-EHH2OD is the outdoor panel mount build.

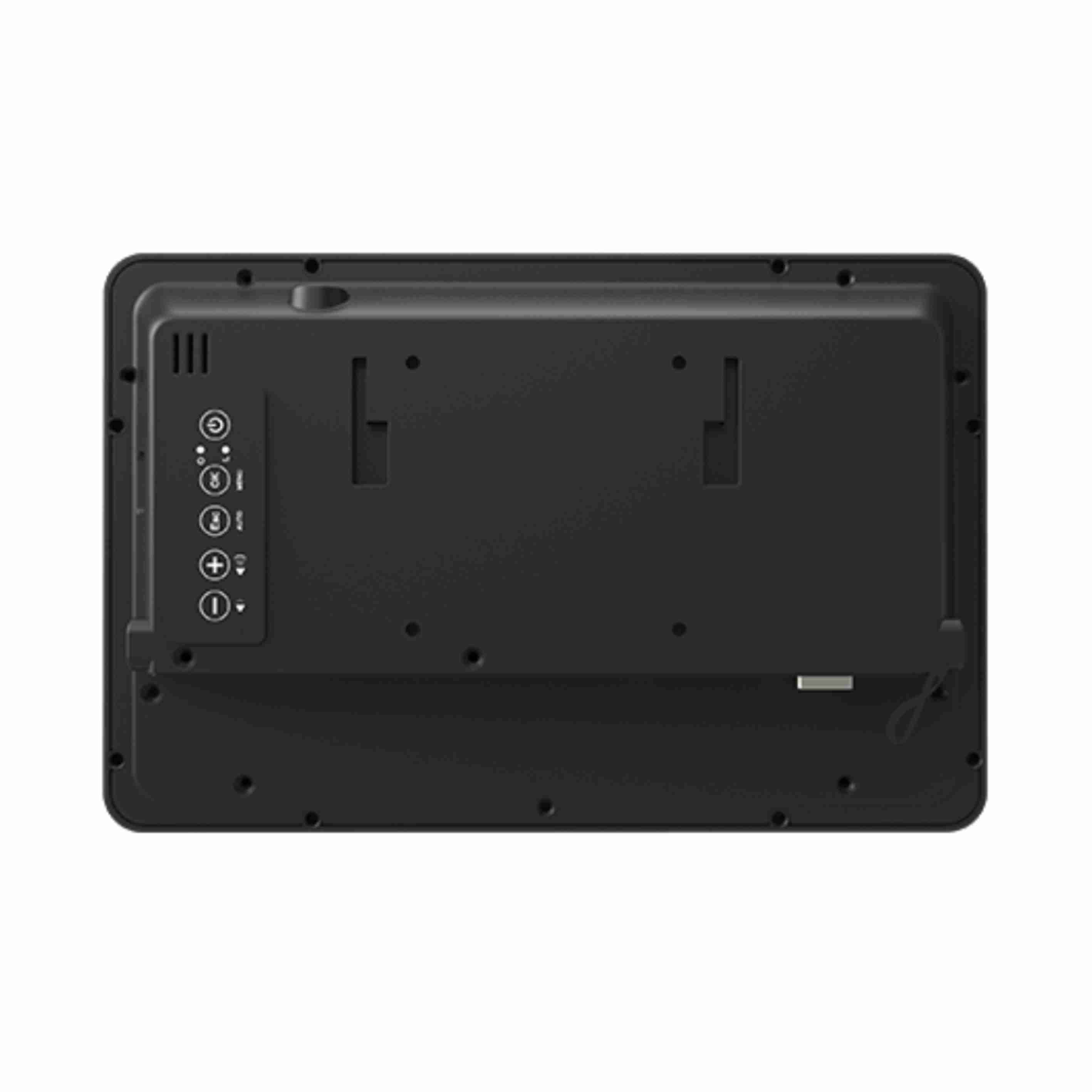

The W10L100-GCH2OD runs on 12 V DC, with 24 V DC as an option, and operates from -10 °C to 60 °C at 10 to 90% humidity, non-condensing. An optional heater extends the lower limit to -25 °C, and storage is rated from -20 °C to 70 °C. The fanless monitor measures 264.6 x 173.3 x 35.7 mm, weighs 1.3 kg, fits a 75 x 75 mm VESA mount or a panel mount, and carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W10L100-GCH2OD Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10L100-GCH2OD |
| Features | Fanless Industrial |
| Display | |
| Display | 10.1"[5:3, 1280 x 800, WXGA] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 264mm x 173mm x 36mm (10.39" x 6.81" x 1.42") |
- W10L100-GCH2OD Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10L100-GCH2OD configured for USA outdoor and transport projects. Within the Winmate range the W10L100-EHH2OD offers the same 1000 nit panel for cut-out mounting, and the W07L100-PCO1OD is the 7 inch outdoor chassis model.
Built for daylight the W10L100-GCH2OD sits among our high brightness monitors, our chassis monitors and our 10 inch industrial monitors. Where a VESA-mounted touch screen faces direct sun, cold starts and hot afternoons, this is the model to specify.
