Winmate W10L100-GCH2 10.1″ Front IP65 PCAP Touch Monitor with WXGA LCD and VGA Input
PCAP
High Bright
Front IP65
CE
FCCW10L100-GCH2 Overview

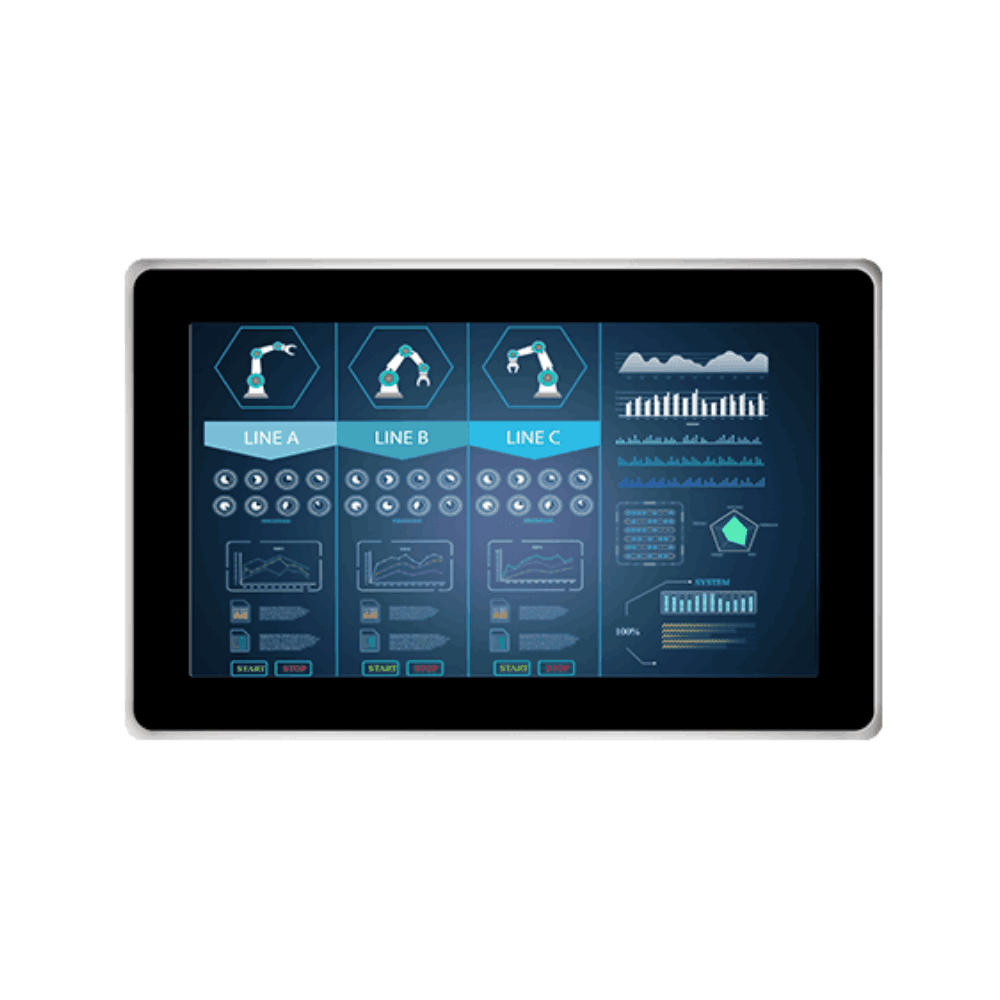

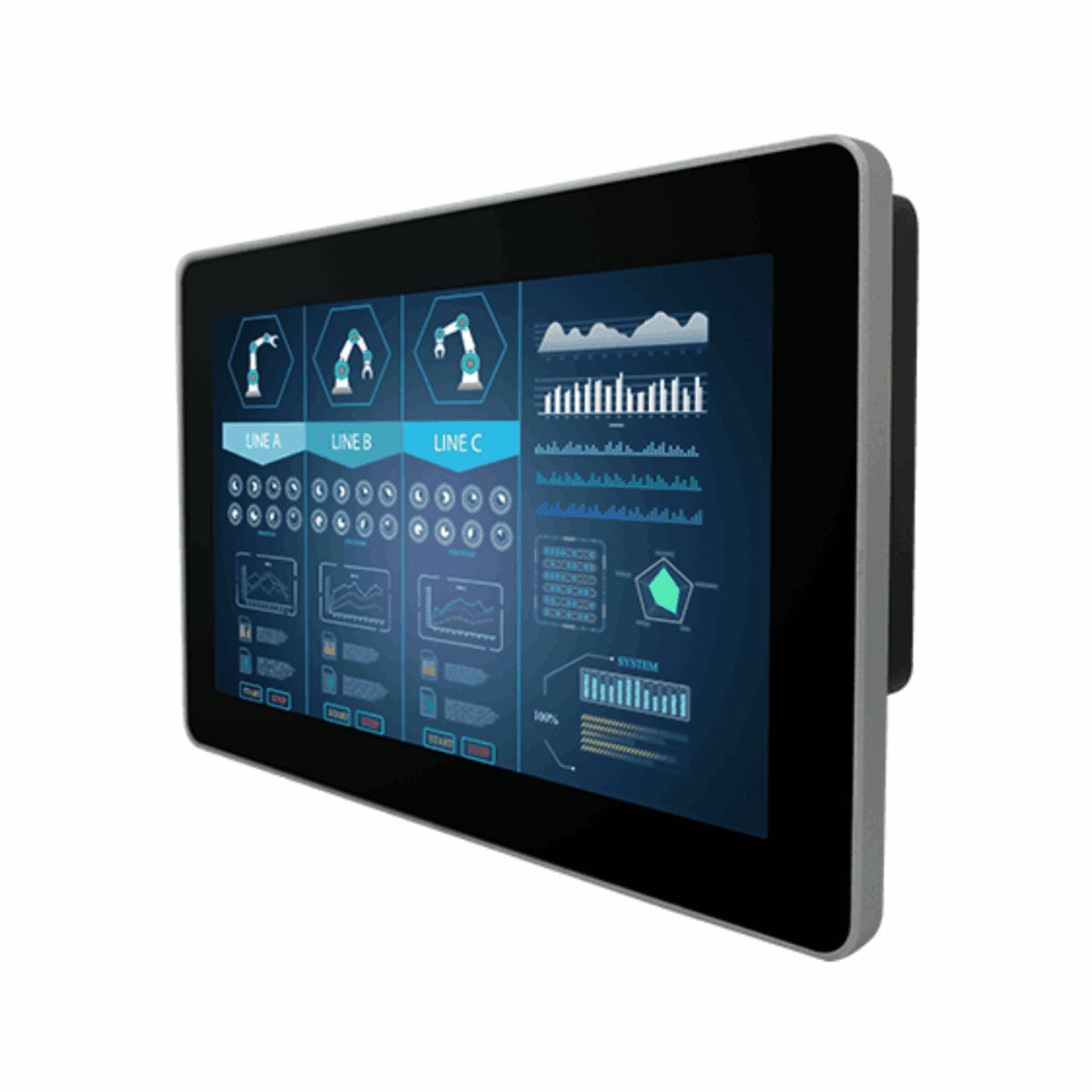

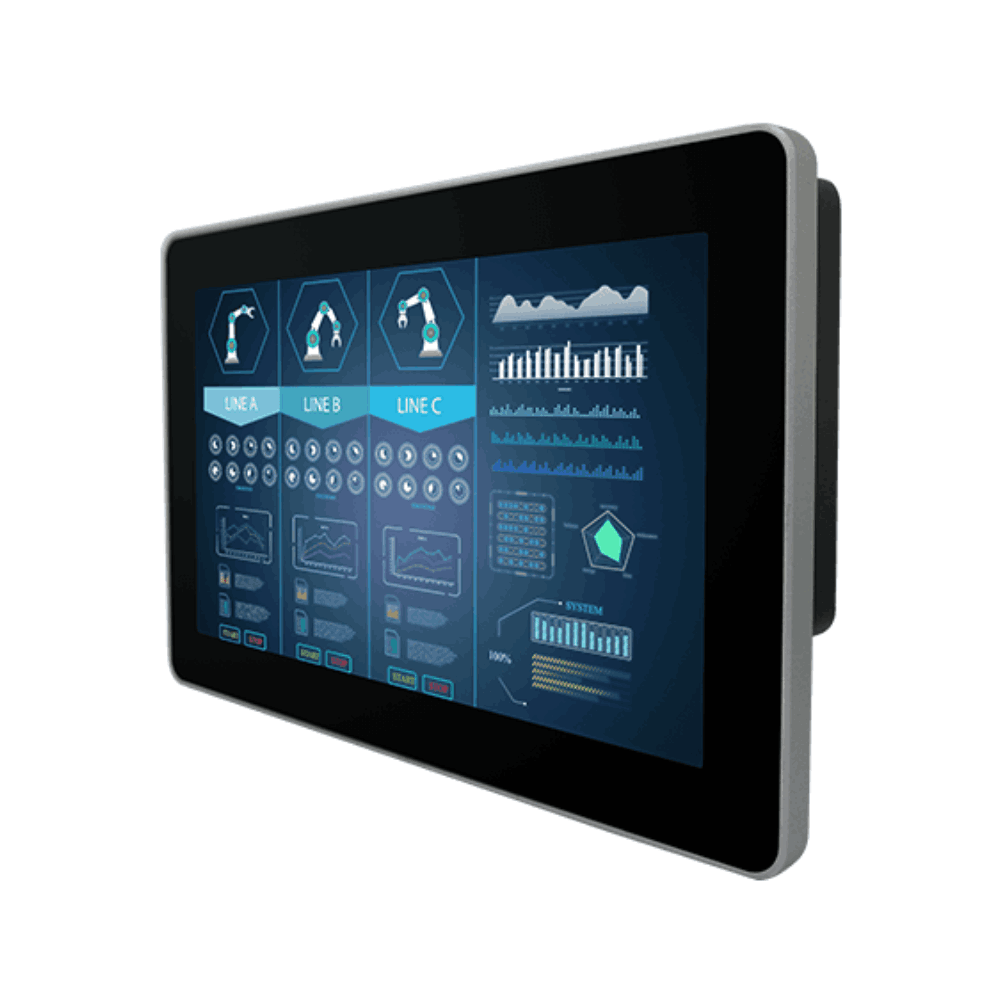

Machine fronts and control desks get splashed and wiped, and the screen face has to take it. The W10L100-GCH2 is Winmate’s 10.1 inch front IP65 touch monitor in the G-WIN GC housing: a 1280 x 800 LCD with projected capacitive multi-touch behind a front rated IP65, in a plastic bezel with an aluminum back cover.
The WXGA panel runs at 350 nits with an 800:1 contrast ratio, 16.7 million colors and viewing angles of 170° horizontally and vertically, which suits indoor HMI and monitoring screens. The PCAP touch screen connects over USB and supports multi-touch gestures, so operators can tap and swipe as they would on a phone. Because the rating covers the front only, the rear of the monitor should sit inside a cabinet or behind a panel.
Video comes in on a VGA input, with HDMI or DVI as factory options, and an optional speaker is available. A five-key on-screen display menu handles set-up. For outdoor installs the W10L100-GCH2OD is the 1000 nit version of this housing, and the W10L100-GSH2 seals the whole unit to IP65 with M12 connectors.
The W10L100-GCH2 runs on 12 V DC, with 24 V DC as an option, and operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with storage from -20 °C to 60 °C. Shock and vibration are specified to MIL-STD-810G Methods 516.6 and 514.6. The fanless monitor weighs 1.3 kg, fits a 75 x 75 mm VESA mount or a panel mount, and carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W10L100-GCH2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10L100-GCH2 |
| Features | Fanless Industrial Waterproof |
| Display | |
| Display | 10.1"[5:3, 1280 x 800, WXGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits Optional 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 263mm x 172mm x 40mm (10.35" x 6.77" x 1.57") |
- W10L100-GCH2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10L100-GCH2 configured for USA machine building and process projects. Within the Winmate range the W10L100-GCH2OD adds a 1000 nit panel for daylight, and the W10L100-GSH2 offers full IP65 sealing with M12 connectors.
With a sealed front the W10L100-GCH2 sits among our front IP65 displays, our industrial panel mount monitors and our 10.1 inch touch monitors. Where an indoor machine panel needs a wipe-clean face and PCAP touch, this is the model to specify.
