Winmate W10L100-GSH2 10.1″ Rugged IP65 PCAP Touch Monitor with WXGA LCD and M12 Connectors
PCAP
CE
FCCW10L100-GSH2 Overview

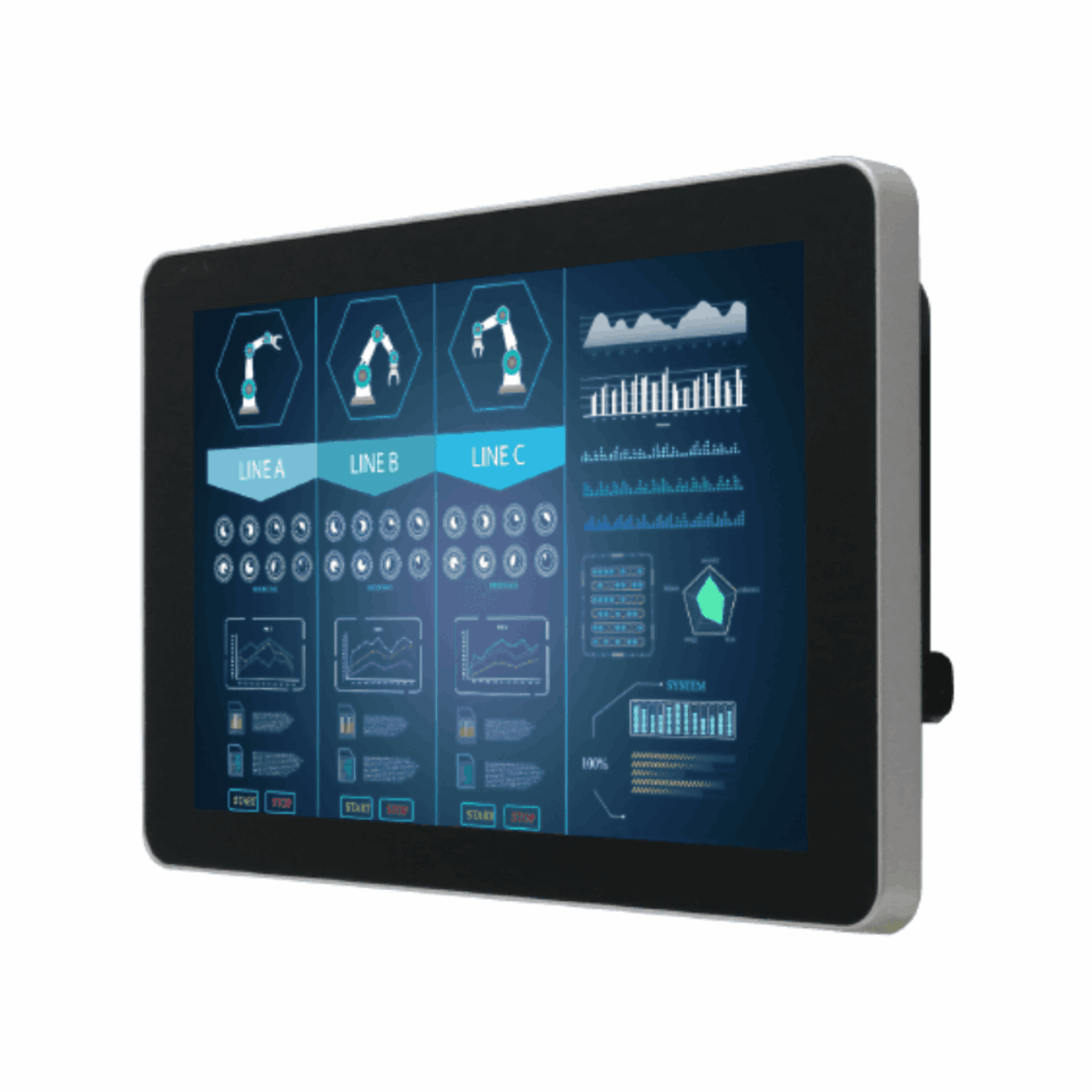

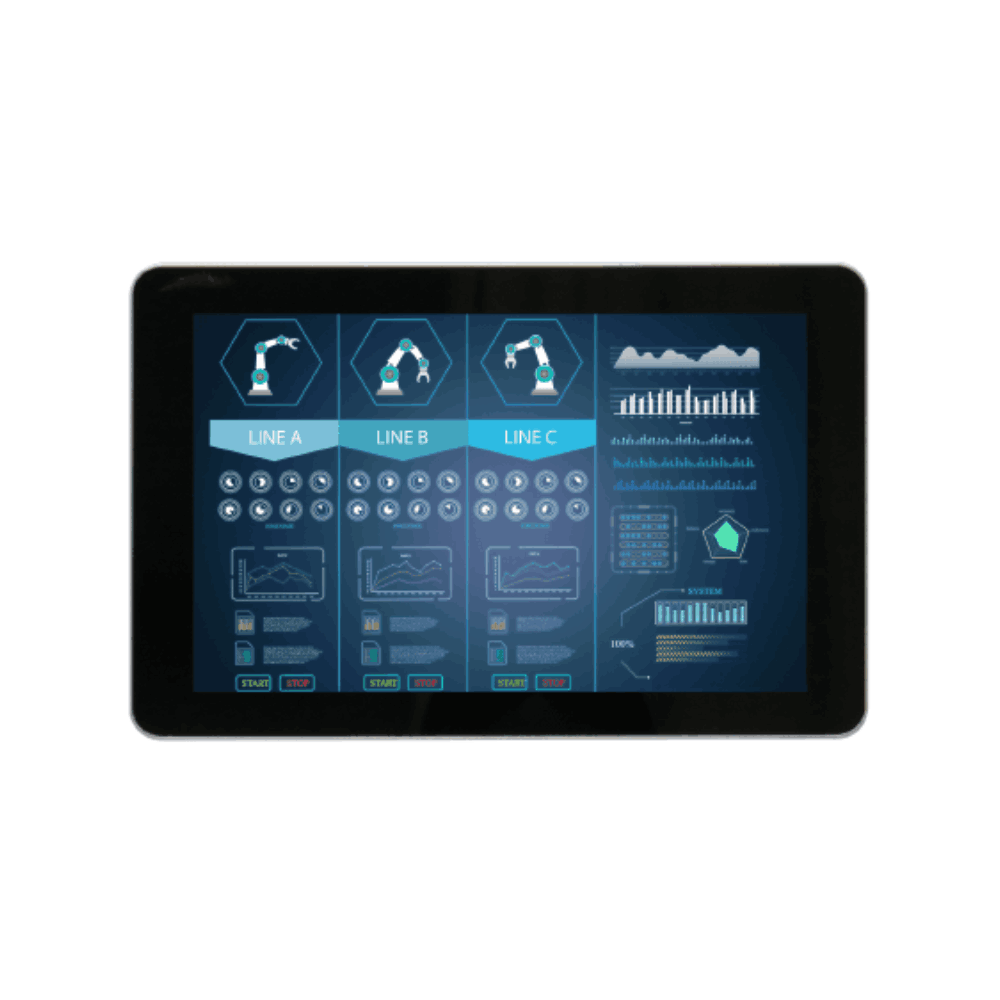

On a machine or a vehicle the screen takes dust, water jets and constant vibration, and the cables are often the weak point. The W10L100-GSH2 is Winmate’s 10.1 inch rugged touch monitor in the G-WIN GS housing: a 1280 x 800 LCD with projected capacitive multi-touch, full IP65 protection and M12 connectors, in a fanless metal housing with an aluminum bezel.
The WXGA panel runs at 350 nits as standard, with a 1000 nit panel as an option for bright areas, and has an 800:1 contrast ratio and viewing angles of 170° horizontally and vertically. The PCAP touch screen connects over USB and supports multi-touch, and protection glass and an anti-glare coating can be specified.

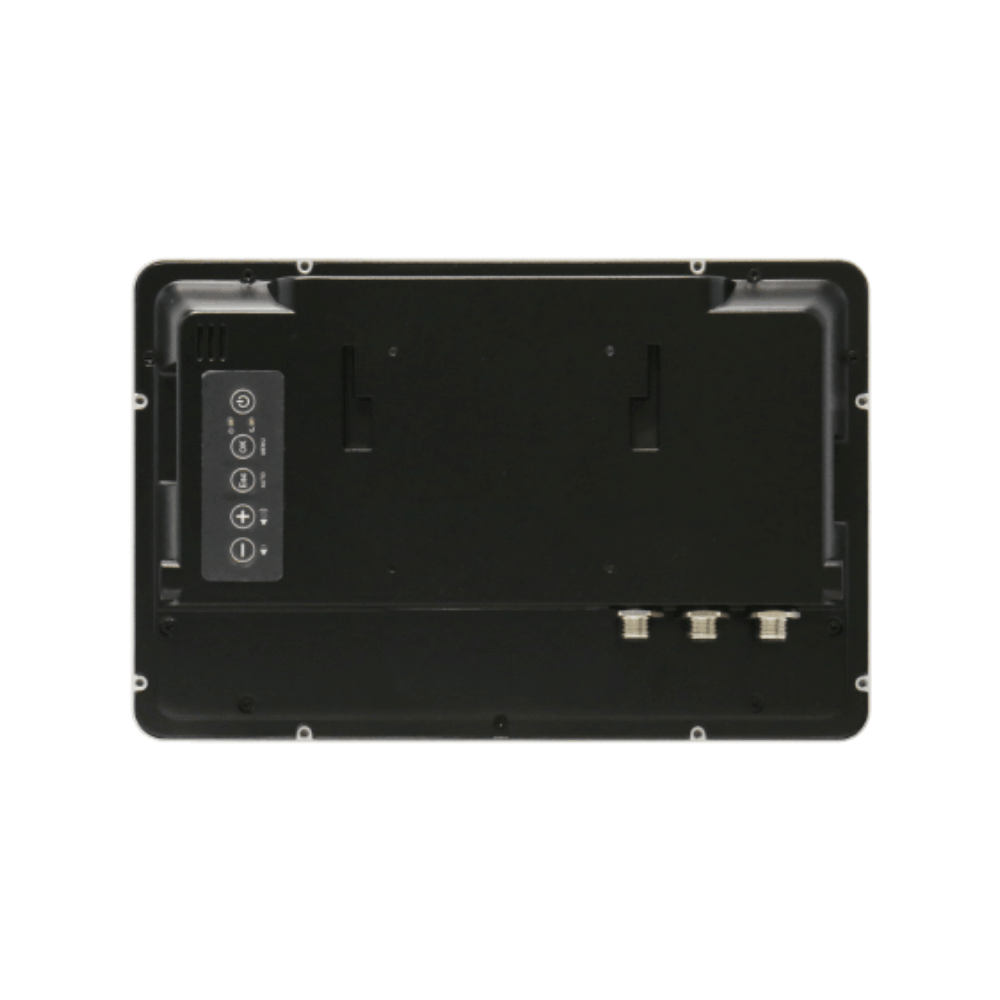

A single VGA input carries video, and power, VGA and touch USB each use an M12 waterproof connector, so the IP65 seal extends to the cabling. A five-key on-screen display menu sits on the rear. The W07L100-GST1 is the 7 inch model in the same housing, and the W10L100-GCH2 offers a front IP65 build with HDMI and DVI options.
The W10L100-GSH2 takes 9 to 36 V DC on an M12 connector and operates from -15 °C to 55 °C at 10 to 95% humidity. Shock is rated at 40 g for 11 ms and vibration at 1.48 to 2.24 g rms from 5 to 500 Hz, and the monitor is compliant with MIL-STD-810F/G for vibration and shock and carries CE and FCC marks. It measures 263.28 x 172 x 40.2 mm and fits a 75 x 75 mm VESA mount or a panel mount.
W10L100-GSH2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10L100-GSH2 |
| Features | Fanless Industrial M12 Connectors Rugged Waterproof |
| Display | |
| Display | 10.1"[5:3, 1280 x 800, WXGA] |
| Display Treatment | Anti-Glare Treatment Protective Glass |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x VGA Input |
| Power | |
| Power Input | 9-36V DC Input [M12] |
| Environmental Conditions | |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Storage Temperature | -30°C to 60°C [-22°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Ingress Protection | IP65 IP65 [Dustproof, Protection against low pressure water jets spraying from any direction] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 263mm x 172mm x 40mm (10.35" x 6.77" x 1.57") |
- W10L100-GSH2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10L100-GSH2 configured for USA machine building and vehicle projects. Within the Winmate range the W07L100-GSO1HB brings the same sealed design to 7 inches at 1000 nits, and the W12L100-VMM9(HB) adds 10 to 60 V DC with ignition control.
Sealed all round the W10L100-GSH2 sits among our rugged monitors, our IP65 monitors and our capacitive touch screen monitors. Where a 10.1 inch screen on a machine or vehicle needs sealed cabling, a wide DC input and PCAP touch, this is the model to specify.
