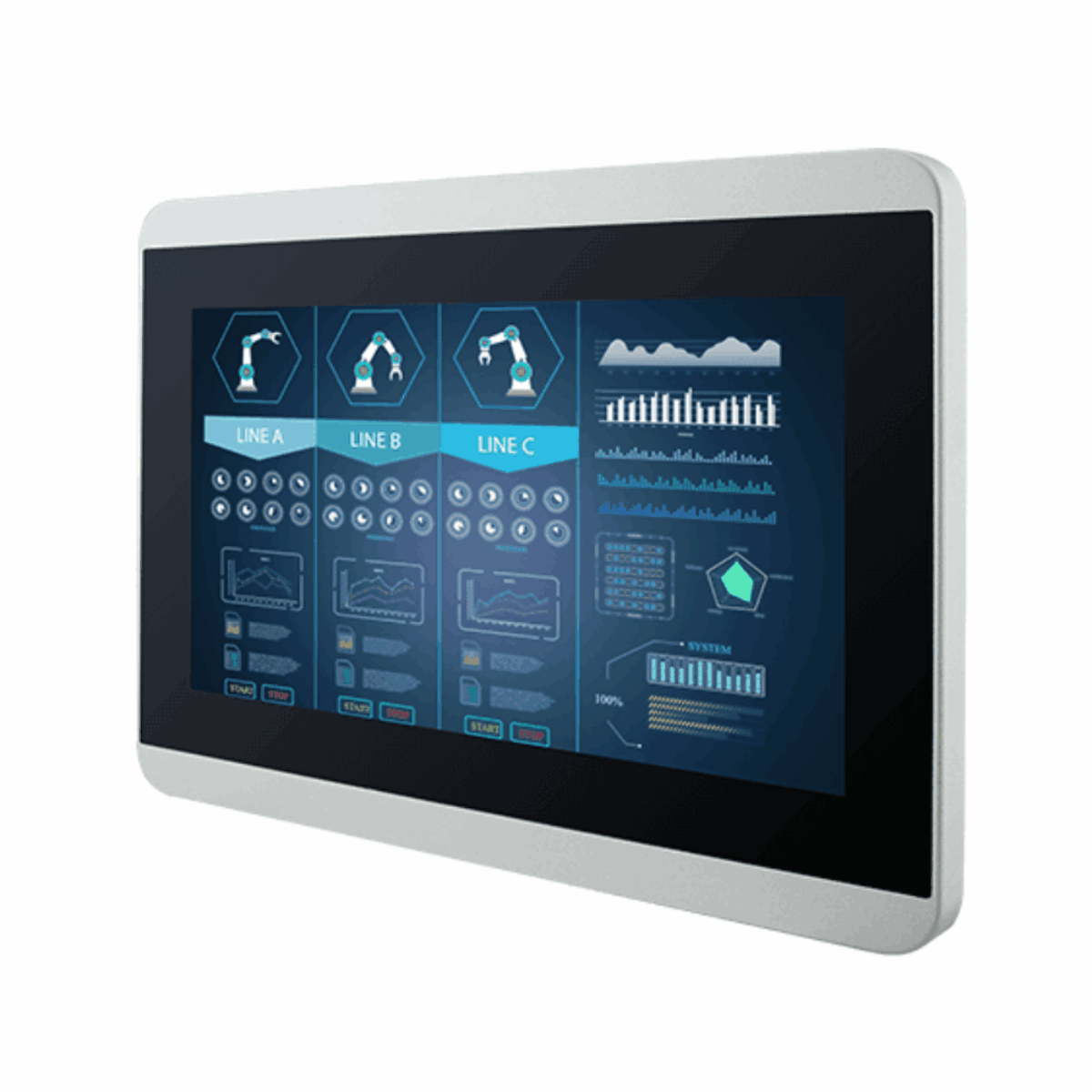

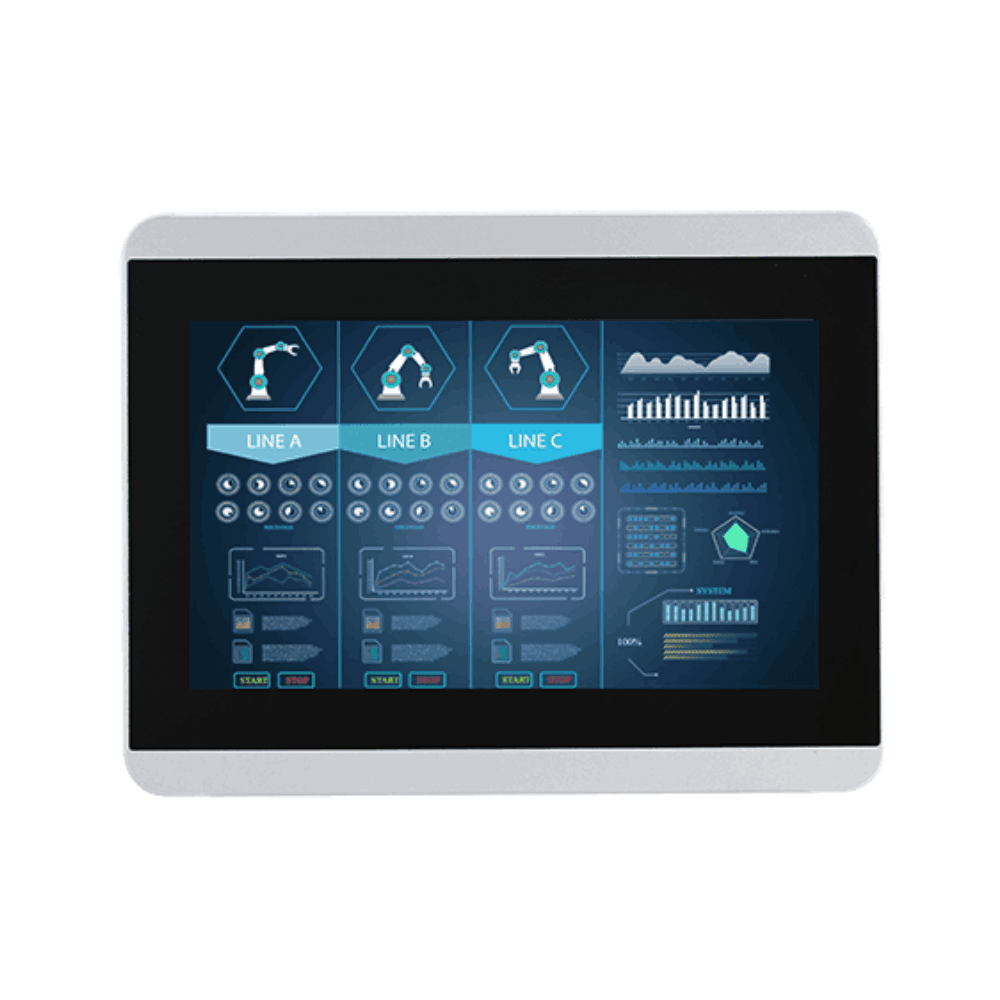

Winmate W07L100-GSO1HB 7″ Rugged IP65 PCAP Touch Monitor with 1000 Nit WSVGA LCD and M12 Connectors
PCAP
High Bright
CE
FCCW07L100-GSO1HB Overview
A small HMI screen on a machine often faces two problems at once: glare from overhead lights and water from cleaning. The W07L100-GSO1HB is Winmate’s answer in the G-WIN GS housing: a 7 inch rugged touch monitor with a 1000 nit LCD, projected capacitive multi-touch and full IP65 protection against dust and water jets, with every connection on a sealed M12 connector.
The panel is a 1024 x 600 WSVGA LCD at 1000 nits with a 700:1 contrast ratio and 16.2 million colors, viewable across 150° horizontally and 145° vertically. That brightness keeps status screens and alarms readable in bright plant areas. The PCAP touch screen connects over USB and supports multi-touch gestures, and a protection glass is available as an option.
Video comes in on a single VGA input, and power, VGA and touch USB all use M12 waterproof connectors, so the cabling keeps the IP65 seal intact. A five-key on-screen display menu sits on the rear. For indoor lighting, the W07L100-GST1 is the same housing with a 320 nit panel, and the W07L100-PCO1OD offers 1000 nits with HDMI and DVI options in a front IP65 chassis.
The W07L100-GSO1HB runs on 12 V DC and operates from -15 °C to 55 °C at 10 to 95% humidity. It is rated for 40 g shock for 11 ms and 1.48 to 2.24 g rms vibration from 5 to 500 Hz, is compliant with MIL-STD-810F/G for vibration and shock, and carries CE and FCC marks. The fanless metal housing with an aluminum bezel measures 189.4 x 145.4 x 39.8 mm, weighs 1.13 kg and fits a 75 x 75 mm VESA mount or a panel mount.
W07L100-GSO1HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W07L100-GSO1HB |
| Features | Fanless Industrial M12 Connectors Rugged Waterproof |
| Display | |
| Display | 7"[17:10, 1024 x 600, WSVGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 150° Horizontal, 145° Vertical | |
| Aspect Ratio | 17:10 |
| Format | Widescreen |
| Contrast | 700:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x VGA Input |
| Power | |
| Power Input | 12V DC [M12] |
| Environmental Conditions | |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Storage Temperature | -30°C to 60°C [-22°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Ingress Protection | IP65 IP65 [Dustproof, Protection against low pressure water jets spraying from any direction] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 189mm x 145mm x 40mm (7.44" x 5.71" x 1.57") |
- W07L100-GSO1HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W07L100-GSO1HB configured for USA machine building and process projects. Within the Winmate range the W10L100-GSH2 offers the same full IP65 M12 design at 10.1 inches, and the W07L100-GST1 is the 320 nit version for indoor lighting.
With full IP65 sealing the W07L100-GSO1HB sits among our fully sealed IP65 monitors, our high brightness displays and our 7 inch industrial monitors. Where a small screen must stay readable in bright light and stand up to dust and water jets, this is the model to specify.
