Winmate W07L100-GST1 7″ Rugged IP65 PCAP Touch Monitor with WSVGA LCD and M12 Connectors
PCAP
Fanless
CE
FCCW07L100-GST1 Overview

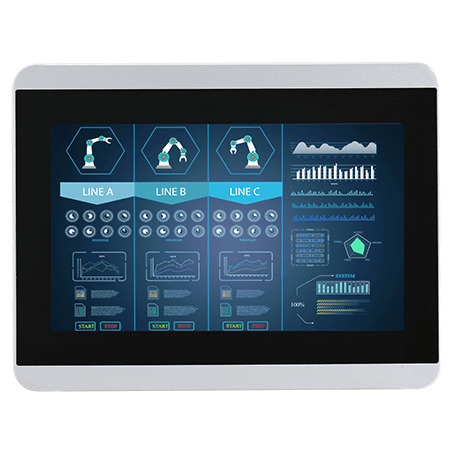

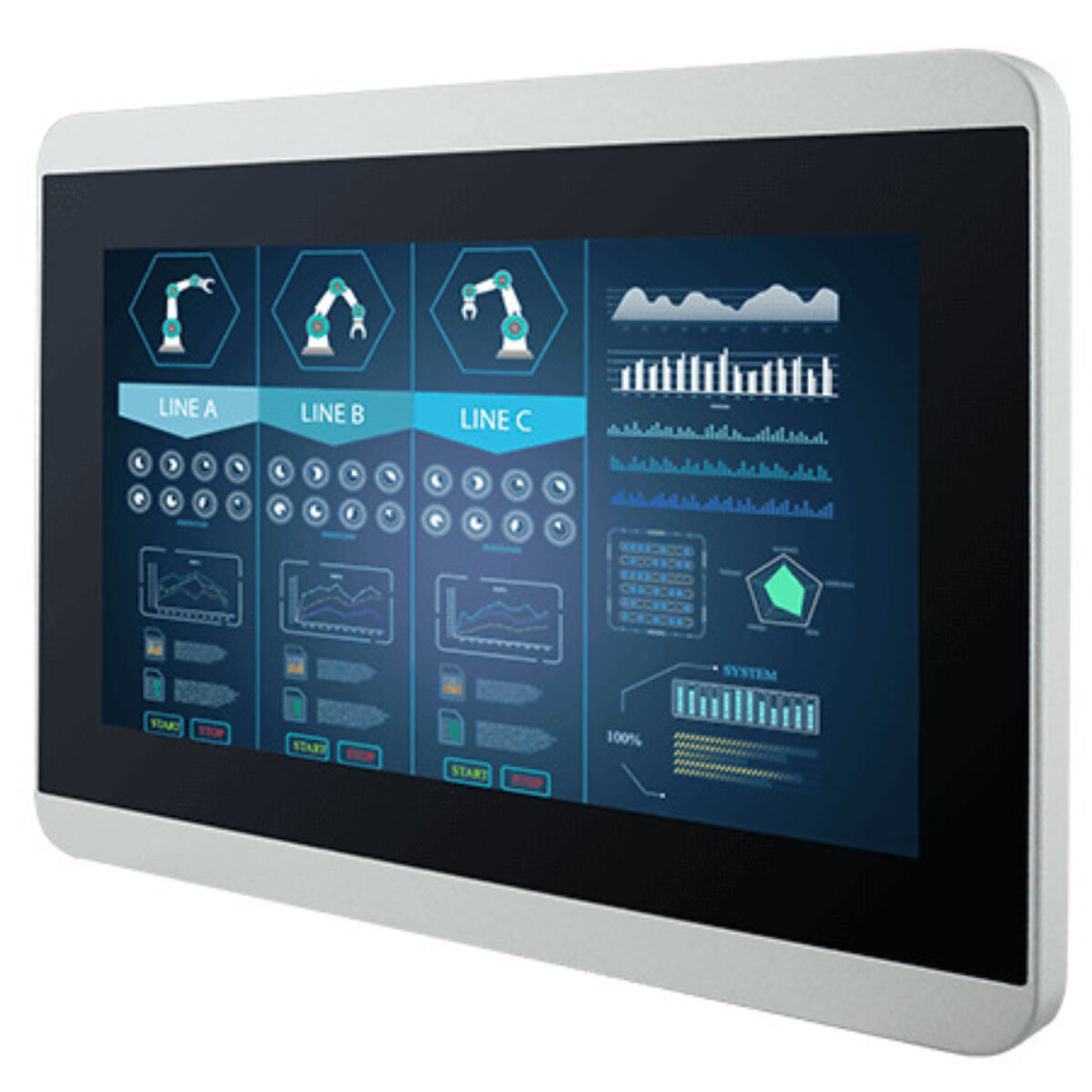

Machine builders fitting a small operator screen need it to shrug off dust, water jets and vibration without a separate enclosure. The W07L100-GST1 is Winmate’s 7 inch rugged touch monitor in the G-WIN GS housing: a 1024 x 600 LCD with projected capacitive multi-touch, full IP65 protection and M12 connectors, in a fanless metal housing with an aluminum bezel.
The WSVGA panel runs at 320 nits with a 500:1 contrast ratio and 16.7 million colors, with viewing angles of 150° horizontally and 145° vertically, which suits indoor control screens and machine HMIs. The PCAP touch screen connects over USB and handles multi-touch gestures, and a protection glass can be specified as an option.
A single VGA input takes video from the controller or industrial PC, and power, VGA and touch USB each use an M12 waterproof connector, so the IP65 seal extends to the cabling. A built-in speaker and a five-key on-screen display menu complete the I/O. Where the screen faces bright light, the W07L100-GSO1HB is the 1000 nit version of the same housing.
The W07L100-GST1 runs on 12 V DC and operates from -15 °C to 55 °C at 10 to 95% humidity, with storage from -30 °C to 60 °C. Shock is rated at 40 g for 11 ms and vibration at 1.48 to 2.24 g rms from 5 to 500 Hz, and the monitor is compliant with MIL-STD-810F/G for vibration and shock and carries CE and FCC marks. It measures 189.4 x 145.4 x 39.8 mm and fits a 75 x 75 mm VESA mount or a panel mount.
W07L100-GST1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W07L100-GST1 |
| Features | Fanless Industrial M12 Connectors Waterproof |
| Display | |
| Display | 7"[17:10, 1024 x 600, WSVGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Projective Capacitive Touch |
| Brightness | 320 Nits |
| Viewing Angle | Wide Viewing Angle |
| 150° Horizontal, 145° Vertical | |
| Aspect Ratio | 17:10 |
| Format | Widescreen |
| Contrast | 500:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x VGA Input |
| Power | |
| Power Input | 12V DC [M12] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Storage Temperature | -30°C to 60°C [-22°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Ingress Protection | IP65 IP65 [Dustproof, Protection against low pressure water jets spraying from any direction] |
| Shock | MIL-STD-810G, Method 514.6 |
| Vibration | MIL-STD-810G, Method 514.6 |
| Certification | CE FCC MIL-STD-810 |
| Mechanical Properties | |
| Dimensions | 190mm x 146mm x 40mm (7.48" x 5.75" x 1.57") |
- W07L100-GST1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W07L100-GST1 configured for USA machine building projects. Within the Winmate range the W07L100-GSO1HB adds a 1000 nit panel in the same housing, and the W10L100-GSH2 scales the design to 10.1 inches with 9 to 36 V DC input.
As a fully sealed touch screen the W07L100-GST1 sits among our waterproof monitors, our capacitive touch monitors and our 7 inch touch screen monitors. Where a compact machine panel needs IP65 all round and sealed cabling, this is the model to specify.
