Winmate W07L100-PCO1OD 7″ Sunlight Readable PCAP Touch Monitor with 1000 Nit WSVGA LCD and Front IP65
PCAP
High Bright
Extended Temp
Front IP65
CE
FCCW07L100-PCO1OD Overview

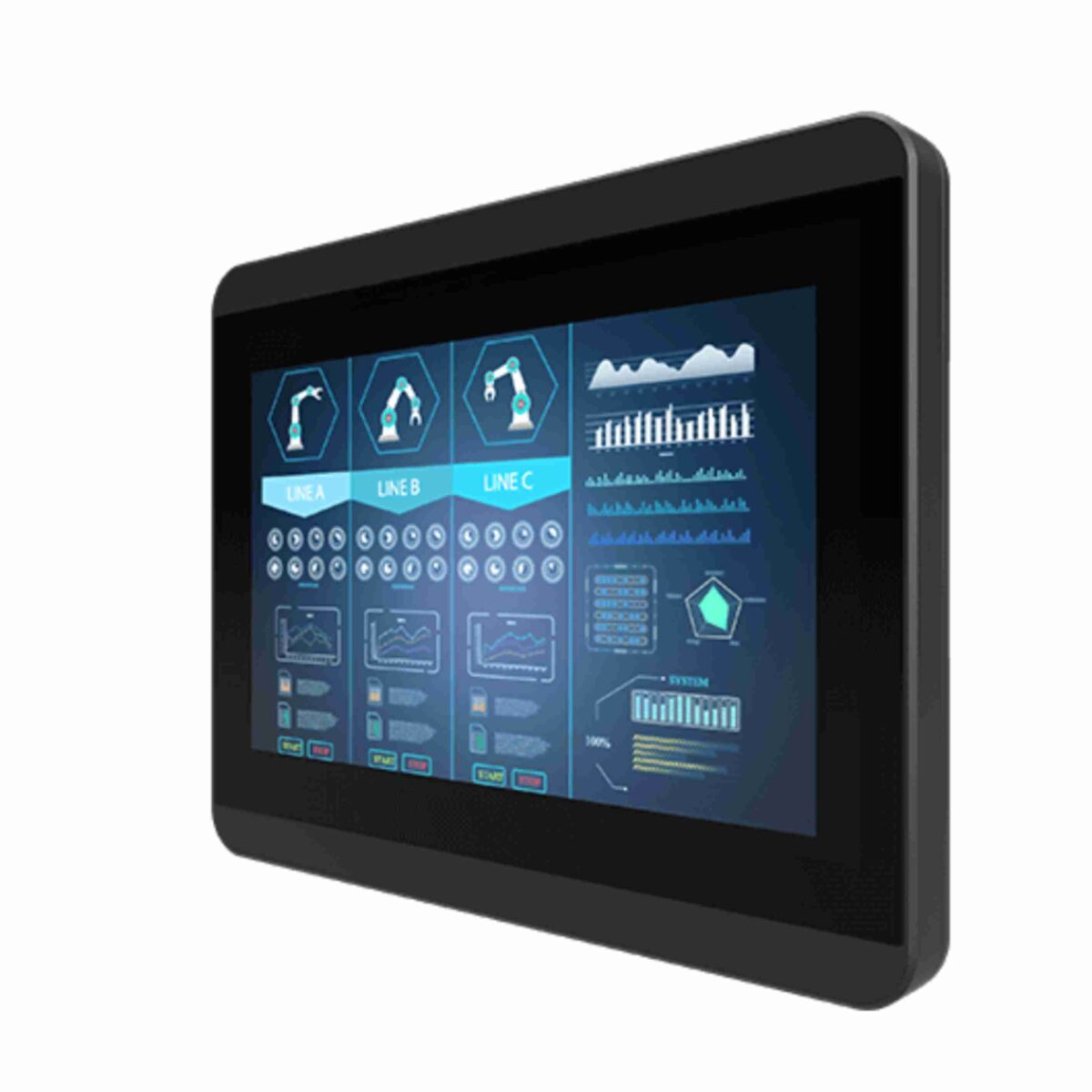

Screens fitted outdoors fail in two ways: they wash out in sunlight and they struggle on cold mornings or hot afternoons. The W07L100-PCO1OD is Winmate’s 7 inch sunlight readable chassis monitor for those sites, pairing a 1000 nit LCD and projected capacitive multi-touch with a front IP65 rating and an operating range of -10 °C to 60 °C.

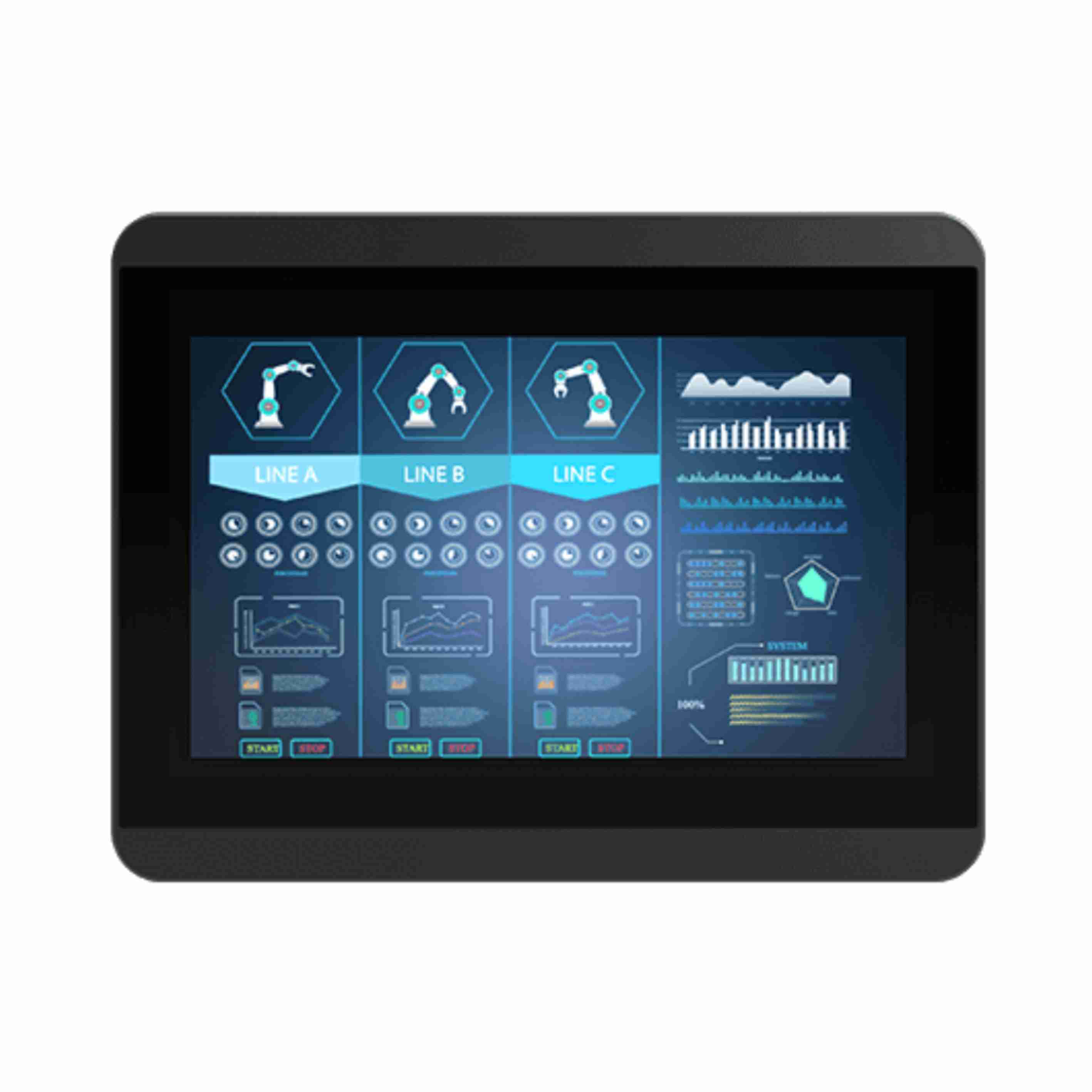

The 1024 x 600 WSVGA panel has a 700:1 contrast ratio and viewing angles of 150° horizontally and 145° vertically. At 1000 nits it stays readable in daylight, and Winmate offers an optional UV film for solar radiation protection where the screen faces direct sun. The PCAP touch screen connects over USB and supports multi-touch.

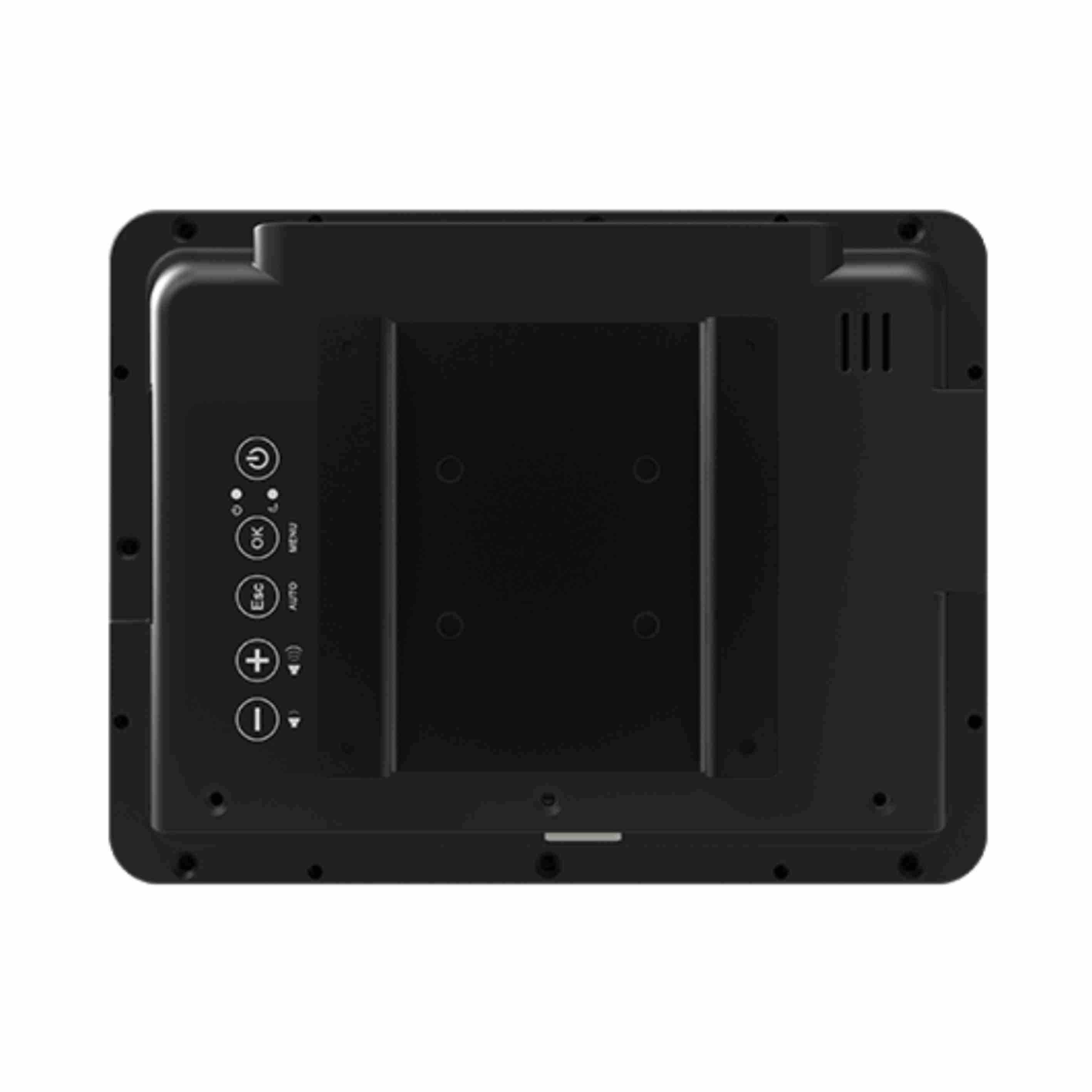

Video arrives on a VGA input, with HDMI or DVI as factory options, and an optional speaker and remote controller are available. A five-key on-screen display menu handles set-up. For a fully sealed housing with M12 connectors, the W07L100-GSO1HB offers the same 1000 nits with full IP65, and the W10L100-GCH2OD is the outdoor build at 10.1 inches.
The W07L100-PCO1OD runs on 12 V DC, with a 100 to 240 V AC adapter supplied, and operates from -10 °C to 60 °C at 10 to 90% humidity, non-condensing. An optional heater extends the lower limit to -25 °C, and storage is rated from -20 °C to 70 °C. The fanless metal chassis measures 189 x 145.4 x 47.8 mm, carries CE and FCC marks and fits a 75 x 75 mm VESA mount or a panel mount. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W07L100-PCO1OD Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W07L100-PCO1OD |
| Features | Fanless Industrial |
| Display | |
| Display | 7"[17:10, 1024 x 600, WSVGA] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 150° Horizontal, 145° Vertical | |
| Aspect Ratio | 17:10 |
| Format | Widescreen |
| Contrast | 700:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 189mm x 145mm x 48mm (7.44" x 5.71" x 1.89") |
- W07L100-PCO1OD Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W07L100-PCO1OD configured for USA outdoor and infrastructure projects. Within the Winmate range the W10L100-GCH2OD brings the same outdoor build to 10.1 inches, and the W07L100-GSO1HB seals every side to IP65 with M12 connectors.
Built for daylight the W07L100-PCO1OD sits among our sunlight readable monitors, our front IP65 monitors and our chassis monitors. Where a small touch screen faces direct sun and a wide temperature swing, this is the model to specify.
