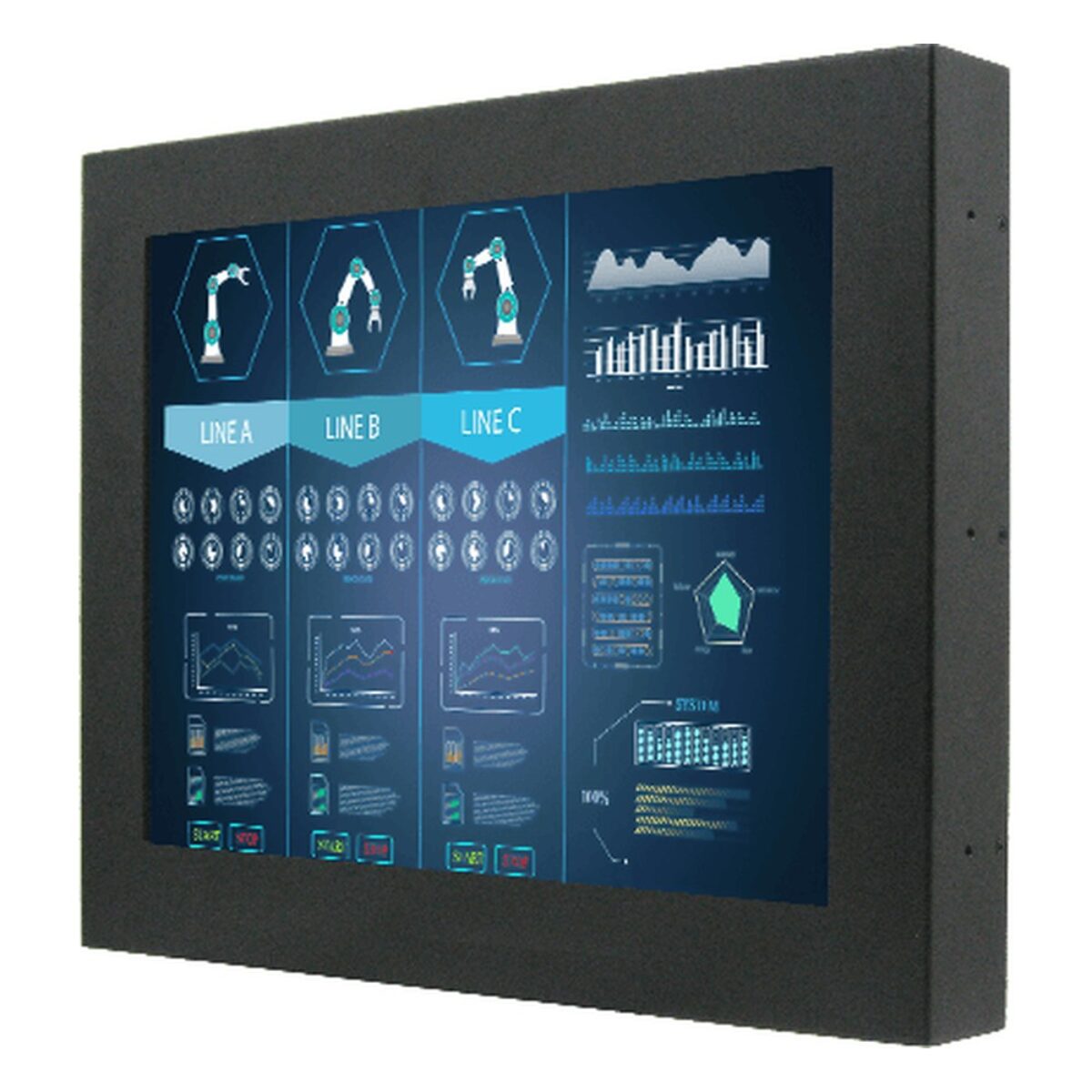

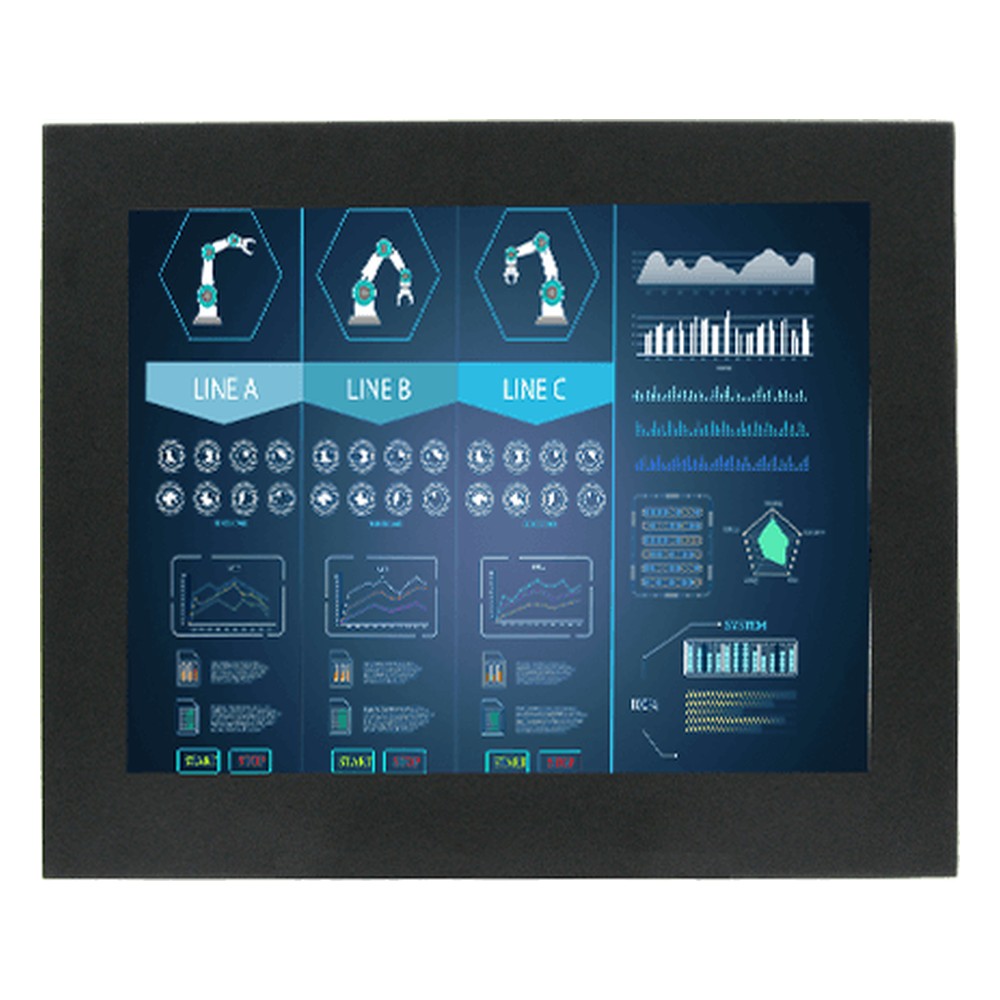

Winmate R15L600-RMC3 15″ Rear Mount Monitor with Resistive Touch and 300 Nits
Resistive
Fanless
CE
FCCR15L600-RMC3 Overview
Where a machine builder fits their own front panel, a rear mount screen keeps the bezel theirs and the computer in the cabinet behind it. The R15L600-RMC3 is Winmate’s 15 inch rear mount monitor for that build, with a 2000:1 XGA panel and resistive touch, and it connects to a separate PC in control systems, kiosks and industrial sites.
The 15″ panel shows 1024 x 768 (XGA) at 300 nits, with 2000:1 contrast and viewing angles of 176 degrees horizontal and 176 degrees vertical. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.
The R15L600-RMC3 connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R15L600-PMC3 is the panel mount version with the same 2000:1 panel, and the R15L100-RMA1 is the 15″ rear mount model with a 350 nit, 800:1 panel.
Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. Winmate designs it to mount from the rear, with VESA and panel mounting listed and VESA screws supplied. It carries CE and FCC marks. We supply the R15L600-RMC3 configured and tested before dispatch, and we can help pair it with the right host computer.
R15L600-RMC3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L600-RMC3 |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 380mm x 311mm x 51mm (14.96" x 12.24" x 2.02") |
| Mounting Options | Rear Mount |
- R15L600-RMC3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L600-RMC3 configured and tested for USA machine building and control system projects. Within the Winmate range the R15L600-PMC3 is the panel mount version, and the R15L600-OFC3 is the open frame model with a 2000:1 XGA panel.
The R15L600-RMC3 sits among our 15 inch industrial monitors, our panel mount monitors and our SAW touch monitors. Where a 15 inch touch screen has to mount behind your own front panel, this is a sensible model to shortlist.
