Winmate R15L600-OFC3 15″ Open Frame Monitor with 2000:1 XGA LCD and Optional Resistive or SAW Touch
Resistive
Fanless
CE
FCCR15L600-OFC3 Overview

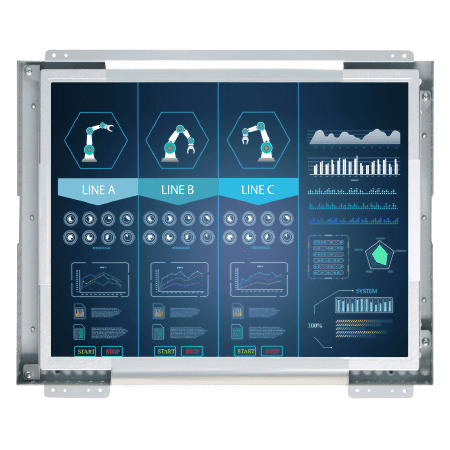

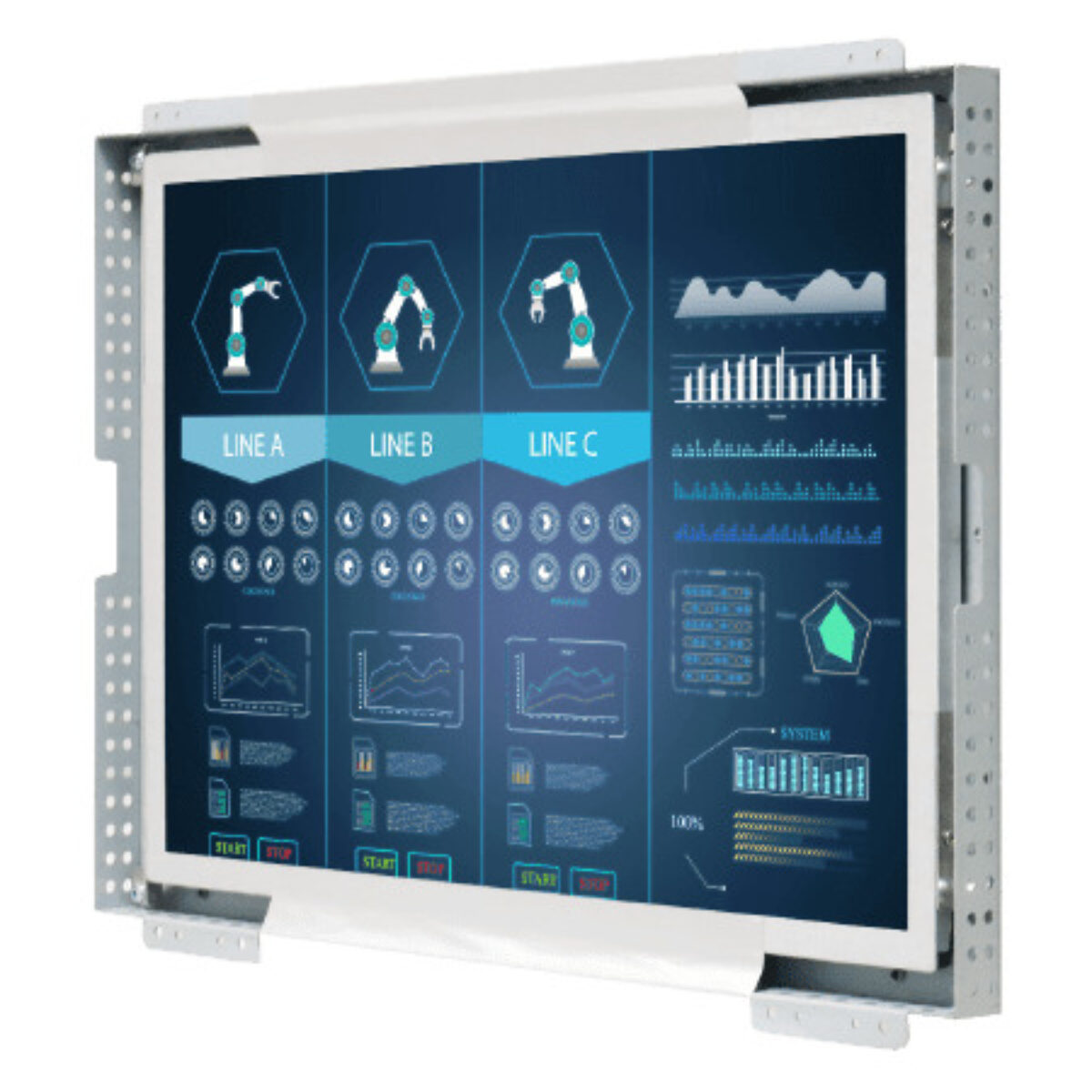

A 15 inch 4:3 screen is still the standard opening in many kiosks, ATMs and control panels, and a like-for-like replacement saves rework on the enclosure and software. The R15L600-OFC3 is Winmate’s 15 inch open frame monitor for those builds: a 1024 x 768 XGA display at 300 nits with a 2000:1 contrast ratio, fitted from behind with VESA mounting.
The high contrast ratio keeps dark backgrounds deep and text crisp, and 176° viewing angles in both planes suit users approaching from the side. The panel shows 16.2 million colors. Touch is chosen at order: resistive touch for gloved or stylus input, SAW touch for a clear glass surface that responds to a finger, or protection glass alone for a display-only screen.
Video comes in over one VGA input, with HDMI and DVI inputs as options, so the monitor pairs with kiosk PCs, PLCs and controllers. One USB port serves the touch screen, a five-key OSD panel handles settings, and an optional 3.5 mm audio line-in drives two optional speakers. The R15L600-RKC3 puts the same panel in a rack mount chassis, and the R15L100-OFC3HB is a sunlight readable 15 inch open frame model.

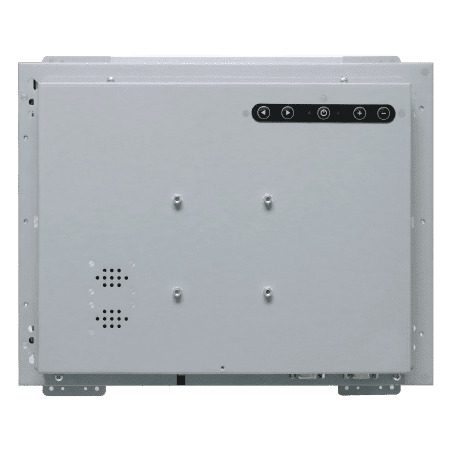

Power is 12 V DC, with a 100 to 240 V AC adapter supplied. The R15L600-OFC3 operates from 0 to 50 °C at 10 to 90% non-condensing humidity and stores from -10 to 60 °C. It mounts on 75 x 75 mm VESA holes; confirm the frame dimensions against the drawing when designing the cut-out. Winmate names industrial visualization, control rooms, equipment monitoring, ATMs, vending machines, casino monitors, airport information displays and mall kiosks as target applications.
R15L600-OFC3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L600-OFC3 |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
- R15L600-OFC3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L600-OFC3 configured for USA kiosk integrators and machine builders. Within the Winmate range the R15L600-RKC3 puts the same 15 inch panel in a rack mount chassis, and the R15L100-OFC3HB is a sunlight readable open frame model at the same size.
As a like-for-like kiosk screen the R15L600-OFC3 sits among our 15 inch industrial monitors, our open frame displays and our SAW touch screen monitors. Where a 15 inch 4:3 opening needs a new screen, this is the model to specify.
