Winmate R15L600-RKC3 15″ Rack Mount Monitor with Resistive Touch, 2000:1 XGA LCD and Front Handles

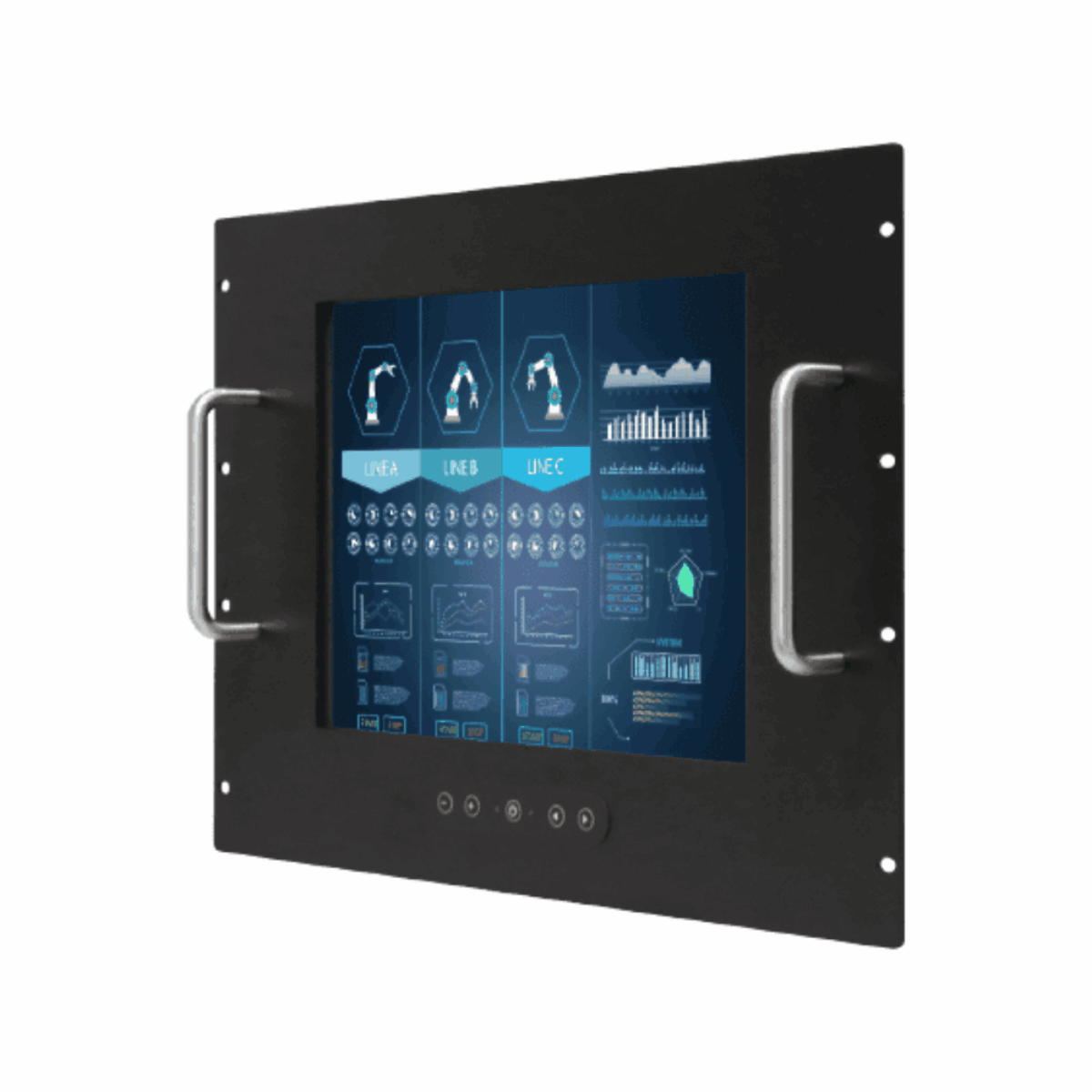

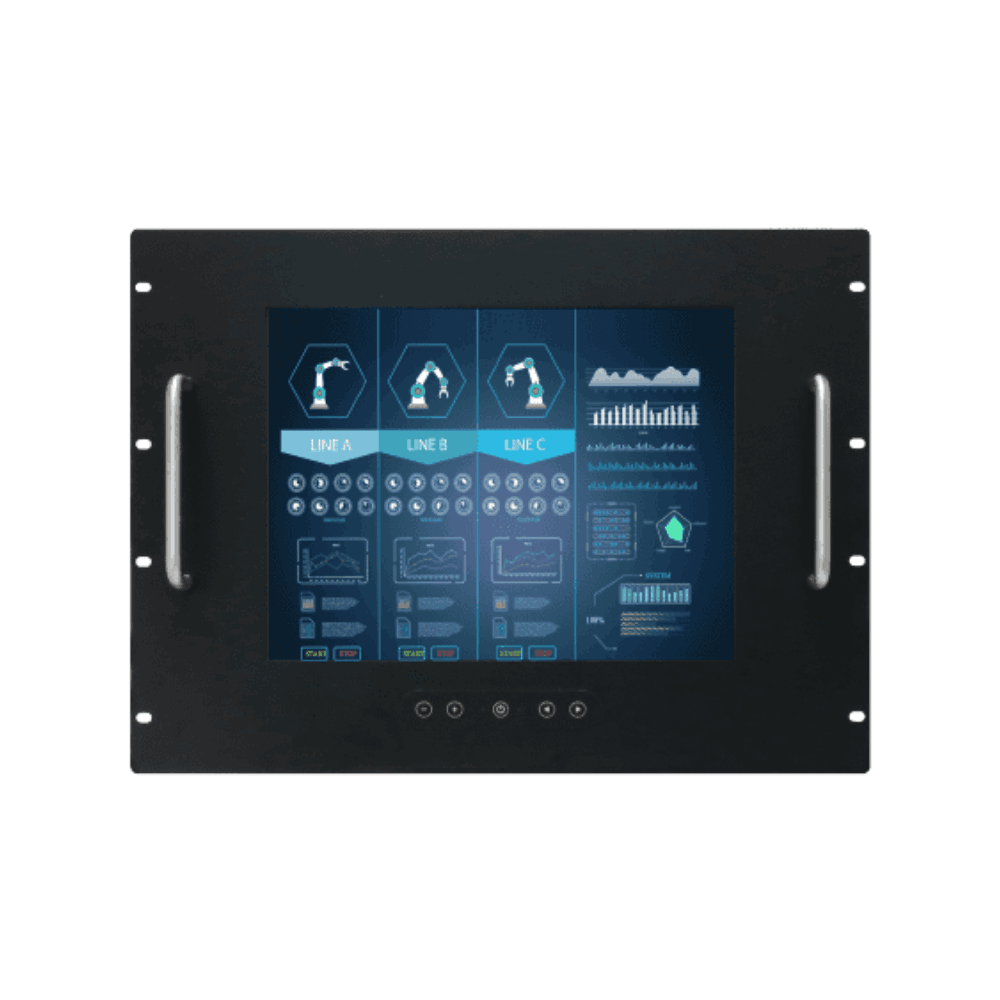

Server rooms and equipment racks often need a local screen for set-up and fault finding, and a monitor that bolts into the rack keeps the desk clear. The R15L600-RKC3 is Winmate’s 15 inch rack mount monitor: a 1024 x 768 XGA display with resistive touch in a metal housing with an aluminum bezel, mounted on a 482 mm wide rack panel with front handles.

The panel delivers 300 nits with a 2000:1 contrast ratio, 16.2 million colors and 176° viewing angles in both planes, so an engineer standing at the rack gets a clear picture. Resistive touch is fitted as standard and works with gloves or a stylus; SAW touch or plain protection glass can be specified instead. A five-key OSD panel on the front handles settings.

Video comes in over one VGA input, with HDMI and DVI inputs as options, so the monitor connects to servers, KVM switches and controllers. One USB port serves the touch screen, and an optional 3.5 mm audio line-in drives two optional speakers. The R15L600-OFC3 offers the same panel as an open frame monitor, and the R15L100-RKA1 is another 15 inch rack mount display in the Winmate range.

Power is 12 V DC with 24 V DC as an option, and a 100 to 240 V AC adapter is supplied. The R15L600-RKC3 is fanless, operates from 0 to 50 °C at 10 to 90% non-condensing humidity and stores from -10 to 60 °C. It measures 482 x 310 x 51.8 mm and also carries 75 x 75 mm VESA holes. Winmate names industrial visualization, control rooms, equipment monitoring and server room applications as target uses.
