Winmate R15L100-RKA1 15″ Rack Mount Resistive Touch Monitor with XGA Panel and VGA Input
Resistive
CE
FCCR15L100-RKA1 Overview

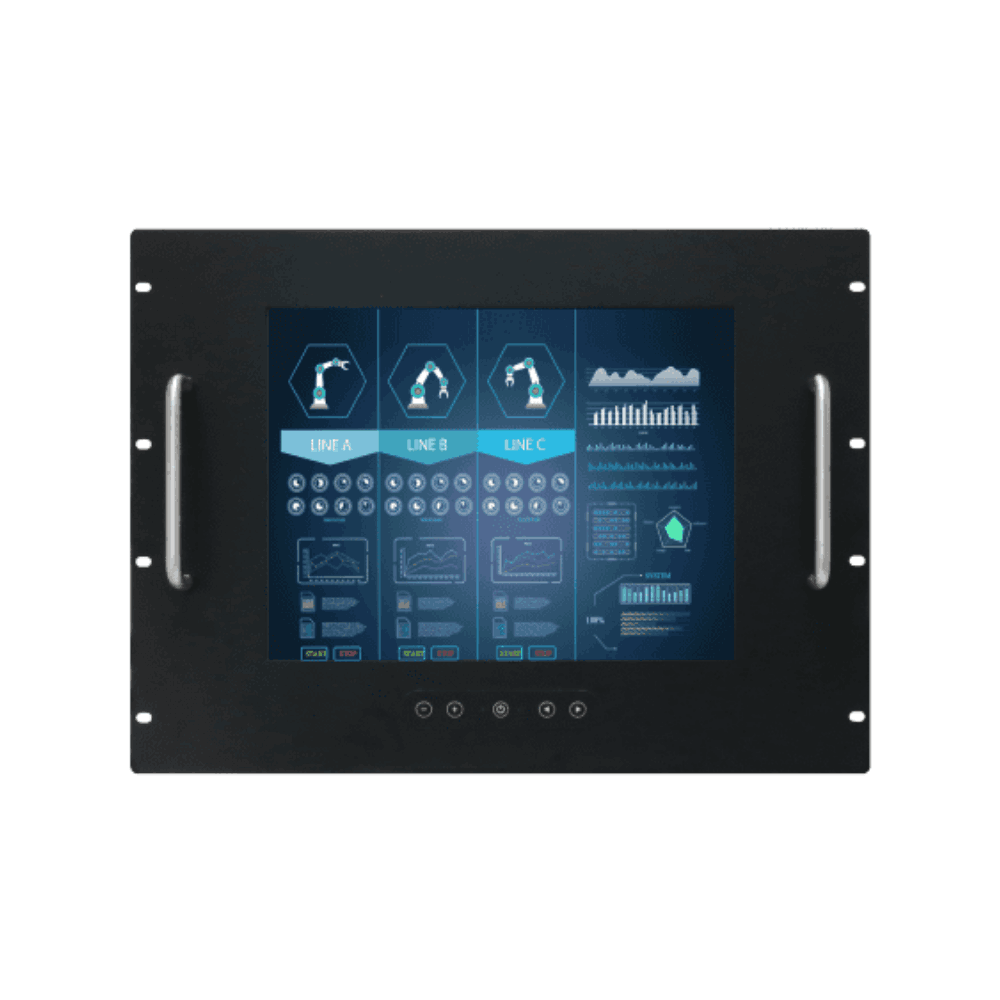

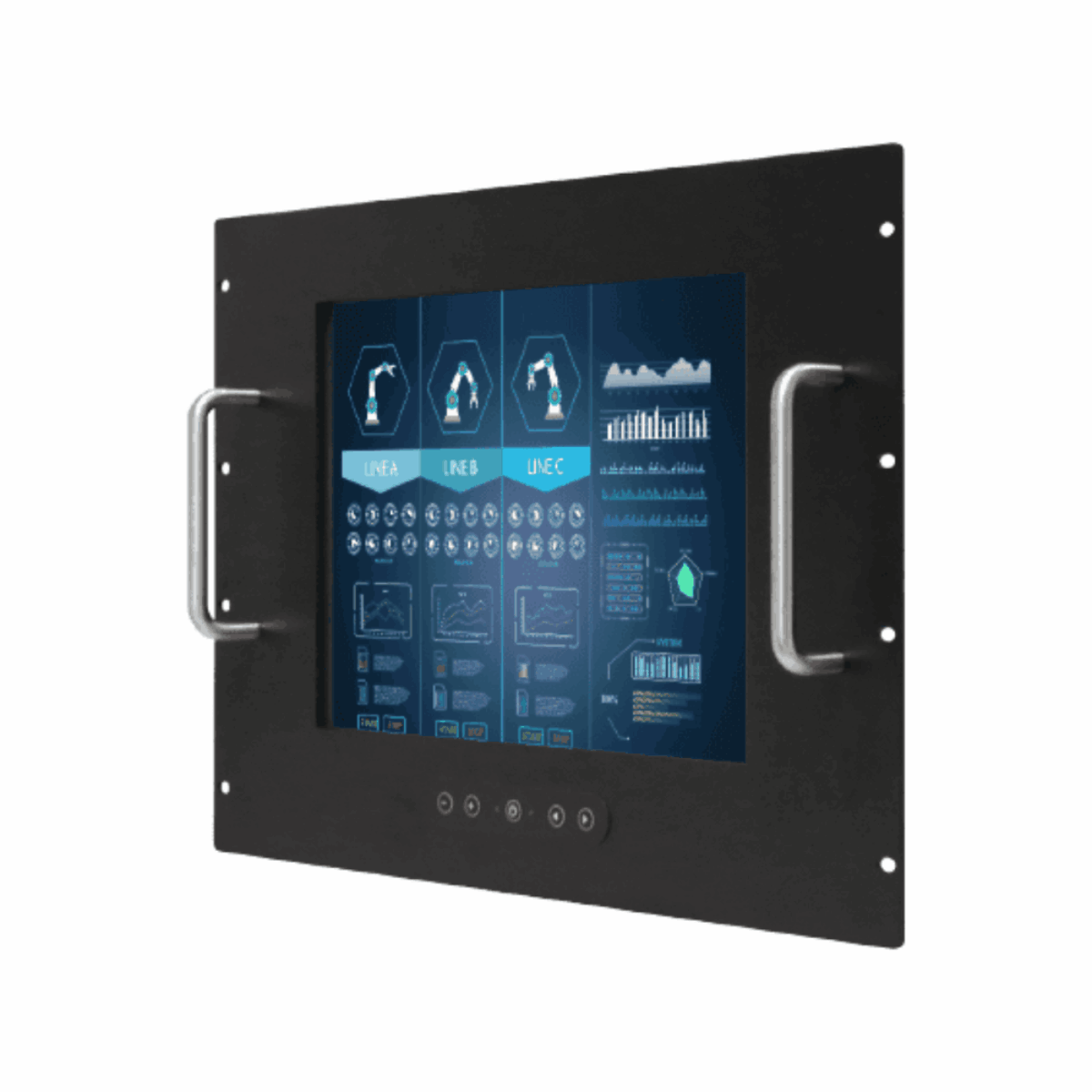

In a control cabinet or test rack, a desk monitor on a shelf wastes rack units and invites knocks. The R15L100-RKA1 is Winmate’s 15 inch rack mount monitor, built into a 482 mm wide rack panel with front handles, resistive touch and a 1024 x 768 panel.
The 4:3 XGA panel delivers 350 nits with an 800:1 contrast ratio and 16.2 million colors over a 304.1 x 228.1 mm active area. Resistive touch comes as standard and works with gloved fingers or a stylus, and Winmate also offers SAW touch or protection glass without touch where the application calls for it. A five-key OSD on the front panel handles set-up. The active area measures 304.1 x 228.1 mm.
Video arrives over VGA as standard, with HDMI or DVI as options, and touch connects over a single USB port. Audio line-in and a pair of speakers are optional. Where a rack display has to meet defense requirements, the R17L100-RKA1ML moves to a 17 inch panel with MIL-STD-810G and MIL-STD-461E compliance, and the R15L100-SDA3 takes SDI and composite camera feeds at the same size.

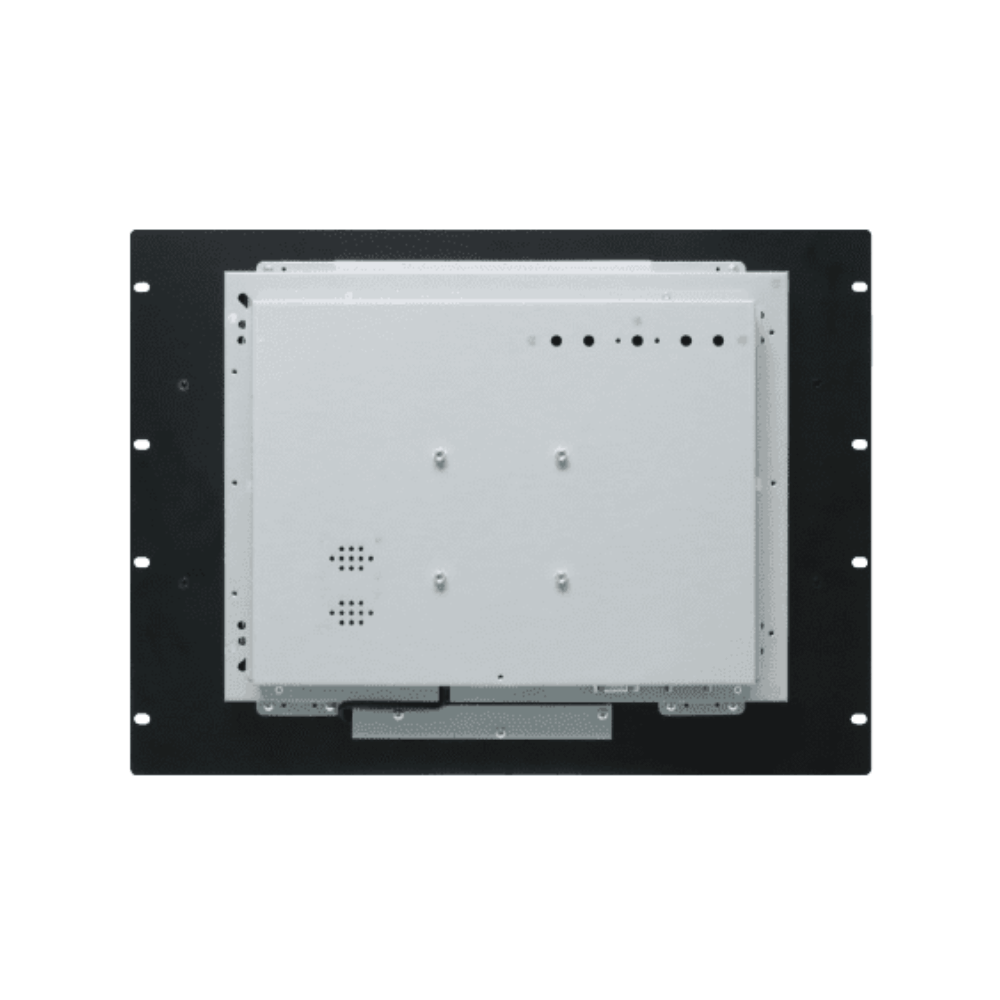

The fanless metal housing with an aluminum bezel measures 482 x 310 x 58.8 mm and mounts in a rack or on 75 x 75 mm VESA. It runs from 12 V DC, with 24 V DC as an option and a 100 to 240 V AC adapter supplied, operates from 0 to 50 °C at 10 to 90% RH non-condensing and carries CE and FCC marks. Winmate names industrial automation and embedded systems as typical uses.
R15L100-RKA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-RKA1 |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 482mm x 310mm x 59mm (18.98" x 12.2" x 2.32") |
- R15L100-RKA1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L100-RKA1 configured for USA control room and test rack projects. Within the Winmate range the R17L100-RKA1ML is the 17 inch rack display built for defense compliance, and the R19L100-RKA3ML takes the same approach at 19 inches.
As a rack build the R15L100-RKA1 sits among our rack mount monitors, our resistive touch screen monitors and our 15 inch touch monitors. Where a touch display must share a rack with the hardware it controls, this is the model to specify.
