Winmate R15L100-SDA3 15″ SDI Chassis Monitor with Bonded PCAP Touch and 500 Nit XGA Panel
Legacy model. See current SDI Monitors.
PCAP
CE
FCCR15L100-SDA3 Overview

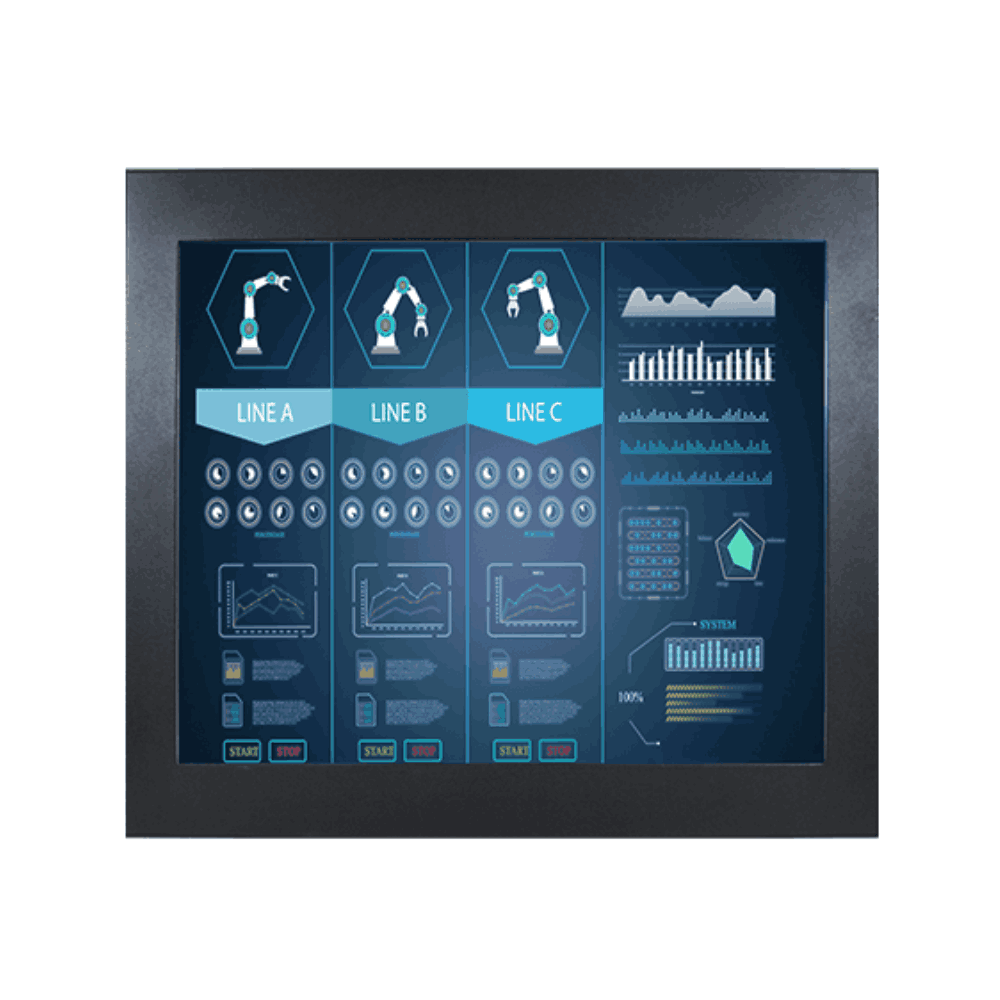

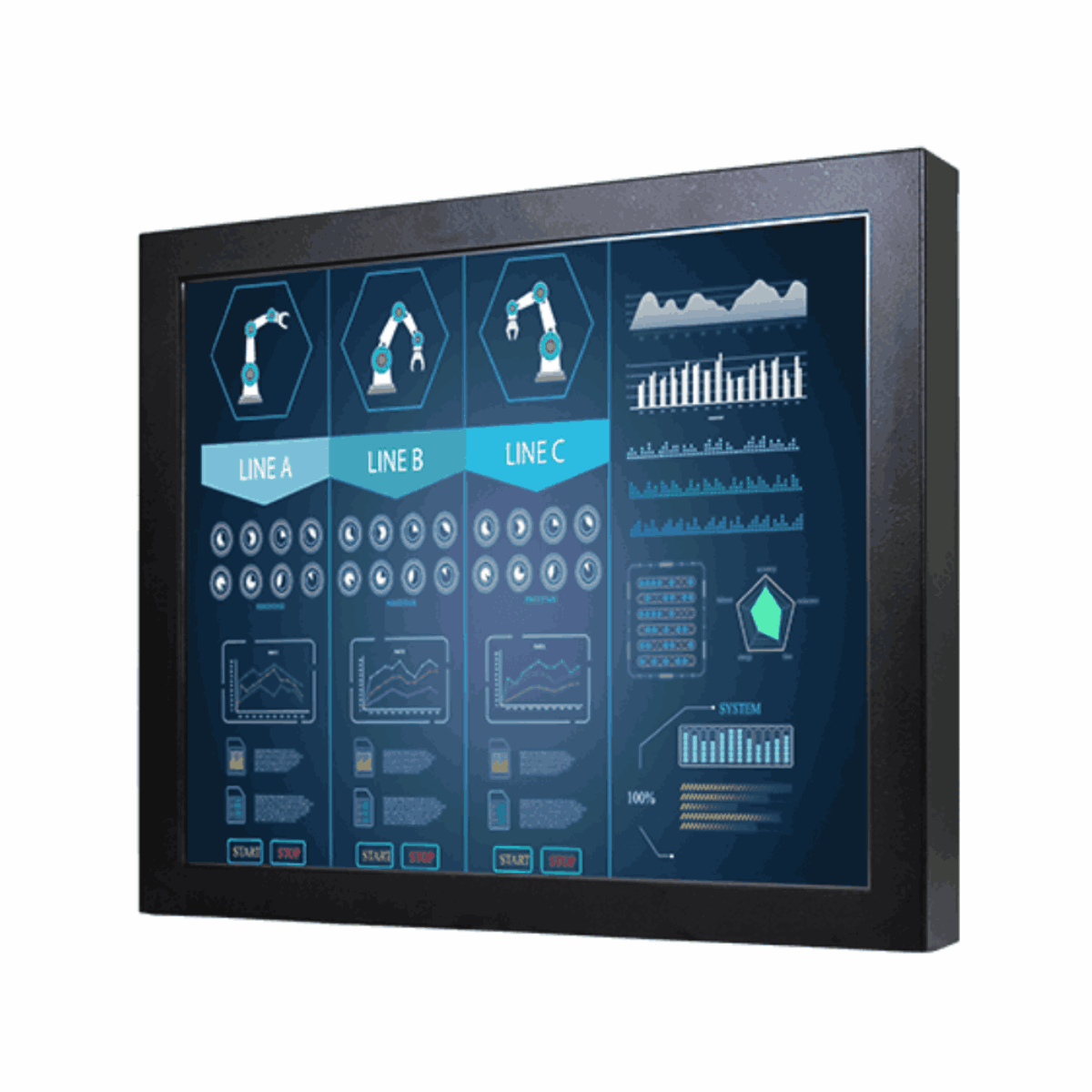

Camera feeds on SDI rarely end at one screen: the same picture often has to reach a recorder or a second operator. The R15L100-SDA3 is Winmate’s 15 inch SDI chassis monitor, with an SDI input and SDI output, composite and VGA inputs, and bonded PCAP touch on a 500 nit panel.
The 4:3 XGA panel runs at 1024 x 768 with 500 nits, a 2500:1 contrast ratio and 16.7 million colors, and viewing angles of 88 degrees in each direction keep the picture consistent for a second viewer. Projected capacitive multi-touch is bonded to the panel and connects over USB, which suits camera management software with on-screen controls. The active area measures 304.1 x 228.1 mm.
Alongside the SDI in and out, the R15L100-SDA3 takes VGA and two composite (CVBS) inputs, with HDMI as an option, so older analog cameras and a PC can share the monitor. An eight-key OSD handles source switching, and two speakers are optional. For a rack installation the R15L100-RKA1 offers a 15 inch rack panel with VGA and resistive touch, and the R15L100-SPC3 moves to a sealed IP65 stainless chassis.
The fanless metal chassis measures 350.2 x 274.2 x 35 mm and mounts on 100 x 100 mm VESA. It runs from 12 V DC, with 24 V DC as an option and a 110 to 240 V AC adapter supplied along with VGA, HDMI, SDI and composite cables. It operates from 0 to 50 °C at 10 to 90% RH non-condensing and carries CE and FCC marks.
R15L100-SDA3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-SDA3 |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2500:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1 x SDI Input 1x VGA Input 2x CVBS [BNC] |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 350mm x 274mm x 35mm (13.78" x 10.79" x 1.38") |
- R15L100-SDA3 Datasheet Download
