Winmate R06L200-RMA1WT 6.5″ Rear Mount Monitor with Wide Temperature and Resistive Touch

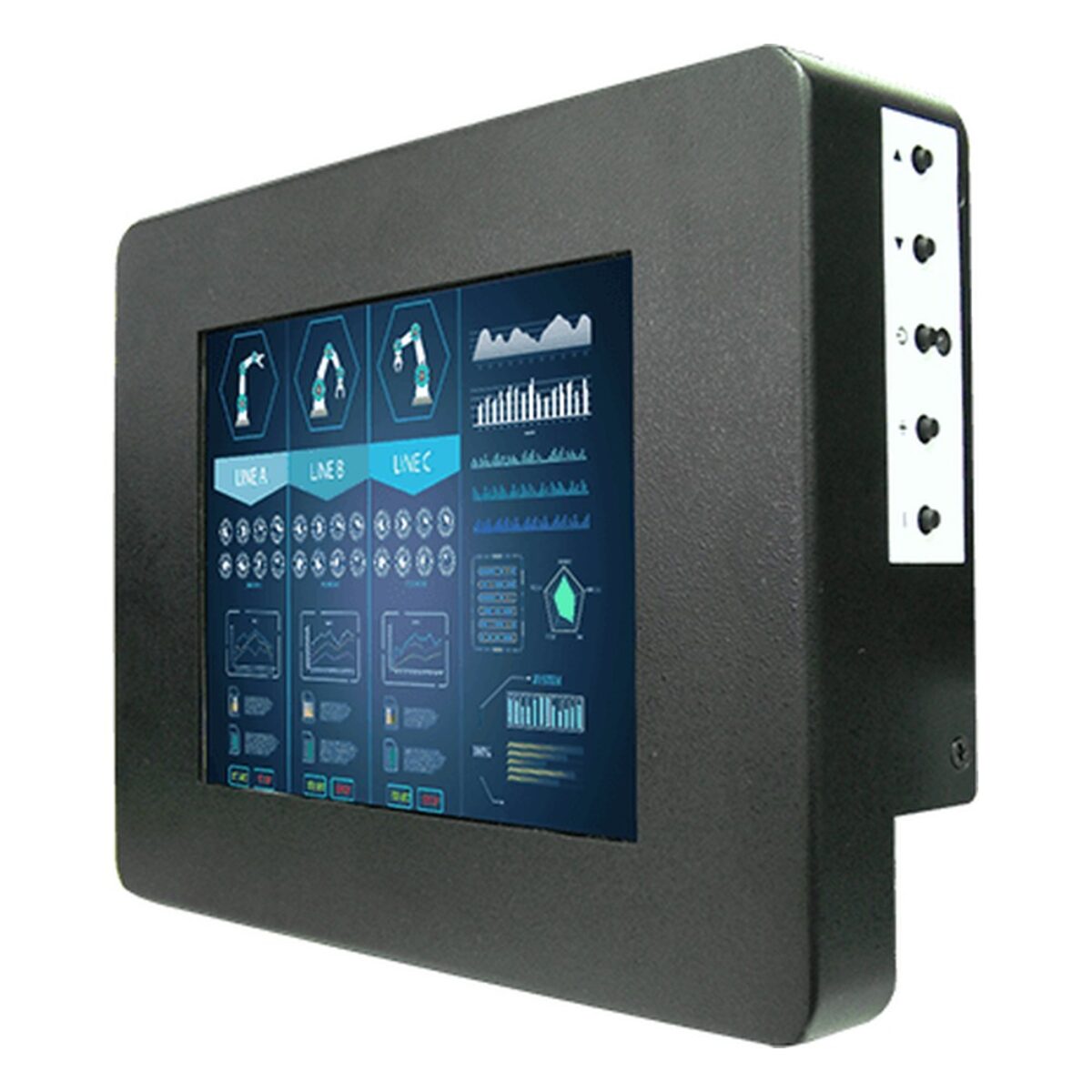

Small status and control screens are often fitted where the temperature is not controlled, from an unheated kiosk to a machine enclosure in a cold store. The R06L200-RMA1WT is Winmate’s 6.5 inch rear mount monitor for those sites, with a -20 °C to 60 °C operating range and a 700 nit panel, and it connects to a separate PC or controller.

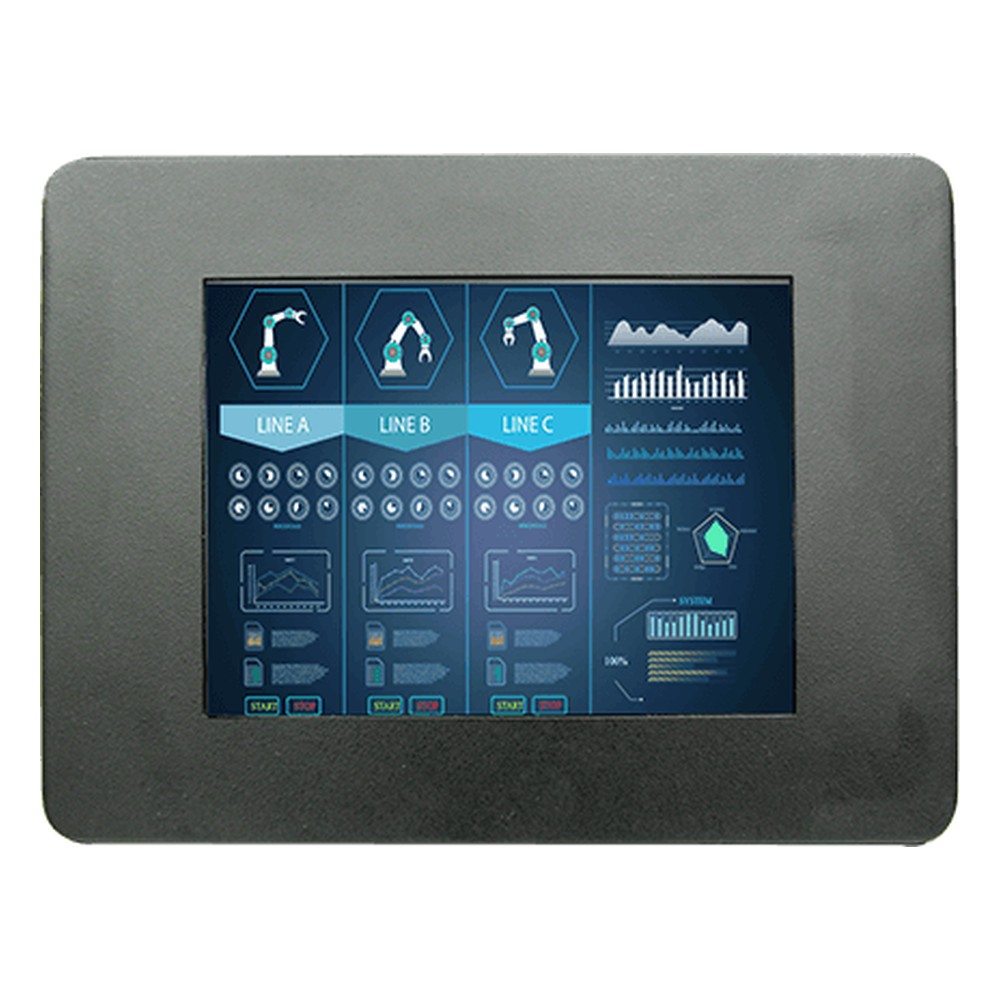

The 6.5″ panel shows 640 x 480 (VGA) at 700 nits, with 600:1 contrast and viewing angles of 160 degrees horizontal and 140 degrees vertical. Resistive touch is an option, as is protection glass without touch, so the screen can be specified for touch or display-only duty. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The R06L200-RMA1WT connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R06L200-OFA1 is the open frame 6.5″ monitor with a 700 nit panel, and the R06L200-PMA1 is the panel mount model with resistive touch.

Power is a 12 V DC input, and an AC adapter and power cord are supplied. The fanless metal housing runs from -20 °C to 60 °C at 30 to 90% humidity, non-condensing, and stores from -25 °C to 65 °C. Winmate designs it to mount from the rear, with VESA and panel mounting listed and VESA screws supplied. It carries CE and FCC marks. We supply the R06L200-RMA1WT configured and tested before dispatch, and we can help pair it with the right host computer.
