Winmate R10L600-RMP1 10.4″ Rear Mount Monitor with Resistive Touch and SVGA LCD
Resistive
Fanless
CE
FCCR10L600-RMP1 Overview

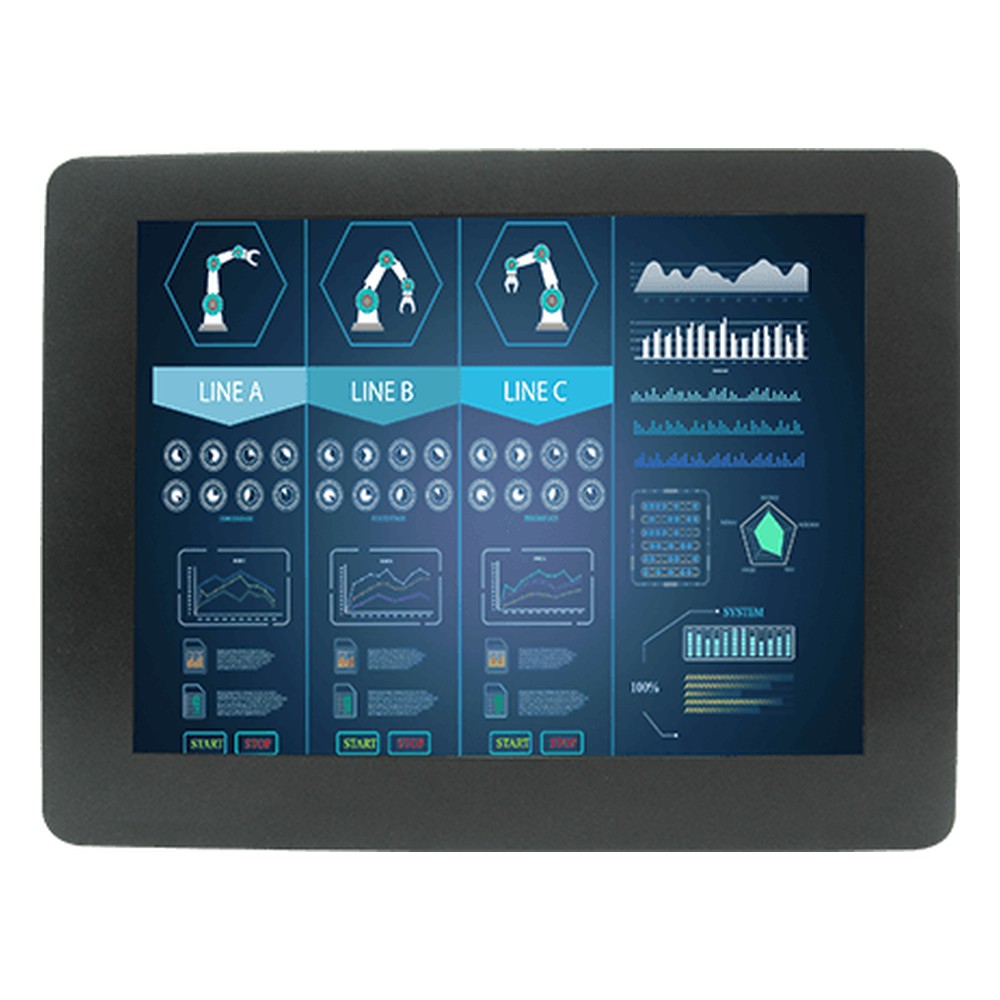

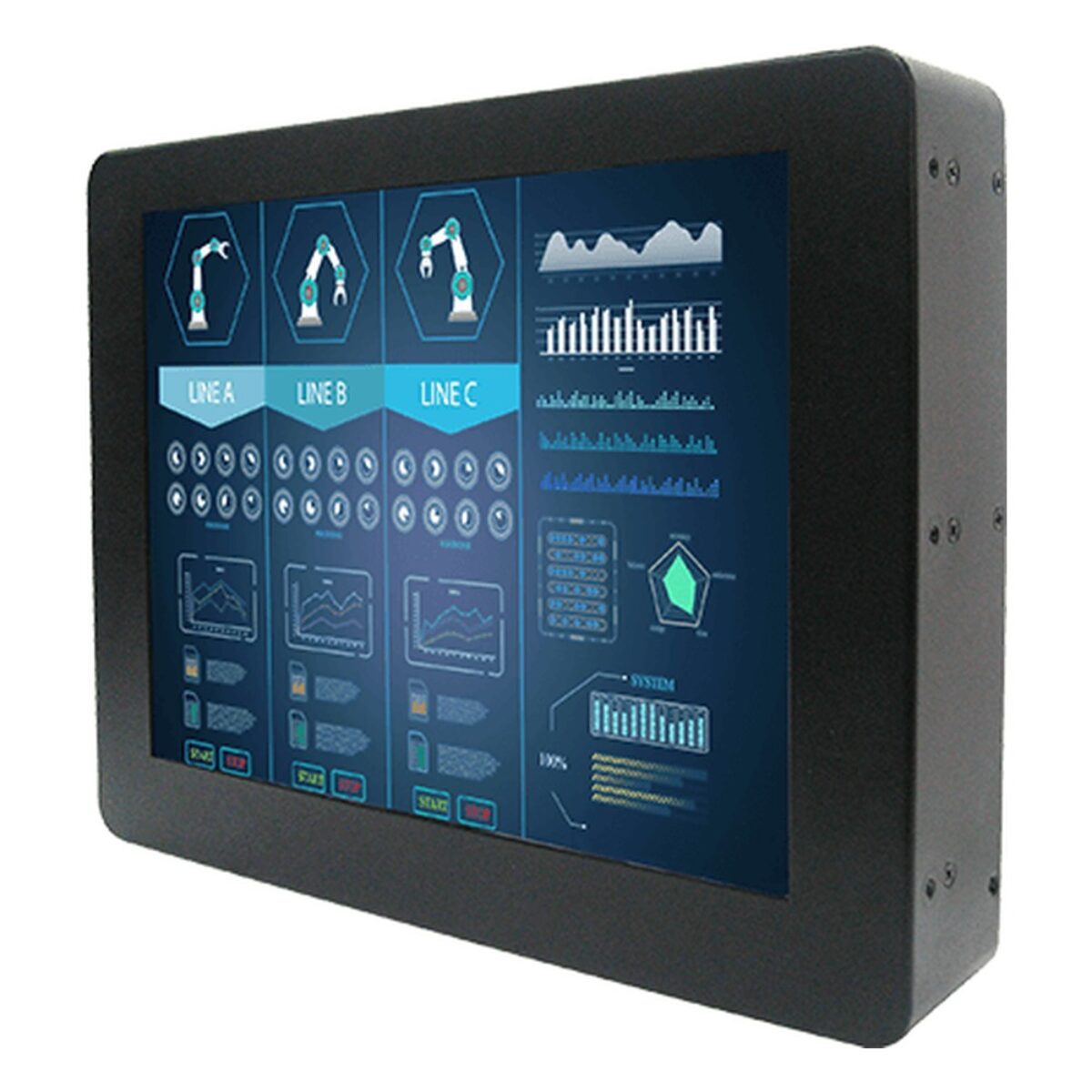

Compact machines and control boxes often run an SVGA HMI on a 10.4 inch screen fitted behind a custom front plate. The R10L600-RMP1 is Winmate’s 10.4 inch rear mount monitor for that job, with a 600 nit panel and resistive touch, and it connects to a separate PC in control systems, kiosks and industrial sites.
The 10.4″ panel shows 800 x 600 (SVGA) at 600 nits, with 400:1 contrast and viewing angles of 140 degrees horizontal and 130 degrees vertical. Resistive touch is fitted as standard, with SAW touch or protection glass without touch as options. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.
The R10L600-RMP1 connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. A USB port carries touch data back to the host. An audio line-in and two speakers are optional. Within the Winmate range the R10L600-PMP1 is the panel mount version with the same 600 nit panel, and the R10L600-PMP1HB is the 10.4″ panel mount model with a 1000 nit panel.
Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. Winmate designs it to mount from the rear, with VESA and panel mounting listed and VESA screws supplied. It carries CE and FCC marks. We supply the R10L600-RMP1 configured and tested before dispatch, and we can help pair it with the right host computer.
R10L600-RMP1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L600-RMP1 |
| Features | Fanless Industrial |
| Display | |
| Display | 10.4"[4:3, 800 x 600, SVGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 600 Nits |
| Viewing Angle | Wide Viewing Angle |
| 140° Horizontal, 130° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 400:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 2.0 Kg (4.4 Lbs) |
| Mounting Options | Rear Mount |
- R10L600-RMP1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R10L600-RMP1 configured and tested for USA machine building and control system projects. Within the Winmate range the R10L600-PMP1 is the panel mount version, and the R10L600-OFP1 is the open frame model with an 800 x 600 panel.
The R10L600-RMP1 sits among our 10 inch industrial monitors, our panel mount monitors and our SAW touch monitors. Where a 10.4 inch SVGA touch screen has to mount behind your own front plate, this is a sensible model to shortlist.
